Abstract

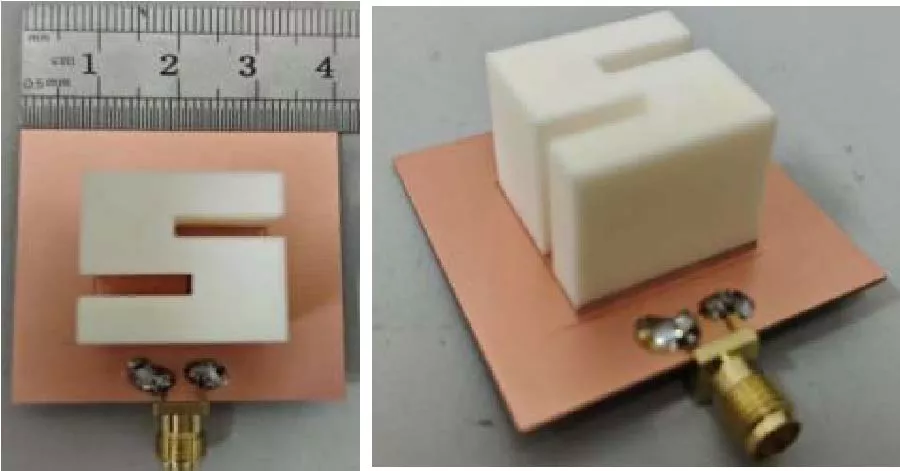

A wideband circularly polarized (CP) dielectric resonator antenna (DRA) with integrated harmonic suppression is proposed. The design transforms the original rectangular coupled slot into a branched configuration to perturb the electric field distribution within the dielectric resonator (DR) and ground plane, thereby obtaining wideband circular polarization characteristic. For harmonic suppression, a double-ended feeding structure integrated with a π-shaped stub and a transverse stub is introduced, generating four radiation nulls. Furthermore, a stepped-impedance feeding line is employed to extend the upper stopband bandwidth. A prototype is fabricated and measured; the experimental results and simulations are generally consistent. The antenna achieves a -10 dB impedance bandwidth of 40.2% (2.86-4.3 GHz), a 3 dB axial ratio bandwidth of 26.13% (3.06-3.98 GHz), an average gain of 5.3 dBi, and harmonic suppression of 2.7f₀ (where f₀ is the center frequency). The out-of-band suppression in both upper and lower stopbands exceeds 15 dB.

1. Liu, Shuxuan, Zhan Wang, and Yuandan Dong, "A compact filtering patch antenna with high suppression level and its CP application," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 4, 769-773, Apr. 2023.
doi:10.1109/lawp.2022.3224845 Google Scholar

2. Shi, Ting, Ruolei Chai, Xiaoming Chen, Mei Li, Tao Zhang, and Ming-Chun Tang, "A low-profile, circularly polarized, metasurface-based antenna with enhanced bandwidth and stable high gain," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 2, 253-257, Feb. 2023.
doi:10.1109/lawp.2022.3208267 Google Scholar

3. Liu, Qianwen, Huan Yan, Lei Zhu, Yiming Tang, Yun-peng Lyu, and Feng Huang, "Compact single-layer wideband CP antenna array with stable radiation and filtering performance using patch resonator and SIW cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 10, 3779-3783, Oct. 2025.
doi:10.1109/lawp.2025.3605013 Google Scholar

4. Chen, Chunling, "An ultraminiature circularly polarized microstrip patch antenna with MIM capacitors," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 6, 1496-1500, Jun. 2023.
doi:10.1109/lawp.2023.3248794 Google Scholar

5. Fang, Chang, Xiao Zhang, Yin Li, Tao Yuan, Zhi Quan, and Sai-Wai Wong, "Dual-circularly polarized reflectarray based on polarization selectivity of single-fed CP antenna element," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 1, 647-652, Jan. 2025.
doi:10.1109/tap.2024.3472465 Google Scholar

6. Chen, Zexian and Jiangwei Sui, "A self-decoupled circularly polarized microstrip antenna via cross-handed current cancellation," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 1, 234-238, Jan. 2026.
doi:10.1109/lawp.2025.3622651 Google Scholar

7. Xu, Tao, Jian-Feng Li, Liang-Hua Ye, Duo-Long Wu, and Gary Zhang, "A wideband circularly polarized filtering patch antenna with strip network," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 12, 2826-2830, Dec. 2023.
doi:10.1109/lawp.2023.3300168 Google Scholar

8. Chu, Chengwei, Yi Li, Jianpeng Wang, Yongxin Guo, and Wen Wu, "A rectangular patch antenna with wideband harmonic suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 12, 3102-3106, Dec. 2023.
doi:10.1109/lawp.2023.3310772 Google Scholar

9. Huang, Ruilin, Yu Luo, Ningning Yan, Wenxing An, Kaixue Ma, and Wei Lin, "A differential multipoint coupled-fed harmonic suppression patch antenna with a single-layer and filter-free structure," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4473-4477, Dec. 2024.
doi:10.1109/lawp.2024.3452173 Google Scholar

10. Chu, Chengwei, Min Wang, Jianpeng Wang, Yongxin Guo, and Wen Wu, "A new design of filtering patch antennas with enhanced bandwidth and harmonic suppression," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 7, 6120-6125, Jul. 2023.
doi:10.1109/tap.2023.3266059 Google Scholar

11. Prasad, Chandra Shekhar, "Wide range of harmonics suppression of a semi-circular patch antenna using shorting vias," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 8, 2173-2176, Aug. 2025.
doi:10.1109/lawp.2025.3557880 Google Scholar

12. Huang, Feng, Lei Zhu, and Hao Zhang, "Study on a multi-point differential feeding strategy for design of filtering patch antennas with stopband enhancement," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 11293-11300, Dec. 2022.
doi:10.1109/tap.2022.3209184 Google Scholar

13. Li, Dajiang, Yong Ma, Kun-Zhi Hu, Zhiyuan Chen, Min Xiang, and Ming-Chun Tang, "A differentially-fed dual-polarized filtering antenna with wide harmonic suppression for high-integration RF front-ends," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 2, 511-515, Feb. 2026.
doi:10.1109/lawp.2025.3630629 Google Scholar

14. Hu, Yunfeng, Haojie Sun, Xianliang Wu, and Gang Wang, "A high-gain, wide-stopband filtering antenna based on cross-coupling for mobile applications," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 8, 2346-2350, Aug. 2024.
doi:10.1109/lawp.2024.3389957 Google Scholar

15. Yun, Yu, Ying Liu, Zhe Wu, and Håkan Lennerstad, "Harmonic suppression and size reduction of a low-profile CP patch antenna by using nondegenerate modes," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 3, 456-460, Mar. 2022.
doi:10.1109/lawp.2021.3135300 Google Scholar

16. Liu, Neng-Wu, Lei Zhu, Zhong-Xun Liu, Guang Fu, and Ying Liu, "Design approach for low-profile tri-polarization patch antenna with simultaneous harmonic suppression," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 4, 2401-2410, Apr. 2022.
doi:10.1109/tap.2022.3145440 Google Scholar

17. Xu, Yunxue, Shuxi Gong, and Tao Hong, "Circularly polarized slot microstrip antenna for harmonic suppression," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 472-475, 2013.
doi:10.1109/lawp.2013.2256334 Google Scholar

18. Hu, Yunfeng, Yuelong Wu, Gang Wang, and Xianliang Wu, "A circularly polarized, highly selective, harmonic-suppressed filtering antenna for 5G application," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 12, 4308-4312, Dec. 2024.
doi:10.1109/lawp.2024.3444284 Google Scholar

19. Elahi, Manzoor, Amir Altaf, Youngoo Yang, Kang-Yoon Lee, and Keum Cheol Hwang, "Circularly polarized dielectric resonator antenna with two annular vias," IEEE Access, Vol. 9, 41123-41128, 2021.
doi:10.1109/access.2021.3064026 Google Scholar

20. Kumari, Reena, Ravi Kumar Gangwar, and Raghvendra Kumar Chaudhary, "Investigation on rotated rectangular slots to improve the circular polarization in cylindrical dielectric resonator antenna," IEEE Access, Vol. 9, 97327-97336, 2021.
doi:10.1109/access.2021.3093898 Google Scholar

21. Kiyani, Arslan, Nasimuddin Nasimuddin, Raheel M. Hashmi, Affan Aziz Baba, Syed Muzahir Abbas, Karu P. Esselle, and Abdelhady Mahmoud, "A single-feed wideband circularly polarized dielectric resonator antenna using hybrid technique with a thin metasurface," IEEE Access, Vol. 10, 90244-90253, 2022.
doi:10.1109/access.2022.3201205 Google Scholar

22. Liu, Sihan, Hongmei Liu, Youjie Zeng, Zhongbao Wang, Shaojun Fang, and Xinlei Sun, "Wideband circularly polarized dielectric resonator antenna with wide overlapped axial-ratio and half-power beamwidths," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 8, 2376-2380, Aug. 2024.
doi:10.1109/lawp.2024.3392300 Google Scholar

23. La, Dong-Sheng, Hao Liu, Run-Long Wang, Kang Tian, and Mei-Jun Qu, "A wide stopband filtering DDPA with metal vias and metal strips," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 3, 2843-2848, Mar. 2024.
doi:10.1109/tap.2024.3350187 Google Scholar

24. Hu, P. F., Y. M. Pan, X. Y. Zhang, and S. Y. Zheng, "Broadband filtering dielectric resonator antenna with wide stopband," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 4, 2079-2084, Apr. 2017.
doi:10.1109/tap.2017.2670438 Google Scholar

25. Tang, Hui, Changwu Tong, and Jian-Xin Chen, "Differential dual-polarized filtering dielectric resonator antenna," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 8, 4298-4302, Aug. 2018.
doi:10.1109/tap.2018.2836449 Google Scholar

26. Liu, Xiyao, Kwok Wa Leung, and Nan Yang, "Frequency reconfigurable filtering dielectric resonator antenna with harmonics suppression," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 6, 3224-3233, Jun. 2021.
doi:10.1109/tap.2020.3044387 Google Scholar

27. Vahora, Anish and Killol Pandya, "Implementation of cylindrical dielectric resonator antenna array for Wi-Fi/wireless LAN/satellite applications," Progress In Electromagnetics Research M, Vol. 90, 157-166, 2020.
doi:10.2528/pierm20011604 Google Scholar

Dr. Chuanyun Wang

Mr. Yi Ouyang

Dr. Pin Wen

Dr. Zhiyong Tan

Dr. Tianle Zheng
