Abstract

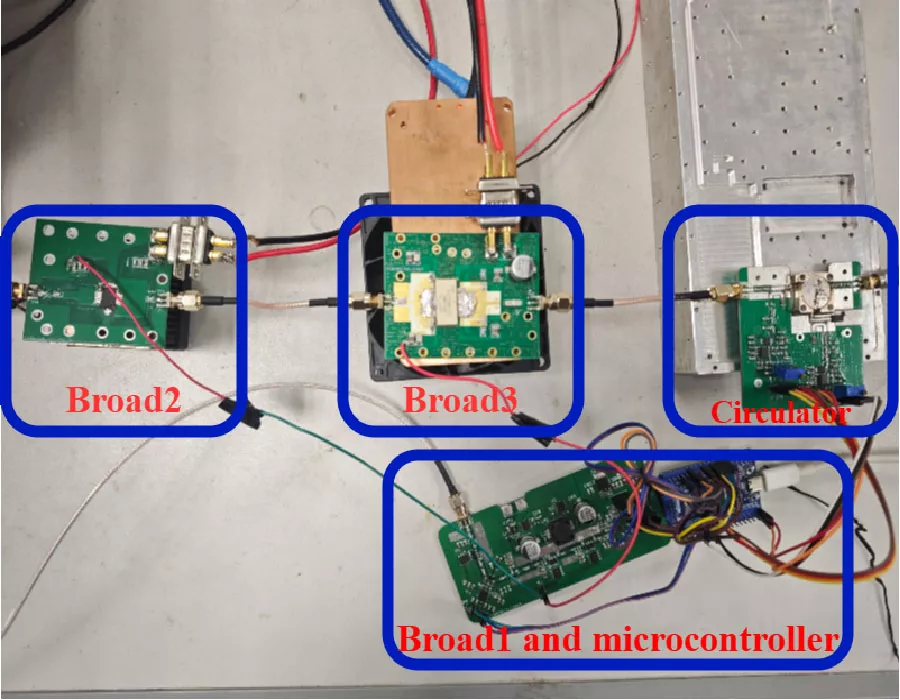

This study designs and experimentally validates a digitally controlled 2.45 GHz solid-state microwave power source for industrial continuous-wave operation. The source employs a cascaded laterally diffused metal oxide semiconductor (LDMOS) architecture integrating a phase-locked loop frequency synthesizer, a multi-stage driver chain, and a closed-loop digital power-control network with 0.5-dB resolution. The final-stage power amplifier (PA) is biased in deep class-AB, and a lumped-element matching network is synthesized - guided by load-pull and harmonic-impedance analysis - to realize a near-short termination at the second harmonic and reduce voltage-current overlap energy. Nonlinear device modelling and system-level analysis are used to predict efficiency and stability. Measurements show a saturated output power of 54.09 dBm, gain of 18.14 dB, and peak power-added efficiency of 61.89% under a 28-V supply. The source achieves accurate continuous-wave (CW) power regulation from 35 to 53 dBm with good thermal stability. These results indicate that combining deep class-AB biasing with second-harmonic near-short termination enables high-efficiency operation in L/S-band industrial microwave sources, and the cascaded digitally controlled architecture provides robust power management for microwave heating and plasma excitation systems.

1. Tang, Yixi, Wenjie Feng, Xinyu Zhou, Weiwei Wang, Liming Gu, Quan Xue, and Wenquan Che, "Broadband high-efficiency dual-mode Doherty power amplifier using hybrid F/F^-1 continuous-mode technology," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 70, No. 7, 2651-2664, Jul. 2023.
doi:10.1109/tcsi.2023.3263478 Google Scholar

2. Ma, Wendong, Liang Zhu, Lianmin Zhao, Sheng Liu, Liang Liu, and Mao Wang, "20 kW solid-state microwave source control system at 915 MHz for microwave plasma reactor," 2023 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Qingdao, China, May 2023.
doi:10.1109/ICMMT58241.2023.10276850

3. Atchike, Paula Akossiwa, Jamal Zbitou, Ahmed El Oualkadi, and Pascal Dherbécourt, "GaN HEMT power amplifier design for 2.45 GHz wireless applications," SAIEE Africa Research Journal, Vol. 114, No. 4, 106-113, Dec. 2023.
doi:10.23919/saiee.2023.10319379 Google Scholar

4. Zhao, Fusheng, Xin Cheng, Zhanglei Song, Fayu Wan, Zhenhua Chen, and Xing Zhao, "Wideband RF GaN power amplifiers," Progress In Electromagnetics Research C, Vol. 151, 131-138, Dec. 2025.
doi:10.2528/pierc24092701 Google Scholar

5. Khalid, Nabil, Tahir Abbas, and Mojeeb Bin Ihsan, "Power amplifier design using GaN HEMT in class-AB mode for LTE communication band," 2015 International Wireless Communications and Mobile Computing Conference (IWCMC), 685-689, Dubrovnik, Croatia, Aug. 2015.
doi:10.1109/IWCMC.2015.7289166

6. Ziraksaz, Fazel and Alireza Hassanzadeh, "Design of a high-efficiency deep bias class-AB power amplifier with 70% PAE at P_{1 dB}," 2023 5th Iranian International Conference on Microelectronics (IICM), 172-176, Tehran,Iran, Oct. 2023.
doi:10.1109/IICM60532.2023.10443139

7. Lee, Han Lim, Seung Pyo Park, and Moon-Que Lee, "High power microwave signal generation based on recursive balanced power amplifier," IEEE Access, Vol. 11, 73352-73358, Jul. 2023.
doi:10.1109/access.2023.3294973 Google Scholar

8. Song, Zhanglei, Xin Cheng, Fayu Wan, Xiaohe Chen, Eugene Sinkevich, Vladimir Mordachev, and Blaise Ravelo, "Nonlinear modelling of K-band GaN power amplifier," Progress In Electromagnetics Research Letters, Vol. 123, 29-35, Oct. 2025.
doi:10.2528/pierl24091002 Google Scholar

9. Baek, Min-Seok, Han-Woong Choi, Joon-Hyung Kim, Jae-Hyeok Song, Jae-Eun Lee, Jeong-Taek Son, and Choul-Young Kim, "A low-power high-IP_{1 dB} low-noise amplifier using large-transistor and class-AB mode," IEEE Microwave and Wireless Technology Letters, Vol. 34, No. 3, 306-309, Mar. 2024.
doi:10.1109/lmwt.2023.3348529 Google Scholar

10. Liang, Qicong, Jiafei Yao, Yufeng Guo, Zhikuang Cai, Mingyuan Gu, and Mingshun Sun, "A L-band class AB power amplifier based on the lateral double-diffused metal oxide semiconductor device," 2021 6th International Conference on Integrated Circuits and Microsystems (ICICM), 232-235, Nanjing, China, Oct. 2021.
doi:10.1109/ICICM54364.2021.9660355

11. Nan, Jingchang, Hai Jiang, and Wenjin Liu, "Integrated high-isolation dual-band power amplifier with ring-coupled bandstop filter," Progress In Electromagnetics Research C, Vol. 157, 119-128, Jul. 2025.
doi:10.2528/pierc25043007 Google Scholar

12. Nan, Jingchang, Jiadong Yu, and Heyang Sun, "A design approach for high-efficiency hybrid continuous extended inverse class-F broadband power amplifier using band-pass network topology," Progress In Electromagnetics Research M, Vol. 130, 129-137, Dec. 2024.
doi:10.2528/pierm24110303 Google Scholar

13. Cassan, Cedric, Jeff Jones, and Olivier Lembeye, "A 2-stage 150 W 2.2 GHz dual path LDMOS RF power amplifier for high efficiency applications," 2008 IEEE MTT-S International Microwave Symposium Digest, 655-658, Atlanta, GA, USA, Jun. 2008.
doi:10.1109/MWSYM.2008.4632917

14. Cagdas, Engin, Oguzhan Kizilbey, and Metin Yazgi, "High-efficiency high-power wideband power amplifier design with hybrid class AB," IEEE Microwave and Wireless Technology Letters, Vol. 35, No. 9, 1344-1347, Sep. 2025.
doi:10.1109/lmwt.2025.3555003 Google Scholar

15. Gadallah, A., A. Allam, A. B. Abdel-Rahman, H. Jia, and Ramesh K. Pokharel, "A high-efficiency, low-power 2.4 GHz class AB PA for WBAN applications using load pull," 2017 Japan-Africa Conference on Electronics, Communications and Computers (JAC-ECC), 29-32, Alexandria, Egypt, Dec. 2017.
doi:10.1109/JEC-ECC.2017.8305771

16. Cripps, Steve C., Paul J. Tasker, Alan L. Clarke, Jonathan Lees, and Johannes Benedikt, "On the continuity of high efficiency modes in linear RF power amplifiers," IEEE Microwave and Wireless Components Letters, Vol. 19, No. 10, 665-667, Oct. 2009.
doi:10.1109/lmwc.2009.2029754 Google Scholar

17. Dong, Yezi, Luhong Mao, and Sheng Xie, "Extended continuous inverse class-F power amplifiers with class-AB bias conditions," IEEE Microwave and Wireless Components Letters, Vol. 27, No. 4, 368-370, Apr. 2017.
doi:10.1109/lmwc.2017.2678433 Google Scholar

18. Esparza-Alfaro, Fermin, Salvatore Pennisi, Gaetano Palumbo, and Antonio J. Lopez-Martin, "Low-power class-AB CMOS voltage feedback current operational amplifier with tunable gain and bandwidth," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 61, No. 8, 574-578, Aug. 2014.
doi:10.1109/tcsii.2014.2327390 Google Scholar

19. Sheng, Chaodi, Xiaojun Bi, and Qinfen Xu, "A linear high-efficiency distributed power amplifier utilizing class-AB and inverse-class-C complementary structure," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 72, No. 9, 4492-4502, Sep. 2025.
doi:10.1109/tcsi.2024.3349558 Google Scholar

20. Boroujeni, Soroush Rasti, Ali Basaligheh, Stanley Ituah, Mohammad-Reza Nezhad-Ahmadi, and Safieddin Safavi-Naeini, "A broadband high-efficiency continuous class-AB power amplifier for millimeter-wave 5G and SATCOM phased-array transmitters," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 7, 3159-3171, Jul. 2020.
doi:10.1109/tmtt.2020.2983703 Google Scholar

21. Zhao, Shiwei, Longfei Zhou, Linsong Li, and Fei Zhao, "Design of mode-reconfigurable Doherty power amplifier," Progress In Electromagnetics Research C, Vol. 153, 271-279, Mar. 2025.
doi:10.2528/pierc25021804 Google Scholar

22. Ünal, Kudret and Mustafa Berke Yelten, "GaN-based high-efficiency class AB power amplifier design for sub-6 GHz 5G transmitter systems," 2021 13th International Conference on Electrical and Electronics Engineering (ELECO), 90-93, Bursa, Turkey, Nov. 2021.
doi:10.23919/ELECO54474.2021.9677683

23. Van Der Heijden, M. P., H. C. de Graaff, L. C. N. de Vreede, J. R. Gajadharsing, and J. N. Burghartz, "Theory and design of an ultra-linear square-law approximated LDMOS power amplifier in class-AB operation," IEEE Transactions on Microwave Theory and Techniques, Vol. 50, No. 9, 2176-2184, Sep. 2002.
doi:10.1109/tmtt.2002.802332 Google Scholar

24. Kang, Daehyun, Daekyu Yu, Kyoungjoon Min, Kichon Han, Jinsung Choi, Dongsu Kim, Boshi Jin, Myoungsu Jun, and Bumman Kim, "A highly efficient and linear class-AB/F power amplifier for multimode operation," IEEE Transactions on Microwave Theory and Techniques, Vol. 56, No. 1, 77-87, Jan. 2008.
doi:10.1109/tmtt.2007.911967 Google Scholar

25. Colantonio, Paolo, Franco Giannini, Rocco Giofre, and Luca Piazzon, "Theory and experimental results of a class F AB-C Doherty power amplifier," IEEE Transactions on Microwave Theory and Techniques, Vol. 57, No. 8, 1936-1947, Aug. 2009.
doi:10.1109/tmtt.2009.2025433 Google Scholar

26. Camarchia, Vittorio, Federica Cappelluti, Marco Pirola, Simona Donati Guerrieri, and Giovanni Ghione, "Self-consistent electrothermal modeling of class A, AB, and B power GaN HEMTs under modulated RF excitation," IEEE Transactions on Microwave Theory and Techniques, Vol. 55, No. 9, 1824-1831, Sep. 2007.
doi:10.1109/tmtt.2007.903839 Google Scholar

Mr. Zhiqi Li

Professor Dan Zhang

Dr. Yan Sun
