Abstract

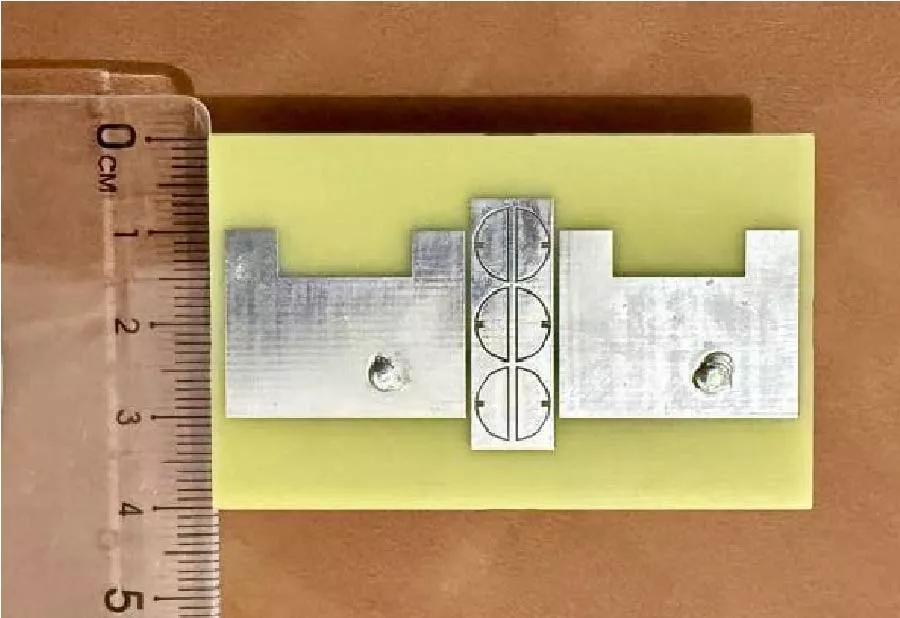

In this study, a novel symmetrical complementary double-split-ring resonator structure is proposed, operating in the frequency bands of 2.39-2.44 GHz (covering the core 2.4 GHz WLAN band) and 3.45-3.60 GHz (covering a key sub-band of n78 for 5G communications), to reduce the coupling of multiple-input multiple-output (MIMO) antennas within these two frequency bands. To align with the trend of antenna miniaturization, the inter-element spacing is only 0.08λ₀. The measured results show that after loading the metamaterial, the antenna coupling in the operating bands is reduced by 0-10 dB and 8-23 dB, respectively, and the coupling in the two bands is below -17 dB and -27 dB, respectively. The peak gains achieved are 3.12 dBi and 4.51 dBi in the two bands. The ECC is less than 0.02, indicating excellent gain performance and effective decoupling capability of the MIMO antenna.

1. Jemaludin, N. H., R. H. Elabd, Anupma Gupta, Tathababu Addepalli, Harbinder Singh, Tale Saeidi, Z. Zakaria, and A. J. A. Al-Gburi, "Compact MIMO antenna with metamaterial-based S-line decoupling stub for high isolation and multiband applications," Results in Optics, Vol. 21, 100926, 2025.
doi:10.1016/j.rio.2025.100926 Google Scholar

2. Hussain, Rifaqat and Mohammad S. Sharawi, "5G MIMO antenna designs for base station and user equipment: Some recent developments and trends," IEEE Antennas and Propagation Magazine, Vol. 64, No. 3, 95-107, 2022.
doi:10.1109/map.2021.3089983 Google Scholar

3. Dev, Param, Surendra Kumar Gupta, Amit Bage, and Lakhindar Murmu, "High isolated MIMO antenna for WLAN applications," Journal of Circuits, Systems and Computers, Vol. 31, No. 6, 2250109, 2022.
doi:10.1142/s0218126622501092 Google Scholar

4. Zheng, Xuemei, Ziwei Zhao, Yunan Zhang, Tongchao Zhang, Ao Gui, and Han Wu, "A low-coupling broadband MIMO array antenna design for Ku-band based on metamaterials," Journal of Electromagnetic Engineering and Science, Vol. 24, No. 6, 666-673, 2024.
doi:10.26866/jees.2024.6.r.256 Google Scholar

5. Zheng, Xuemei, Ziwei Zhao, Yuwen Pan, and Tongchao Zhang, "Design of a miniaturized symmetrical E-shaped MIMO antenna with low coupling," Applied Computational Electromagnetics Society Journal (ACES), Vol. 39, No. 12, 2024.
doi:10.13052/2024.aces.j.391203 Google Scholar

6. Khadar, Shaik Abdul and Sudhakar Sahu, "Compact metamaterial loaded wideband monopole antenna for wireless applications," Progress In Electromagnetics Research C, Vol. 128, 247-261, 2023.
doi:10.2528/pierc22120106 Google Scholar

7. Zheng, Xuemei, Linfei Yue, and Yunan Zhang, "A compact four-port axially symmetric UWB-MIMO antenna array: Metamaterial-integrated coplanar waveguide for broadband operation with high isolation," Progress In Electromagnetics Research C, Vol. 162, 58-69, 2025.
doi:10.2528/pierc25100105 Google Scholar

8. Qian, Bingyi, Xiaoyu Huang, Xiaoming Chen, Muhammad Abdullah, Luyu Zhao, and Ahmed A. Kishk, "Surrogate-assisted defected ground structure design for reducing mutual coupling in 2 × 2 microstrip antenna array," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 2, 351-355, 2022.
doi:10.1109/lawp.2021.3131600 Google Scholar

9. Wu, Wenjing, Bo Yuan, and Aiting Wu, "A quad-element UWB-MIMO antenna with band-notch and reduced mutual coupling based on EBG structures," International Journal of Antennas and Propagation, Vol. 2018, No. 1, 8490740, 2018.
doi:10.1155/2018/8490740 Google Scholar

10. Zhou, Jinzhi, Ming Yang, and Zhonggen Wang, "MIMO antenna system with wideband, high isolation and directional radiation characteristics by using multi-functional neutralization line," Physica Scripta, Vol. 100, No. 10, 105501, 2025.
doi:10.1088/1402-4896/ae0835 Google Scholar

11. Beneck, Ryan J., Arkaprovo Das, Galestan Mackertich-Sengerdy, Ryan J. Chaky, Yuhao Wu, Saber Soltani, and Douglas Werner, "Reconfigurable antennas: A review of recent progress and future prospects for next generation," Progress In Electromagnetics Research, Vol. 171, 89-121, 2021.
doi:10.2528/PIER21081109 Google Scholar

12. Tadesse, Abdulaziz D., Om Prakash Acharya, and Sudhakar Sahu, "Application of metamaterials for performance enhancement of planar antennas: A review," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 5, e22154, 2020.
doi:10.1002/mmce.22154 Google Scholar

13. Abhilash, A., Paulbert Thomas, Karamkulambel K. Indhu, Kinatingal Neema, R. Anil Kumar, and C. Aanandan, "Four-element compact and dual-band MIMO antenna with self-decoupled mechanism for 5G applications," Progress In Electromagnetics Research C, Vol. 123, 91-99, 2022.
doi:10.2528/pierc22070502 Google Scholar

14. Yahya, Likaa S., Loay S. Yahya, and Khalil H. Sayidmarie, "A crescent-shaped monopole MIMO antennas with improved isolation for dual-band WLAN applications," Progress In Electromagnetics Research C, Vol. 117, 115-127, 2021.
doi:10.2528/pierc21101503 Google Scholar

15. Zheng, Xuemei, Ziwei Zhao, and Yuwen Pan, "Compact dual-band MIMO antenna with complementary isotropic open resonant ring for mutual coupling reduction," Journal of Electromagnetic Engineering and Science, Vol. 26, No. 1, 10-17, 2026.
doi:10.26866/jees.2026.1.r.310 Google Scholar

16. Guo, Chaozong, Huiqing Zhai, and Suibin Liu, "A new dual-band microstrip antenna array with high isolation by waveguided metamaterial structure," Microwave and Optical Technology Letters, Vol. 61, No. 5, 1365-1370, 2019.
doi:10.1002/mop.31707 Google Scholar

17. Luo, Shengyuan, Yingsong Li, and Wanlu Shi, "A dual-frequency antenna array with mutual coupling reduction via metamaterial structures," 2018 IEEE International Symposium on Antennas and Propagation & USNC/URSI National Radio Science Meeting, 1385-1386, Boston, MA, USA, 2018.
doi:10.1109/APUSNCURSINRSM.2018.8609399

18. Talha, Mohammed Younus, Kamili Jagadeesh Babu, and Rabah W. Aldhaheri, "Design of a compact MIMO antenna system with reduced mutual coupling," International Journal of Microwave and Wireless Technologies, Vol. 8, No. 1, 117-124, 2016.
doi:10.1017/s1759078714001287 Google Scholar

19. Zhang, Weiquan, Yue Li, Kunpeng Wei, and Zhijun Zhang, "A dual-band MIMO antenna system for 2.4/5 GHz WLAN applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 7, 5749-5758, 2023.
doi:10.1109/tap.2023.3277208 Google Scholar

20. Manikonda, Ramesh, Govindarao Tamminaina, and Subhashini Gulla, "Design and analysis of high isolation four port MIMO antenna for N77 band 5G communication," Progress In Electromagnetics Research C, Vol. 163, 35-42, 2025.
doi:10.2528/PIERC25091703 Google Scholar

21. Elalaouy, Ouafae, Bilal Aghoutane, Mohammed El Ghzaoui, Sudipta Das, Jaouad Foshi, and Hanan El Faylali, "High isolation and gain metamaterial based MIMO antenna for 5G millimiter wave applications," 2024 International Conference on Circuit, Systems and Communication (ICCSC), 1-6, Fes, Morocco, 2024.
doi:10.1109/ICCSC62074.2024.10617371
