Abstract

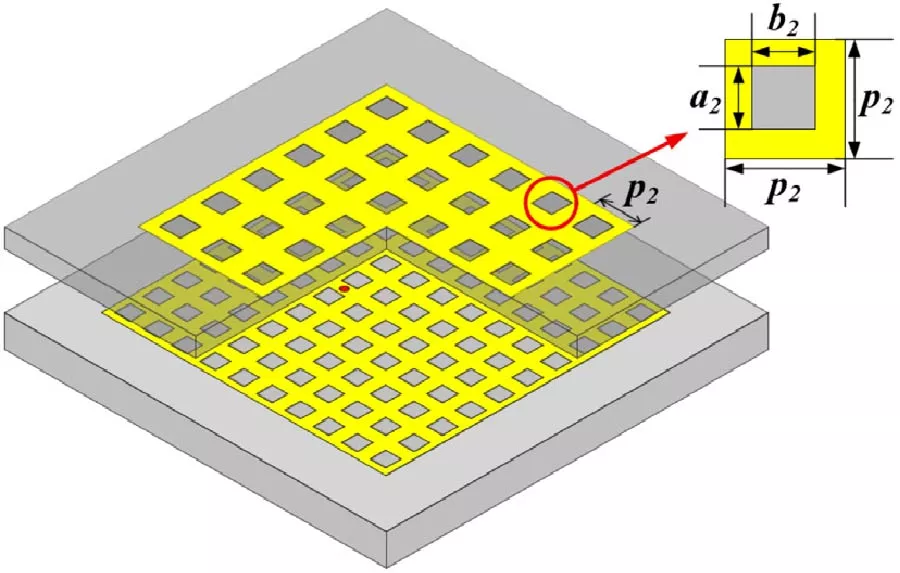

A low-profile, dual-band, shared-aperture antenna with a large frequency ratio is presented, based on a meshed patch and an AMC-backed Fabry-Perot (F-P) cavity. By taking advantage of the weak frequency sensitivity of grid slotting in meshed patches, the upper meshed patch is utilized as both the parasitic patch for the low-frequency antenna and the partially reflective surface (PRS) for the high-frequency F-P cavity, thereby simplifying the overall structure. Meanwhile, the AMC ground is employed to control the reflection phase and reduce the cavity height to λ/4, which enables both antennas to share the same aperture within an 8-mm profile. A prototype is fabricated and tested at 1.6 GHz and 15.14-15.46 GHz. Measured results demonstrate a frequency ratio of 1:9.6, a peak gain of 6.2 dBi at 1.6 GHz, a peak gain of 11.8 dBi in the high-frequency band, and a port isolation better than 17 dB. The proposed antenna features compact size, low profile, and efficient structural reuse, making it attractive for integrated multi-band communication systems.

1. Zhang, Jie-Er, Gu Liu, Wen-Wen Yang, and Jian-Xin Chen, "A tri-frequency shared-aperture antenna for cooperative work of V2X and millimeter-wave bands," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 3, 776-780, Mar. 2025.
doi:10.1109/lawp.2024.3517538 Google Scholar

2. Serup, Daniel Edelgaard, Gert Frølund Pedersen, and Shuai Zhang, "Dual-band shared aperture reflectarray and patch antenna array for S- and Ka-bands," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 2340-2345, Mar. 2022.
doi:10.1109/tap.2021.3111171 Google Scholar

3. Mei, Peng, Shuai Zhang, and Gert Frølund Pedersen, "A dual-polarized and high-gain X-/Ka-band shared-aperture antenna with high aperture reuse efficiency," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 3, 1334-1344, Mar. 2021.
doi:10.1109/tap.2020.3026429 Google Scholar

4. Ji, Shuosheng, Yuandan Dong, Sichao Wen, and Yong Fan, "C/X dual-band circularly polarized shared-aperture antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2334-2338, Dec. 2021.
doi:10.1109/lawp.2021.3110529 Google Scholar

5. Trentini, G. V., "Partially reflecting sheet arrays," IRE Transactions on Antennas and Propagation, Vol. 4, No. 4, 666-671, Oct. 1956.
doi:10.1109/tap.1956.1144455 Google Scholar

6. Alexopoulos, N. and D. Jackson, "Fundamental superstrate (cover) effects on printed circuit antennas," IEEE Transactions on Antennas and Propagation, Vol. 32, No. 8, 807-816, Aug. 1984.
doi:10.1109/tap.1984.1143433 Google Scholar

7. Weily, A. R., L. Horvath, K. P. Esselle, B. C. Sanders, and T. S. Bird, "A planar resonator antenna based on a woodpile EBG material," IEEE Transactions on Antennas and Propagation, Vol. 53, No. 1, 216-223, Jan. 2005.
doi:10.1109/tap.2004.840531 Google Scholar

8. Qin, Fan, Steven Shichang Gao, Qi Luo, Chun-Xu Mao, Chao Gu, Gao Wei, Jiadong Xu, Janzhou Li, Changying Wu, Kuisong Zheng, and Shufeng Zheng, "A simple low-cost shared-aperture dual-band dual-polarized high-gain antenna for synthetic aperture radars," IEEE Transactions on Antennas and Propagation, Vol. 64, No. 7, 2914-2922, Jul. 2016.
doi:10.1109/tap.2016.2559526 Google Scholar

9. Liu, Zhen-Guo, Ren-Jie Yin, Zhen-Nan Ying, Wei-Bing Lu, and Kuo-Chen Tseng, "Dual-band and shared-aperture Fabry-Perot cavity antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 9, 1686-1690, Sep. 2021.
doi:10.1109/lawp.2021.3093575 Google Scholar

10. Zhu, Jianfeng, Yang Yang, Shaowei Liao, Shufang Li, and Quan Xue, "Dual-band aperture-shared Fabry-Perot cavity-integrated patch antenna for millimeter-wave/sub-6 GHz communication applications," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 5, 868-872, May 2022.
doi:10.1109/lawp.2022.3148408 Google Scholar

11. Clasen, G. and R. Langley, "Meshed patch antennas," IEEE Transactions on Antennas and Propagation, Vol. 52, No. 6, 1412-1416, Jun. 2004.
doi:10.1109/tap.2004.830251 Google Scholar

12. Turpin, Timothy W. and Reyhan Baktur, "Meshed patch antennas integrated on solar cells," IEEE Antennas and Wireless Propagation Letters, Vol. 8, 693-696, 2009.
doi:10.1109/lawp.2009.2025522 Google Scholar

13. Sun, Yong, Zhi Ning Chen, Yewen Zhang, Hong Chen, and Terence S. P. See, "Subwavelength substrate-integrated Fabry-Pérot cavity antennas using artificial magnetic conductor," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 1, 30-35, Jan. 2012.
doi:10.1109/tap.2011.2167902 Google Scholar

14. Zhu, Jianfeng, Yang Yang, Shaowei Liao, and Quan Xue, "Dual-band antenna hybridizing folded transmitarray and folded reflectarray," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 4, 3070-3075, Apr. 2022.
doi:10.1109/tap.2021.3137165 Google Scholar

15. Tong, Changwu, Bo Yang, Xiaofeng Huang, Nan Yang, Xiyao Liu, and Kwok Wa Leung, "Compact shared-aperture slot/DR antenna with large frequency ratio," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 5, 1119-1123, May 2023.
doi:10.1109/lawp.2023.3234537 Google Scholar

16. Zou, Jiajin, Yue Zhao, Xujun Yang, Lei Ge, and Yu-Xiang Sun, "Dual-band dual-polarized shared-aperture grid antenna with large frequency ratio," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 7, 1513-1517, Jul. 2023.
doi:10.1109/lawp.2023.3249232 Google Scholar
