2026-04-14
Efficient Reconfigurable Synthesis of Sparse Arrays with Minimum Spacing Constraints via Group off-Grid Orthogonal Matching Pursuit
By
Progress In Electromagnetics Research C, Vol. 168, 230-236, 2026
Abstract

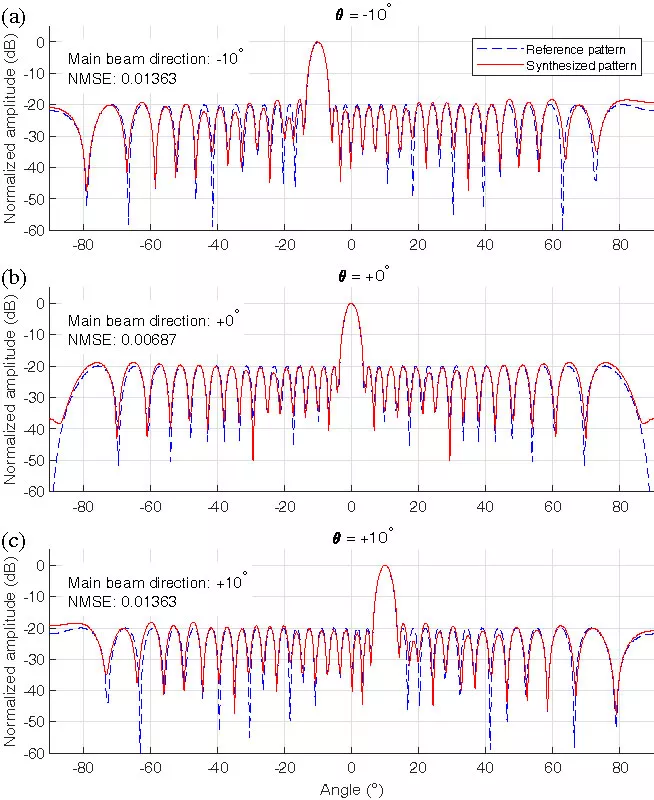

To reduce the implementation complexity of reconfigurable sparse arrays, this study proposes a low-complexity group-sparse orthogonal matching pursuit (G-OMP) algorithm with a minimum spacing constraint for synthesizing sparse arrays with multiple beam-shared element positions. An off-grid OMP algorithm with a minimum spacing constraint can mitigate the accuracy degradation caused by fixed-grid discretization, thereby ensuring the practical feasibility of engineering implementations. To enable beam reconfigurability, a group-sparse structure is incorporated into the off-grid OMP algorithm, and a multi-beam group-sparse reconstruction algorithm based on a dynamic grouping strategy is proposed, allowing multiple beams to share sparse array element positions. Simulation results show that, under the simulation parameters, the proposed algorithm achieves low computational complexity while maintaining good radiation pattern performance.
Citation
Kunyu Gao, Yong Lv, Zixuan Wang, and Mingwei Shen, "Efficient Reconfigurable Synthesis of Sparse Arrays with Minimum Spacing Constraints via Group off-Grid Orthogonal Matching Pursuit," Progress In Electromagnetics Research C, Vol. 168, 230-236, 2026.
doi:10.2528/PIERC26021302
References

1. Van Trees, Harry L., Optimum Array Processing: Part IV of Detection, Estimation, and Modulation Theory, John Wiley & Sons, 2002.

2. Eisenbeis, Joerg, Tobias Mahler, Pablo Ramos Lopez, and Thomas Zwick, "Channel estimation method for subarray based hybrid beamforming systems employing sparse arrays," Progress In Electromagnetics Research C, Vol. 87, 25-38, 2018.
doi:10.2528/pierc18062506        Google Scholar

3. Tang, Qi, Bin Wang, and Xue Tian, "Synthesis of antenna array based on hybrid improved sparrow search algorithm and convex programming," Progress In Electromagnetics Research C, Vol. 153, 247-255, 2025.
doi:10.2528/pierc25011903        Google Scholar

4. Zhao, Xiaowen and Yunhua Zhang, "An off-grid compressed sensing method for synthesis of maximally sparse arrays with arbitrary beampatterns," Progress In Electromagnetics Research C, Vol. 126, 227-241, 2022.
doi:10.2528/pierc22092702        Google Scholar

5. Wang, Lanmei, Xin-Kuan Wang, Guibao Wang, and Jian-Ke Jia, "A two-step method for the low-sidelobe synthesis of uniform amplitude planar sparse arrays," Progress In Electromagnetics Research M, Vol. 86, 153-162, 2019.
doi:10.2528/pierm19080612        Google Scholar

6. Battaglia, Giada M., Andrea Francesco Morabito, Gino Sorbello, and Tommaso Isernia, "Mask-constrained power synthesis of large and arbitrary arraysas a few-samples global optimization," Progress In Electromagnetics Research C, Vol. 98, 69-81, 2020.
doi:10.2528/pierc19082904        Google Scholar

7. Ullah, Naveed, Zhao Huiling, Tariq Rahim, Saeed Ur Rahman, and Mian MuhammadKamal, "Reduced side lobe level of sparse linear antenna array by optimized spacing and excitation amplitude using particle swarm optimization," 2017 7th IEEE International Symposium on Microwave, Antenna, Propagation, and EMC Technologies (MAPE), 96-99, Xi'an, China, 2017.
doi:10.1109/MAPE.2017.8250806

8. Chen, Kesong, Xiaohua Yun, Zishu He, and Chunlin Han, "Synthesis of sparse planar arrays using modified real genetic algorithm," IEEE Transactions on Antennas and Propagation, Vol. 55, No. 4, 1067-1073, 2007.
doi:10.1109/tap.2007.893375        Google Scholar

9. Wang, X. P., P. F. Gu, D. Z. Ding, and R. S. Chen, "Unitary matrix pencil method for multi-beam sparse linear array pattern synthesis," 2017 International Applied Computational Electromagnetics Society Symposium (ACES), 1-2, Suzhou, China, 2017.

10. Candes, Emmanuel J. and Michael B. Wakin, "An introduction to compressive sampling," IEEE Signal Processing Magazine, Vol. 25, No. 2, 21-30, 2008.
doi:10.1109/msp.2007.914731        Google Scholar

11. Oliveri, Giacomo and Andrea Massa, "Bayesian compressive sampling for pattern synthesis with maximally sparse non-uniform linear arrays," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 2, 467-481, Feb. 2011.
doi:10.1109/tap.2010.2096400        Google Scholar

12. Zhou, Wenjing, Mingwei Shen, Di Wu, and Daiyin Zhu, "Efficient beam-scanning wideband sparse array synthesis with minimum element spacing control," Signal Processing, Vol. 238, 110194, 2026.
doi:10.1016/j.sigpro.2025.110194        Google Scholar

13. Wang, Zhongyuan, Min Xu, Mingwei Shen, and Yipin Shen, "Pattern-reconfigurable sparse array synthesis with minimum element spacing constraint," Journal of Electromagnetic Waves and Applications, Vol. 39, No. 7, 810-821, 2025.
doi:10.1080/09205071.2025.2477662        Google Scholar

14. Yang, Zai, Lihua Xie, and Cishen Zhang, "Off-grid direction of arrival estimation using sparse Bayesian inference," IEEE Transactions on Signal Processing, Vol. 61, No. 1, 38-43, Jan. 2013.
doi:10.1109/tsp.2012.2222378        Google Scholar
