Abstract

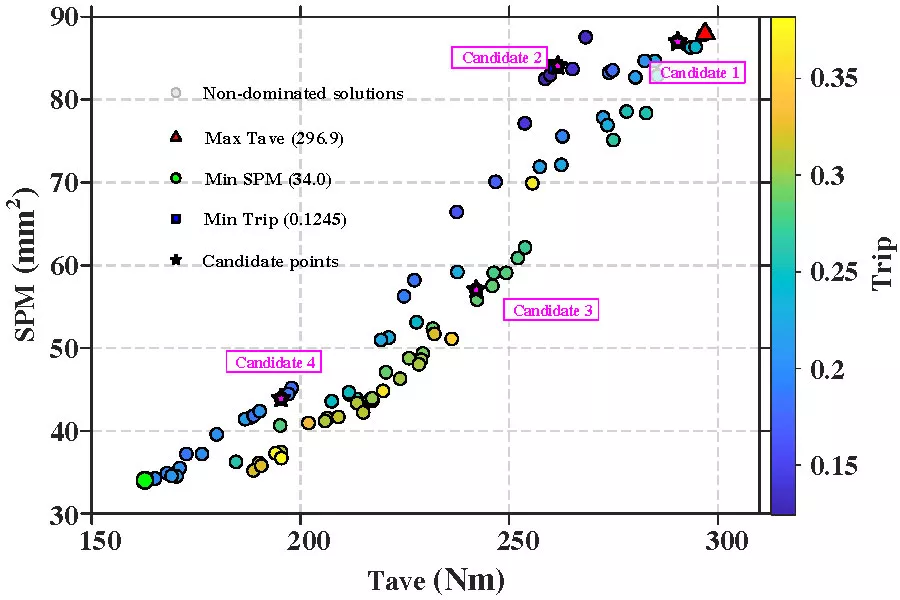

In addition to considering the electromagnetic performance of the motor itself, the optimal design of an onboard permanent magnet synchronous motor (PMSM) must also account for its compatibility with a vehicle and the impact of driving cycles. To address this problem, in this study, we propose a nested optimization design approach for PMSMs to achieve an optimal rotor design for vehicular applications. First, Morris sensitivity analysis is employed to classify the parameters to be optimized into highly and generally sensitive parameters. Subsequently, the Kriging model and NSGA-III algorithm are successively applied to perform hierarchical optimization for the highly sensitive parameters, followed by the generally sensitive parameters. To select the motor structure that best adapts to the vehicle and driving cycle, the efficiency maps of candidate solutions are solved and nested into the vehicle energy management model for optimization. The results demonstrate that the proposed method enables the identification of PMSM structures on the Pareto front that better match the vehicle and driving cycle. Compared with other high-performance solutions, the final optimal point achieves fuel consumption savings of up to 19.1%.

1. Liang, Cong, Huayang Sun, Xing Xu, Feng Wang, and Zhiguang Zhou, "PCE-based uncertain PWA modeling and control for DMHP mode transition system," ISA Transactions, Vol. 167, 2030-2045, 2025.
doi:10.1016/j.isatra.2025.09.026 Google Scholar

2. Shimizu, Yuki, "Automatic design system with generative adversarial network and vision transformer for efficiency optimization of interior permanent magnet synchronous motor," IEEE Transactions on Industrial Electronics, Vol. 71, No. 11, 14600-14609, 2024.
doi:10.1109/tie.2024.3363768 Google Scholar

3. Soomro, Abdul Hameed, "Design and analysis of interior permanent magnet motor for hybrid electric vehicles," International Journal of Electrical Engineering & Emerging Technology, Vol. 6, No. 1, 44-52, 2023. Google Scholar

4. Liang, Cong, Xing Xu, Daniel J. Auger, Feng Wang, and Zhiguang Zhou, "Optimized coordinated control strategy for dual motor hybrid powertrain with actuator response hysteresis: Minimizing effects of network-induced delays," IEEE Transactions on Transportation Electrification, Vol. 11, No. 5, 10873-10885, 2025.
doi:10.1109/tte.2025.3567648 Google Scholar

5. Sun, Xiaodong, Zhou Shi, Gang Lei, Youguang Guo, and Jianguo Zhu, "Multi-objective design optimization of an IPMSM based on multilevel strategy," IEEE Transactions on Industrial Electronics, Vol. 68, No. 1, 139-148, 2021.
doi:10.1109/tie.2020.2965463 Google Scholar

6. Im, So-Yeon, Kyoung-Soo Cha, Yun-Jae Won, Yun-Yong Choi, and Myung-Seop Lim, "Two-step optimum design process of PMSM to improve driving efficiency and harmonics of lightweight electric vehicle," IEEE Transactions on Industry Applications, Vol. 59, No. 6, 6685-6694, 2023.
doi:10.1109/tia.2023.3303860 Google Scholar

7. Zhao, Jing, Yu Ding, You Wang, Lufan Deng, Lei Yang, Xiangdong Liu, and Wei He, "Design and optimization of a slotless PMSM with hexagon distributed FPCB winding," IEEE Transactions on Industry Applications, 1-10, 2025.
doi:10.1109/tia.2025.3621572 Google Scholar

8. Serat, Zainullah, Massoud Danishmal, and Fida Mohammad Mohammadi, "Optimizing hybrid PV/Wind and grid systems for sustainable energy solutions at the university campus: Economic, environmental, and sensitivity analysis," Energy Conversion and Management: X, Vol. 24, 100691, 2024.
doi:10.1016/j.ecmx.2024.100691 Google Scholar

9. Guan, Dong, Xiaojie Cong, Jing Li, Peiben Wang, Zhengwei Yang, and Xingjian Jing, "Theoretical modeling and optimal matching on the damping property of mechatronic shock absorber with low speed and heavy load capacity," Journal of Sound and Vibration, Vol. 535, 117113, 2022.
doi:10.1016/j.jsv.2022.117113 Google Scholar

10. Yu, Yinquan, Yue Pan, Qiping Chen, Yiming Hu, Jian Gao, Zhao Zhao, Shuangxia Niu, and Shaowei Zhou, "Multi-objective optimization strategy for permanent magnet synchronous motor based on combined surrogate model and optimization algorithm," Energies, Vol. 16, No. 4, 1630, 2023.
doi:10.3390/en16041630 Google Scholar

11. Pan, Zhenbao, Shuhua Fang, Hui Wang, and Yuxiang Zhong, "Accurate and efficient surrogate model-assisted optimal design of flux reversal permanent magnet arc motor," IEEE Transactions on Industrial Electronics, Vol. 70, No. 9, 9312-9325, 2023.
doi:10.1109/tie.2022.3215444 Google Scholar

12. Das, Shuvajit, Anik Chowdhury, Yilmaz Sozer, Mojtaba Bahrami Kouhshahi, Alejandro Pina Ortega, Zhao Wan, and Jeff Klass, "Sensitivity analysis based NVH optimization in permanent magnet synchronous machines using lumped unit force response," IEEE Transactions on Industry Applications, Vol. 58, No. 3, 3533-3544, 2022.
doi:10.1109/tia.2022.3159326 Google Scholar

13. Liu, Lin, Youguang Guo, Wenliang Yin, Gang Lei, Xiaodong Sun, and Jianguo Zhu, "Efficient design optimization of PMSM drive systems using improved equivalent-circuit-based loss minimization control," IEEE Transactions on Industrial Electronics, Vol. 72, No. 4, 3280-3291, 2025.
doi:10.1109/tie.2024.3447748 Google Scholar

14. Tan, Dongli, Yao Wu, Junshuai Lv, Jian Li, Xiaoyu Ou, Yujun Meng, Guanglin Lan, Yanhui Chen, and Zhiqing Zhang, "Performance optimization of a diesel engine fueled with hydrogen/biodiesel with water addition based on the response surface methodology," Energy, Vol. 263, 125869, 2023.
doi:10.1016/j.energy.2022.125869 Google Scholar

15. Jeong, Yu-Jun and Dong-Kuk Lim, "Optimal design of IPMSM using a surrogate model assisted effective sampling algorithm with kriging interpolation," Journal of Electrical Engineering & Technology, Vol. 20, No. 6, 4033-4046, 2025.
doi:10.1007/s42835-025-02327-x Google Scholar

16. Tahkola, Mikko, Victor Mukherjee, and Janne Keränen, "Transient modeling of induction machine using artificial neural network surrogate models," IEEE Transactions on Magnetics, Vol. 58, No. 9, 1-4, 2022.
doi:10.1109/tmag.2022.3180176 Google Scholar

17. Zhang, Guojun and Tong Zhou, "Finite element model calibration with surrogate model-based bayesian updating: A case study of motor FEM model," Innovations in Applied Engineering and Technology, Vol. 3, No. 1, 1-13, 2024.
doi:10.62836/iaet.v3i1.232 Google Scholar

18. Wang, Yuchen, Hengliang Zhang, Junli Zhang, Hang Yin, Peixin Wang, Chao Zhang, and Wei Hua, "Kriging-assisted multiobjective optimization of embedded magnetic encoder in PM synchronous machines," IEEE Transactions on Instrumentation and Measurement, Vol. 72, 1-12, 2023.
doi:10.1109/tim.2023.3265125 Google Scholar

19. Wang, Jianan, Yizhou Hua, Boyan Xu, and Yuchen Zhu, "Multi-objective optimization design of bearingless interior permanent magnet synchronous motor based on MOWOA," Electronics, Vol. 14, No. 15, 3080, 2025.
doi:10.3390/electronics14153080 Google Scholar

20. Shimizu, Yuki, Shigeo Morimoto, Masayuki Sanada, and Yukinori Inoue, "Automatic design system with generative adversarial network and convolutional neural network for optimization design of interior permanent magnet synchronous motor," IEEE Transactions on Energy Conversion, Vol. 38, No. 1, 724-734, 2023.
doi:10.1109/tec.2022.3208129 Google Scholar

21. Yi, Chenyu, Heath Hofmann, and Bogdan I. Epureanu, "Design and control co-optimization of a mixed hybrid electric powertrain architecture," SAE International Journal of Electrified Vehicles, Vol. 12, No. 2, 185-200, 2023.
doi:10.4271/14-12-02-0010 Google Scholar

22. Mostashiri, Afshin and Morteza Montazeri-Gh, "Hybrid reinforcement learning optimization of aging aware energy management and powertrain sizing in fuel cell hybrid electric vehicles," Scientific Reports, 2026.
doi:10.1038/s41598-025-34256-0 Google Scholar

23. Kim, Dong-Min, Soo-Gyung Lee, Dae-Kee Kim, Min-Ro Park, and Myung-Seop Lim, "Sizing and optimization process of hybrid electric propulsion system for heavy-duty vehicle based on Gaussian process modeling considering traction motor characteristics," Renewable and Sustainable Energy Reviews, Vol. 161, 112286, 2022.
doi:10.1016/j.rser.2022.112286 Google Scholar

Dr. Zhijia Jin

Dr. Cong Liang

Dr. Xin Lu

Dr. Jian Chen
