Abstract

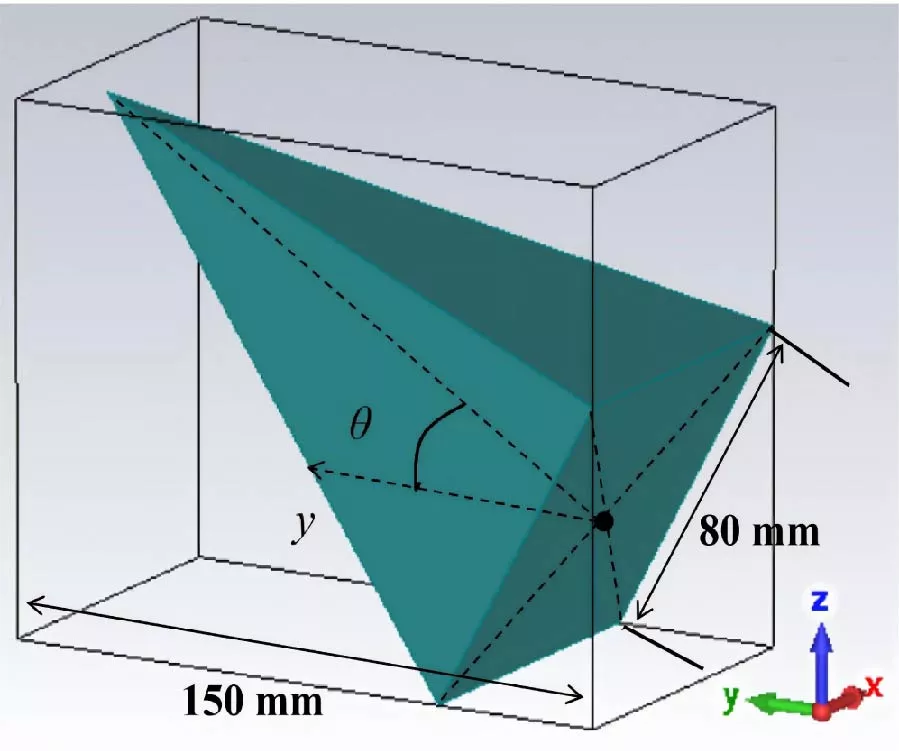

Microwave wireless power transfer (MWPT) offers significant advantages for charging unmanned vehicles over distances on the order of 100 m in atmospheric environments. To accurately measure the beam efficiency in field experiments, it is critical to suppress the impact of ground reflection on the field distribution generated by the beam. This paper presents the design of a compact wave-absorbing plate. The plate is composed of two dielectric waveguides arranged in an alternating side-by-side configuration. One waveguide is periodically loaded with metal patches along the propagation direction to absorb horizontally polarized incident waves, while the other is designed to absorb vertically polarized waves. Slots on the top surface are employed to couple the incident wave energy into the waveguides. Simulation results indicate that at 10 GHz, the reflection coefficients for both horizontal and vertical polarizations remain below -20 dB for incident angles ranging from 60° to 75°. In terms of volume, the proposed absorber achieves an 85% reduction in absorbing material consumption compared with conventional structures. It can be obliquely deployed on the ground as an array along the propagation path of the microwave beam to effectively attenuate ground reflection.

1. Shinohara, Naoki, "History and innovation of wireless power transfer via microwaves," IEEE Journal of Microwaves, Vol. 1, No. 1, 218-228, 2021.
doi:10.1109/jmw.2020.3030896 Google Scholar

2. Rodenbeck, Christopher T., Brian B. Tierney, James Park, Mark G. Parent, Christopher B. De Puma, Chandler J. Bauder, Thomas J. Pizzillo, Paul I. Jaffe, Brian H. Simakauskas, and Trevor Mayhan, "Terrestrial microwave power beaming," IEEE Journal of Microwaves, Vol. 2, No. 1, 28-43, 2022.
doi:10.1109/jmw.2021.3130765 Google Scholar

3. Yi, Xianjin, Xing Chen, Lin Zhou, Shuji Hao, Bing Zhang, and Xin Duan, "A microwave power transmission experiment based on the near-field focused transmitter," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 6, 1105-1108, 2019.
doi:10.1109/lawp.2019.2910200 Google Scholar

4. Li, Wenzhi, Qiyue Yu, Jing Hui Qiu, and Jiaran Qi, "Intelligent wireless power transfer via a 2-bit compact reconfigurable transmissive-metasurface-based router," Nature Communications, Vol. 15, No. 1, 2807, 2024.
doi:10.1038/s41467-024-46984-4 Google Scholar

5. Li, Ziran, Yanwen Zhang, Hao Wu, Satoshi Suzuki, Akio Namiki, and Wei Wang, "Design and application of a UAV autonomous inspection system for high-voltage power transmission lines," Remote Sensing, Vol. 15, No. 3, 865, 2023.
doi:10.3390/rs15030865 Google Scholar

6. Chittoor, Prithvi Krishna, Bharatiraja Chokkalingam, and Lucian Mihet-Popa, "A review on UAV wireless charging: Fundamentals, applications, charging techniques and standards," IEEE Access, Vol. 9, 69235-69266, 2021.
doi:10.1109/access.2021.3077041 Google Scholar

7. Foudeh, Husam A., Patrick Chi-Kwong Luk, and James F. Whidborne, "An advanced unmanned aerial vehicle (UAV) approach via learning-based control for overhead power line monitoring: A comprehensive review," IEEE Access, Vol. 9, 130410-130433, 2021.
doi:10.1109/access.2021.3110159 Google Scholar

8. Yang, Hui, Tailin Zhao, Zhong Yu, and Zhimin Chen, "Near-field focusing metasurface design based on wireless energy transmission," Chinese Journal of Radio Science, Vol. 40, No. 3, 579-587, 2025.
doi:10.12265/j.cjors.2024238 Google Scholar

9. Delrieu, Guy, Anil Kumar Khanal, Frédéric Cazenave, and Brice Boudevillain, "Sensitivity analysis of attenuation in convective rainfall at X-band frequency using the mountain reference technique," Atmospheric Measurement Techniques, Vol. 15, No. 11, 3297-3314, 2022.
doi:10.5194/amt-15-3297-2022 Google Scholar

10. Zheng, Baoxian, Kunding Ma, Yuanyuan Liu, Tong Jiang, Tingyi Liu, Qishuai Ma, Yi Liu, Lin Yang, and Xi Li, "On design and verification of an efficient microwave wireless power transmission system," International Journal of Antennas and Propagation, Vol. 2024, No. 1, 1861253, 2024.
doi:10.1155/2024/1861253 Google Scholar

11. Hamid, Sofian, Hammam Shakhtour, Britta Kambach, and Dirk Heberling, "Design and oblique incidence performance of a planar radome absorber," 2017 11th European Conference on Antennas and Propagation (EUCAP), 3806-3810, Paris, France, 2017.
doi:10.23919/EuCAP.2017.7928815

12. Rodriguez, Vince, "Numerical analysis of techniques to improve oblique incidence of absorber," 2020 Antenna Measurement Techniques Association Symposium (AMTA), 1-4, Newport, RI, USA, 2020.

13. Bao, Rong, Yang Tao, and Yongdong Li, "Modeling of 2-D periodic array of dielectric bars with a low reflection angle for a wind tunnel high-power microwave experiment," Applied Sciences, Vol. 14, No. 23, 10876, 2024.
doi:10.3390/app142310876 Google Scholar

14. Bao, Rong, Xin Peng, Yin Yang, Neng Xiong, Yang Tao, Jifei Wu, and Dawei Liu, "Investigation of beat wave propagation along lossy dielectric bar for wind tunnel microwave experiments," Applied Sciences, Vol. 13, No. 1, 619, 2023.
doi:10.3390/app13010619 Google Scholar

15. Ma, Jianxun, Nyuk Ling Ma, Wenqi Zhang, Yu Wu, Yue Ma, Guang Chen, Yang Sun, Jihong Wang, and Chunyu Sun, "Highly efficient conversion of cellulose and hemicellulose using an innovative ternary deep eutectic solvent: Achieving the green and complete use of lignocellulose," Industrial Crops and Products, Vol. 230, 121091, 2025.
doi:10.1016/j.indcrop.2025.121091 Google Scholar

16. Cai, Yanzhi, Siyu Guo, Laifei Cheng, Yibing Yuan, Zixuan Yu, Shaoxiong Ren, Mingxing Chen, Yalong Chai, and Xue Huang, "Design and fabrication of self-supporting, ultra-flexible, multi-heterogeneous CNT@MOF buckypaper with microwave absorption and energy storage properties," Materials Today Nano, Vol. 30, 100632, 2025.
doi:10.1016/j.mtnano.2025.100632 Google Scholar

17. Cai, Yanzhi, Xue Huang, Laifei Cheng, Yalong Chai, Zixuan Yu, Mingxing Chen, Shaoxiong Ren, and Jiaoe Dang, "Binder-free CNT@Fe3O4/CoNi-C superflexible buckypaper derived from metal-organic frameworks as highly efficient microwave absorber," Journal of Alloys and Compounds, Vol. 1057, 186800, 2026.
doi:10.1016/j.jallcom.2026.186800 Google Scholar

18. Cai, Yanzhi, Yalong Chai, Laifei Cheng, Hongfeng Yin, Xue Huang, Haiming Yu, Shaoxiong Ren, Mingxing Chen, Zixuan Yu, and Mingtao Qiao, "Directionally pressurized filtrated nitrogen-doped CNTs/RGO/carbon hollow sphere/CoNi sandwich buckypaper with superflexible, high-strength mechanical, and excellent microwave-absorbing properties," Journal of Materials Science & Technology, Vol. 253, 146-158, 2026.
doi:10.1016/j.jmst.2025.07.026 Google Scholar

19. Guo, Siyu, Yanzhi Cai, Laifei Cheng, Shaohua Huang, Tingting Liu, Haiming Yu, Dengpeng Chen, Yuhan Wang, Zhongyi Hu, and Yuan Zhou, "Fiber, monolithic fiber and twisted fiber structures: Efficient microwave absorption via surface-modified carbon nanotube buckypaper/silicon carbide-based self-sealing layered composites," Journal of Materials Chemistry A, Vol. 12, No. 9, 5377-5391, 2024.
doi:10.1039/d3ta06676b Google Scholar

20. Guo, Siyu, Yanzhi Cai, Laifei Cheng, Yibing Yuan, Yuhan Wang, Haiming Yu, Zhongyi Hu, Dengpeng Chen, and Hudie Yuan, "Ultraflexible ultrathin 3D/1D hierarchical interpenetrating Ni-MOF/CNT buckypaper composites: Microstructures and microwave absorption properties," ACS Applied Materials & Interfaces, Vol. 16, No. 25, 32713-32726, 2024.
doi:10.1021/acsami.4c05050 Google Scholar

21. Cai, Yanzhi, Yalong Chai, Laifei Cheng, Siyu Guo, Yibing Yuan, Xue Huang, Zixuan Yu, Mingxing Chen, Shaoxiong Ren, and Hudie Yuan, "N-doped CNTs/CoNi nanochains-carbon hollow microspheres multi-level multi-scale heterogeneous interface structures and microwave absorption properties," Carbon, Vol. 228, 119423, 2024.
doi:10.1016/j.carbon.2024.119423 Google Scholar

22. Cai, Yanzhi, Xue Huang, Laifei Cheng, Siyu Guo, Yibing Yuan, Yalong Chai, Zixuan Yu, Mingxing Chen, Shaoxiong Ren, and Yuan Zhou, "CNTs/lamellar VSe2/Fe3O4 self-assembled a variety of unique three-dimensional multilayer interface structures and microwave absorption properties," Journal of Alloys and Compounds, Vol. 1009, 176960, 2024.
doi:10.1016/j.jallcom.2024.176960 Google Scholar
