Abstract

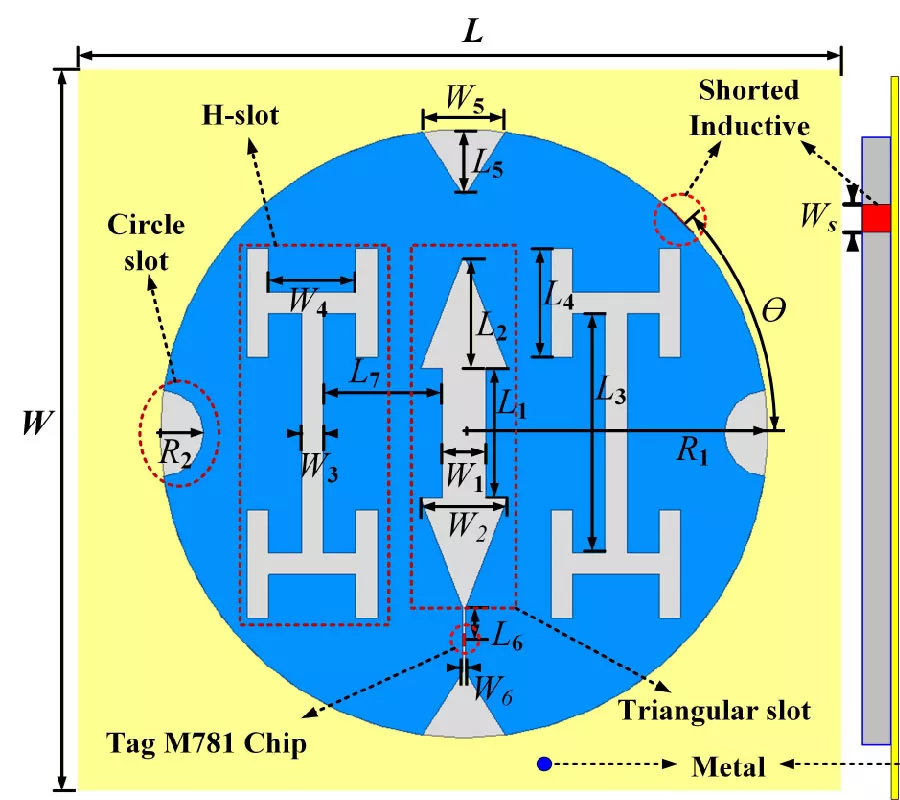

In this study, a miniaturized long-read-range anti-metal ultra-high frequency (UHF) RFID tag patch antenna for bank cash transport boxes is presented. Short-circuit inductors were loaded on the side of the antenna, and double H-shaped slots were etched on the patch surface. These structures extend the current path and increase the electrical length, which lowers the resonant frequency and enables antenna miniaturization. The antenna impedance can be flexibly tuned by adjusting the position and width of the short-circuit inductors and the length of the double H-shaped slots. Conjugate matching with the RFID chip is therefore achieved to ensure maximum power transfer. In addition, the short-circuit inductors reduce the influence of the metal plate and improve the current distribution. Consequently, the radiation efficiency is enhanced, and a long reading distance is obtained. The proposed antenna was fabricated and measured, and good agreement between the simulation and measurement results was observed. The measured results show that the antenna occupied an area of 615 mm² and achieved a maximum reading distance of 12.4 m when mounted on a metal cash-in-transit box. The presented antenna is suitable for the full-process management of bank cash transport boxes in different application scenarios.

1. Ng, Gene-Jinhan, Eng-Hock Lim, Pei-Song Chee, and Muthukannan Murugesh, "Design of dual-band UHF RFID tag antenna using even and odd modes of asymmetric split ring for anti-metal applications," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 1, 64-73, Jan. 2025.
doi:10.1109/tap.2024.3495220 Google Scholar

2. Huang, Wen, Shengwei Hou, Jie Hu, and Pengfei Wang, "A broadband RFID tag antenna for metal surface with characteristic mode analysis," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 6, 1427-1431, Jun. 2025.
doi:10.1109/lawp.2025.3539306 Google Scholar

3. Lee, Shin-Rou, Wai-Hau Ng, Eng-Hock Lim, and Sharul Kamal Abdul Rahim, "Loop-coupled small antenna with enhanced bandwidth for on-metal UHF RFID tag design," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 4, 3660-3664, Apr. 2023.
doi:10.1109/tap.2023.3242079 Google Scholar

4. Erman, Fuad, Slawomir Koziel, Eng-Hock Lim, Leifur Leifsson, Effariza Hanafi, and Muthukannan Murugesh, "A low-profile metal-backed dipole loaded with closely coupled arc-shaped open stubs for on-metal tag design with wide frequency tuning capability," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 4, 3772-3777, Apr. 2024.
doi:10.1109/tap.2024.3368214 Google Scholar

5. Wu, Chi, Jiade Yuan, and Zhizhang Chen, "A UHF RFID tag antenna placeable on a metal surface without degraded performances," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 7, 2101-2105, 2024.
doi:10.1109/lawp.2024.3382144 Google Scholar

6. Murugesh, Muthukannan, Eng-Hock Lim, Pei-Song Chee, Yong-Hong Lee, and Fwee-Leong Bong, "Compact ring antennas with high-impedance line loaded with distributed inductors for on-metal tag design," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 1740-1749, Mar. 2022.
doi:10.1109/tap.2021.3118803 Google Scholar

7. Nguyen, Minh-Tan, Yi-Fang Lin, Chien-Hung Chen, Ying-Chih Tseng, and Hua-Ming Chen, "Miniature 3-D-dipole antenna for UHF RFID tag mounted on conductive materials," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 11454-11464, Dec. 2022.
doi:10.1109/tap.2022.3209690 Google Scholar

8. Ooi, Shin-Yi, Pei-Song Chee, Eng-Hock Lim, Yong-Hong Lee, and Fwee-Leong Bong, "Stacked planar inverted-L antenna with enhanced capacitance for compact tag design," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 1816-1823, Mar. 2022.
doi:10.1109/tap.2021.3118822 Google Scholar

9. Ng, Gene-Jinhan, Muthukannan Murugesh, Eng-Hock Lim, Pei-Song Chee, Jen-Hahn Low, and Chun-Hui Tan, "Single-layer truncated patch antenna with an inclined I-slit for anti-metal tag design," IEEE Journal of Radio Frequency Identification, Vol. 8, 847-856, 2024.
doi:10.1109/jrfid.2024.3501355 Google Scholar

10. Chiang, Shao-Ming, Eng-Hock Lim, Pei-Song Chee, Yong-Hong Lee, and Fwee-Leong Bong, "Dipolar tag antenna with a top-loading inductive channel with broad range frequency tuning capability," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 1653-1662, Mar. 2022.
doi:10.1109/tap.2021.3111093 Google Scholar

11. Ng, Wai-Hau, Eng-Hock Lim, Fwee-Leong Bong, and Boon-Kuan Chung, "E-shaped folded-patch antenna with multiple tuning parameters for on-metal UHF RFID tag," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 1, 56-64, Jan. 2019.
doi:10.1109/tap.2018.2874795 Google Scholar

12. Zhang, Xiao, Ting-Yan Tan, Qiong-Sen Wu, Lei Zhu, Shida Zhong, and Tao Yuan, "Pin-loaded patch antenna fed with a dual-mode SIW resonator for bandwidth enhancement and stable high gain," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 2, 279-283, Feb. 2021.
doi:10.1109/lawp.2020.3048749 Google Scholar

13. Qing, Xianming, Chean Khan Goh, and Zhi Ning Chen, "Impedance characterization of RFID tag antennas and application in tag co-design," IEEE Transactions on Microwave Theory and Techniques, Vol. 57, No. 5, 1268-1274, May 2009.
doi:10.1109/tmtt.2009.2017288 Google Scholar
