Abstract

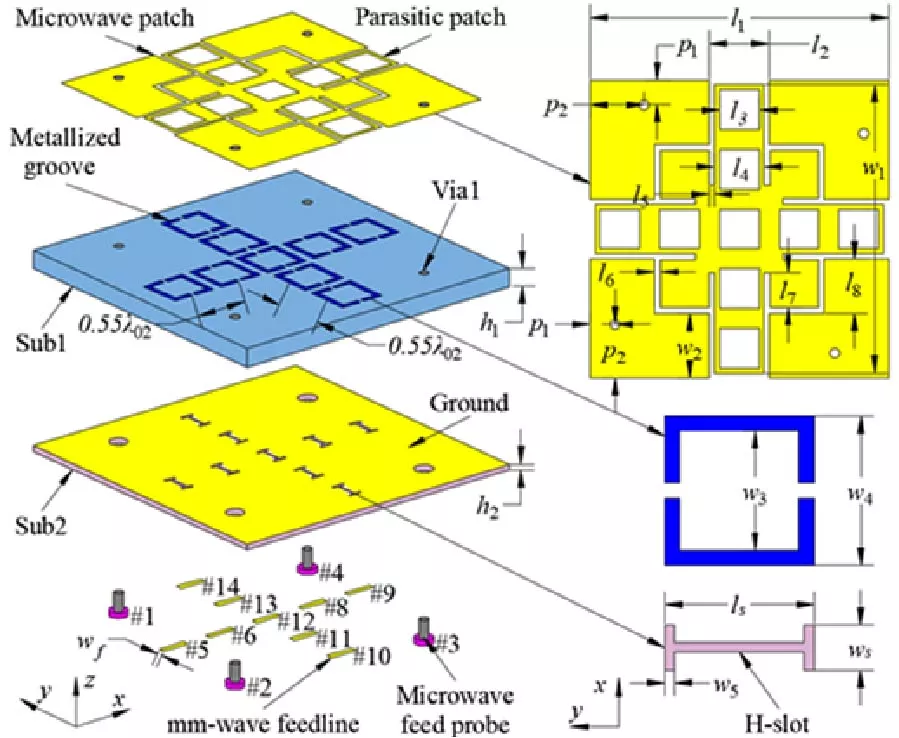

To meet the stringent space constraints and diverse connectivity requirements of modern intelligent connected vehicles, a compact MIMO antenna system designed for microwave and millimeter-wave (mm-wave) vehicle-to-everything (V2X) communications is presented. The proposed antenna features a compact footprint adaptable for integration into space-limited automotive modules, such as shark fin antenna housings. By employing a structure reuse technique, the system integrates a four-element microwave MIMO array and two orthogonal mm-wave phased arrays within a size of 30 mm × 30 mm × 2 mm. In the microwave band, a parasitic patch is introduced to achieve dual-mode resonance, ensuring a wide bandwidth for reliable control signaling. Two orthogonal rows of metallized cavities serve a dual purpose: acting as decoupling structures for the microwave MIMO system and functioning as mm-wave arrays to enable two-dimensional beam scanning. This capability is crucial for overcoming blockage effects in dynamic vehicular environments. Experimental results demonstrate that the proposed antenna achieves wide coverage in the microwave band (4.62-5.11 GHz) and high-gain beam scanning (±40°) in the mm-wave band (25.8-30.4 GHz). The measured isolation exceeds 17 dB with an envelope correlation coefficient below 0.11, validating its suitability for next-generation vehicle terminals.

1. Nguyen, Hieu T., Md. Noor-A-Rahim, Yong Liang Guan, and Dirk Pesch, "Cellular V2X communications in the presence of big vehicle shadowing: Performance analysis and mitigation," IEEE Transactions on Vehicular Technology, Vol. 72, No. 3, 3764-3776, Mar. 2023.
doi:10.1109/tvt.2022.3212704 Google Scholar

2. Sial, Muhammad Nadeem, Yansha Deng, Junaid Ahmed, Arumugam Nallanathan, and Mischa Dohler, "Stochastic geometry modeling of cellular V2X communication over shared channels," IEEE Transactions on Vehicular Technology, Vol. 68, No. 12, 11873-11887, Dec. 2019.
doi:10.1109/tvt.2019.2945481 Google Scholar

3. Gao, Shuai and Hang Wong, "Triple-band high-gain shared-aperture antenna for internet of vehicles," IEEE Transactions on Vehicular Technology, Vol. 74, No. 6, 9380-9390, Jun. 2025.
doi:10.1109/tvt.2025.3541417 Google Scholar

4. Xu, J., S. Wen, L. Xu, D. Wang, Z. Wei, and Y. Zhang, "Dual-band shared aperture antenna with wide- and narrow-beam for projectile radio detector," 2024 14th International Symposium on Antennas, Propagation and EM Theory (ISAPE), Hefei, China, 2024.
doi:10.1109/isape62431.2024.10840569

5. Wang, Wensong, Zhenyu Zhao, Quqin Sun, Xinqin Liao, Zhongyuan Fang, Kye Yak See, and Yuanjin Zheng, "Compact quad-element vertically-polarized high-isolation wideband MIMO antenna for vehicular base station," IEEE Transactions on Vehicular Technology, Vol. 69, No. 9, 10000-10008, Sep. 2020.
doi:10.1109/tvt.2020.3004647 Google Scholar

6. Wang, Dian and Chi Hou Chan, "Multiband antenna for WiFi and WiGig communications," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 309-312, 2016.
doi:10.1109/lawp.2015.2443013 Google Scholar

7. Yang, Xujun, Lei Ge, Yuan Ji, Xierong Zeng, Yujian Li, Chen Ding, Jie Sun, and Kwai-Man Luk, "An integrated tri-band antenna system with large frequency ratio for WLAN and WiGig applications," IEEE Transactions on Industrial Electronics, Vol. 68, No. 5, 4529-4540, 2021.
doi:10.1109/tie.2020.2987289 Google Scholar

8. Yang, Guangwei and Shuai Zhang, "Dual-band shared-aperture multiple antenna system with beam steering for 5G applications," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 69, No. 12, 4804-4808, 2022.
doi:10.1109/tcsii.2022.3201009 Google Scholar

9. Deng, Qiu Jun, Yong Mei Pan, Xi Yao Liu, and Kwok Wa Leung, "A singly-fed dual-band aperture-sharing SIW cavity-backed slot antenna with large frequency ratio," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 2, 1971-1976, 2023.
doi:10.1109/tap.2022.3232208 Google Scholar

10. Wang, Yan and Feng Xu, "Shared aperture 4G LTE and 5G mm-wave antenna in mobile phones with enhanced mm-wave radiation in the display direction," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 6, 4772-4782, 2023.
doi:10.1109/tap.2023.3262971 Google Scholar

11. Ma, Chao Jun, Yong Mei Pan, Xiang Yu Meng, and Shao Yong Zheng, "A microwave/millimeter-wave shared-aperture antenna based on slow-wave parallel-plate waveguide," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 4, 3022-3032, 2023.
doi:10.1109/tap.2023.3242429 Google Scholar

12. Ding, Xin-Hao, Wen-Wen Yang, Hui Tang, Lei Guo, and Jian-Xin Chen, "A dual-band shared-aperture antenna for microwave and millimeter-wave applications in 5G wireless communication," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 12, 12299-12304, 2022.
doi:10.1109/tap.2022.3209220 Google Scholar

13. Ding, Xin-Hao, Wen-Wen Yang, Wei Qin, and Jian-Xin Chen, "A broadside shared aperture antenna for (3.5, 26) GHz mobile terminals with steerable beam in millimeter-waveband," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 3, 1806-1815, 2022.
doi:10.1109/tap.2021.3118817 Google Scholar

14. Zhu, Jianfeng, Yang Yang, Zhangju Hou, Shaowei Liao, and Quan Xue, "Aperture-shared all-metal endfire high-gain parabolic antenna for millimeter-wave multibeam and sub-6-GHz communication applications," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 3, 2784-2789, 2023.
doi:10.1109/tap.2022.3232439 Google Scholar

15. Hussain, Rifaqat, "Shared-aperture slot-based sub-6-GHz and mm-wave IoT antenna for 5G applications," IEEE Internet of Things Journal, Vol. 8, No. 13, 10807-10814, 2021.
doi:10.1109/jiot.2021.3050383 Google Scholar

16. Ren, Jian, Miaomiao Zuo, Bing Zhang, Xiaoyu Du, Zhe Chen, Ying Liu, and Ying Zeng Yin, "Large frequency ratio Vivaldi antenna system with low-frequency gain enhancement utilizing dual-function taper slot," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 6, 4854-4859, 2022.
doi:10.1109/tap.2021.3137463 Google Scholar

17. Sun, Yu-Xiang, Kwok Wa Leung, and Kai Lu, "Compact dual microwave/millimeter-wave planar shared-aperture antenna for vehicle-to-vehicle/5G communications," IEEE Transactions on Vehicular Technology, Vol. 70, No. 5, 5071-5076, 2021.
doi:10.1109/tvt.2021.3070353 Google Scholar

18. Xia, Zhen-Xing, Kwok Wa Leung, Pengfei Gu, and Rushan Chen, "3-D-printed wideband high-efficiency dual-frequency antenna for vehicular communications," IEEE Transactions on Vehicular Technology, Vol. 71, No. 4, 3457-3469, 2022.
doi:10.1109/tvt.2022.3142015 Google Scholar

19. Jabeen, Sidra, Qasim Umar Khan, and Shahzad Amin Sheikh, "A single-layer S/C/K/Ka bands shared aperture antenna with novel feed structure for K/Ka bands," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 8, 6965-6970, 2023.
doi:10.1109/tap.2023.3281669 Google Scholar

20. Wang, Chuang, Wenquan Cao, Wenyu Ma, Cong Li, and Jiemin Jing, "Dual-band structure reused aperture-sharing antenna with low sidelobe and high gain for 5G communication," IEEE Antennas and Wireless Propagation Letters, Vol. 23, No. 4, 1386-1390, 2024.
doi:10.1109/lawp.2024.3356614 Google Scholar

21. Lin, Yanhong, Shaoyong Zheng, and Zhixi Liang, "Design of a microwave/millimeter-wave shared-aperture antenna by hybridizing series-fed antenna array and leaky wave antenna," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 6, 4764-4772, 2024.
doi:10.1109/tap.2024.3391904 Google Scholar

22. Chen, Jian-Xin, Jun-Yao Yang, Xin-Hao Ding, Tian-Yu Yan, Yun-Li Li, and Wen-Wen Yang, "A microwave/millimeter-wave shared-aperture filtering antenna with reused via structure," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 9, 7377-7382, 2024.
doi:10.1109/tap.2024.3433396 Google Scholar

23. Yang, Wen-Wen, Qing-Hu Zhang, Xin Fan, Xin Geng, Wei Qin, and Jian-Xin Chen, "A sub-6 GHz/millimeter-wave dual-wideband shared-aperture antenna by reusing the mushroom structure," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 10, 8010-8015, 2024.
doi:10.1109/tap.2024.3435517 Google Scholar

24. Wang, Wensong and Yuanjin Zheng, "Wideband gain enhancement of a dual-polarized MIMO vehicular antenna," IEEE Transactions on Vehicular Technology, Vol. 70, No. 8, 7897-7907, Aug. 2021.
doi:10.1109/tvt.2021.3094879 Google Scholar

25. Wang, Chuang, Wenquan Cao, Wenyu Ma, Yixin Tong, and Yangkun Zhu, "A sigle-layer dual-band shared-aperture antenna with high gain and sidelobe suppression based on high-order mode for vehicular communications," IEEE Transactions on Vehicular Technology, Vol. 73, No. 1, 473-481, Jan. 2024.
doi:10.1109/tvt.2023.3303208 Google Scholar

26. Yang, Guang-Wei and Shuai Zhang, "A dual-band shared-aperture antenna with wide-angle scanning capability for mobile system applications," IEEE Transactions on Vehicular Technology, Vol. 70, No. 5, 4088-4097, May 2021.
doi:10.1109/tvt.2021.3072556 Google Scholar

27. Tian, Xiaoying and Zhengwei Du, "Wideband shared-radiator four-element MIMO antenna module for 5G mobile terminals," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 6, 4799-4811, 2023.
doi:10.1109/tap.2023.3264630 Google Scholar

28. Blanch, S., J. Romeu, and I. Corbella, "Exact representation of antenna system diversity performance from input parameter description," Electronics Letters, Vol. 39, No. 9, 705-707, 2003.
doi:10.1049/el:20030495 Google Scholar

29. Sharawi, M. S., M. Ikram, and A. Sebak, "A two concentric slot loop based connected array mimo antenna system for 4G/5G terminals," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 12, 6679-6686, Dec. 2017.
doi:10.1109/tap.2017.2671028 Google Scholar

30. Manteghi, M. and Y. Rahmat-Samii, "Broadband characterization of the total active reflection coefficient of multiport antennas," IEEE Antennas and Propagation Society International Symposium. Digest. Held in conjunction with: USNC/CNC/URSI North American Radio Sci. Meeting (Cat. No.03CH37450), Vol. 3, 20-23, Columbus, OH, USA, 2003.
doi:10.1109/aps.2003.1219779

31. Sharawi, Mohammad S., Printed MIMO Antenna Engineering, Artech House, 2014.

32. Khalid, Mahnoor, Syeda Iffat Naqvi, Niamat Hussain, MuhibUr Rahman, Fawad, Seyed Sajad Mirjavadi, Muhammad Jamil Khan, and Yasar Amin, "4-Port MIMO antenna with defected ground structure for 5G millimeter wave applications," Electronics, Vol. 9, No. 1, 71, 2020.
doi:10.3390/electronics9010071 Google Scholar

33. Tran-Huy, Dat, Nguyen Tran-Viet-Duc, Hung Tran, and Niamat Hussain, "A compact MIMO antenna with high gain and dual circular polarization using a T divider for WLAN applications," Scientific Reports, Vol. 15, No. 1, 22106, 2025.
doi:10.1038/s41598-025-05820-5 Google Scholar
