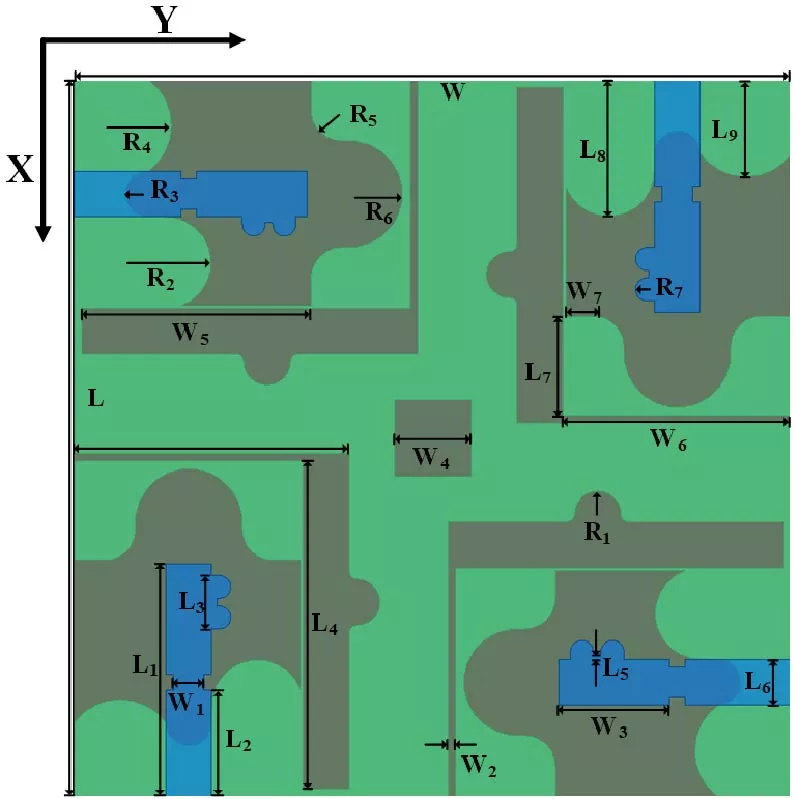

This paper presents a novel key-shaped miniaturized four-port MIMO antenna designed for ultra-wideband (UWB) applications. The proposed antenna consists of four orthogonally and symmetrically arranged key-shaped radiating elements. By integrating semi-circular patches at the edges of rectangular radiators, multiple resonance modes are excited to significantly broaden the impedance bandwidth and optimize matching. To suppress mutual coupling within a compact footprint, an enhanced cross-shaped defected ground structure (DGS) is implemented, which effectively blocks surface wave propagation by utilizing narrow rectangular stubs. Experimental results demonstrate that the antenna achieves a continuous impedance bandwidth from 4.4 to 26 GHz, corresponding to a fractional bandwidth of 141.5%. Throughout the operating band, the port isolation remains better than 28 dB, while the envelope correlation coefficient (ECC) is lower than 0.00013, ensuring excellent diversity performance. Furthermore, the antenna, fabricated on an FR4 substrate with a compact size of 47 × 47 × 1.6 mm³, maintains a radiation efficiency between 67.4% and 92.6%. With its superior bandwidth, high isolation, and exceptionally low correlation, the proposed design offers a robust solution for high-performance UWB communication systems.

1. Zheng, Xuemei, Yunan Zhang, and Linfei Yue, "High isolation UWB MIMO notch antenna based on metamaterials," Progress In Electromagnetics Research C, Vol. 169, 55-65, 2026.
doi:10.2528/pierc26020307 Google Scholar

2. Jayant, Shailesh, Garima Srivastava, and Sachin Kumar, "Quad-port UWB MIMO footwear antenna for wearable applications," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 9, 7905-7913, Sep. 2022.
doi:10.1109/tap.2022.3177481 Google Scholar

3. Shailesh, G. Srivastava, S. Kumar, et al. "Compact UWB MIMO antenna with a modified back reflector and supported by characteristic mode analysis for wireless communication applications," IEEE Access, Vol. 12, 187302-187312, 2024.
doi:10.1109/access.2024.3510931 Google Scholar

4. Tu, Rongjiaxu, Han Lin, and Zhonggen Wang, "A MIMO ultra-wideband antenna with high isolation and triple notches," Progress In Electromagnetics Research C, Vol. 159, 91-102, 2025.
doi:10.2528/PIERC25071003 Google Scholar

5. Hussain, Rifaqat, Mohammad S. Sharawi, and Atif Shamim, "An integrated four-element slot-based MIMO and a UWB sensing antenna system for CR platforms," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 2, 978-983, Feb. 2018.
doi:10.1109/tap.2017.2781220 Google Scholar

6. Nie, Li Ying, Xian Qi Lin, Zi Qiang Yang, Jin Zhang, and Bao Wang, "Structure-shared planar UWB MIMO antenna with high isolation for mobile platform," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 4, 2735-2738, Apr. 2019.
doi:10.1109/tap.2018.2889596 Google Scholar

7. Gómez-Villanueva, Ricardo and Hildeberto Jardón-Aguilar, "Compact UWB uniplanar four-port MIMO antenna array with rejecting band," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 12, 2543-2547, Dec. 2019.
doi:10.1109/lawp.2019.2942827 Google Scholar

8. Zhao, Xing, Swee Ping Yeo, and Ling Chuen Ong, "Planar UWB MIMO antenna with pattern diversity and isolation improvement for mobile platform based on the theory of characteristic modes," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 1, 420-425, Jan. 2018.
doi:10.1109/tap.2017.2768083 Google Scholar

9. Peitzmeier, Nikolai, Tim Hahn, and Dirk Manteuffel, "Systematic design of multimode antennas for MIMO applications by leveraging symmetry," IEEE Transactions on Antennas and Propagation, Vol. 70, No. 1, 145-155, Jan. 2022.
doi:10.1109/tap.2021.3098610 Google Scholar

10. Nejdi, Ibrahime Hassan, Mohamed Marzouk, Mustapha Ait Lafkih, Seddik Bri, Jamal Abdul Nasir, Zahriladha Zakaria, and Ahmed Jamal Abdullah Al-Gburi, "A low-profile UWB monopole antenna and high-isolated UWB-MIMO antenna for wireless communications networks," Progress In Electromagnetics Research C, Vol. 161, 105-119, 2025.
doi:10.2528/pierc25082106 Google Scholar

11. Khedr, Amira A., Basem E. Elnaghi, and Ahmed M. Mohamed, "Design of a compact dual port 2 × 1 ultra-wideband MIMO antenna for radio frequency energy harvesting based on four ``a" shaped slots," Progress In Electromagnetics Research M, Vol. 128, 41-49, 2024.
doi:10.2528/pierm24051805 Google Scholar

12. Wang, Zhonggen, Guoxiang Song, Wenyan Nie, Ming Yang, Chenlu Li, and Mingqing Wang, "A racket-like UWB MIMO antenna with high isolation," Progress In Electromagnetics Research C, Vol. 144, 159-168, 2024.
doi:10.2528/pierc24052901 Google Scholar

13. Nagavardhani, Koritala, Pullagura Rajesh Kumar, and Veera Malleswara Rao, "A miniaturized highly isolated quad-port penta-band-notched UWB MIMO antenna based on EBG structures," Progress In Electromagnetics Research C, Vol. 166, 19-26, 2026.
doi:10.2528/pierc25121605 Google Scholar

14. Nie, Li Ying, Xian Qi Lin, Shang Xiang, Bao Wang, Long Xiao, and Jun Yong Ye, "High-isolation two-port UWB antenna based on shared structure," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 12, 8186-8191, Dec. 2020.
doi:10.1109/tap.2020.2997461 Google Scholar

15. Liu, Shuming, Jingchang Nan, and Yifei Wang, "Improvement of isolation and bandwidth of notch ultra-wideband MIMO antenna on metamaterial wall," Progress In Electromagnetics Research C, Vol. 163, 43-49, 2026.
doi:10.2528/pierc25091705 Google Scholar

16. Jayant, Shailesh and Garima Srivastava, "Close-packed quad-element triple-band-notched UWB MIMO antenna with upgrading capability," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 353-360, Jan. 2023.
doi:10.1109/tap.2022.3222768 Google Scholar

17. Zheng, Xuemei, Linfei Yue, and Yunan Zhang, "A compact four-port axially symmetric UWB-MIMO antenna array: Metamaterial-integrated coplanar waveguide for broadband operation with high isolation," Progress In Electromagnetics Research C, Vol. 162, 58-69, 2025.
doi:10.2528/pierc25100105 Google Scholar

18. Firdaus, Firdaus, Rahmadi Kurnia, and Ikhwana Elfitri, "Compact UWB MIMO antenna with minangkabau roof-inspired patch and L-shaped ground strip for enhanced bandwidth," Progress In Electromagnetics Research C, Vol. 161, 178-187, 2025.
doi:10.2528/pierc25081302 Google Scholar

19. Li, Wanwan, Ling Wu, Shengqiang Li, Xia Cao, and Bing Yang, "Bandwidth enhancement and isolation improvement in compact UWB-MIMO antenna assisted by characteristic mode analysis," IEEE Access, Vol. 12, 17152-17163, 2024.
doi:10.1109/access.2024.3357629 Google Scholar

20. Srivastava, Garima, Sachin Kumar, Om Prakash Kumar, et al. "Triple-band notched and highly decoupled MIMO antenna using characteristic mode analysis," IEEE Access, Vol. 13, 165956-165969, 2025.
doi:10.1109/access.2025.3611809 Google Scholar

Mr. Xinyu Liu

Professor Han Lin

Professor Zhonggen Wang
