Abstract

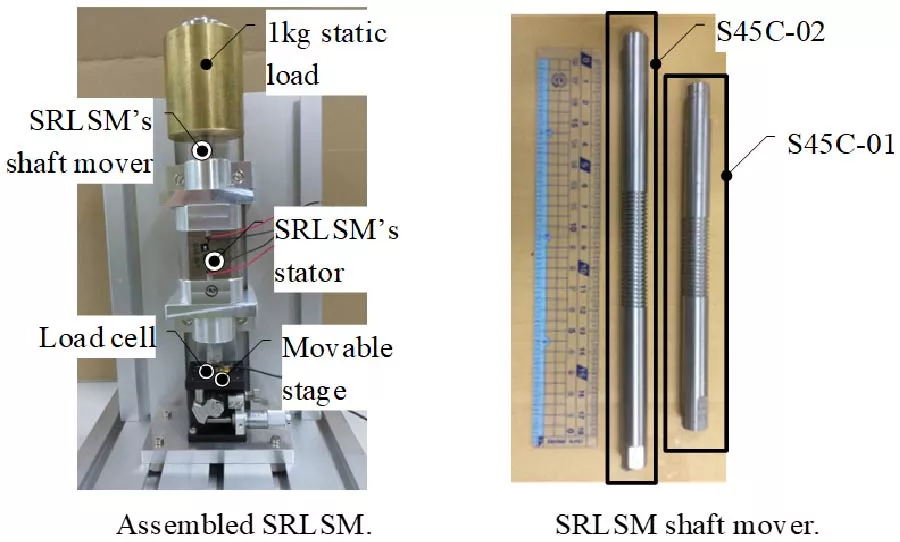

Manufacturing tolerances introduce unavoidable dimensional deviations in electrical machine components. In the case of switched reluctance linear synchronous motors (SRLSMs), the manufacturing tolerance, Δx, may significantly affect the thrust characteristics. Therefore, a systematic investigation of the impact of manufacturing tolerance, Δx, on the thrust characteristics of a cylindrical SRLSM through finite element analysis and experimental validation is presented. Two mover shafts with different tolerance control strategies, denoted as S45C-01 and S45C-02 were fabricated. Based on the finding, the accumulated tolerances of -562.3 μm and -20 μm for S45C-01 and S45C-02, respectively, were acquired using a vision measuring system. Then, the model that incorporated the accumulating manufacturing tolerance, Δx, was created and simulated. Thrust characteristics were evaluated under both ideal and tolerance inclusive conditions and experimentally measured over a current range of 0.1-1.0 A. The results indicate that neglecting manufacturing tolerance leads to substantial discrepancies between simulated and measured thrust, particularly at low excitation currents, with thrust errors exceeding 200%. When measured manufacturing tolerances are included in the simulation, the thrust error is significantly reduced to below 8.4% for S45C-01 and below 4% for S45C-02, demonstrating close agreement with experimental results. The findings confirm that manufacturing tolerance is a critical factor in accurately predicting SRLSM thrust performance and that tolerance-inclusive modeling substantially improves the reliability of simulation-based performance evaluation.

1. Li, Lingchen, Jie Zhang, Shuheng Qiu, Hualin Huang, Wenyuan Yan, and Chi Zhang, "Analysis of structural tolerance influences on thrust ripple of U-shaped ironless permanent magnet linear motor," IECON 2023- 49th Annual Conference of the IEEE Industrial Electronics Society, 1-6, Singapore, 2023.
doi:10.1109/IECON51785.2023.10311818

2. Boscaino, V., G. Cipriani, V. Di Dio, M. Corpora, D. Curto, V. Franzitta, and M. Trapanese, "Experimental validation of a distribution theory based analysis of the effect of manufacturing tolerances on permanent magnet synchronous machines," AIP Advances, Vol. 7, No. 5, 056650, 2017.
doi:10.1063/1.4975994 Google Scholar

3. Dinh, Bui Minh and Dinh Hai Linh, "Torque performances of switched reluctance motor 12/8 by rotor pole embrace verification," Proceedings of the 11th Annual International Conference on Industrial Engineering and Operations Management, 4340-4351, Singapore, 2021.

4. García-Amorós, Jordi, Pere Andrada, and Balduí Blanqué, "Assessment of linear switched reluctance motor's design parameters for optimal performance," Electric Power Components and Systems, Vol. 43, No. 7, 810-819, 2015.
doi:10.1080/15325008.2014.1004001 Google Scholar

5. Emarloo, Ali Akbar, Luca Papini, and Paolo Bolognesi, "Extended-speed-range low-torque-ripple control for unsaturated switched reluctance motors," 2025 IEEE Workshop on Electrical Machines Design, Control and Diagnosis (WEMDCD), 1-7, Valletta, Malta, 2025.
doi:10.1109/WEMDCD61816.2025.11014151

6. Saadha, Aminath, C. V. Aravind, Preshant Krishna, and F. Azhar, "Analysis of taper width variations in linear reluctance machine," Journal of Engineering Science and Technology, Vol. 13, 17-26, 2018. Google Scholar

7. Hirayama, Tadashi, Yuya Nakamori, Takafumi Yamada, and Shuma Kawabata, "Experimental characterization of linear switched reluctance motor for physical distribution conveyance system," 2018 21st International Conference on Electrical Machines and Systems (ICEMS), 1832-1835, Jeju, Korea (South), 2018.
doi:10.23919/ICEMS.2018.8549090

8. Sial, Manas Ranjan and Nirod Chandra Sahoo, "Online phase excitation angle control for four quadrant operation of switched reluctance motor drive," Journal of Control and Decision, 1-19, 2025.
doi:10.1080/23307706.2025.2576576 Google Scholar

9. Abdulah, Norrimah, Fairul Azhar Abdul Shukor, R. Othman, S. Ahmad, and N. Nasir, "Modelling methods and structure topology of the switched reluctance synchronous motor type machine: A review," International Journal of Power Electronics and Drive Systems (IJPEDS), Vol. 14, No. 1, 111-122, 2023.
doi:10.11591/ijpeds.v14.i1.pp111-122 Google Scholar

10. Castano, S. M., Miguel A. Montilla, and Javier Maixé-Altés, "Acoustic noise in a Switched Reluctance Motor drive: Torque-speed control and effect of failure," 2013 Workshop on Power Electronics and Power Quality Applications (PEPQA), 1-6, Bogota, Colombia, 2013.
doi:10.1109/PEPQA.2013.6614948

11. Nitabaru, Tomoaki, Hiroaki Okada, Toshiaki Isomura, Yoshichika Kawashima, Hideaki Abe, and Hisashi Ogata, "Drive control development of switched reluctance motor for compact electric vehicles," SAE International Journal of Advances and Current Practices in Mobility, Vol. 1, No. 3, 1006-1013, 2019.
doi:10.4271/2019-01-0460 Google Scholar

12. Madonna, Vincenzo, Cesare Maria Meano, and Ken Friis Hansen, "Performance improvement of switched reluctance machines through appropriate design choices," 2025 IEEE Workshop on Electrical Machines Design, Control and Diagnosis (WEMDCD), 1-7, Valletta, Malta, 2025.
doi:10.1109/WEMDCD61816.2025.11014180

13. Chen, Hao, Jinfu Liu, Xiaodong Li, M. Orabi, and Y. Li, "Switched reluctance linear motor force ripple suppression based on predictive-fuzzy control," 2021 13th International Symposium on Linear Drives for Industry Applications (LDIA), 1-9, Wuhan, China, 2021.
doi:10.1109/LDIA49489.2021.9505842

14. Pan, J. F., Norbert C. Cheung, and Yu Zou, "An improved force distribution function for linear switched reluctance motor on force ripple minimization with nonlinear inductance modeling," IEEE Transactions on Magnetics, Vol. 48, No. 11, 3064-3067, Nov. 2012.
doi:10.1109/tmag.2012.2202376 Google Scholar

15. Kim, Taesik, Mazharul Chowdhury, Mohammad Islam, Abraham Gebregergis, and Tomy Sebastian, "Tolerance study to forecast performances of permanent magnet synchronous machines using segmented stator for mass production," IEEE Transactions on Industry Applications, Vol. 54, No. 5, 4333-4342, Sep.-Oct. 2018.
doi:10.1109/tia.2018.2844200 Google Scholar

16. Ershad, Nima Farrokhzad, William Jensen, Jihyun Kim, Michael Muir, Edward Kaiser, and Axel Ramm, "Manufacturing parameter variation effects on performance and energy loss on ultium traction motors," 2022 IEEE Energy Conversion Congress and Exposition (ECCE), 1-6, Detroit, MI, USA, 2022.
doi:10.1109/ECCE50734.2022.9947603

17. Li, Congbo, Mingli Huang, Wei Li, Ningbo Wang, and Jiadong Fu, "Optimization of an induction motor for loss reduction considering manufacturing tolerances," Structural and Multidisciplinary Optimization, Vol. 65, No. 7, 187, 2022.
doi:10.1007/s00158-022-03276-z Google Scholar

18. Mülder, Christoph, Marius Franck, Michael Schröder, Markus Balluff, Andreas Wanke, and Kay Hameyer, "Impact study of isolated and correlated manufacturing tolerances of a permanent magnet synchronous machine for traction drives," 2019 IEEE International Electric Machines & Drives Conference (IEMDC), 982-987, San Diego, CA, USA, 2019.
doi:10.1109/IEMDC.2019.8785274

19. Amoros, J. G. and Gascon P. Andrada, "Magnetic circuit analysis of a linear switched reluctance motor," 2009 13th European Conference on Power Electronics and Applications, 1-9, Barcelona, Spain, 2009.

20. Somesan, Liviu-Emilian, Emil Padurariu, and Ioan-Adrian Viorel, "Two simple analytical models, direct and inverse, for switched reluctance motors," Progress In Electromagnetics Research M, Vol. 29, 279-291, 2013.
doi:10.2528/pierm12103001 Google Scholar

21. Nam, Taek-Hyo, In-Seok Song, Jaehwan Jung, Hye-Won Yang, DoHyun Jang, and Sang-Yong Jung, "Deep learning-based robust design of a CNC servo motor considering manufacturing tolerances," 2025 28th International Conference on Electrical Machines and Systems (ICEMS), 1-6, Busan, Korea, 2025.
doi:10.23919/ICEMS66262.2025.11317114

22. Chen, Siwen, Yang Liu, Qian Zhang, and Jiubin Tan, "Analysis and suppression of thrust ripple in a permanent magnet linear synchronous motor --- A review," Energies, Vol. 18, No. 4, 863, 2025.
doi:10.3390/en18040863 Google Scholar

Dr. Fairul Azhar bin Abdul Shukor

Prof. Hiroyuki Wakiwaka

Dr. Kunihisa Tashiro
