Abstract

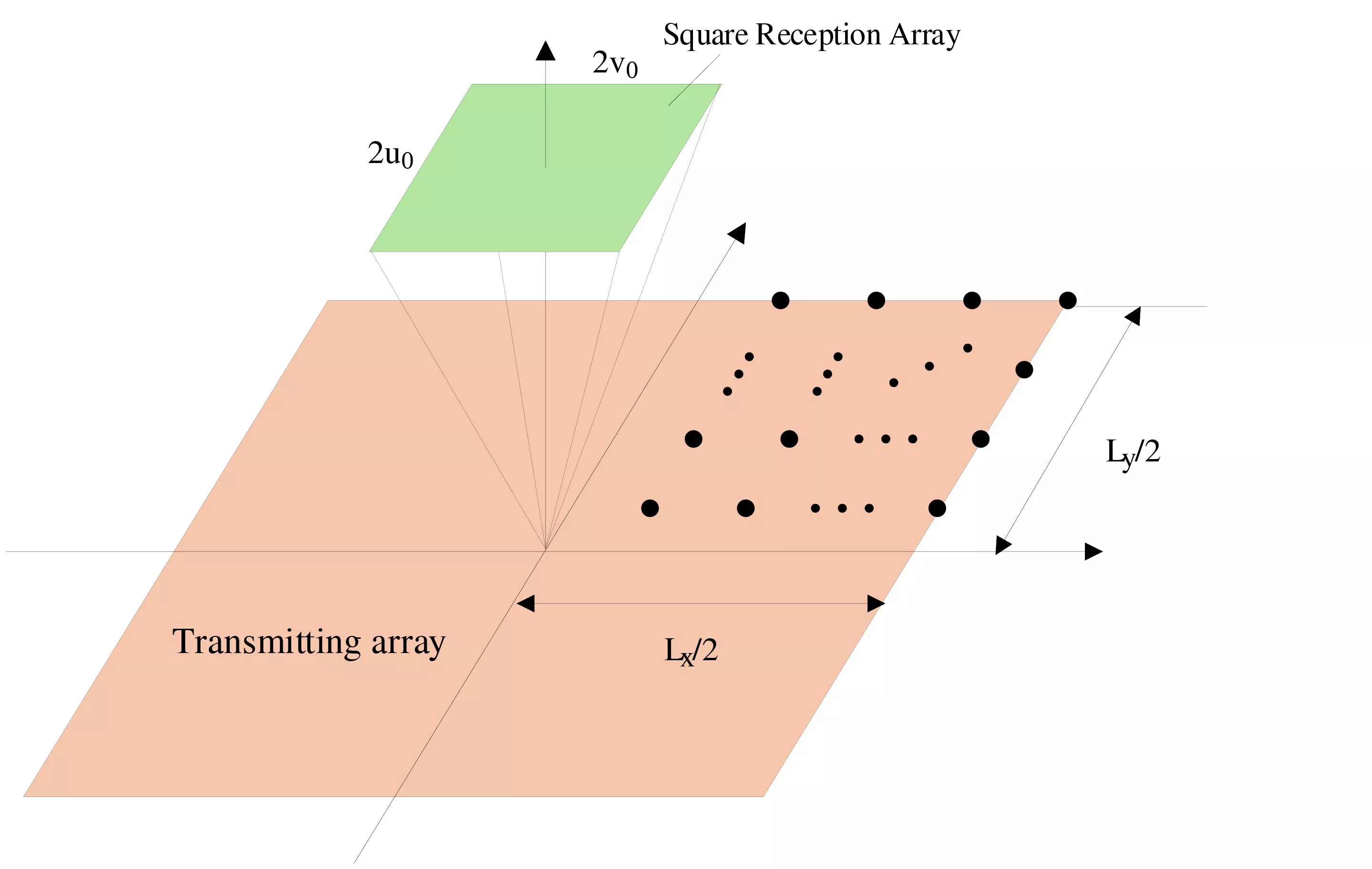

To improve beam collection efficiency (BCE) while suppressing sidelobes and limiting implementation complexity in microwave wireless power transmission (MWPT) transmitting arrays with a small number of subarrays, this paper proposes an axially symmetric sparse planar array (SDASPA) model and a one-step subarray-division algorithm named RT-DWCFPSO-SD. The proposed model exploits axial symmetry to reduce search dimension and facilitate a simplified feeding structure. The proposed algorithm jointly optimizes element positions, element excitations, and subarray boundary parameters by combining a constriction factor, dynamic inertia weight, and ring topology. Numerical simulations on an 8 × 8 array with an aperture of 4.5λ × 4.5λ show that, when the array is divided into three subarrays, the proposed method achieves a BCE of 93.42% and a CSL of -13.19 dB. These results indicate that the proposed method is a promising design tool for MWPT transmitting arrays under limited subarray-division conditions.

1. Xiao, Dongping, Liangliang Tian, Lanxin Xu, Huaiqing Zhang, and Xin Wang, "Fast beam-pointing control algorithms based on deep learning models for moving target in MWPT," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 5, 4541-4548, 2024.
doi:10.1109/tap.2024.3371645 Google Scholar

2. Yazdandoost, Kamya Yekeh and Ryuji Kohno, "Wireless communications for body implanted medical device," 2007 Asia-Pacific Microwave Conference, 1-4, Bangkok, Thailand, 2007.
doi:10.1109/APMC.2007.4554534

3. Ma, Haihong, Yaning Yang, Nan Qi, Shang Ma, and Xi Li, "Demonstration of a high-efficiency MWPT system for aerospace," 2018 IEEE Wireless Power Transfer Conference (WPTC), 1-4, Montreal, QC, Canada, 2018.
doi:10.1109/WPT.2018.8639304

4. Jiang, Hao and Wenbin Dou, "Methods for improving the distance of microwave wireless power transmission with a given beam collection efficiency," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 12, 2112-2116, 2020.
doi:10.1109/lawp.2020.3023998 Google Scholar

5. Massa, Andrea, Giacomo Oliveri, Federico Viani, and Paolo Rocca, "Array designs for long-distance wireless power transmission: State-of-the-art and innovative solutions," Proceedings of the IEEE, Vol. 101, No. 6, 1464-1481, 2013.
doi:10.1109/jproc.2013.2245491 Google Scholar

6. Yao, Y., L. W. Song, and Y. L. Liu, "Subarray partition design of receiving antenna for microwave power transmission," 2019 International Conference on Microwave and Millimeter Wave Technology (ICMMT), 1-3, Guangzhou, China, 2019.
doi:10.1109/ICMMT45702.2019.8992169

7. Clerc, M. and J. Kennedy, "The particle swarm-explosion, stability, and convergence in a multidimensional complex space," IEEE Transactions on Evolutionary Computation, Vol. 6, No. 1, 58-73, 2002.
doi:10.1109/4235.985692 Google Scholar

8. Na, Liu, Jiang Yan, and Li Shu, "Application of PSO algorithm with dynamic inertia weight in medical image thresholding segmentation," 2017 IEEE 19th International Conference on e-Health Networking, Applications and Services (Healthcom), 1-4, Dalian, China, 2017.
doi:10.1109/HealthCom.2017.8210769

9. Li, Xiaodong, "Niching without niching parameters: Particle swarm optimization using a ring topology," IEEE Transactions on Evolutionary Computation, Vol. 14, No. 1, 150-169, 2010.
doi:10.1109/tevc.2009.2026270 Google Scholar

10. Oliveri, Giacomo, Lorenzo Poli, and Andrea Massa, "Maximum efficiency beam synthesis of radiating planar arrays for wireless power transmission," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 5, 2490-2499, 2013.
doi:10.1109/tap.2013.2241714 Google Scholar

11. Li, Xun, Baoyan Duan, Jinzhu Zhou, Liwei Song, and Yiqun Zhang, "Planar array synthesis for optimal microwave power transmission with multiple constraints," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 70-73, 2017.
doi:10.1109/lawp.2016.2555980 Google Scholar

12. Li, Jianxiong, Ziyu Han, and Cuijuan Guo, "Novel subarray partition algorithm for solving the problem of too low beam collection efficiency caused by dividing a few subarrays," Progress In Electromagnetics Research M, Vol. 108, 223-235, 2022.
doi:10.2528/pierm22011701 Google Scholar

13. Miao, Ai-min, Xin-ling Shi, Jun-hua Zhang, En-yong Wang, and Shu-qing Peng, "A modified particle swarm optimizer with dynamical inertia weight," Fuzzy Information and Engineering Volume 2, Vol. 62, 767-776, Berlin, Heidelberg, 2009.
doi:10.1007/978-3-642-03664-4_84

14. Liu, Yiyang, Jiali Xi, Hongfei Bai, Zhining Wang, and Liangliang Sun, "A general robot inverse kinematics solution method based on improved PSO algorithm," IEEE Access, Vol. 9, 32341-32350, 2021.
doi:10.1109/access.2021.3059714 Google Scholar
