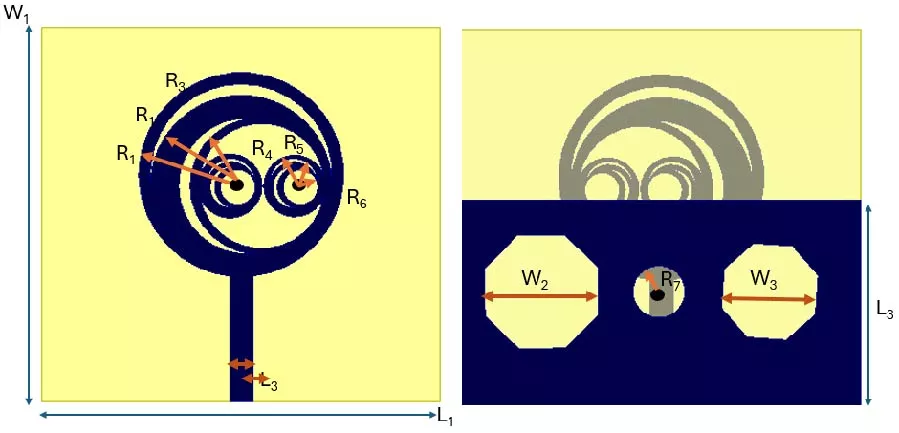

An owl-eye circular patch antenna with a polygonal defected ground structure (DGS) is presented in this paper for dual-band applications. The polygonal defected ground structure improves impedance matching and radiation characteristics, leading to a better gain and more efficient signal radiation. The design is fabricated on a FR-4 substrate measuring 35 × 33 × 1.6 mm³. This is a cheap way to make modern wireless devices. Adding circular fractal features resembling an owl-eye pattern to the radiating element improves the current flow and enables multiple resonant modes. It works at 3.68 GHz and 4.68 GHz, which make it suitable for 5G and WLAN applications. Antenna impedance matching is good, with reflection coefficient values of -24 dB at 3.68 GHz and -16 dB at 4.68\,GHz. As a result, very little signal is reflected. At the frequencies where it operates, it achieves gains of 6.2\,dBi and 5.68\,dBi. Additionally, the antenna has a high radiation efficiency of about 95{\%}, which means that it radiates well. Next-generation wireless communication systems will benefit from the proposed design.
