Abstract

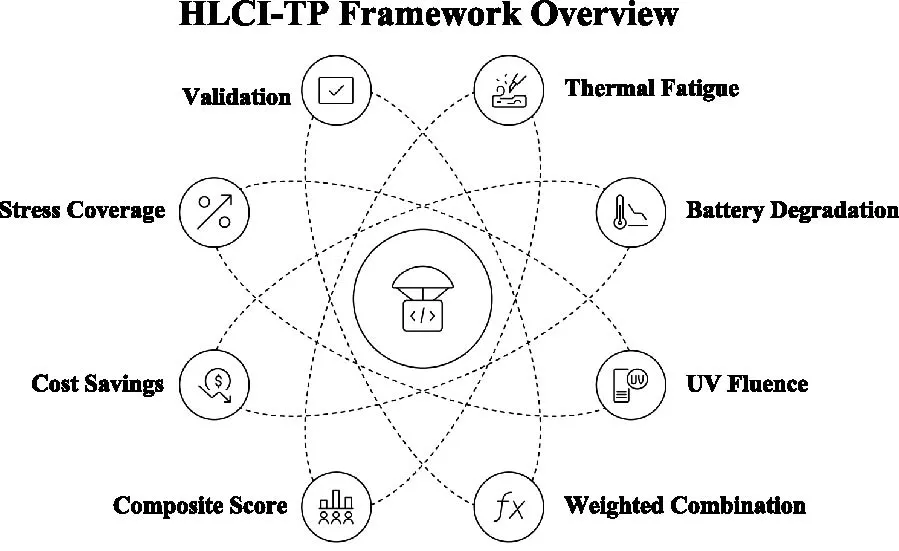

CubeSats deployed into Low-Earth Orbit (LEO) are continuously subjected to cyclic thermal loads and power-system degradation. Replicating these stresses through traditional space qualification is resource-intensive, placing it beyond the reach of most academic teams. Stratospheric High-Altitude Balloon (HAB) platforms offer a cost-effective pre-qualification pathway; however, no previous work has provided a rigorous, analytical method for mapping the stress accumulated during a balloon flight to an equivalent fraction of LEO stress. This gap prevents defensible claims of environmental fidelity. This paper introduces the High Altitude to Low Earth Orbit Correlation Index - Thermal and Power (HLCI-TP), a physics-based composite metric comprising three independently computed sub-indices: thermal fatigue (Coffin-Manson model), electrochemical battery degradation (Arrhenius model), and Ultraviolet (UV) fluence (Beer-Lambert model). Each sub-index quantifies the fraction of a 30-day LEO reference stress budget reproduced during a balloon mission, and the three are combined via a weighted linear sum. The UV sub-index is grounded in the Beer-Lambert electromagnetic attenuation law, directly connecting the framework to the quantification of solar ultraviolet irradiance - a component of the electromagnetic spectrum - at stratospheric altitudes. For a 24-hour reference mission at 35 km, the computed sub-index values are R_T ≈ 1.63 × 10^-4 (thermal), R_P ≈ 2.0 × 10^-6 (electrochemical), and R_U ≈ 9.92 × 10^-3 (UV), yielding a composite HLCI-TP score of 2.07 × 10^-3, which falls within the ``minimal screening'' band. This result is robust across three distinct weighting configurations (factor-of-three spread), a 10,000-sample Monte Carlo uncertainty analysis, and across the full practical range of mission durations (6-48 hours). The framework is further corroborated by applying Rainflow cycle counting to real GPS altitude data from the PMC-Turbo stratospheric balloon mission (35.7-39.5 km, 134.8 hours), which confirms the minimal-screening classification across all tested durations. These results quantify, for the first time through an analytical framework, that a 24-hour stratospheric flight reproduces approximately 0.016% of the LEO thermal fatigue budget and approximately 1% of the LEO UV-A/UV-B fluence budget. The cost savings relative to full Thermal Vacuum Chamber (TVAC) testing are one to two orders of magnitude. Future work will target orbital calibration, a vibration sub-index, and an open-source web calculator.

1. Heidt, H., J. Puig-Suari, A. Moore, S. Nakasuka, and R. Twiggs, "CubeSat: A new generation of picosatellite for education and industry low-cost space experimentation," 14th Annual AIAA/USU Conference on Small Satellites, Logan, UT, 2000.

2. Puig-Suari, J., C. Turner, and W. Ahlgren, "Development of the standard CubeSat deployer and a CubeSat class picosatellite," 2001 IEEE Aerospace Conference Proceedings (Cat. No.01TH8542), Vol. 1, 1/347-1/353, Big Sky, MT, USA, 2001.
doi:10.1109/AERO.2001.931726

3. Swartwout, M., "The first one hundred CubeSats: A statistical look," Journal of Small Satellites, Vol. 2, No. 2, 213-233, 2013. Google Scholar

4. Sannino, Antonio, Stefano Mungiguerra, Sergio Cassese, Raffaele Savino, Alberto Fedele, and Silvia Natalucci, "Fast reconfiguration maneuvers of a micro-satellite constellation based on a hybrid rocket engine," Aerotecnica Missili & Spazio, Vol. 103, No. 4, 401-412, 2024.
doi:10.1007/s42496-024-00202-y Google Scholar

5. Woellert, Kirk, Pascale Ehrenfreund, Antonio J. Ricco, and Henry Hertzfeld, "Cubesats: Cost-effective science and technology platforms for emerging and developing nations," Advances in Space Research, Vol. 47, No. 4, 663-684, 2011.
doi:10.1016/j.asr.2010.10.009 Google Scholar

6. Nieto-Peroy, Cristóbal and M. Reza Emami, "CubeSat mission: From design to operation," Applied Sciences, Vol. 9, No. 15, 3110, 2019.
doi:10.3390/app9153110 Google Scholar

7. Langer, M. and J. Bouwmeester, "Reliability of CubeSats --- Statistical data, developers' beliefs and the way forward," 30th Annual AIAA/USU Conference on Small Satellites, Logan, UT, 2016.

8. Schwartz, H., M. Langer, and K. Fateri, "Revisiting CubeSat reliability: Lessons from 500 missions," 33rd Annual AIAA/USU Conference on Small Satellites, Logan, UT, 2019.

9. Blanchete, Narimane and Abdellah Bah, "Thermal design, analysis and test: Framework for CubeSat in low Earth orbit," Results in Engineering, Vol. 24, 103401, 2024.
doi:10.1016/j.rineng.2024.103401 Google Scholar

10. NASA Goddard Space Flight Center "General Environmental Verification Standard (GEVS)," https://standards.nasa.gov/standard/gsfc/gsfc-std-7000, 2013.

11. Sowmyagiri, Katakam, Erlapally Sai Prakash Goud, and Sunnam Venkata Srikanth, "High-altitude balloon (HAB) based validation of cubesat communication links for IoT applications," 2025 IEEE International Conference on Communication, Networks and Satellite (COMNETSAT), 158-164, Padang, Indonesia, 2025.
doi:10.1109/COMNETSAT68601.2025.11324598

12. Hobbs, Steven, Andrew Lambert, Michael J. Ryan, and David J. Paull, "Preparing for space: Increasing technical readiness of low-cost high-performance remote sensing using high-altitude ballooning," Advances in Space Research, Vol. 71, No. 1, 1034-1044, 2023.
doi:10.1016/j.asr.2022.09.055 Google Scholar

13. Mazza, Salvatore, Pietro Mazzei, Alessandra Lucia Zollo, Vincenzo Rosario Baraniello, and Giuseppe Persechino, "Modeling and analysis of thermal aspects for a hybrid stratospheric HAPS," 2025 IEEE Aerospace Conference, 1-12, Big Sky, MT, USA, 2025.
doi:10.1109/AERO63441.2025.11068582

14. Wang, Zihao, Donghui Zhang, Tao Qiao, Chen Chen, and Haotian Cheng, "Influence of horizontal wind on high-altitude balloon system dynamics," Advances in Space Research, Vol. 75, No. 1, 823-836, 2025.
doi:10.1016/j.asr.2024.11.007 Google Scholar

15. Fernández-Soler, Alejandro, David González-Bárcena, Ignacio Torralbo, and Isabel Pérez-Grande, "Stratospheric balloon dynamics predictions for robust ascent phase payload thermal analysis," Advances in Space Research, Vol. 74, No. 7, 3216-3233, 2024.
doi:10.1016/j.asr.2024.07.028 Google Scholar

16. National Oceanic and Atmospheric Administration "U.S. Standard Atmosphere, 1976," NASA Technical Report NASA-TM-X-74335, U.S. Government Printing Office, Washington, DC. Available: https://ntrs.nasa.gov/citations/19770009539, 1976.

17. Gilmore, D., Spacecraft Thermal Control Handbook, Vol. I: Fundamental Technologies, 2nd Ed., The Aerospace Press, El Segundo, CA, 2002.

18. World Meteorological Organization Scientific Assessment of Ozone Depletion: 2018, Global Ozone Research and Monitoring Project, Report No. 58, 2018.

19. Dever, J. A., B. A. Banks, K. K. de Groh, and S. K. Miller, "Degradation of spacecraft materials," Handbook of Environmental Degradation of Materials, 465-501, William Andrew Publishing, 2005.

20. Wei, Fei and Xuanyi Zhang, "The solar FUV-UV spectra measurement experiment in the near space by high altitude balloon," Solar Physics, Vol. 299, No. 10, 152, 2024.
doi:10.1007/s11207-024-02396-7 Google Scholar

21. Rees, C. T., K. A. Ryden, A. D. P. Hands, and B. Clewer, "Radiation risk assessment for varying space weather conditions for very high altitude `near space' tourism balloon flights," Journal of Space Safety Engineering, Vol. 10, No. 2, 197-207, 2023.
doi:10.1016/j.jsse.2023.03.002 Google Scholar

22. Engelmaier, W., "Fatigue life of leadless chip carrier solder joints during power cycling," IEEE Transactions on Components, Hybrids, and Manufacturing Technology, Vol. 6, No. 3, 232-237, 1983.
doi:10.1109/tchmt.1983.1136183 Google Scholar

23. Steinberg, Dave S., Vibration Analysis for Electronic Equipment, 3rd Ed., Wiley, New York, 2000.

24. Spotnitz, R. and J. Franklin, "Abuse behavior of high-power, lithium-ion cells," Journal of Power Sources, Vol. 113, No. 1, 81-100, 2003.
doi:10.1016/s0378-7753(02)00488-3 Google Scholar

25. Coffin Jr., L. F., "A study of the effects of cyclic thermal stresses on a ductile metal," Transactions of the American Society of Mechanical Engineers, Vol. 76, No. 6, 931-949, 1954.
doi:10.1115/1.4015020 Google Scholar

26. Manson, S. S., "Behavior of materials under conditions of thermal stress," NACA TN 2933, National Advisory Committee for Aeronautics, 1953.

27. Waldmann, Thomas, Marcel Wilka, Michael Kasper, Meike Fleischhammer, and Margret Wohlfahrt-Mehrens, "Temperature dependent ageing mechanisms in Lithium-ion batteries --- A post-mortem study," Journal of Power Sources, Vol. 262, 129-135, 2014.
doi:10.1016/j.jpowsour.2014.03.112 Google Scholar

28. Koudelka, Otto and René Laufer, "High altitude activities for science and research with sounding rockets and stratospheric balloons," The Legal Framework of Suborbital Flights, 33-46, Brill Nijhoff, 2026.
doi:10.1163/9789004747692_004

29. Fortescue, P., G. Swinerd, and J. Stark, Spacecraft Systems Engineering, 4th Ed., Wiley, Chichester, UK, 2011.

30. Patel, Nirmal, Aryan Patel, Dustin Leonard, Colin Ott, Cory Pare, Lovely Ramos, Calla Taylor, Julian Rowe, and Larry Ratcliff, "High-altitude balloons flights on total solar eclipse," 2024 Academic High Altitude Conference, Vol. 2024, No. 2, St. Paul, United States, 2024.
doi:10.31274/ahac.18174

31. Kaifler, Bernd, Dimitry Rempel, Philipp Roßi, Christian Büdenbender, Natalie Kaifler, and Volodymyr Baturkin, "A technical description of the Balloon Lidar Experiment (BOLIDE)," Atmospheric Measurement Techniques, Vol. 13, No. 10, 5681-5695, 2020.
doi:10.5194/amt-13-5681-2020 Google Scholar

32. Kaifler, N., "Polar mesospheric clouds from the Balloon Lidar Experiment (BOLIDE) during the PMC Turbo balloon mission (Version v01) [Data set]," Zenodo, 2021.
doi:10.5281/zenodo.5722385
