Abstract

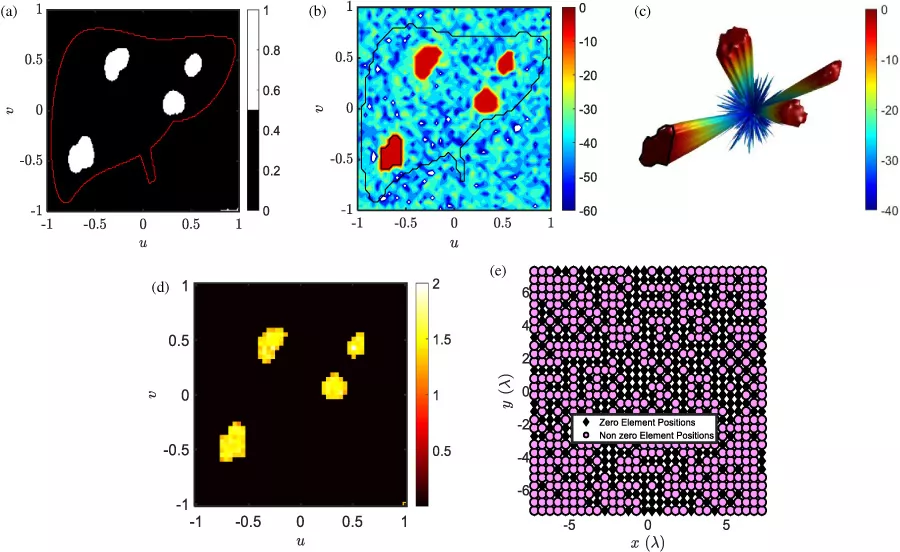

The development of interventional radiotherapy techniques has become one of the most important concerns for antenna designers worldwide. In this study, an efficient optimization approach based on a hybrid algorithm derived from exploiting the quantitative concept, along with the theory of reinforcement convexity, called the quantitative-convex approach (QCA), to produce a high-performance electromagnetic radiation pattern is presented. The novelty of this study lies in shaping patterns that mimic the shape of the targeted human organ in radiotherapy by steering a flat main beam of a square antenna array, along with optimal control of the sidelobe level. The proposed approach works by identifying the diseased organ captured from medical imaging, converting it into a binary image (black and white colors), and then feeding it into the antenna system to form a radiation pattern that accurately mimics the diseased organ. To reduce the systemic and computational complexity of the therapeutic antenna system, a sparsity technique was added to the hybrid algorithm. The computer simulation results showed high efficiency in generating robust patterns with sharp boundary profiles, such as those used for isolating diseased and undiseased tissues and measuring the tissue-specific absorption rate (TSAR), making it suitable for use in radiotherapy.

1. Rosen, A., M. A. Stuchly, and A. Vander Vorst, "Applications of RF/microwaves in medicine," IEEE Transactions on Microwave Theory and Techniques, Vol. 50, No. 3, 963-974, 2002.
doi:10.1109/22.989979 Google Scholar

2. Lantis II, J. C., K. L. Carr, R. Grabowy, R. J. Connolly, and S. D. Schwaitzberg, "Microwave applications in clinical medicine," Surgical Endoscopy, Vol. 12, No. 2, 170-176, 1998.
doi:10.1007/s004649900623 Google Scholar

3. Dewhirst, Mark W., B. L. Viglianti, M. Lora-Michiels, M. Hanson, and P. J. Hoopes, "Basic principles of thermal dosimetry and thermal thresholds for tissue damage from hyperthermia," International Journal of Hyperthermia, Vol. 19, No. 3, 267-294, 2003.
doi:10.1080/0265673031000119006 Google Scholar

4. Kampinga, Harm H., "Cell biological effects of hyperthermia alone or combined with radiation or drugs: A short introduction to newcomers in the field," International Journal of Hyperthermia, Vol. 22, No. 3, 191-196, 2006.
doi:10.1080/02656730500532028 Google Scholar

5. Lagendijk, J. J. W., "Hyperthermia treatment planning," Physics in Medicine & Biology, Vol. 45, No. 5, R61-R76, 2000.
doi:10.1088/0031-9155/45/5/201 Google Scholar

6. Fenn, Alan J., Adaptive Phased Array Thermotherapy for Cancer, Artech House, London, UK, 2008.

7. Nikolova, Natalia K., "Microwave imaging for breast cancer," IEEE Microwave Magazine, Vol. 12, No. 7, 78-94, 2011.
doi:10.1109/mmm.2011.942702 Google Scholar

8. Brown, Arik D., Electronically Scanned Arrays MATLAB® Modeling and Simulation, CRC Press, 2017.

9. Stang, John, Mark Haynes, Paul Carson, and Mahta Moghaddam, "A preclinical system prototype for focused microwave thermal therapy of the breast," IEEE Transactions on Biomedical Engineering, Vol. 59, No. 9, 2431-2438, 2012.
doi:10.1109/tbme.2012.2199492 Google Scholar

10. Nguyen, Phong Thanh, Amin Abbosh, and Stuart Crozier, "Three-dimensional microwave hyperthermia for breast cancer treatment in a realistic environment using particle swarm optimization," IEEE Transactions on Biomedical Engineering, Vol. 64, No. 6, 1335-1344, 2017.
doi:10.1109/tbme.2016.2602233 Google Scholar

11. Abdulqader, Ahmed Jameel and Jafar Ramadhan Mohammed, "New improved Sierpinski carpet structures based thinned planar array to synthesize low sidelobes radiation pattern," 2023 International Conference on Radar, Antenna, Microwave, Electronics, and Telecommunications (ICRAMET), 178-183, Bandung, Indonesia, 2023.
doi:10.1109/ICRAMET60171.2023.10366536

12. Abdulqader, Ahmed Jameel, "Different 2D and 3D mask constraints synthesis for large array pattern shaping," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 4, 579-587, 2024.
doi:10.1017/s1759078723001198 Google Scholar

13. Abdulqader, Ahmed J., Awan N. Mahmood, and Yessar E. Mohammed Ali, "A multi-objective array pattern optimization via thinning approach," Progress In Electromagnetics Research C, Vol. 127, 251-261, 2022.
doi:10.2528/pierc22101904 Google Scholar

14. Mohammed, Jafar Ramadhan, Raad Hamdan Thaher, and Ahmed Jameel Abdulqader, "Linear and planar array pattern nulling via compressed sensing," Journal of Telecommunications and Information Technology, Vol. 85, No. 3, 50-55, Sep. 2021.
doi:10.26636/jtit.2021.152921 Google Scholar

15. Oliveri, Giacomo, Matteo Carlin, and Andrea Massa, "Complex-weight sparse linear array synthesis by Bayesian compressive sampling," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 5, 2309-2326, 2012.
doi:10.1109/tap.2012.2189742 Google Scholar

16. Viani, Federico, Giacomo Oliveri, and Andrea Massa, "Compressive sensing pattern matching techniques for synthesizing planar sparse arrays," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 9, 4577-4587, 2013.
doi:10.1109/tap.2013.2267195 Google Scholar

17. Mahto, Santosh Kumar and Arvind Choubey, "A novel hybrid IWO/WDO algorithm for interference minimization of uniformly excited linear sparse array by position-only control," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 250-254, 2016.
doi:10.1109/lawp.2015.2439959 Google Scholar
