2026-07-09
Pattern Synthesis for Sparse Linear Arrays by Employing a Partitioning Optimization Strategy Based on Differential Evolution
By
Progress In Electromagnetics Research C, Vol. 171, 458-466, 2026
Abstract

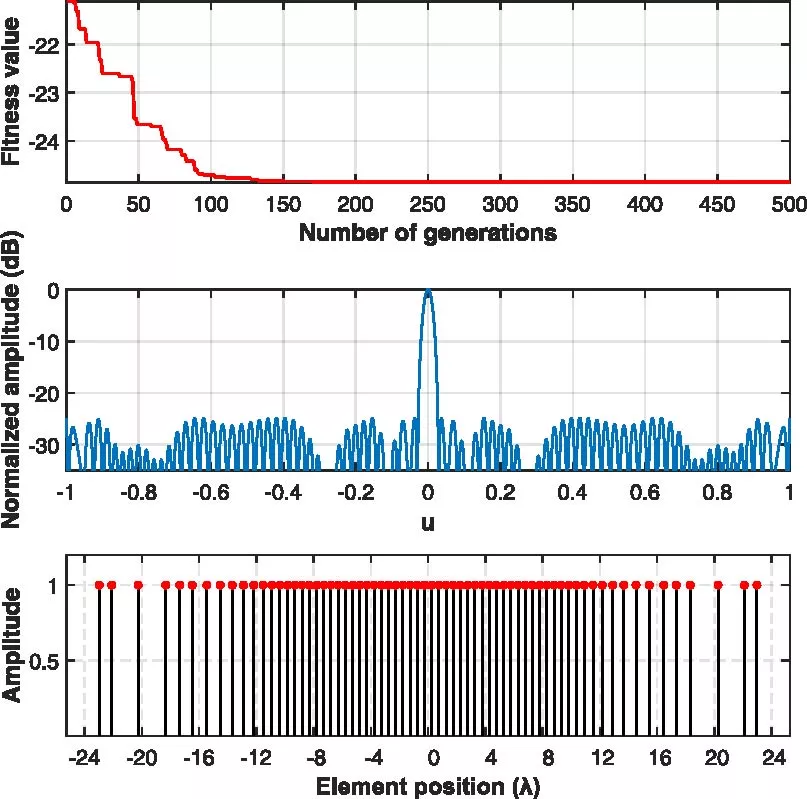

A partition optimization strategy (POS) based on the differential evolution (DE) algorithm is proposed for low sidelobe synthesis of sparse linear arrays (SLAs). The approach starts by dividing the array aperture into a centrally symmetric full zone and several sparse subzones, where elements are fully arranged in the former zone and sparsely populated in other zones. Then, by introducing random parameters, including a full-zone adjustment factor, sparse subzone reduction factors, and sparse subzone filling factors, both the size of the full zone and the array aperture, as well as the total number of elements, could be dynamically adjusted. Next, for each sparse subzone, two random parameters are introduced to generate a nonuniform vector based on the 1D Rastrigin function so that the elements within the current zone are non-uniformly arranged by using the components of the vector. Finally, all the aforementioned parameters were optimized by the DE algorithm to find the SLA with reduced sidelobe level. Numerical simulations demonstrate that this method can reduce the SLAs' sidelobe level by 0.37~4.34 dB along with the decrement of the number of elements by about 0.7%-15.0% compared to the published reports.
Citation
Jinyi Yang, Xin-Kuan Wang, Chenxin Qi, Ping Wang, Lei Wang, Linjun Zhao, and Zhaoxin Xiong, "Pattern Synthesis for Sparse Linear Arrays by Employing a Partitioning Optimization Strategy Based on Differential Evolution," PIER C, Vol. 171, 458-466, 2026.
doi:10.2528/PIERC26041504
References

1. Alvarez-Folgueiras, Marcos, Juan A. Rodriguez-Gonzalez, and Francisco Ares-Pena, "High-performance uniformly excited linear and planar arrays based on linear semiarrays composed of subarrays with different uniform spacings," IEEE Transactions on Antennas and Propagation, Vol. 57, No. 12, 4002-4006, Dec. 2009.
doi:10.1109/tap.2009.2026497        Google Scholar

2. Bucci, Ovidio Mario and Stefano Perna, "A deterministic two dimensional density taper approach for fast design of uniform amplitude pencil beams arrays," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 8, 2852-2861, Aug. 2011.
doi:10.1109/tap.2011.2158783        Google Scholar

3. Jiang, Yi and Shu Zhang, "An innovative strategy for synthesis of uniformly weighted circular aperture antenna array based on the weighting density method," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 725-728, 2013.
doi:10.1109/lawp.2013.2264833        Google Scholar

4. Quevedo-Teruel, O. and E. Rajo-Iglesias, "Ant colony optimization in thinned array synthesis with minimum sidelobe level," IEEE Antennas and Wireless Propagation Letters, Vol. 5, 349-352, 2006.
doi:10.1109/lawp.2006.880693        Google Scholar

5. Ha, B. V., M. Mussetta, P. Pirinoli, and R. E. Zich, "Modified compact genetic algorithm for thinned array synthesis," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1105-1108, 2016.
doi:10.1109/lawp.2015.2494839        Google Scholar

6. Goudos, Sotirios, "Antenna design using binary differential evolution: Application to discrete-valued design problems," IEEE Antennas and Propagation Magazine, Vol. 59, No. 1, 74-93, Feb. 2017.
doi:10.1109/map.2016.2630041        Google Scholar

7. Dai, Dingcheng, Minli Yao, Hongguang Ma, Wei Jin, and Fenggan Zhang, "An effective approach for the synthesis of uniformly excited large linear sparse array," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 3, 377-380, Mar. 2018.
doi:10.1109/lawp.2018.2790907        Google Scholar

8. Jiang, Yi, Shu Zhang, Qiang Guo, and Xiaoming Luan, "A hybrid strategy based on weighting density and genetic algorithm for the synthesis of uniformly weighted concentric ring arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 186-189, 2016.
doi:10.1109/lawp.2016.2567785        Google Scholar

9. Wang, Xin-Kuan and Gui-Bao Wang, "A hybrid method based on the iterative Fourier transform and the differential evolution for pattern synthesis of sparse linear arrays," International Journal of Antennas and Propagation, Vol. 2018, No. 1, 6309192, 2018.
doi:10.1155/2018/6309192        Google Scholar

10. Cui, Can, Wen Tao Li, Xiu Tiao Ye, and Xiao Wei Shi, "Hybrid genetic algorithm and modified iterative Fourier transform algorithm for large thinned array synthesis," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 2150-2154, 2017.
doi:10.1109/lawp.2017.2700865        Google Scholar

11. Zhang, Jiehuan, Xiaolian Mao, Miao Zhang, Jiro Hirokawa, and Qing Huo Liu, "Synthesis of thinned planar arrays based on precoded subarray structures," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 1, 44-48, Jan. 2023.
doi:10.1109/lawp.2022.3201382        Google Scholar

12. Wang, Xin-Kuan, Gui-Bao Wang, and Lei Wang, "Pattern synthesis for different sparse planar arrays by a hybrid unconstrained-heuristic approach," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 3, 631-635, Mar. 2023.
doi:10.1109/lawp.2022.3220935        Google Scholar

13. Oliveri, G. and A. Massa, "Genetic algorithm (GA)-enhanced almost difference set (ADS)-based approach for array thinning," IET Microwaves, Antennas & Propagation, Vol. 5, No. 3, 305-315, 2011.
doi:10.1049/iet-map.2010.0114        Google Scholar

14. Salucci, Marco, Giorgio Gottardi, Nicola Anselmi, and Giacomo Oliveri, "Planar thinned array design by hybrid analytical-stochastic optimisation," IET Microwaves, Antennas & Propagation, Vol. 11, No. 13, 1841-1845, Oct. 2017.
doi:10.1049/iet-map.2017.0349        Google Scholar

15. Keizer, Will P. M. N., "Linear array thinning using iterative FFT techniques," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 8, 2757-2760, Aug. 2008.
doi:10.1109/tap.2008.927580        Google Scholar

16. Gu, Li, Yan-Wen Zhao, Zhi-Peng Zhang, Li-Feng Wu, Qiang-Ming Cai, and Jun Hu, "Linear array thinning using probability density tapering approach," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 9, 1936-1940, Sep. 2019.
doi:10.1109/lawp.2019.2934146        Google Scholar

17. Zhou, Zhigang, Cao Zeng, and Baixiao Chen, "Fast low-sidelobe pattern synthesis for linear array thinning utilizing a modified iterative Chirp-Z transform technique," IEEE Sensors Journal, Vol. 21, No. 20, 23480-23491, Oct. 2021.
doi:10.1109/jsen.2021.3108595        Google Scholar

18. Dai, Dingcheng, Minli Yao, Hongguang Ma, Wei Jin, and Fenggan Zhang, "An asymmetric mapping method for the synthesis of sparse planar arrays," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 1, 70-73, Jan. 2018.
doi:10.1109/lawp.2017.2774498        Google Scholar

19. Wen, Hao, Peng-Fei Gu, Zi He, Nan Yang, Kwok Wa Leung, Jian-Xiao Wang, Zhen-Hong Fan, and Da-Zhi Ding, "A three-step mapping method for the synthesis of sparse planar arrays," IEEE Transactions on Antennas and Propagation, Vol. 73, No. 3, 1712-1724, Mar. 2025.
doi:10.1109/tap.2025.3534418        Google Scholar

20. Gong, Yu, Shaoqiu Xiao, Yu Zheng, and Bingzhong Wang, "Synthesis of multiple-pattern planar arrays by the multitask Bayesian compressive sensing," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 8, 1587-1591, Aug. 2021.
doi:10.1109/lawp.2021.3091613        Google Scholar

21. Kedar, Ashutosh, Pratap Vangol, and A. Mahesh, "Hybridization of Bayesian compressive sensing and array dilation technique for synthesis of linear isophoric sparse antenna arrays," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 5, 4066-4074, May 2023.
doi:10.1109/tap.2023.3247913        Google Scholar
