Abstract

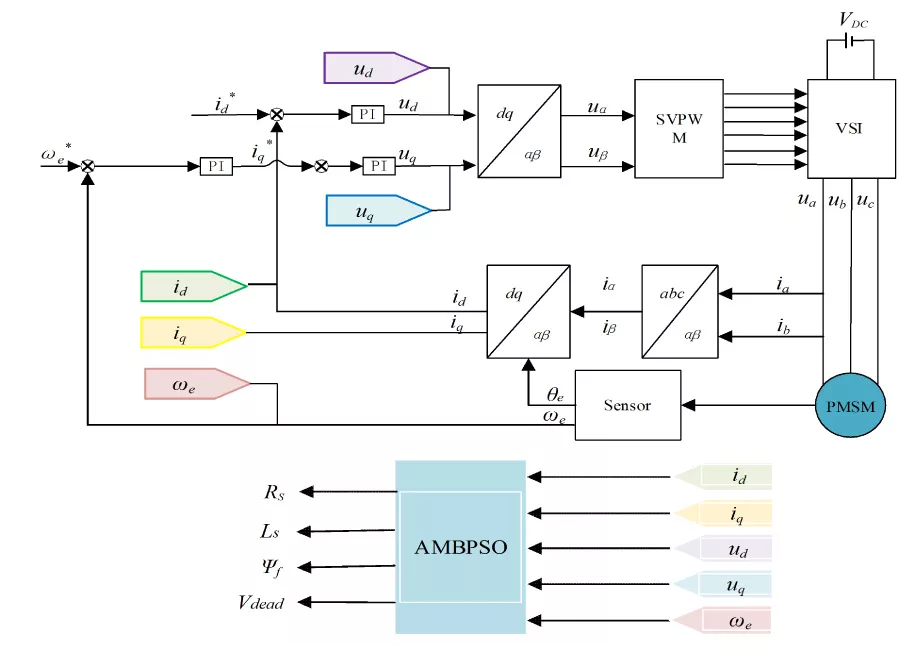

A permanent magnet synchronous motor (PMSM) parameter identification method based on adaptive mean position beetle particle swarm optimization (AMBPSO) is proposed, incorporating the distortion voltage induced by the nonlinearity of the voltage source inverter (VSI) into the parameter set to be identified. An adaptive inertia weighting strategy is designed to improve PMSM parameter identification accuracy and reduce computational time. In addition, the Cauchy mutation average optimal-position strategy is introduced to solve the problem of convergence of the algorithm to a suboptimal solution. Meanwhile, the beetle antenna search (BAS) algorithm is integrated with the improved particle swarm optimization (PSO) strategy, which effectively enhances the particle's dynamic perception of the environment space during the iterative process. The proposed AMBPSO strategy enables each particle to update its speed based on its individual historical optimum, population global optimum, and the beetle tentacle gradient search ability in the iterative process, realizing adaptive exploration of the solution space. Simulated and experimental results demonstrate that, in comparison to traditional PSO, the identification results after distortion voltage compensation are more accurate, and the proposed method significantly enhances identification precision and accelerates convergence speed.

1. Levi, Emil, "Advances in converter control and innovative exploitation of additional degrees of freedom for multiphase machines," IEEE Transactions on Industrial Electronics, Vol. 63, No. 1, 433-448, Jan. 2016.
doi:10.1109/tie.2015.2434999 Google Scholar

2. Dutta, Rukmi and M. F. Rahman, "Design and analysis of an interior permanent magnet (IPM) machine with very wide constant power operation range," IEEE Transactions on Energy Conversion, Vol. 23, No. 1, 25-33, Mar. 2008.
doi:10.1109/tec.2007.905061 Google Scholar

3. Paramonov, Aleksey, Safarbek Oshurbekov, Vadim Kazakbaev, Vladimir Prakht, Vladimir Dmitrievskii, and Victor Goman, "Comparison of differential evolution and Nelder-Mead algorithms for identification of line-start permanent magnet synchronous motor parameters," Applied Sciences, Vol. 13, No. 13, 7586, Jun. 2023.
doi:10.3390/app13137586 Google Scholar

4. Sun, Xiaodong, Zhihui Huang, Zebin Yang, Gang Lei, and Teng Li, "Improved model-free predictive current control for suppressing inverter nonlinearity and parametric time-varying of PMSM drive systems," IEEE Transactions on Industrial Electronics, Vol. 72, No. 10, 9866-9875, Oct. 2025.
doi:10.1109/tie.2025.3552258 Google Scholar

5. Zhang, Lei, Jiaqing Ma, Qinmu Wu, Zhiqin He, Tao Qin, and Changsheng Chen, "Research on PMSM speed performance based on fractional order adaptive fuzzy backstepping control," Energies, Vol. 16, No. 19, 6922, Oct. 2023.
doi:10.3390/en16196922 Google Scholar

6. Liu, Kan, Qiao Zhang, Jintao Chen, Z. Q. Zhu, and Jing Zhang, "Online multiparameter estimation of nonsalient-pole PM synchronous machines with temperature variation tracking," IEEE Transactions on Industrial Electronics, Vol. 58, No. 5, 1776-1788, May 2011.
doi:10.1109/tie.2010.2054055 Google Scholar

7. Jin, Ning-Zhi, Hong-Chao Chen, Dong-Yang Sun, Zhi-Qiang Wu, Kai Zhou, and Long Zhang, "Virtual signal injection maximum torque per ampere control based on inductor identification," Energies, Vol. 15, No. 13, 4851, Jul. 2022.
doi:10.3390/en15134851 Google Scholar

8. Kang, Dong-Hyeok, Hyung-Kyu Kim, Jun-Kyu Park, Seung-Ho Hyun, and Jin Hur, "Demagnetization detection for IPM-type BLDCMs according to irreversible demagnetization patterns and pole-slot coefficients," Journal of Power Electronics, Vol. 16, No. 1, 48-56, 2016.
doi:10.6113/jpe.2016.16.1.48 Google Scholar

9. Yoon, Jae-Seung, Kyoung-Gu Lee, June-Seok Lee, and Kyo-Beum Lee, "Off-line parameter identification of permanent magnet synchronous motor using a Goertzel algorithm," Journal of Electrical Engineering & Technology, Vol. 10, No. 6, 2262-2270, 2015.
doi:10.5370/jeet.2015.10.6.2262 Google Scholar

10. Rahimi, Abdolah, Farhad Bavafa, Sara Aghababaei, Mohammad Hassan Khooban, and S. Vahid Naghavi, "The online parameter identification of chaotic behaviour in permanent magnet synchronous motor by self-adaptive learning bat-inspired algorithm," International Journal of Electrical Power & Energy Systems, Vol. 78, No. 3, 285-291, 2016.
doi:10.1016/j.ijepes.2015.11.084 Google Scholar

11. Cheng, Zhun, Chao Zhang, and Yang Zhang, "Identification of VNS-AGA permanent magnet synchronous wind generator parameters considering magnetic saturation and VSI compensation," Progress In Electromagnetics Research C, Vol. 134, 181-195, 2023.
doi:10.2528/pierc23051002 Google Scholar

12. Zhou, Ying, Shuo Zhang, Chengning Zhang, Xueping Li, Xuerong Li, and Xin Yuan, "Current prediction error based parameter identification method for SPMSM with deadbeat predictive current control," IEEE Transactions on Energy Conversion, Vol. 36, No. 3, 1700-1710, Sep. 2021.
doi:10.1109/tec.2021.3051212 Google Scholar

13. Li, Xinyue and Ralph Kennel, "General formulation of Kalman-filter-based online parameter identification methods for VSI-fed PMSM," IEEE Transactions on Industrial Electronics, Vol. 68, No. 4, 2856-2864, Apr. 2021.
doi:10.1109/tie.2020.2977568 Google Scholar

14. Yu, Yelong, Xiaoyan Huang, Zhaokai Li, Min Wu, Tingna Shi, Yanfei Cao, Geng Yang, and Feng Niu, "Full parameter estimation for permanent magnet synchronous motors," IEEE Transactions on Industrial Electronics, Vol. 69, No. 5, 4376-4386, May 2022.
doi:10.1109/tie.2021.3078391 Google Scholar

15. Huang, Yubo, Jundong Zhang, Dong Chen, and Jiahao Qi, "Model reference adaptive control of marine permanent magnet propulsion motor based on parameter identification," Electronics, Vol. 11, No. 7, 1012, 2022.
doi:10.3390/electronics11071012 Google Scholar

16. Prabhakaran, K. K. and A. Karthikeyan, "Electromagnetic torque-based model reference adaptive system speed estimator for sensorless surface mount permanent magnet synchronous motor drive," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5936-5947, Jul. 2020.
doi:10.1109/tie.2020.2965499 Google Scholar

17. Cheng, Zhun, Chao Zhang, and Yang Zhang, "PMSWG parameter identification method based on improved operator genetic algorithm," Progress In Electromagnetics Research C, Vol. 139, 67-77, 2024.
doi:10.2528/pierc23081801 Google Scholar

18. Zhu, Yilin, Qi Chen, Kun Li, Wei Yang, and Yun Huang, "Parameter identification of interior permanent magnet synchronous based on local search-based hybrid genetic algorithm," Journal of Electromagnetic Waves and Applications, Vol. 36, No. 9, 1311-1322, 2022.
doi:10.1080/09205071.2021.2022004 Google Scholar

19. Peesapati, Rajagopal, Anamika, and Niranjan Kumar, "Electricity price forecasting and classification through wavelet–dynamic weighted PSO–FFNN approach," IEEE Systems Journal, Vol. 12, No. 4, 3075-3084, Dec. 2018.
doi:10.1109/jsyst.2017.2717446 Google Scholar

20. Zhou, Shuai, Dazhi Wang, and Ye Li, "Parameter identification of permanent magnet synchronous motor based on modified-fuzzy particle swarm optimization," Energy Reports, Vol. 9, 873-879, Mar. 2023.
doi:10.1016/j.egyr.2022.11.124 Google Scholar

21. Liu, Zhao-Hua, Hua-Liang Wei, Xiao-Hua Li, Kan Liu, and Qing-Chang Zhong, "Global identification of electrical and mechanical parameters in PMSM drive based on dynamic self-learning PSO," IEEE Transactions on Power Electronics, Vol. 33, No. 12, 10858-10871, Dec. 2018.
doi:10.1109/tpel.2018.2801331 Google Scholar

22. Zhang, Yang, Mingfeng Zhou, Chao Zhang, Anping Shen, and Luo Bing, "Identification of PMSM parameters with time-error compensated based on contractile factor antipredator PSO," IEEE Transactions on Transportation Electrification, Vol. 10, No. 2, 4006-4017, Jun. 2024.
doi:10.1109/tte.2023.3306872 Google Scholar

23. Jiang, Xiangyuan and Shuai Li, "BAS: Beetle antennae search algorithm for optimization problems," International Journal of Robotics and Control, Vol. 1, No. 1, 2018.
doi:10.5430/ijrc.v1n1p1 Google Scholar

24. Zhang, Bu, Pingjuan Niu, Xitong Guo, and Jiyan He, "Fuzzy PID control of permanent magnet synchronous motor electric steering engine by improved beetle antennae search algorithm," Scientific Reports, Vol. 14, No. 1, 2898, Feb. 2024.
doi:10.1038/s41598-024-52600-8 Google Scholar

25. Yu, Xiu-wu, Lu-ping Huang, Yong Liu, Ke Zhang, Pei Li, and Ying Li, "WSN node location based on beetle antennae search to improve the gray wolf algorithm," Wireless Networks, Vol. 28, No. 2, 539-549, 2022.
doi:10.1007/s11276-021-02875-w Google Scholar

26. Feng, Teng, Shuwei Deng, Qianwen Duan, and Yao Mao, "Application of local search particle swarm optimization based on the beetle antennae search algorithm in parameter optimization," Actuators, Vol. 13, No. 7, 270, Jul. 2024.
doi:10.3390/act13070270
