Abstract

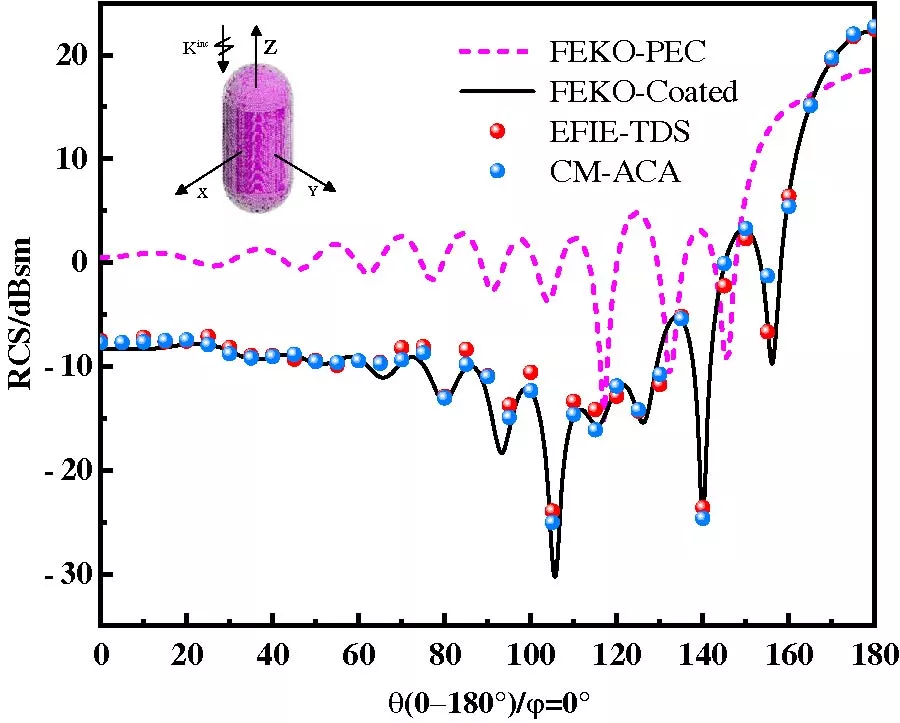

Analyzing the electromagnetic scattering of electrically large targets with complex coatings presents significant computational challenges. This paper proposes a highly efficient hybrid acceleration method within the Electric Field Integral Equation (EFIE) framework, combining the Thin Dielectric Sheet (TDS) approximation, Characteristic Mode Analysis (CMA), and Adaptive Cross Approximation (ACA). First, a generalized TDS formulation maps dual-layer equivalent currents onto a single-surface model, substantially reducing the initial unknowns while preserving physical consistency. Next, domain decomposition and CMA are utilized to construct a reduced-order matrix, enabling a direct, non-iterative solution that fundamentally bypasses traditional convergence bottlenecks. Finally, the ACA algorithm compresses well-separated far-field interactions to further minimize computational and memory costs. Comprehensive numerical experiments calculating the Radar Cross Section (RCS) of electrically large coated targets demonstrate that the proposed hybrid scheme offers superior accuracy and drastically reduces matrix storage and computation time compared to conventional full-wave direct solvers and traditional TDS-EFIE (electric and magnetic) formulations.

1. Harrington, R. F., Field Computation by Moment Methods, Macmillan, New York, 1968.

2. Rao, S., D. Wilton, and A. Glisson, "Electromagnetic scattering by surfaces of arbitrary shape," IEEE Transactions on Antennas and Propagation, Vol. 30, No. 3, 409-418, May 1982.
doi:10.1109/tap.1982.1142818 Google Scholar

3. Song, J., Cai-Cheng Lu, and Weng Cho Chew, "Multilevel fast multipole algorithm for electromagnetic scattering by large complex objects," IEEE Transactions on Antennas and Propagation, Vol. 45, No. 10, 1488-1493, Oct. 1997.
doi:10.1109/8.633855 Google Scholar

4. Lucente, Eugenio, Agostino Monorchio, and Raj Mittra, "An iteration-free MoM approach based on excitation independent characteristic basis functions for solving large multiscale electromagnetic scattering problems," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 4, 999-1007, Apr. 2008.
doi:10.1109/tap.2008.919166 Google Scholar

5. Peng, Zhen, Xiao-Chuan Wang, and Jin-Fa Lee, "Integral equation based domain decomposition method for solving electromagnetic wave scattering from non-penetrable objects," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 9, 3328-3338, Sep. 2011.
doi:10.1109/tap.2011.2161542 Google Scholar

6. Wang, Zhonggen, Dai Dong, Fei Guo, Yufa Sun, Wenyan Nie, and Pan Wang, "Fast construction of measurement matrix and sensing matrix with dual adaptive cross approximation," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 1, 13-17, Jan. 2025.
doi:10.1109/lawp.2024.3481498 Google Scholar

7. Lu, C. C. and W. C. Chew, "A coupled surface-volume integral equation approach for the calculation of electromagnetic scattering from composite metallic and material targets," IEEE Transactions on Antennas and Propagation, Vol. 48, No. 12, 1866-1868, Dec. 2000.
doi:10.1109/8.901277 Google Scholar

8. Glisson, A., "An integral equation for electromagnetic scattering from homogeneous dielectric bodies," IEEE Transactions on Antennas and Propagation, Vol. 32, No. 2, 173-175, Feb. 1984.
doi:10.1109/tap.1984.1143279 Google Scholar

9. Medgyesi-Mitschang, L. N., J. M. Putnam, and M. B. Gedera, "Generalized method of moments for three-dimensional penetrable scatterers," Journal of the Optical Society of America A, Vol. 11, No. 4, 1383-1398, 1994.
doi:10.1364/josaa.11.001383 Google Scholar

10. Tanaka, Tai, Kazuki Niino, and Naoshi Nishimura, "Characteristic basis function method combined with Krylov-Calderón preconditioner for PMCHWT formulation," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 3, 2578-2591, Mar. 2024.
doi:10.1109/tap.2024.3362379 Google Scholar

11. Harrington, R. and J. Mautz, "Theory of characteristic modes for conducting bodies," IEEE Transactions on Antennas and Propagation, Vol. 19, No. 5, 622-628, Sep. 1971.
doi:10.1109/tap.1971.1139999 Google Scholar

12. Capek, Miloslav, Johan Lundgren, Mats Gustafsson, Kurt Schab, and Lukas Jelinek, "Characteristic mode decomposition using the scattering dyadic in arbitrary full-wave solvers," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 830-839, Jan. 2023.
doi:10.1109/TAP.2022.3213945 Google Scholar

13. Wang, Zhonggen, Pan Wang, Yufa Sun, and Wenyan Nie, "Fast analysis of bistatic scattering problems for three-dimensional objects using compressive sensing and characteristic modes," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 9, 1817-1821, Sep. 2022.
doi:10.1109/lawp.2022.3181602 Google Scholar

14. Senior, T. B. A., "Impedance boundary conditions for imperfectly conducting surfaces," Applied Scientific Research, Section B, Vol. 8, No. 1, 418-436, 1960.
doi:10.1007/bf02920074 Google Scholar

15. Glisson, Allen W., "Electromagnetic scattering by arbitrarily shaped surfaces with impedance boundary conditions," Radio Science, Vol. 27, No. 6, 935-943, 1992.
doi:10.1029/92rs01782 Google Scholar

16. Senior, T. B. A. and J. L. Volakis, Approximate Boundary Conditions in Electromagnetics, IEE Press, London, U.K., 1995.

17. Volakis, J. L. and T. B. A. Senior, "Application of a class of generalized boundary conditions to scattering by a metal-backed dielectric half-plane," Proceedings of the IEEE, Vol. 77, No. 5, 796-805, 1989.
doi:10.1109/5.32070 Google Scholar

18. Hoppe, D. J. and Y. Rahmat-Samii, Impedance Boundary Conditions in Electromagnetics, CRC Press, Boca Raton, FL, USA, 1995.

19. Harrington, R. and J. Mautz, "An impedance sheet approximation for thin dielectric shells," IEEE Transactions on Antennas and Propagation, Vol. 23, No. 4, 531-534, Jul. 1975.
doi:10.1109/tap.1975.1141099 Google Scholar

20. Newman, E. and M. Schrote, "An open surface integral formulation for electromagnetic scattering by material plates," IEEE Transactions on Antennas and Propagation, Vol. 32, No. 7, 672-678, Jul. 1984.
doi:10.1109/tap.1984.1143411 Google Scholar

21. Chew, W. C., H. Y. Chao, T. J. Cui, C. C. Lu, S. Ohnuki, Y. C. Pan, J. M. Song, S. Velamparambil, and J. S. Zhao, "Fast integral equation solvers in computational electromagnetics of complex structures," Engineering Analysis with Boundary Elements, Vol. 27, No. 8, 803-823, 2003.
doi:10.1016/s0955-7997(03)00040-7 Google Scholar

22. Zhao, Kezhong, M. N. Vouvakis, and Jin-Fa Lee, "The adaptive cross approximation algorithm for accelerated method of moments computations of EMC problems," IEEE Transactions on Electromagnetic Compatibility, Vol. 47, No. 4, 763-773, 2005. Google Scholar
