Abstract

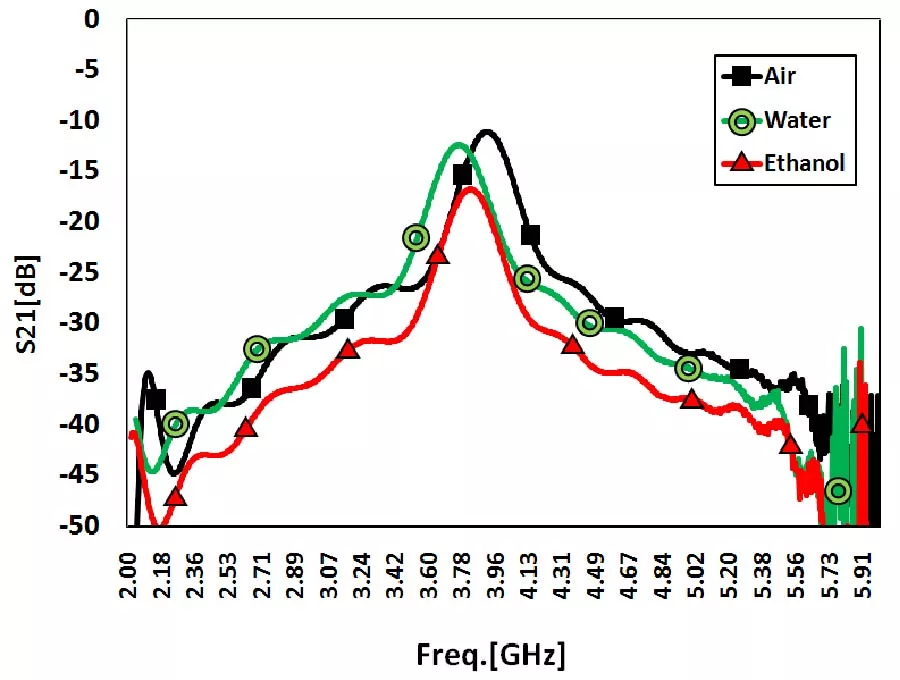

This work introduces an innovative fractal microstrip sensor, shaped like a Māra cross enclosed within a square, designed and fabricated on a Rogers RT5880 substrate for high-precision detection and characterization of edible oils. The proposed resonant shape enhances electric-field concentration and improves the interaction between the material under test and the electromagnetic field, resulting in improved sensitivity and resonant response. The sensor operates at a frequency of approximately 4 GHz within the S-band, with an area of 50 × 50 mm², making it suitable for portable and low-cost applications. The results demonstrated clear frequency shifts for various oil types, including coconut oil, olive oil, sunflower oil, and sesame oil. A mathematical model was also developed to extract the complex electrical permittivity with a high coefficient of determination of 0.99, showing excellent agreement between the experimental and theoretical results. The fractal sensor exhibits a remarkable normalized sensitivity of 0.86% and 3.56% per unit dielectric variation and error of 0.03% and 0.13%, with frequency shifts of 163 MHz and 103 MHz for water and ethanol detection, respectively. Maximum sensitivities reached 15.23% for olive oil and 11.32% for sunflower oil, surpassing many previously published studies.

1. Abdulkarim, Yadgar I., Mehmet Bakır, İbrahim Yaşar, Hasan Ulutaş, Muharrem Karaaslan, Fatih Özkan Alkurt, Cumali Sabah, and Jian Dong, "Highly sensitive metamaterial-based microwave sensor for the application of milk and dairy products," Applied Optics, Vol. 61, No. 8, 1972-1981, 2022.
doi:10.1364/ao.451900 Google Scholar

2. Priyanka, Sonia Bansal, and Preet Kaur, "CSRR based microstrip patch antenna sensor for the analysis of water and milk quality," Indian Journal of Engineering and Materials Sciences (IJEMS), Vol. 32, No. 1, 122-130, 2025.
doi:10.56042/ijems.v32i01.12434 Google Scholar

3. Al-Mudhafar, Ahmed A., Ra'ed A. Malallah, Sarah J. Ghazi, and Amjed A. Al-Mudhafar, "A multiband microwave sensor designed to sense the shelf life of raw fresh milk," IEEE Sensors Journal, Vol. 24, No. 21, 35538-35546, 2024.
doi:10.1109/jsen.2024.3460755 Google Scholar

4. Islam, Md. Rashedul, Mohammad Tariqul Islam, Ahasanul Hoque, Mohamed S. Soliman, Badariah Bais, Norsuzlin Mohd Sahar, and Sami H. A. Almalki, "Tri-circle split ring resonator shaped metamaterial with mathematical modeling for oil concentration sensing," IEEE Access, Vol. 9, 161087-161102, 2021.
doi:10.1109/access.2021.3131905 Google Scholar

5. Dhar, Shreya, Parthib Paul, Subha Mandal, and Gobinda Sen, "Preparation design and implementation of a portable microwave sensor for characterization of edible oils," IEEE Sensors Letters, Vol. 8, No. 12, 1-4, 2024.
doi:10.1109/lsens.2024.3491764 Google Scholar

6. Mandal, Subha, Subhradip Bal, Soham Banerjee, and Gobinda Sen, "3D-printed microstrip patch antenna sensor utilizing complementary dual split-ring resonator for detection of liquid samples," Frequenz, Vol. 80, No. 1-2, 39-45, 2026.
doi:10.1515/freq-2025-0061 Google Scholar

7. Karak, Soham, Subha Mandal, Anumoy Ghosh, and Gobinda Sen, "A compact dual band antenna sensor for multiband sensing application," IEEE Sensors Letters, Vol. 10, No. 3, 1-4, 2026.
doi:10.1109/lsens.2025.3647719 Google Scholar

8. Beria, Yatish, Gouree Shankar Das, Akash Buragohain, and Bijay Bikash Chamuah, "Highly sensitive miniaturized octagonal DS-CSRR sensor for permittivity measurement of liquid samples," IEEE Transactions on Instrumentation and Measurement, Vol. 72, 1-9, 2023.
doi:10.1109/tim.2023.3307172 Google Scholar

9. Sen, Gobinda, Subha Mandal, and Malay Gangopadhyay, "Compact CDSRR-based antenna for sensing applications," 2024 IEEE International Conference on Electronics, Computing and Communication Technologies (CONECCT), 1-5, Bangalore, India, 2024.
doi:10.1109/CONECCT62155.2024.10677182

10. Al-Gburi, Ahmed Jamal Abdullah, Zahriladha Zakaria, Norhanani Abd Rahman, Ayman A. Althuwayb, Imran Mohd Ibrahim, Tale Saeidi, Zaheer Ahmed Dayo, and Sarosh Ahmad, "A miniaturized and highly sensitive microwave sensor based on CSRR for characterization of liquid materials," Materials, Vol. 16, No. 9, 3416, 2023.
doi:10.3390/ma16093416 Google Scholar

11. Al-Mudhafar, Ahmed A. and Ra'ed A. Malallah, "New star-fractal antenna devised as wireless sensor of the permittivity characterization measurement of Na2SO3 solutions," Microsystem Technologies, Vol. 28, No. 9, 2149-2157, 2022.
doi:10.1007/s00542-022-05363-z Google Scholar

12. Wongsa, Fongnapha, Sirigiet Phunklang, Apisit Yueanket, Supatinee Kornsing, Nuchanart Santalunai, Patawee Mesawad, Samran Santalunai, Samroeng Narakaew, and Piyaporn Krachodnok, "Quantitative detection of carbamate pesticide residues in vegetables using a microwave ring resonator sensor," Applied Sciences, Vol. 15, No. 21, 11775, 2025.
doi:10.3390/app152111775 Google Scholar

13. Kumar, K. Santhosh and M. Ganesh Madhan, "A novel metamaterial-based microwave sensor design for the characterization of lubricating engine oils and alcohols," Journal of Optoelectronics and Advanced Materials, Vol. 27, No. 9-10, 427-438, 2025. Google Scholar

14. Arumugam, Jayadevan, Naveen Raj Edhayaraj, Santhosh Shanmugavadivelu, and Vidhyashree Sathyanarayanan, "Design of microwave electromagnetic sensor for liquid characterization," Journal of High-Frequency Communication Technologies, Vol. 1, No. 3, 73-83, 2023.
doi:10.58399/tlcx9900 Google Scholar

15. Al-Mudhafar, Ahmed A., Ali A. Abduljabar, and Hayder Jawad Albattat, "Breakdown voltage measurement of high voltage transformers oils using an active microwave resonator sensor," International Journal of Electronics and Communication Engineering, Vol. 17, No. 3, 84-88, 2023. Google Scholar

16. Rasoulzadeh, Aref, Changiz Ghobadi, Javad Nourinia, and Pejman Mohammadi, "A highly sensitive and compact size microstrip sensor for characterization of solid and liquid material with broad range permittivity," IEEE Access, Vol. 12, 87864-87872, 2024.
doi:10.1109/access.2024.3416392 Google Scholar

17. Al-Mudhafar, Ahmed A., "Circular patch 1 × 2 active antenna array for 5G applications," International Journal of Communication Systems, Vol. 39, No. 4, e70425, 2026.
doi:10.1002/dac.70425 Google Scholar

18. Navaei, Moein, Pejman Rezaei, and Sina Kiani, "A symmetric bar chart-shape microwave sensor with high Q-factor for permittivity determination of fluidics," International Journal of Microwave and Wireless Technologies, Vol. 15, No. 8, 1334-1342, 2023.
doi:10.1017/s1759078723000053 Google Scholar

19. Navaei, Moein, Pejman Rezaei, and Sina Kiani, "Measurement of low-loss aqueous solutions permittivity with high detection accuracy by a contact and free-label resonance microwave sensor," International Journal of Communication Systems, Vol. 36, No. 5, e5417, 2023.
doi:10.1002/dac.5417 Google Scholar

20. Karami, M., P. Rezaei, S. Kiani, and R. A. Sadeghzadeh, "Modified planar sensor for measuring dielectric constant of liquid materials," Electronics Letters, Vol. 53, No. 19, 1300-1302, 2017.
doi:10.1049/el.2017.2481 Google Scholar

21. Debye, P., Polar Molecules, Chemical Catalog Co., New York, NY, USA, 1929.

22. Buckley, Floyd and Arthur Allen Maryott, Tables of Dielectric Dispersion Data for Pure Liquids and Dilute Solutions, Vol. 589, National Bureau of Standards Circular, Nov. 1958.

23. Kiani, Sina, Pejman Rezaei, and Moein Navaei, "Dual-sensing and dual-frequency microwave SRR sensor for liquid samples permittivity detection," Measurement, Vol. 160, 107805, Aug. 2020.
doi:10.1016/j.measurement.2020.107805 Google Scholar

24. Bakır, Mehmet, Şekip Dalgaç, Muharrem Karaaslan, Faruk Karadağ, Oğuzhan Akgol, Emin Unal, Tolga Depçi, and Cumali Sabah, "A comprehensive study on fuel adulteration sensing by using triple ring resonator type metamaterial," Journal of the Electrochemical Society, Vol. 166, No. 12, B1044-B1052, 2019.
doi:10.1149/2.1491912jes Google Scholar

25. Viskadourakis, Zacharias, Anna Theodosi, Klytaimnistra Katsara, Maria Sevastaki, George Fanourakis, Odysseas Tsilipakos, Vassilis M. Papadakis, and George Kenanakis, "Engraved split-ring resonators as potential microwave sensors for olive oil quality control," ACS Applied Electronic Materials, Vol. 6, No. 5, 3846-3856, May 2024.
doi:10.1021/acsaelm.4c00430 Google Scholar

26. Chen, Cheng and Shen-Yun Wang, "A high-sensitivity microwave patch sensor for olive oil adulteration detection," Progress In Electromagnetics Research C, Vol. 167, 155-164, 2026.
doi:10.2528/pierc25122408 Google Scholar
