Abstract

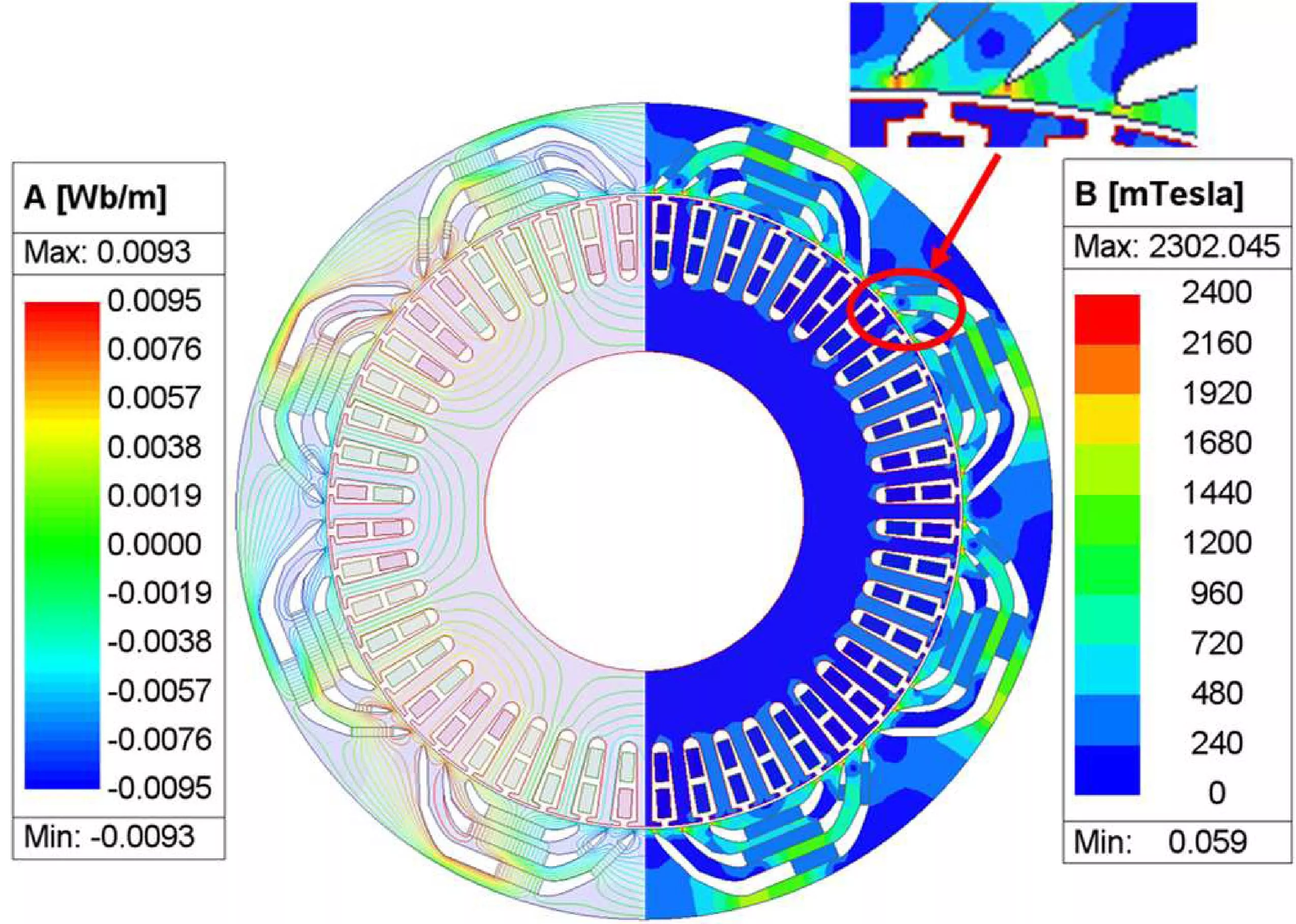

To address the problems of flux barriers' excessive torque ripple and complicated multi-parameter optimization in conventional permanent magnet-assisted synchronous reluctance motors (PMa-SynRMs), this paper proposes a novel asymmetric external-rotor ferrite-assisted synchronous reluctance motor (AERFa-SynRM). By adopting an asymmetric magnet shifting arrangement, the magnetic circuit configuration is optimized, which improves air-gap flux density and permanent magnet torque without increasing material and manufacturing costs. The magnetic circuit characteristics and torque generation mechanism of symmetric and asymmetric rotor structures are compared and analyzed by establishing mathematical and electromagnetic models. Taking key rotor geometric parameters as design variables and average torque, torque ripple, and efficiency as multi-objective optimization indices, a BP-Kriging hybrid surrogate model is constructed, and the NSGA-II algorithm is adopted for global parameter optimization. The finite element simulation results demonstrate that the proposed asymmetric rotor structure can effectively enhance air-gap flux density and no-load back-EMF performance. After multi-objective optimization, the average torque and motor efficiency are greatly improved, while the torque ripple is sharply reduced. The asymmetric angle adjustment realizes the peak-valley mutual cancellation between permanent magnet torque and reluctance torque, which fundamentally suppresses electromagnetic torque ripple. The proposed topology and collaborative optimization strategy provide an effective solution for the performance improvement and torque ripple reduction of low-cost ferrite PMa-SynRMs.

1. Podmiljšak, Benjamin, Boris Saje, Petra Jenuš, Tomaž Tomše, Spomenka Kobe, Kristina Žužek, and Sašo Šturm, "The future of permanent-magnet-based electric motors: How will rare earths affect electrification?," Materials, Vol. 17, No. 4, 848, 2024.
doi:10.3390/ma17040848 Google Scholar

2. Brody, Ryan M., Paul R. Ohodnicki, Mohendro K. Ghosh, Cuauhtemoc Macias, Andrew Sherman, Ahmed Talaat, Jun Cui, and Brandon Grainger, "Trade study for rare-earth-free interior permanent magnet synchronous machine using MnBi permanent magnets," IEEE Transactions on Industry Applications, Vol. 60, No. 4, 6010-6022, 2024.
doi:10.1109/tia.2024.3379487 Google Scholar

3. Bonthu, Sai Sudheer Reddy, A. Arafat, and Seungdeog Choi, "Comparisons of rare-earth and rare-earth-free external rotor permanent magnet assisted synchronous reluctance motors," IEEE Transactions on Industrial Electronics, Vol. 64, No. 12, 9729-9738, 2017.
doi:10.1109/tie.2017.2711580 Google Scholar

4. Nobahari, Amin, Abolfazl Vahedi, and Reza Nasiri-Zarandi, "A modified permanent magnet-assisted synchronous reluctance motor design for torque characteristics improvement," IEEE Transactions on Energy Conversion, Vol. 37, No. 2, 989-998, 2022.
doi:10.1109/tec.2021.3127081 Google Scholar

5. Pošković, Emir, Luca Ferraris, and Nicola Bianchi, "Different approaches in the use of ferrites in assisted reluctance machines," IEEE Transactions on Industry Applications, Vol. 58, No. 5, 6136-6144, 2022.
doi:10.1109/tia.2022.3185581 Google Scholar

6. Degano, Michele, Mukhammed Murataliyev, Wang Shuo, Davide Barater, Giampaolo Buticchi, Werner Jara, Nicola Bianchi, Michael Galea, and Chris Gerada, "Optimised design of permanent magnet assisted synchronous reluctance machines for household appliances," IEEE Transactions on Energy Conversion, Vol. 36, No. 4, 3084-3095, 2021.
doi:10.1109/tec.2021.3076675 Google Scholar

7. Xing, Fuzhen, Wenliang Zhao, and Byung-Il Kwon, "Design and optimisation of a novel asymmetric rotor structure for a PM-assisted synchronous reluctance machine," IET Electric Power Applications, Vol. 13, No. 5, 573-580, 2019.
doi:10.1049/iet-epa.2018.0184 Google Scholar

8. Liu, G., X. Du, G. Xu, and X. Fan, "Optimal design of an inset PM motor with assisted barriers and magnet shifting for improvement of torque characteristics," 2017 IEEE International Magnetics Conference (INTERMAG), 1-1, Dublin, Ireland, 2017.
doi:10.1109/INTMAG.2017.8007747

9. Xu, Meimei, Guohai Liu, Qian Chen, Jinghua Ji, and Wenxiang Zhao, "Design and optimization of a fault tolerant modular permanent magnet assisted synchronous reluctance motor with torque ripple minimization," IEEE Transactions on Industrial Electronics, Vol. 68, No. 9, 8519-8530, 2021.
doi:10.1109/tie.2020.3016263 Google Scholar

10. Li, Ze-Cheng, Jin-Ping Lu, Wen-Jie Wan, Yu-Hua Lan, Yunchong Wang, Dan Shi, Weirong Hong, and Jian-Xin Shen, "Torque ripple reduction with harmonics superposition and optimization for axially-segmented PM-assisted synchronous reluctance machines," IEEE Transactions on Industry Applications, Vol. 61, No. 5, 6973-6983, 2025.
doi:10.1109/tia.2025.3554119 Google Scholar

11. Qiao, Zhiwei, Liwei Shi, Facheng Li, Haoyang Xu, Tianyu Zhou, and Weilong Wang, "Characteristics analysis of magnetic-pole-shift in an asymmetric hybrid pole-permanent magnet-assisted synchronous reluctance motor," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 13, No. 2, 1394-1405, 2025.
doi:10.1109/jestpe.2024.3466168 Google Scholar

12. Zhao, Wenliang, Chengwu Diao, Dezhi Chen, Yan Liu, and Xiuhe Wang, "A permanent magnet concentrated-flux synchronous reluctance motor with torque improvement for unmanned ship propulsion," IEEE Transactions on Transportation Electrification, Vol. 11, No. 5, 10822-10835, 2025.
doi:10.1109/tte.2025.3567986 Google Scholar

13. Bonthu, Sai Sudheer Reddy, Md. Tawhid Bin Tarek, and Seungdeog Choi, "Optimal torque ripple reduction technique for outer rotor permanent magnet synchronous reluctance motors," IEEE Transactions on Energy Conversion, Vol. 33, No. 3, 1184-1192, 2018.
doi:10.1109/tec.2017.2781259 Google Scholar

14. Istenes, György, Zoltán Pusztai, Péter Kőrös, Zoltán Horváth, and Ferenc Friedler, "Kriging-assisted multi-objective optimization framework for electric motors using predetermined driving strategy," Energies, Vol. 16, No. 12, 4713, 2023.
doi:10.3390/en16124713 Google Scholar

15. Sun, Chengxu, Qi Li, Tao Fan, Xuhui Wen, and Ye Li, "Multi-objective optimization design of external rotor permanent magnet machine for in-wheel applications," 2023 24th International Conference on the Computation of Electromagnetic Fields (COMPUMAG), 1-4, Kyoto, Japan, 2023.
doi:10.1109/COMPUMAG56388.2023.10411810

16. Gözüaçık, Emre and Mehmet Akar, "Multi-physics and multi-objective design of an axial flux permanent magnet-assisted synchronous reluctance motor for use in electric vehicles," Machines, Vol. 13, No. 7, 555, 2025.
doi:10.3390/machines13070555 Google Scholar

17. Hua, Yizhou, Huangqiu Zhu, and Ying Xu, "Multi-objective optimization design of bearingless permanent magnet synchronous generator," IEEE Transactions on Applied Superconductivity, Vol. 30, No. 4, 1-5, 2020.
doi:10.1109/tasc.2020.2970661 Google Scholar

18. Hua, Yizhou, Huangqiu Zhu, Min Gao, and Zongyou Ji, "Multiobjective optimization design of permanent magnet assisted bearingless synchronous reluctance motor using NSGA-Ⅱ," IEEE Transactions on Industrial Electronics, Vol. 68, No. 11, 10477-10487, 2021.
doi:10.1109/tie.2020.3037873 Google Scholar

19. Zhang, Hengliang, Guangchen Wang, Junli Zhang, Yuan Gao, Wei Hua, and Yuchen Wang, "An improved Kriging surrogate model method with high robustness for electrical machine optimization," IEEE Transactions on Industry Applications, Vol. 60, No. 5, 6799-6810, 2024.
doi:10.1109/tia.2024.3413042 Google Scholar

20. Ma, Haiping, Yajing Zhang, Shengyi Sun, Ting Liu, and Yu Shan, "A comprehensive survey on NSGA-II for multi-objective optimization and applications," Artificial Intelligence Review, Vol. 56, No. 12, 15217-15270, 2023.
doi:10.1007/s10462-023-10526-z Google Scholar

21. Chu, W. Q. and Z. Q. Zhu, "Average torque separation in permanent magnet synchronous machines using frozen permeability," IEEE Transactions on Magnetics, Vol. 49, No. 3, 1202-1210, 2012.
doi:10.1109/tmag.2012.2225068 Google Scholar

Dr. Chaozhi Huang

Mr. Wen Kuang

Mr. Fangrong Wang

Dr. Ji Zhang

Dr. Zhihong Liu
