Abstract

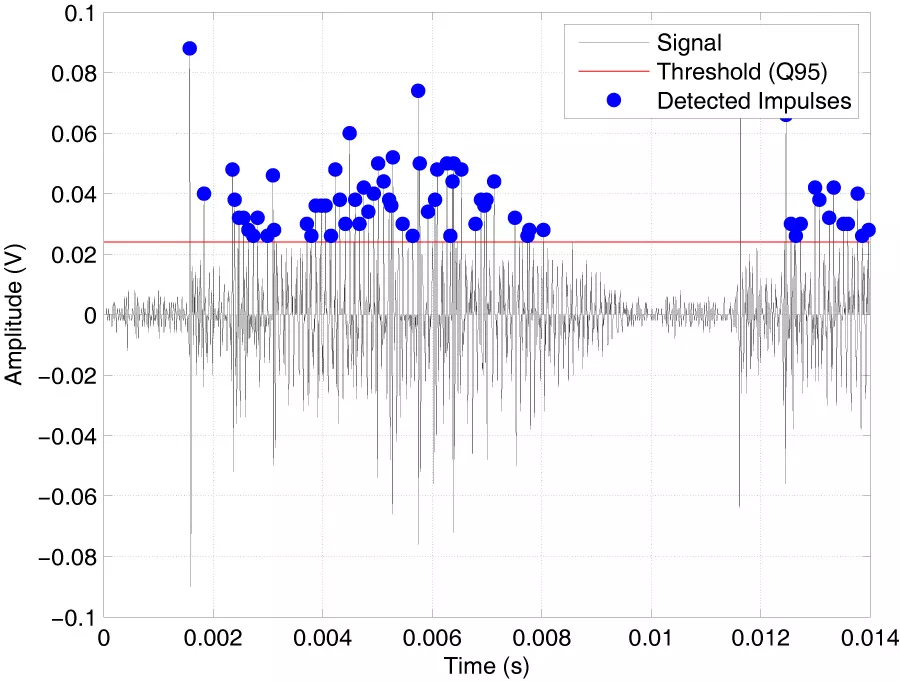

Power line communication (PLC) channels are significantly affected by bursty and impulsive electromagnetic interference (EMI), whose temporal clustering and amplitude variability are not adequately captured by conventional statistical models. Existing approaches often treat impulse arrivals and amplitudes independently, limiting their ability to reproduce the coupled dynamics observed in practical transmission line environments. In this study, a marked self-exciting point process model is proposed for PLC noise characterization, where impulse arrival times are governed by a Hawkes-type process, and amplitudes are represented as stochastic marks. The framework incorporates mark-dependent excitation, allowing higher-amplitude impulses to influence subsequent event occurrences and thereby capture the observed bursty structure. A measurement-driven analysis shows that PLC impulsive noise exhibits short-term temporal dependence and deviation from memoryless behavior, as reflected in skewed inter-arrival distributions, nonlinear complementary cumulative distribution function (CCDF) characteristics, and non-zero autocorrelation at small lags. Parameter estimation indicates dominant baseline activity with moderate self-excitation and rapidly decaying temporal influence. Amplitude modeling revealed a skewed distribution with intermittent high-energy events, whereas extreme value analysis using a generalized Pareto distribution suggested a bounded tail behavior for threshold exceedances. A joint likelihood-based estimation framework was developed to enable practical parameter inference. Validation of measured PLC datasets demonstrated that the proposed model consistently captures both temporal and amplitude characteristics without parameter re-estimation. A comparative analysis with a Poisson model showed clear discrepancies, with a quantified CCDF error of 0.15932, highlighting the limitations of memoryless assumptions. Overall, the proposed marked self-exciting framework provides a physically interpretable and statistically consistent representation of impulsive EMI in PLC systems, offering a robust foundation for improved modeling and mitigation strategies.

1. Zimmermann, M. and K. Dostert, "Analysis and modeling of impulsive noise in broad-band powerline communications," IEEE Transactions on Electromagnetic Compatibility, Vol. 44, No. 1, 249-258, Feb. 2002.
doi:10.1109/15.990732 Google Scholar

2. Meng, H., Y. L. Guan, and S. Chen, "Modeling and analysis of noise effects on broadband power-line communications," IEEE Transactions on Power Delivery, Vol. 20, No. 2, 630-637, Apr. 2005.
doi:10.1109/tpwrd.2005.844349 Google Scholar

3. Middleton, David, "Statistical-physical models of electromagnetic interference," IEEE Transactions on Electromagnetic Compatibility, Vol. EMC-19, No. 3, 106-127, Aug. 1977.
doi:10.1109/temc.1977.303527 Google Scholar

4. Katayama, M., T. Yamazato, and H. Okada, "A mathematical model of noise in narrowband power line communication systems," IEEE Journal on Selected Areas in Communications, Vol. 24, No. 7, 1267-1276, Jul. 2006.
doi:10.1109/jsac.2006.874408 Google Scholar

5. Chelangat, Florence and T. Afullo, "Time series modelling of powerline communication impulsive noise: Queuing theory approach," Progress In Electromagnetics Research C, Vol. 150, 157-168, 2024.
doi:10.2528/pierc24090401 Google Scholar

6. Corripio, F. J. C., J. A. C. Arrabal, L. D. del Rio, and J. T. E. Munoz, "Analysis of the cyclic short-term variation of indoor power line channels," IEEE Journal on Selected Areas in Communications, Vol. 24, No. 7, 1327-1338, Jul. 2006.
doi:10.1109/jsac.2006.874402 Google Scholar

7. Galli, S. and T. Banwell, "A novel approach to the modeling of the indoor power line channel-Part II: Transfer function and its properties," IEEE Transactions on Power Delivery, Vol. 20, No. 3, 1869-1878, 2005.
doi:10.1109/tpwrd.2005.848732 Google Scholar

8. Awino, Steven O. and Bakhe Nleya, "Power line communication: Extreme noise events modelling and characterization over low-voltage networks," Progress In Electromagnetics Research C, Vol. 162, 242-251, 2025.
doi:10.2528/pierc25071703 Google Scholar

9. Ferreira, H. C., L. Lampe, J. Newbury, and T. G. Swart, Power Line Communications: Theory and Applications for Narrowband and Broadband Communications over Power Lines, John Wiley & Sons, 2011.

10. Nassar, Marcel, Kapil Gulati, Yousof Mortazavi, and Brian L. Evans, "Statistical modeling of asynchronous impulsive noise in powerline communication networks," 2011 IEEE Global Telecommunications Conference --- GLOBECOM 2011, 1-6, Houston, TX, USA, 2011.
doi:10.1109/GLOCOM.2011.6134477

11. Banelli, Paolo, "Bayesian estimation of a Gaussian source in Middleton's class-A impulsive noise," IEEE Signal Processing Letters, Vol. 20, No. 10, 956-959, Oct. 2013.
doi:10.1109/lsp.2013.2274774 Google Scholar

12. Lin, Jing, Marcel Nassar, and Brian L. Evans, "Impulsive noise mitigation in powerline communications using sparse Bayesian learning," IEEE Journal on Selected Areas in Communications, Vol. 31, No. 7, 1172-1183, Jul. 2013.
doi:10.1109/jsac.2013.130702 Google Scholar

13. Awino, Steven O. and Bakhe Nleya, "Ensemble-based short-window non-linear dynamical characterization of PLC impulsive noise," Applied Sciences, Vol. 16, No. 7, 3573, 2026.
doi:10.3390/app16073573 Google Scholar

14. Nikias, C. L. and J. M. Mendel, "Signal processing with higher-order spectra," IEEE Signal Processing Magazine, Vol. 10, No. 3, 10-37, Jul. 1993.
doi:10.1109/79.221324 Google Scholar

15. Awino, Steven O. and Bakhe Nleya, "Multifractal random walk model for bursty impulsive PLC noise," Applied Sciences, Vol. 16, No. 1, 49, 2026.
doi:10.3390/app16010049 Google Scholar

16. Asiyo, Mike O. and Thomas J. O. Afullo, "Analysis of bursty impulsive noise in low-voltage indoor power line communication channels: Local scaling behaviour," SAIEE Africa Research Journal, Vol. 108, No. 3, 98-107, Sep. 2017.
doi:10.23919/saiee.2017.8531521 Google Scholar

17. Gianaroli, Fabio, Fabrizio Pancaldi, Enrico Sironi, Marco Vigilante, Giorgio Matteo Vitetta, and Alessandro Barbieri, "Statistical modeling of periodic impulsive noise in indoor power-line channels," IEEE Transactions on Power Delivery, Vol. 27, No. 3, 1276-1283, Jul. 2012.
doi:10.1109/tpwrd.2012.2188910 Google Scholar

18. Nassar, Marcel, Jing Lin, Yousof Mortazavi, Anand Dabak, Il Han Kim, and Brian L. Evans, "Local utility power line communications in the 3–500 kHz band: Channel impairments, noise, and standards," IEEE Signal Processing Magazine, Vol. 29, No. 5, 116-127, 2012.
doi:10.1109/msp.2012.2187038 Google Scholar

19. Deng, Hongzhe, Lingya Liu, Jing Xu, and Tong Liu, "Deep learning-based impulsive noise detection and impulsive-noise-aware receiver for DFT-S-OFDM systems," IEEE Transactions on Cognitive Communications and Networking, Vol. 12, 2455-2470, 2025.
doi:10.1109/tccn.2025.3589007 Google Scholar

20. Jeong, Jae Jin and SeungHun Kim, "Robust adaptive filter algorithms against impulsive noise," Circuits, Systems, and Signal Processing, Vol. 38, No. 12, 5651-5664, 2019.
doi:10.1007/s00034-019-01135-9 Google Scholar

21. Daley, D. J. and D. Vere-Jones, An Introduction to the Theory of Point Processes: Volume I: Elementary Theory and Methods, Springer, 2003.

22. Daley, D. J. and D.Vere-Jones, An Introduction to the Theory of Point Processes: Volume II: General Theory and Structure, Springer, 2008.

23. Rasmussen, Jakob Gulddahl, "Bayesian inference for Hawkes processes," Methodology and Computing in Applied Probability, Vol. 15, No. 3, 623-642, 2013.
doi:10.1007/s11009-011-9272-5 Google Scholar

24. Hawkes, Alan G., "Spectra of some self-exciting and mutually exciting point processes," Biometrika, Vol. 58, No. 1, 83-90, 1971.
doi:10.1093/biomet/58.1.83 Google Scholar

25. Coles, Stuart, J. Bawa, L. Trenner, and P. Dorazio, An Introduction to Statistical Modeling of Extreme Values, Springer, 2001.

26. Pickands III, James, "Statistical inference using extreme order statistics," The Annals of Statistics, Vol. 3, No. 1, 119-131, 1975.
doi:10.1214/aos/1176343003 Google Scholar

27. Ogata, Yosihiko, "Statistical models for earthquake occurrences and residual analysis for point processes," Journal of the American Statistical Association, Vol. 83, No. 401, 9-27, 1988.
doi:10.1080/01621459.1988.10478560 Google Scholar

28. ETSI, "Powerline telecommunications (PLT); Coexistence between PLT modems and short wave radio broadcasting services," https://www.etsi.org/deliver/etsi_ts/102500_102599/102578/01.02.01_60/ts_102578v010201p.pdf, 2008.

29. Antoniali, Massimo, Fabio Versolatto, and Andrea M. Tonello, "An experimental characterization of the PLC noise at the source," IEEE Transactions on Power Delivery, Vol. 31, No. 3, 1068-1075, Jun. 2016.
doi:10.1109/tpwrd.2015.2452939 Google Scholar

30. Tlich, Mohamed, Ahmed Zeddam, Fabienne Moulin, and Frederic Gauthier, "Indoor power-line communications channel characterization up to 100 MHz --- Part II: Time-frequency analysis," IEEE Transactions on Power Delivery, Vol. 23, No. 3, 1402-1409, Jul. 2008.
doi:10.1109/tpwrd.2007.916095 Google Scholar

31. Emleh, A., A. S. De Beer, H. C. Ferreira, and A. J. Han Vinck, "The influence of fluorescent lamps with electronic ballast on the low voltage PLC network," 2014 IEEE 8th International Power Engineering and Optimization Conference (PEOCO2014), 276-280, Langkawi, Malaysia, Mar. 2014.
doi:10.1109/PEOCO.2014.6814439

Dr. Steven O. Awino

Dr. Bakhe Nleya
