Abstract

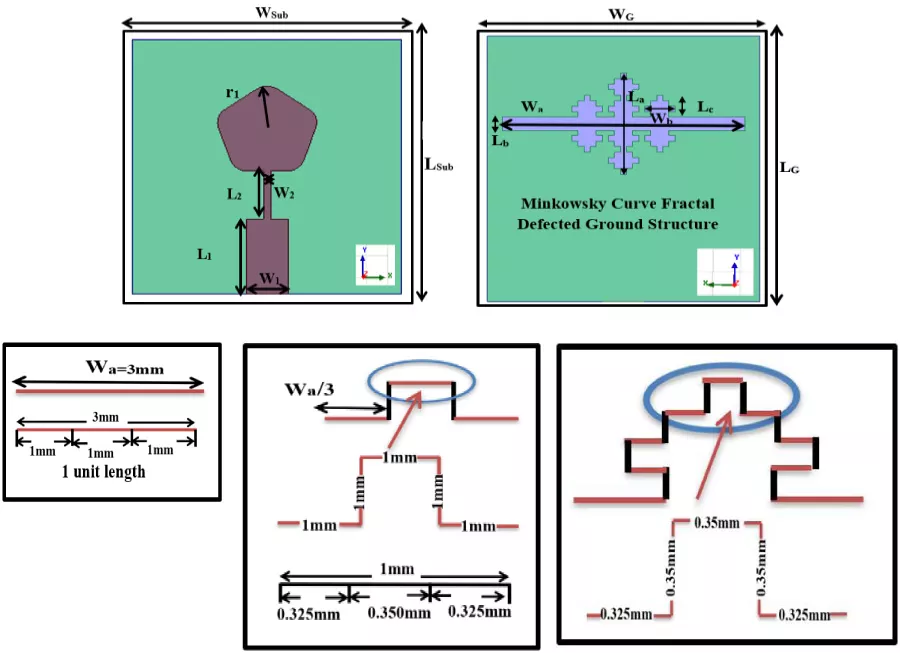

In this article, a Miniaturized Pentagonal Antenna (MPA) with a Minkowski Curve, Fractal Defected Ground Structure (MCF-DGS) and Frequency Selective Surface (FSS) is proposed for 5.725-5.875 GHz WLAN application. The performance of a λ/4 transmission line-fed pentagonal patch antenna is examined using an iterated MCF-DGS etched on the ground plane. In the beginning, a fundamental antenna (Antenna-1) is designed and measured at 13.2 GHz with a S₁₁ of -32.45 dB. After that, the resonant frequency of the fundamental MPA has been reduced from 13.2 GHz to 5.8 GHz by employing MCF-DGS (Antenna-2) with 56% miniaturization. The S₁₁ of MCF-DGS measured for single-band frequency 5.8 GHz is -33.36 dB. The performance attributes of an MPA with improved efficiency, peak directivity, and peak gain via MCF-DGS and FSS (Antenna-3) are also analysed. The proposed antenna of 15 × 16 mm² (or 0.29λ₀ × 0.30λ₀ mm²) with a height of h₁ = 1.6 mm is designed, produced, and tested on a substrate of FR4 epoxy. The peak gain and peak directivity at 5.8 GHz are elevated from 1.74 to 7.40 dBi and 3.53 to 7.95 dBi by using an FSS composed of FR4, with a thickness of h₂ = 1.6 mm, situated under the MPA at a height of h₃ = 8.5 mm. The prototype model's test results are validated by the predicted outcomes of the proposed model.

1. Fallahpour, Mojtaba and Reza Zoughi, "Antenna miniaturization techniques: A review of topology-and material-based methods," IEEE Antennas and Propagation Magazine, Vol. 60, No. 1, 38-50, Feb. 2018.
doi:10.1109/map.2017.2774138 Google Scholar

2. Ghosh, Bratin, SK. Moinul Haque, Debasis Mitra, and Susmita Ghosh, "A loop loading technique for the miniaturization of non-planar and planar antennas," IEEE Transactions on Antennas and Propagation, Vol. 58, No. 6, 2116-2121, Jun. 2010.
doi:10.1109/tap.2010.2046842 Google Scholar

3. Ghosh, Bratin, S. K. Moinul Haque, and Nageswara Rao Yenduri, "Miniaturization of slot antennas using wire loading," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 488-491, 2013.
doi:10.1109/lawp.2013.2255857 Google Scholar

4. Ghosh, Bratin, SK. Moinul Haque, and Debasis Mitra, "Miniaturization of slot antennas using slit and strip loading," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 10, 3922-3927, Oct. 2011.
doi:10.1109/tap.2011.2163754 Google Scholar

5. McLean, J. S., "A re-examination of the fundamental limits on the radiation Q of electrically small antennas," IEEE Transactions on Antennas and Propagation, Vol. 44, No. 5, 672, May 1996.
doi:10.1109/8.496253 Google Scholar

6. Erentok, Aycan and Richard W. Ziolkowski, "Metamaterial-inspired efficient electrically small antennas," IEEE Transactions on Antennas and Propagation, Vol. 56, No. 3, 691-707, Mar. 2008.
doi:10.1109/tap.2008.916949 Google Scholar

7. Wheeler, H. A., "Fundamental limitations of small antennas," Proceedings of the IRE, Vol. 35, No. 12, 1479-1484, Dec. 1947.
doi:10.1109/jrproc.1947.226199 Google Scholar

8. Chu, L. J., "Physical limitations of omni-directional antennas," Journal of Applied Physics, Vol. 19, No. 12, 1163-1175, Dec. 1948.
doi:10.1063/1.1715038 Google Scholar

9. Haque, Sk. Moinul and Khan Masood Parvez, "Slot antenna miniaturization using slit, strip, and loop loading techniques," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 5, 2215-2221, May 2017.
doi:10.1109/tap.2017.2684191 Google Scholar

10. Jahani, Saman, Jalil Rashed-Mohassel, and Mahmoud Shahabadi, "Miniaturization of circular patch antennas using MNG metamaterials," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 1194-1196, 2010.
doi:10.1109/lawp.2010.2098472 Google Scholar

11. Khan, Muhammad Umar, Mohammad Said Sharawi, and Raj Mittra, "Microstrip patch antenna miniaturisation techniques: A review," IET Microwaves, Antennas & Propagation, Vol. 9, No. 9, 913-922, 2015.
doi:10.1049/iet-map.2014.0602 Google Scholar

12. Shrestha, Sika, Seong Ro Lee, and Dong-You Choi, "A new fractal‐based miniaturized dual band patch antenna for RF energy harvesting," International Journal of Antennas and Propagation, Vol. 2014, No. 1, 805052, 2014.
doi:10.1155/2014/805052 Google Scholar

13. Sedghi, Mohammad Sadegh, Mohammad Naser-Moghadasi, and Ferdows B. Zarrabi, "Microstrip antenna miniaturization with fractal EBG and SRR loads for linear and circular polarizations," International Journal of Microwave and Wireless Technologies, Vol. 9, No. 4, 891-901, 2017.
doi:10.1017/s1759078716000726 Google Scholar

14. Reddy, Gudibandi Bharath, Murugan Harish Adhithya, and Dhamodharan Sriram Kumar, "Miniaturization of microstrip slot antenna using high refractive index metamaterial based on single ring split ring resonator," Progress In Electromagnetics Research Letters, Vol. 93, 115-122, 2020.
doi:10.2528/pierl20060601 Google Scholar

15. Sharma, Narinder and Vipul Sharma, "A design of Microstrip Patch Antenna using hybrid fractal slot for wideband applications," Ain Shams Engineering Journal, Vol. 9, No. 4, 2491-2497, 2018.
doi:10.1016/j.asej.2017.05.008 Google Scholar

16. Ao, Jie, Jingjian Huang, Weiwei Wu, and Naichang Yuan, "A miniaturized Vivaldi antenna by loading with parasitic patch and lumped resistor," AEU --- International Journal of Electronics and Communications, Vol. 81, 158-162, 2017.
doi:10.1016/j.aeue.2017.07.022 Google Scholar

17. Er-Rebyiy, R., J. Zbitou, M. Latrach, A. Tajmouati, A. Errkik, and L. EL Abdellaoui, "New miniature planar microstrip antenna using DGS for ISM applications," TELKOMNIKA (Telecommunication Computing Electronics and Control), Vol. 15, No. 3, 1149-1154, 2017.
doi:10.12928/telkomnika.v15i3.6864 Google Scholar

18. Oulhaj, Otman, Naima Amar Touhami, Mohamed Aghoutane, and Antonio Tazón, "A miniature microstrip patch antenna array with defected ground structure," International Journal of Microwave and Optical Technology (IJMOT), Vol. 11, No. 1, 32-39, 2016. Google Scholar

19. Hanae, Elftouh, Naima Amar Touhami, and Mohamed Aghoutane, "Miniaturized microstrip patch antenna with spiral defected microstrip structure," Progress In Electromagnetics Research Letters, Vol. 53, 37-44, 2015.
doi:10.2528/pierl15031003 Google Scholar

20. Elftouh, Hanae, Naima Amar Touhami, Mohamed Aghoutane, Safae El Amrani, Antonio Tazón, and Mohamed Boussouis, "Miniaturized microstrip patch antenna with defected ground structure," Progress In Electromagnetics Research C, Vol. 55, 25-33, 2014.
doi:10.2528/pierc14092302 Google Scholar

21. Ghaloua, Ahmed, Jamal Zbitou, Larbi El Abdellaoui, Mohamed Latrach, Abdelali Tajmouati, and Ahmed Errkik, "A novel configuration of a miniature printed antenna array based on defected ground structure," International Journal of Intelligent Engineering and Systems, Vol. 12, No. 1, 211-220, 2019.
doi:10.22266/ijies2019.0228.21 Google Scholar

22. Carver, K. and J. Mink, "Microstrip antenna technology," IEEE Transactions on Antennas and Propagation, Vol. 29, No. 1, 2-24, 1981.
doi:10.1109/tap.1981.1142523 Google Scholar

23. Volakis, John L., Chi-Chih Chen, and Kyohei Fujimoto, Small Antennas: Miniaturization Techniques and Applications, McGraw-Hill, New York (NY), 2010.

24. Hansen, Robert C. and Robert E. Collin, Small Antenna Handbook, John Wiley & Sons, 2011.
doi:10.1002/9781118106860

25. Quintero, Gabriela, J.-F. Zurcher, and Anja K. Skrivervik, "System fidelity factor: A new method for comparing UWB antennas," IEEE Transactions on Antennas and Propagation, Vol. 59, No. 7, 2502-2512, 2011.
doi:10.1109/TAP.2011.2152322 Google Scholar

26. Langley, R. J. and E. A. Parker, "Equivalent circuit model for arrays of square loops," Electronics Letters, Vol. 18, No. 7, 294-296, 1982.
doi:10.1049/el:19820201 Google Scholar
