Abstract

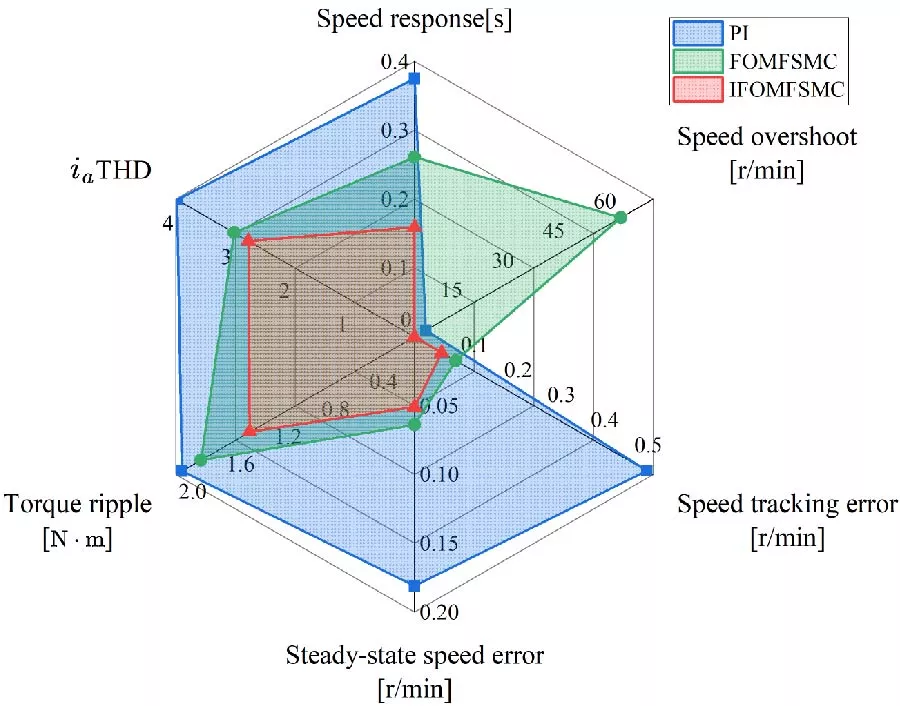

To address the problems of low speed control accuracy and performance degradation caused by time-varying disturbances in conventional control methods for high-precision speed regulation of permanent magnet synchronous motors (PMSMs), an improved full-order model-free sliding mode control (IFOMFSMC) method based on full-order sliding mode control (FOSMC) is proposed. First, a novel ultra-local model under parameter perturbations is established. Based on this model, the IFOMFSMC is designed by combining a second-order full-order sliding mode surface with an improved double-power reaching law, which improves the speed control accuracy of the PMSM. Subsequently, a full-order extended sliding mode disturbance observer (FOESMDO) is developed by incorporating FOSMC into the extended disturbance observer. The FOESMDO estimates unknown disturbances more accurately, thereby compensating the IFOMFSMC and enhancing system robustness under complex time-varying disturbances. Finally, simulation results confirm accurate speed tracking with the proposed method. Under complex time-varying disturbance conditions, compared with the conventional control method, the IFOMFSMC improves speed response and tracking performance by 57.6% and 88.2%, respectively, while reducing steady-state speed error and torque ripple by 71.8% and 29.2%. The proposed method effectively enhances steady-state and dynamic performance as well as disturbance-rejection capability.

1. Tong, Jiacheng, Kaihui Zhao, Yunzhen Chen, Jinnan Cao, Youzhuo Duan, and Jie Xiong, "An improved equivalent-input-disturbance method based on enhanced estimators for wideband disturbance suppression in PMSM," Progress In Electromagnetics Research C, Vol. 165, 79-88, 2026.
doi:10.2528/pierc25110401 Google Scholar

2. Zhang, Xiaoguang, Chenguang Zhang, Ziwei Wang, and José Rodríguez, "Motor-parameter-free model predictive current control for PMSM drives," IEEE Transactions on Industrial Electronics, Vol. 71, No. 6, 5443-5452, 2024.
doi:10.1109/tie.2023.3292874 Google Scholar

3. Guo, Xin, Shoudao Huang, Kaiyuan Lu, Yu Peng, Haixin Wang, and Junyou Yang, "A fast sliding mode speed controller for PMSM based on new compound reaching law with improved sliding mode observer," IEEE Transactions on Transportation Electrification, Vol. 9, No. 2, 2955-2968, 2023.
doi:10.1109/tte.2022.3213562 Google Scholar

4. Lin, Faa-Jeng, Ming-Shi Huang, Chung-Yu Hung, and Yu-Chen Chien, "Intelligent computed torque control with recurrent legendre fuzzy neural network for permanent-magnet assisted synchronous reluctance motor," IEEE Access, Vol. 11, 54017-54028, 2023.
doi:10.1109/access.2023.3279275 Google Scholar

5. Chen, Zhe, Abd Alrahman Dawara, Xuxuan Zhang, Hang Zhang, Chunqiang Liu, and Guangzhao Luo, "Adaptive sliding mode observer-based sensorless control for SPMSM employing a dual-PLL," IEEE Transactions on Transportation Electrification, Vol. 8, No. 1, 1267-1277, 2022.
doi:10.1109/tte.2021.3112123 Google Scholar

6. Rsetam, Kamal, Mohammad Al-Rawi, Ahmed M. Al-Jumaily, and Zhenwei Cao, "Finite time disturbance observer based on air conditioning system control scheme," Energies, Vol. 16, No. 14, 5337, 2023.
doi:10.3390/en16145337 Google Scholar

7. Ali, Kamran, Zhenwei Cao, Kamal Rsetam, and Zhihong Man, "Robust adaptive integral fast sliding mode control for servo motors," Mechatronics, Vol. 117, 103504, 2026.
doi:10.1016/j.mechatronics.2026.103504 Google Scholar

8. Zhao, Kaihui, Tonghuan Yin, Changfan Zhang, X. Li, Y. Chen, and J. He, "Research on model-free sliding mode control of permanent magnet synchronous motor," Journal of Electronic Measurement and Instrumentation, Vol. 32, No. 4, 172-180, 2018.
doi:10.13382/j.jemi.2018.04.024 Google Scholar

9. Zhao, Kaihui, W. K. Dai, R. R. Zhou, Aojie Leng, Wenchang Liu, Pengqi Qiu, Gang Huang, and Gongping Wu, "Novel model-free sliding mode control of permanent magnet synchronous motor based on extended sliding mode disturbance observer," Proceedings of the CSEE, Vol. 42, No. 6, 2375-2386, 2022.
doi:10.13334/j.0258-8013.pcsee.210273 Google Scholar

10. Li, Xiangfei, Yin Yang, Yang Zhou, Wenchang Liu, and Kaihui Zhao, "The non-singular fast terminal sliding mode control of interior permanent magnet synchronous motor based on deep flux weakening switching point tracking," Energy Engineering: Journal of the Association of Energy Engineers, Vol. 120, No. 2, 277-297, 2023.
doi:10.32604/ee.2023.022461 Google Scholar

11. Li, Xiangfei, Junqin Liu, Kaihui Zhao, Yang Yin, and Lihua Zou, "Improved non-singular Fast terminal sensor-less sliding mode control of IPMSM considering external disturbance and parameter perturbation," Progress In Electromagnetics Research B, Vol. 102, 81-98, 2023.
doi:10.2528/pierb23050202 Google Scholar

12. Feng, Yong, Fengling Han, and Xinghuo Yu, "Chattering free full-order sliding-mode control," Automatica, Vol. 50, No. 4, 1310-1314, 2014.
doi:10.1016/j.automatica.2014.01.004 Google Scholar

13. Borkar, Ajay and P. M. Patil, "Super twisting observer based full order sliding mode control," International Journal of Dynamics and Control, Vol. 9, No. 4, 1653-1659, 2021.
doi:10.1007/s40435-021-00757-9 Google Scholar

14. Hou, Huazhou, Xinghuo Yu, Long Xu, Kamal Rsetam, and Zhenwei Cao, "Finite-time continuous terminal sliding mode control of servo motor systems," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5647-5656, 2020.
doi:10.1109/tie.2019.2931517 Google Scholar

15. Wei, Chun, Jianxing Xu, Qiang Chen, Chenlong Song, and Wei Qiao, "Full-order sliding-mode current control of permanent magnet synchronous generator with disturbance rejection," IEEE Journal of Emerging and Selected Topics in Industrial Electronics, Vol. 4, No. 1, 128-136, 2023.
doi:10.1109/jestie.2022.3192735 Google Scholar

16. Li, X., Z. Yi, J. Liu, K. Zhao, and L. Zou, "Deep flux weakening of IPMSM based on feedback super-twisting non-singular fast terminal sliding mode control," Journal of Electronic Measurement and Instrumentation, Vol. 38, No. 11, 132-145, 2025.
doi:10.13382/j.jemi.B2407534 Google Scholar

17. Fang, X., L. M. Wang, and Kang Zhang, "High order nonsingular fast terminal sliding mode control of permanent magnet linear motor based on disturbance observer," Transactions of China Electrotechnical Society, Vol. 38, No. 2, 409-421, 2023.
doi:10.19595/j.cnki.1000-6753.tces.211779 Google Scholar

18. Guo, Xin, Shoudao Huang, Yu Peng, et al. "Sliding mode control of IPMSM speed regulation system based on an improved double power reaching law and global fast terminal sliding mode observer," Transactions of China Electrotechnical Society, Vol. 38, No. 1, 190-203, 2023.
doi:10.19595/j.cnki.1000-6753.tces.211602 Google Scholar

Mr. Xingkai Huang

Dr. Xiangfei Li

Professor Kaihui Zhao

Dr. Meiyun Luo

Dr. Lihua Zou
