Abstract

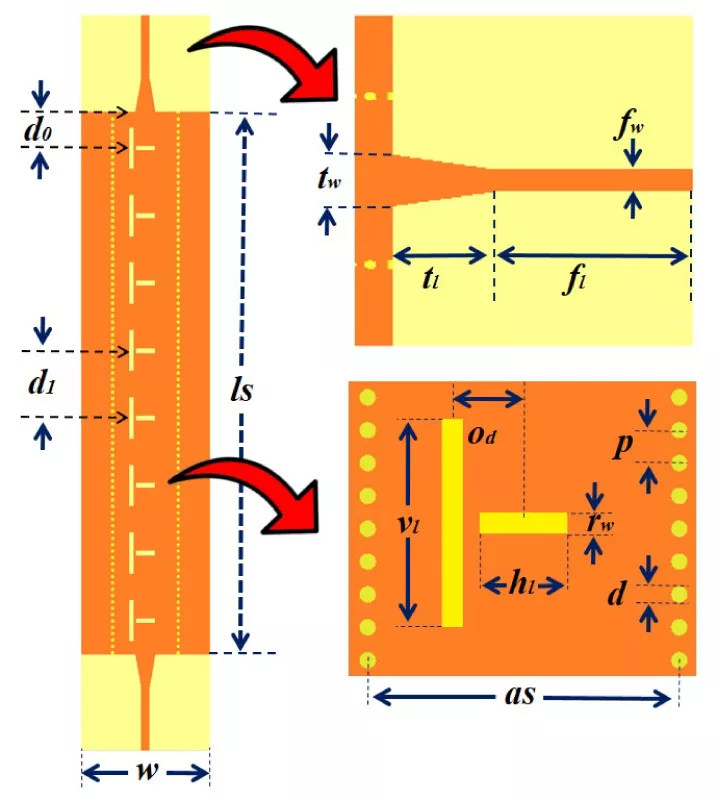

This paper presents a high-gain substrate-integrated waveguide antenna featuring a narrowly-focused radiation beam with enhanced cross-polarization characteristics, specially designed for precision millimeter-wave radar systems and n-257 band point-to-point 5G wireless applications. The antenna incorporates a novel design with dual radiator slots arranged both vertically and horizontally on the broadside wall of the substrate-integrated waveguide, forming a Non-Intersecting Asymmetrical T-shaped unit cell. This unit cell is periodically distributed to create an eight-element radiator array, thereby improving the antenna's gain and bandwidth. The antenna operates in the frequency range from 27 GHz to 28.54 GHz, thereby covering the n-257 5G frequency band. Moreover, it exhibits a half-power beamwidth of 8.1°, low side-lobe level of -13.3 dB, and cross-polarization discrimination level of 25 dB, making it suitable for high-precision millimeter-wave radar sensing applications. The proposed design provides a peak gain of 10.51 dBi with a radiation efficiency of 84.82%. Moreover, the integration of a dome-shaped polytetrafluoroethylene dielectric lens achieves a peak gain of 12.50 dBi with an enhanced radiation efficiency of 86.35%. The antenna design and simulation were performed using CST Studio Suite, followed by an experimental validation. Owing to its high gain, low side-lobe levels, and a sharply focused main-lobe beam with excellent cross-polarization discrimination, the antenna is well-suited for millimeter-wave radar sensing and point-to-point 5G communication systems.

1. Redondi, Alessandro E. C., Corrado Innamorati, Silvia Gallucci, Serena Fiocchi, and Francesco Matera, "A survey on future millimeter-wave communication applications," IEEE Access, Vol. 12, 133165-133182, 2024.
doi:10.1109/access.2024.3438625 Google Scholar

2. Kumar, Sumit, Amruta S. Dixit, Rajeshwari R. Malekar, Hema D. Raut, and Laxmikant K. Shevada, "Fifth generation antennas: A comprehensive review of design and performance enhancement techniques," IEEE Access, Vol. 8, 163568-163593, 2020.
doi:10.1109/access.2020.3020952 Google Scholar

3. Aggarwal, Reena, Ajay Roy, and Rajeev Kumar, "Millimeter wave antennas: A state-of-the-art survey of recent developments, principles, and applications," Progress In Electromagnetics Research B, Vol. 104, 147-169, 2024.
doi:10.2528/pierb23102401 Google Scholar

4. Ananthasankar, U. A., T. K. Rekha, and K. K. Ansha, "Ultra wide band circularly polarized slotted waveguide antenna for sub-terahertz wireless networks," Next Research, Vol. 2, No. 4, 100954, 2025.
doi:10.1016/j.nexres.2025.100954 Google Scholar

5. Aggarwal, Reena, Ajay Roy, and Rajeev Kumar, "Millimeter wave antennas: A state-of-the-art survey of recent developments, principles, and applications," Progress In Electromagnetics Research B, Vol. 104, 147-169, 2024.
doi:10.2528/pierb23102401 Google Scholar

6. Yang, Yutao, Minmin Mao, Junran Xu, Huan Liu, Jianhua Wang, and Kaixin Song, "Millimeter-wave antennas for 5G wireless communications: Technologies, challenges, and future trends," Sensors, Vol. 25, No. 17, 5424, 2025.
doi:10.3390/s25175424 Google Scholar

7. Asaithambi, Ravindiran, Maruthamuthu Paramasivam Prabakaran, and Govindasamy Rajesh, "A self-diplexing multi-mode SIW cavity-backed antenna with a lambda(λ)-shaped slot for X- and Ku-band applications," Progress In Electromagnetics Research C, Vol. 165, 257-266, 2026.
doi:10.2528/pierc25111707 Google Scholar

8. Wu, Qi, Jiexi Yin, Chen Yu, Haiming Wang, and Wei Hong, "Broadband planar SIW cavity-backed slot antennas aided by unbalanced shorting vias," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 2, 363-367, Feb. 2019.
doi:10.1109/lawp.2019.2891108 Google Scholar

9. El khamlichi, Dahbi, Naima Amar Touhami, Tajeddin Elhamadi, and Mohammed Ali Ennasar, "High-gain and broadband SIW cavity-backed slots antenna for X-band applications," International Journal of Microwave and Wireless Technologies, Vol. 13, No. 10, 1078-1085, 2021.
doi:10.1017/s1759078721000015 Google Scholar

10. Gao, Mingming, Ruize Huang, Xuan Du, and Bowen Tao, "Design of a three-layer SIW broadband 1 × 4 dipole patch array antenna driven by slot feeding," Progress In Electromagnetics Research C, Vol. 168, 138-148, 2026.
doi:10.2528/pierc26031706 Google Scholar

11. Maruti, Ayyadevara Murali and Bhavan S. Naga Kishore, "Dual-band SIW slot array filtering antenna for X and Ku band applications," Progress In Electromagnetics Research Letters, Vol. 103, 109-117, 2022.
doi:10.2528/pierl22020306 Google Scholar

12. Sharma, Astha and Reema Budhiraja, "A slot array cavity backed SIW metamaterial antenna for satellite applications," Progress In Electromagnetics Research B, Vol. 109, 113-125, 2024.
doi:10.2528/pierb24101702 Google Scholar

13. Bharath, Kunooru, Srujana Vahini Nandigama, Dasari Ramakrishna, and Vijay M. Pandharipande, "High performance millimeter wave SIW slotted array antenna," Progress In Electromagnetics Research C, Vol. 125, 15-23, 2022.
doi:10.2528/pierc22072508 Google Scholar

14. Kumar, Arvind and S. Raghavan, "Broadband SIW cavity-backed triangular-ring-slotted antenna for Ku-band applications," AEU --- International Journal of Electronics and Communications, Vol. 87, 60-64, 2018.
doi:10.1016/j.aeue.2018.02.016 Google Scholar

15. Kumar, Lalit, Vandana Nath, and B. Reddy, "A wideband substrate integrated waveguide (SIW) antenna using shorted vias for 5G communications," AEU --- International Journal of Electronics and Communications, Vol. 171, 154879, 2023.
doi:10.1016/j.aeue.2023.154879 Google Scholar

16. El-Arrouch, Tarik, Abdelaaziz El Ansari, Najiba El Amrani El Idrissi, Mahadu Trimukhe, Shobhit K. Khandare, Zahriladha Zakaria, and Ahmed Jamal Abdullah Al-Gburi, "A compact parasitic mushroom patch loaded antenna for 5G mm-Wave applications (28 GHz /38 GHz)," Progress In Electromagnetics Research B, Vol. 113, 13-22, 2025.
doi:10.2528/PIERB25051401 Google Scholar

17. Kho, Edison, Banani Basu, and Arnab Nandi, "High-gain, low-SLL SIW filtenna with enhanced frequency selectivity for Ku-band wireless systems," AEU --- International Journal of Electronics and Communications, Vol. 200, 155850, 2025.
doi:10.1016/j.aeue.2025.155850 Google Scholar

18. Mashayekhi, Mohammad, Kamran Salehian, Abbas Ozgoli, Saeed Abdollahi, Abdolali Abdipour, and Ahmed A. Kishk, "AI-powered inverse design of Ku-band SIW resonant structures by iterative residual correction network," AEU --- International Journal of Electronics and Communications, Vol. 201, 156003, 2025.
doi:10.1016/j.aeue.2025.156003 Google Scholar

19. Hosseininejad, S. E., N. Komjani, and A. Mohammadi, "Accurate design of planar slotted SIW array antennas," IEEE Antennas and Wireless Propagation Letters, Vol. 14, 261-264, 2015.
doi:10.1109/lawp.2014.2362152 Google Scholar

20. Saxena, Suryansh, Nidhi Tewari, and Shweta Srivastava, "A spiral cavity-backed 4 × 4 MIMO SIW antenna at Ku-band for radio telescopes," Progress In Electromagnetics Research M, Vol. 132, 1-10, 2025.
doi:10.2528/pierm24121306 Google Scholar

21. Wang, Yu-Shin and Shyh-Jong Chung, "A short open-end slot antenna with equivalent circuit analysis," IEEE Transactions on Antennas and Propagation, Vol. 58, No. 5, 1771-1775, May 2010.
doi:10.1109/tap.2010.2044471 Google Scholar

22. Deslandes, Dominic, "Design equations for tapered microstrip-to-substrate integrated waveguide transitions," 2010 IEEE MTT-S International Microwave Symposium, 704-707, Anaheim, CA, USA, 2010.
doi:10.1109/MWSYM.2010.5517884

23. Huang, Ting-Yi, Tze-Min Shen, and Ruey-Beei Wu, Design and Modeling of Microstrip Line to Substrate Integrated Waveguide Transitions, Passive Microwave Components and Antennas. InTech, 2010.
doi:10.5772/9418

Mr. Umasankar Prasad Ananthasankar

Dr. Thulaseedharan Rekha

Dr. Anju Puthiyadam Mathews
