Abstract

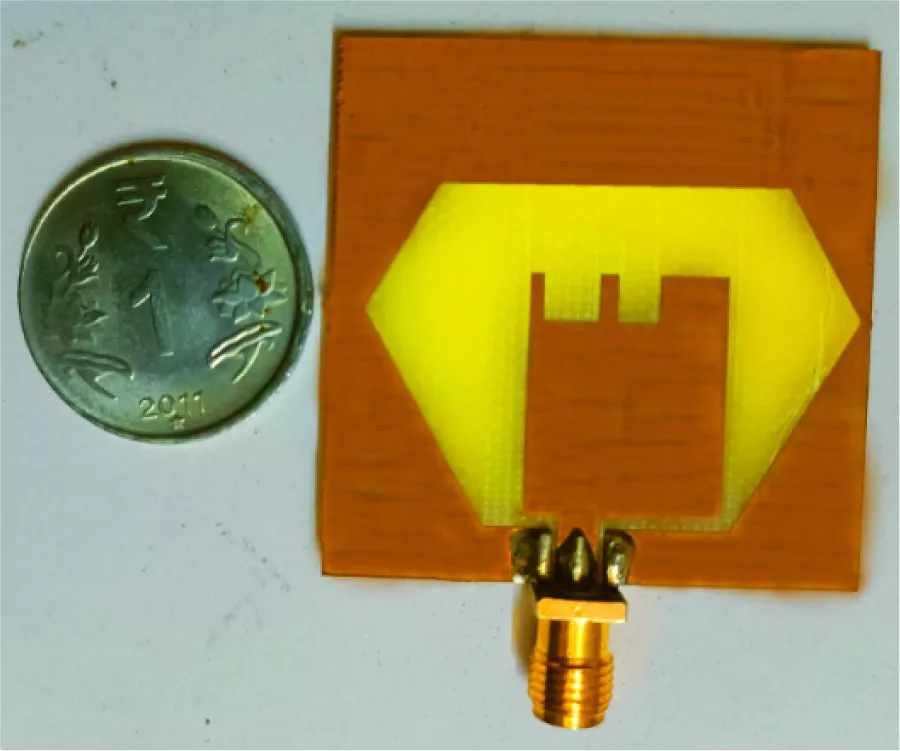

A compact wideband antenna suitable for RF energy harvesting applications is presented in this paper. The proposed antenna consists of a slotted rectangular radiating patch excited by a coplanar waveguide (CPW) feed and implemented on an FR4 substrate with overall dimensions of 40 × 40 × 1.6 mm³. A wide impedance bandwidth is achieved through the combined use of a hybrid hexagonal defective ground structure (DGS) and multi-slot loading of the radiating patch, where the patch is embedded within the slotted ground plane to achieve size reduction and enhanced impedance matching. The antenna exhibits a measured impedance bandwidth of 3.61 GHz (|S₁₁| ≤ -10 dB) ranging from 2.18 GHz to 5.79 GHz, covering the Wi-Fi and sub-6 GHz 5G frequency bands. Stable radiation characteristics are observed across the operating band, with a figure-of-eight radiation pattern, a peak gain of 3.67 dB at 3 GHz, and a minimum gain of 2.73 dB at 5 GHz. The antenna exhibits radiation efficiency greater than 95% throughout the operating band, with a maximum value approaching 98%. The antenna is designed and optimized using ANSYS HFSS and experimentally validated through Vector Network Analyzer and anechoic chamber measurements, showing good agreement between simulated and measured results. Owing to its wide bandwidth, compact size, and stable radiation performance, the proposed antenna is well-suited for wideband RF energy harvesting, with future integration into a rectenna system.

1. Omar, Mohamad Faiz Mohamed, Asrulnizam Abd Manaf, Mohd Fadzil Ain, and Sharul Kamal Abdul Rahim, "CPW-fed circular patch antenna with rectangular slot-loaded DGS for wideband application," ELEKTRIKA-Journal of Electrical Engineering, Vol. 24, No. 1, 7-13, 2025.
doi:10.11113/elektrika.v24n1.590 Google Scholar

2. Singh, Garima, Akhilendra Pratap Singh, Zakir Ali, Niraj Kumar Sharma, and Vinod Kumar Singh, "An innovative DGS based textile antenna with semi-circular slot for future IoT’s and AI applications," Transactions on Electrical and Electronic Materials, Vol. 26, No. 1, 78-103, 2025.
doi:10.1007/s42341-024-00576-7 Google Scholar

3. Sekhar, M. and Suman Nelaturi, "Wideband circular polarized meandered patch antenna for microwave imaging," Analog Integrated Circuits and Signal Processing, Vol. 111, No. 1, 81-88, 2022.
doi:10.1007/s10470-022-02001-6 Google Scholar

4. Megahed, Amany A., Mohamed Abdelazim, Ehab H. Abdelhay, and Heba Y. M. Soliman, "Sub-6 GHz highly isolated wideband MIMO antenna arrays," IEEE Access, Vol. 10, 19875-19889, 2022.
doi:10.1109/access.2022.3150278 Google Scholar

5. Megahed, Amany A., Amr H. Hussein, Ahmed Jamal Abdullah Al-Gburi, and Rania Hamdy Elabd, "Compact wideband antenna array with DGS-based metamaterial for efficient smartphone communication and SAR reduction," Progress In Electromagnetics Research B, Vol. 110, 15-28, 2025.
doi:10.2528/pierb24120504 Google Scholar

6. Tsegaye, Assefa, Xian-Qi Lin, Hao Liu, and Hassan Sani Abubakar, "A compact monopole wideband antenna based on DGS," Electronics, Vol. 14, No. 12, 2311, 2025.
doi:10.3390/electronics14122311 Google Scholar

7. Prasad, Ravi Kant, Akanksha Gupta, Raghav Dwivedi, Nishant Anand, Upesh Patel, and Ramesh Kumar Verma, "Design and investigation of single wideband microstrip patch antenna with enhanced bandwidth for 5G/WiMAX/WLAN applications," International Journal of Communication Systems, Vol. 38, No. 14, e70240, 2025.
doi:10.1002/dac.70240 Google Scholar

8. Chen, Huibing, Haidong Chen, Wenquan Che, and Quan Xue, "A wideband V2X antenna with tilted beam pattern and transparent characteristics," IEEE Antennas and Wireless Propagation Letters, Vol. 24, No. 7, 1959-1963, Jul. 2025.
doi:10.1109/lawp.2025.3552841 Google Scholar

9. Tan, Siwei, Linsen Zhang, Qiang Sun, Bo Tang, and Qiyang Wang, "A design of a leaf-shaped biomimetic flexible wideband antenna," Electronics, Vol. 14, No. 13, 2620, 2025.
doi:10.3390/electronics14132620 Google Scholar

10. Patel, Khushbu and Santanu Kumar Behera, "Design of band reconfigurable Koch fractal antenna for wideband applications," AEU --- International Journal of Electronics and Communications, Vol. 188, 155592, 2025.
doi:10.1016/j.aeue.2024.155592 Google Scholar

11. Sura, Penchala Reddy and M. Sekhar, "Circularly polarized dual band dual slot antenna for WLAN, Wi-MAX and Wi-Fi applications," IETE Journal of Research, Vol. 69, No. 3, 1550-1555, 2023.
doi:10.1080/03772063.2020.1871423 Google Scholar

12. Rao, Nelapati Ananda, Satish Kanapala, and M. Sekhar, "Wideband circular polarized binomial antenna array for L-band radar," Microelectronics, Electromagnetics and Telecommunications. Lecture Notes in Electrical Engineering, Vol. 521, 279-287, Springer, Singapore, 2019.
doi:10.1007/978-981-13-1906-8_29

13. Sura, Penchala Reddy, M. Sekhar, and Katta Anil Kumar, "Design of dual-band notched UWB antenna loaded with split ring resonators for wide band rejection," International Journal of Electronics Letters, Vol. 11, No. 1, 17-29, 2023.
doi:10.1080/21681724.2021.2025437 Google Scholar

14. Sekhar, M. and Suman Nelaturi, "Design of a sub-6 GHz wideband antenna with metasurface-based gain enhancement for 5G applications," 2024 IEEE Microwaves, Antennas, and Propagation Conference (MAPCON), 1-5, Hyderabad, India, 2024.
doi:10.1109/MAPCON61407.2024.10923212

15. Sura, Penchala Reddy, M. Sekhar, and Kranthi Kumar Andhe, "Quad band printed antenna for Wi-Fi, WLAN, C-band and WiMAX applications," Wireless Personal Communications, Vol. 124, No. 1, 437-448, 2022.
doi:10.1007/s11277-021-09367-2 Google Scholar

16. Dong, Lin, Liming Si, Boyang Liu, Qitao Shen, Rong Niu, Xiue Bao, Houjun Sun, and Weiren Zhu, "An optically transparent rectifying metasurface for 2.4/5.8 GHz dual-band RF energy harvesting," Applied Physics Letters, Vol. 126, No. 1, 011705, 2025.
doi:10.1063/5.0242451 Google Scholar

17. Dong, Lin, Liming Si, Yueze Liu, Qitao Shen, Pengcheng Tang, Genhao Wu, Rong Niu, Qingqing Wu, and Weiren Zhu, "Speech-controlled reconfigurable intelligent metasurface for real-time wireless power transfer and communication," Research, Vol. 8, 0831, 2025.
doi:10.34133/research.0831 Google Scholar

18. Si, Liming, Qitao Shen, Ling Dong, Hang Zhang, Chenyang Dang, Xiue Bao, and Weiren Zhu, "Crosstalk-free spin-selective metasurface for full-space wavefront manipulation with nearly 100% efficiency," Advanced Optical Materials, Vol. 14, No. 9, 2501041, 2026.
doi:10.1002/adom.202501041 Google Scholar

19. Simons, Rainee N., Coplanar Waveguide Circuits, Components, and Systems, John Wiley & Sons, 2001.
doi:10.1002/0471224758

20. Gevorgian, S., L. J. P. Linner, and E. L. Kollberg, "CAD models for shielded multilayered CPW," IEEE Transactions on Microwave Theory and Techniques, Vol. 43, No. 4, 772-779, 1995.
doi:10.1109/22.375223 Google Scholar

Ms. Vijetha Rajappa

Dr. Kadsur Mudalagiriyappa Sudharshan

Dr. Sandeep Kumar Amera
