Abstract

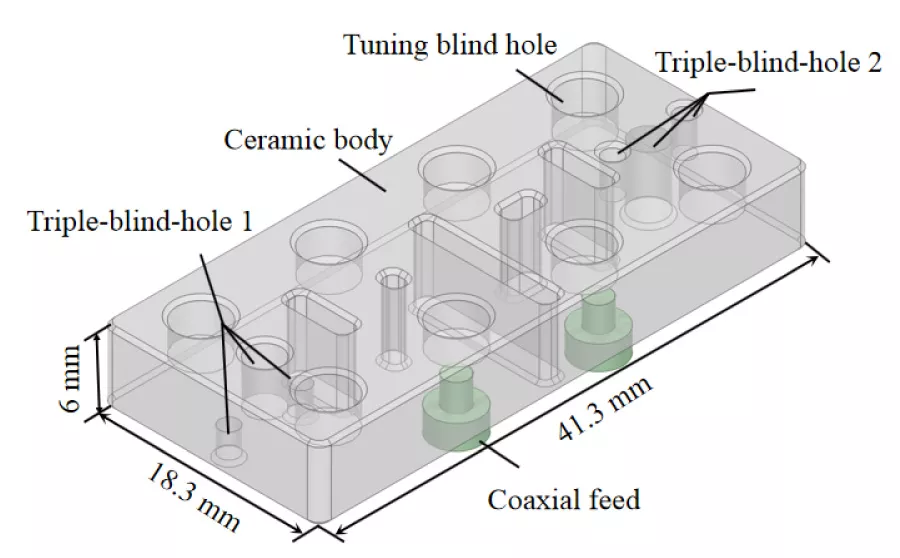

A novel ceramic waveguide filter using coupled slots and two sets of cascade quadruple (CQ) coupling units is presented in this study. Owing to this CQ structure, there are two pairs of transmission zeros at the edge of the passband to ensure that the filter has good selectivity. First, the effect of cavity dimensions on the resonant frequencies of the intrinsic modes was analyzed. Next, the impact of the coupling structure on the coupling bandwidth and the characteristics of the electric-field distribution was explored, followed by an examination of the relationship between the feeding structure and the quality factor (Qe). Finally, a prototype filter centered at 3.5 GHz with a bandwidth of 200 MHz was designed and fabricated. The insertion loss within the passband was less than 1.9 dB, and the return loss was greater than 20 dB. The out-of-band suppression exceeds 42 dB in the 3.3-3.36 GHz and 3.64-3.7 GHz, and even exceeds 70 dB in the 3.2-3.3 GHz and 3.7-3.8 GHz.

1. He, Wei, Jun Zhao, Xiaochen Chen, Hong Yang, Lei Sang, Zhuo Li, Siqi Wang, and Wen Huang, "Soft radio frequency microstrip bandpass filter: Precise design and demonstration," AIP Advances, Vol. 13, No. 12, 125214, 2023.
doi:10.1063/5.0183465 Google Scholar

2. Hussein, Osama I., Khair A. Al Shamaileh, Nihad I. Dib, Amir Nosrati, Said Abushamleh, Daniel G. Georgiev, and Vijay Kumar Devabhaktuni, "Substrate integrated waveguide bandpass filtering with Fourier-varying via-hole walling," IEEE Access, Vol. 8, 139706-139714, 2020.
doi:10.1109/access.2020.3012994 Google Scholar

3. Yadav, Sheetal, Monika Sharma, and Bijoy K. Kuanr, "Reconfigurable bandpass filter using Ce-doped YIG ferrites for wideband applications," Journal of Applied Physics, Vol. 134, No. 4, 043902, 2023.
doi:10.1063/5.0158065 Google Scholar

4. Chen, Rui-Sen, Sai-Wai Wong, Jing-Yu Lin, Yang Yang, Yin Li, Long Zhang, Yejun He, and Lei Zhu, "Reconfigurable cavity bandpass filters using fluid dielectric," IEEE Transactions on Industrial Electronics, Vol. 68, No. 9, 8603-8614, 2021.
doi:10.1109/tie.2020.3009566 Google Scholar

5. Shen, Guangxu, Wenquan Che, Wenjie Feng, Yongrong Shi, Yiming Shen, and Feng Xu, "A miniaturized Ka-band bandpass filter using folded hybrid resonators based on monolithic microwave integrated circuit technology," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 68, No. 6, 1778-1782, 2021.
doi:10.1109/tcsii.2020.3048773 Google Scholar

6. Cheng, Steven Matthew and Dimitra Psychogiou, "Compact multi-band filter/diplexer LNAs using split-type multi-resonant stages," IEEE Transactions on Circuits and Systems I: Regular Papers, Vol. 71, No. 10, 4512-4523, 2024.
doi:10.1109/tcsi.2024.3430376 Google Scholar

7. Goyal, Shally, Vivek Singh Kushwah, and Vandana Vikas Thakre, "Optimization of parallel coupled bandpass filter with CPW for UWB application," AIP Conference Proceedings, Vol. 2816, No. 1, 200005, 2024.
doi:10.1063/5.0178621

8. Dong, Qingxiang, Yongle Wu, Zuoyu Xu, Weimin Wang, and Qinghua Yang, "Miniaturized dual-band dielectric waveguide filter and dual-band filtering dielectric waveguide phase shifter," AEU --- International Journal of Electronics and Communications, Vol. 158, 154462, 2023.
doi:10.1016/j.aeue.2022.154462 Google Scholar

9. Afridi, Sharjeel, Usman Ahmed, Abdul Rehman Gilal, Jafreezal Jaafar, Izzatdin Abdul Aziz, and Muhammad Yameen Sandhu, "High stop band rejection for ceramic loaded waveguide filters," IEEE Access, Vol. 8, 109309-109314, 2020.
doi:10.1109/access.2020.3000709 Google Scholar

10. Hendry, David R. and A. M. Abbosh, "Compact triple-mode bandstop ceramic cavity filters using parallel coupled resonators," IEEE Microwave and Wireless Components Letters, Vol. 29, No. 8, 526-528, 2019.
doi:10.1109/lmwc.2019.2923115 Google Scholar

11. Wu, Xinhui, Yazi Cao, Bo Yuan, Yanzhu Qi, and Gaofeng Wang, "Novel compact bandpass filter using sextuple-mode ceramic cavity resonator," Microwave and Optical Technology Letters, Vol. 64, No. 11, 2000-2006, 2022.
doi:10.1002/mop.33421 Google Scholar

12. Wu, Xinhui, Yazi Cao, Bo Yuan, Yanzhu Qi, and Gaofeng Wang, "Bandpass filters using single and cascaded novel triple-mode ceramic monoblocks," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 13, No. 7, 965-977, 2023.
doi:10.1109/tcpmt.2023.3296108 Google Scholar

13. Richtmyer, R. D‍., "Dielectric resonators," Journal of Applied Physics, Vol. 10, No. 6, 391-398, 1939.
doi:10.1063/1.1707320 Google Scholar

14. Wang, Xi, Ke-Li Wu, and Wen-Yan Yin, "A novel surface-mounted monoblock dielectric filter," IEEE Transactions on Components, Packaging and Manufacturing Technology, Vol. 4, No. 11, 1822-1827, 2014.
doi:10.1109/tcpmt.2014.2347342 Google Scholar

15. Chen, Jian-Xin, Yang Zhan, Wei Qin, Zhi-Hua Bao, and Quan Xue, "Novel narrow-band balanced bandpass filter using rectangular dielectric resonator," IEEE Microwave and Wireless Components Letters, Vol. 25, No. 5, 289-291, 2015.
doi:10.1109/lmwc.2015.2409805 Google Scholar

16. Xu, Zuoyu, Yongle Wu, Qingxiang Dong, and Weimin Wang, "Miniaturized dual-band filter using dual-mode dielectric waveguide resonator," IEEE Microwave and Wireless Components Letters, Vol. 32, No. 12, 1411-1414, 2022.
doi:10.1109/lmwc.2022.3193424 Google Scholar

17. Lee, Tae-Hak, Jung-Woo Baik, and Youngsik Kim, "Compact cascaded quadruplet bandpass filter using artificial magnetic resonators," Microwave and Optical Technology Letters, Vol. 55, No. 4, 883-886, 2013.
doi:10.1002/mop.27410 Google Scholar

18. Rao, Jiayu, Cong Sun, Zhuyang Chen, Bo Xue, Gang Zhang, Jiasheng Hong, and Khaled Aliqab, "Analysis of the compact graded dumbbell coaxial resonator with its filter design applications," IEEE Transactions on Microwave Theory and Techniques, Vol. 72, No. 6, 3577-3587, 2024.
doi:10.1109/tmtt.2023.3327474 Google Scholar

19. Wu, Junmin, Mingye Fu, Dinghong Jia, Quanyuan Feng, and Qianyin Xiang, "A U-band cascaded quadruplet quartz glass SIW filter based on double row vias coupling window," AEU --- International Journal of Electronics and Communications, Vol. 181, 155358, 2024.
doi:10.1016/j.aeue.2024.155358 Google Scholar

20. Yan, Jun-Jie, Fu-Chang Chen, Kai-Ran Xiang, and Zhi-Hong Tu, "Design of tunable coaxial bandpass filters with constant absolute bandwidth using one tuning element," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 71, No. 4, 1959-1963, 2024.
doi:10.1109/tcsii.2023.3331445 Google Scholar

21. Yuan, B., Dielectric Filter, Transceiver, and Base Station, 20200381795, United States Patent, 2020.

22. Liang, Fei, Shunliang Meng, and Wenzhong Lyu, "Design of microwave ceramic waveguide filter with high out-of-band suppression characteristics," Journal on Communications, Vol. 42, No. 4, 194-201, 2021.
doi:10.11959/j.issn.1000−436x.2021029 Google Scholar

23. Meng, Shunliang, Fei Liang, Wenzhong Lu, Zihang Lin, Yuhao Yin, and Rong Zhang, "Design of a microwave filter based on a novel negative coupling structure with conical through-hole," China Communications, Vol. 19, No. 2, 148-157, 2022.
doi:10.23919/jcc.2022.02.012 Google Scholar

24. Du, Zhengjun, Jin Pan, Xinyang Ji, Deqiang Yang, and Xianfeng Liu, "Ceramic dielectric-filled cavity filter," 2020 IEEE 5th Information Technology and Mechatronics Engineering Conference (ITOEC), 888-891, Chongqing, China, 2020.
doi:10.1109/ITOEC49072.2020.9141681

25. Lu, Di, Baoqi Zhu, and Ming Yu, "Electrically-tunable ceramic-waveguide filter," Electromagnetic Science, Vol. 2, No. 4, 1-10, 2024.
doi:10.23919/emsci.2024.0025 Google Scholar

26. Huang, Zhengwei and Yong Cheng, "Cross-coupled dielectric waveguide filter," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 5, e22585, 2021.
doi:10.1002/mmce.22585 Google Scholar

27. Yan, M. L., S. M. Zhang, Y. Cheng, et al. "A novel triangular resonator filter based on cross-coupling," Journal of Nanjing University of Posts and Telecommunications(Natural Science), Vol. 44, No. 5, 28-36, 2024.
doi:10.14132/j.cnki.1673-5439.2024.05.004 Google Scholar

28. Byun, Woo-Jin, Bong-Su Kim, Kwang Seon Kim, Ki-Chan Eun, Myung-Sun Song, Reinhard Kulke, Olaf Kersten, Gregor Möllenbeck, and Matthias Rittweger, "40 GHz vertical transition with a dual-mode cavity for a low-temperature co-fired ceramic transceiver module," ETRI Journal, Vol. 32, No. 2, 195-203, 2010.
doi:10.4218/etrij.10.1409.0091 Google Scholar

29. Luhaib, Saad W. O., Mustafa S. Bakr, Nutapong Somjit, and Ian C. Hunter, "Design and characterisation of HE11 dual-mode dielectric-loaded filter for cellular base station applications," International Journal of Electronics, Vol. 106, No. 10, 1530-1542, 2019.
doi:10.1080/00207217.2019.1600739 Google Scholar
