Abstract

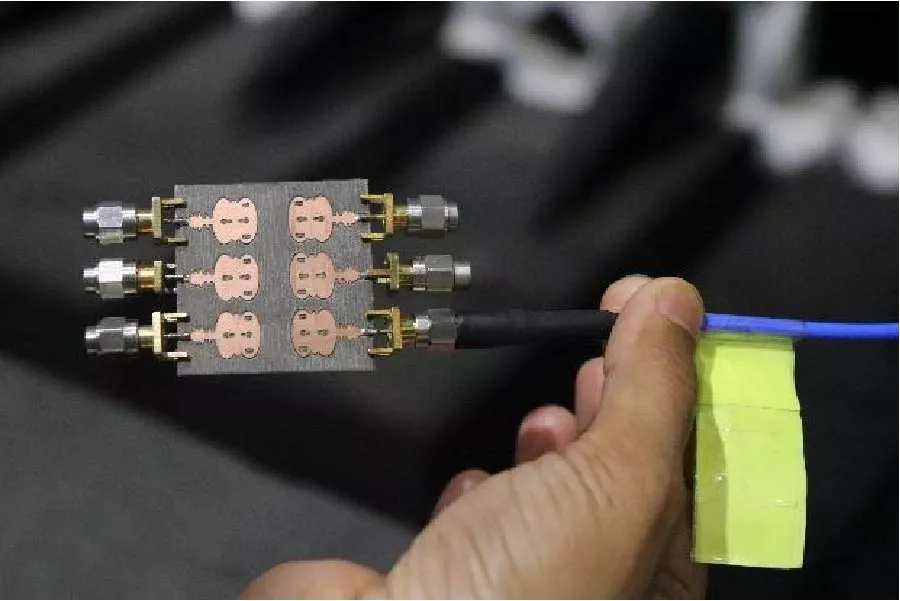

Compact multi-port antennas are essential for future 5G millimetre-wave systems because they support high-speed communication, stable signal quality, and multiple data channels within limited device space. This study presents a compact, planar, six-port MIMO antenna for 38-40 GHz 5G millimetre-wave applications. The antenna is designed on a low-loss Rogers RT5880 substrate with an overall size of 40 × 40 × 0.543 mm³. The design follows an S-parameter-guided approach, beginning with a single radiating element and extending to the final six-port MIMO configuration. The proposed structure maintains a simple planar geometry without using decoupling networks, electromagnetic bandgap cells, frequency-selective surfaces, metasurfaces, dielectric lenses, or external reflectors. Simulated and measured results show good impedance matching across 38-40 GHz, with reflection coefficients below -10 dB and resonance near 39.3-39.5 GHz. Inter-port isolation is mostly better than 20 dB, while the measured gain reaches approximately 8.28 dBi near resonance. The antenna also achieves an extremely low ECC of 5 × 10^-4, a diversity gain close to 10 dB, an acceptable TARC, and a balanced MEG. Such results validate its applicability to compact 5G user equipment, small-cell systems, and high-density wireless platforms.

1. Faniar, Asmail Abrahim Mohamed, Akram A. Almohammedi, and Mohammed Balfaqih, "Advancements in millimeter wave MIMO antenna arrays for enhanced 5G connectivity," 2023 28th Asia Pacific Conference on Communications (APCC), 424-429, Sydney, Australia, 2023.
doi:10.1109/APCC60132.2023.10460736

2. Raj, Tej, Ramakrishna Mahapatra, Adwait Prasad Das, Monalisha Sahoo, Ranjan Mishra, and Hrudananda Pradhan, "A compact ultra-wideband planner MSA for mmWave FR-II NR: n257, n258, n262 and n260 bands for 5G wireless applications," 2024 Second International Conference on Microwave, Antenna and Communication (MAC), 1-6, Dehradun, India, 2024.
doi:10.1109/MAC61551.2024.10837058

3. Farahat, Asmaa E. and Khalid F. A. Hussein, "Dual-band (28/38 GHz) wideband MIMO antenna for 5G mobile applications," IEEE Access, Vol. 10, 32213-32223, 2022.
doi:10.1109/access.2022.3160724 Google Scholar

4. Tsao, Yi-Fan, Arpan Desai, and Heng-Tung Hsu, "Dual-band and dual-polarization CPW fed MIMO antenna for fifth-generation mobile communications technology at 28 and 38 GHz," IEEE Access, Vol. 10, 46853-46863, 2022.
doi:10.1109/access.2022.3171248 Google Scholar

5. Malik, Bilal Tariq, Shahid Khan, Jamal Nasir, and Slawomir Koziel, "Enhanced gain and isolation dual-band dual-port MIMO antenna with integrated lens for millimeter-wave 5G internet-of-things applications," IEEE Access, Vol. 13, 40859-40874, 2025.
doi:10.1109/access.2025.3547085 Google Scholar

6. Wang, Heming, Judao Wang, Xue-Xia Yang, and Qi Zheng, "Isolation and bandwidth enhancement of 5G millimeter-wave dual-band MIMO antenna based on metamaterial wall," 2024 14th International Symposium on Antennas, Propagation and EM Theory (ISAPE), 1-3, Hefei, China, 2024.
doi:10.1109/ISAPE62431.2024.10841165

7. Desai, Arpan, Cong Danh Bui, Jay Patel, Trushit Upadhyaya, Gangil Byun, and Truong Khang Nguyen, "Compact wideband four element optically transparent MIMO antenna for mm-Wave 5G applications," IEEE Access, Vol. 8, 194206-194217, 2020.
doi:10.1109/access.2020.3033314 Google Scholar

8. Farahat, Asmaa Elsayed and Khalid Fawzy Ahmed Hussein, "28/38 GHz dual-band Yagi-Uda antenna with corrugated radiator and enhanced reflectors for 5G MIMO antenna systems," Progress In Electromagnetics Research C, Vol. 101, 159-172, 2020.
doi:10.2528/pierc20022603 Google Scholar

9. Raheel, Kiran, Ahsan Altaf, Arbab Waheed, Saad Hassan Kiani, Daniyal Ali Sehrai, Faisel Tubbal, and Raad Raad, "E-shaped H-slotted dual band mmWave antenna for 5G technology," Electronics, Vol. 10, No. 9, 1019, 2021.
doi:10.3390/electronics10091019 Google Scholar

10. Addepalli, Tathababu, T. Vidyavathi, M. Venkata Sudhakar, Chandrasekhar Rao Jetti, C. Swamy, Sivasubramanyam Medasani, Prasanthi Badugu, and Ahmed J. A. Al-Gburi, "A novel isolation-enhanced four-element high-gain hexa-band MIMO antenna for 5G mmWave systems," Wireless Personal Communications, Vol. 146, 663-683, 2026.
doi:10.1007/s11277-025-11899-w Google Scholar

11. Tadesse, A. D., O. P. Acharya, and S. Sahu, "A compact planar four-port MIMO antenna for 28/38 GHz millimeter-wave 5G applications," Advanced Electromagnetics, Vol. 11, No. 3, 16-25, 2022.
doi:10.7716/aem.v11i3.1947 Google Scholar

12. Elsharkawy, Rania R., Khalid F. A. Hussein, and Asmaa E. Farahat, "Dual-band (28/38 GHz) compact MIMO antenna system for millimeter-wave applications," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 44, No. 11, 1016-1037, 2023.
doi:10.1007/s10762-023-00943-0 Google Scholar

13. El Houda Nasri, Nour, Mohammed El Ghzaoui, and Mohammed Fattah, "A quad port MIMO antenna with improved bandwidth and high gain for 38 GHz 5G applications," Franklin Open, Vol. 6, 100078, 2024.
doi:10.1016/j.fraope.2024.100078 Google Scholar

14. Addepalli, Tathababu, Thota Vidyavathi, Maragani SatishKumar, Gudapati Divya, Morasa Balaji, Sivasubramanyam Medasani, Mohammad Sami Zidan, Imran Mohd Ibrahim, and Ahmed Jamal Abdullah Al-Gburi, "A compact quad-element serrated boundary fractal planar antenna for multi-band mmWave 5G/6G wireless applications," PLoS One, Vol. 21, No. 6, e0349601, Jun. 2026.
doi:10.1371/journal.pone.0349601 Google Scholar

15. Tiwari, Rakesh N., Deepti Sharma, Prabhakar Singh, and Pradeep Kumar, "A flexible dual-band 4 × 4 MIMO antenna for 5G mm-Wave 28/38 GHz wearable applications," Scientific Reports, Vol. 14, No. 1, 14324, 2024.
doi:10.1038/s41598-024-65023-2 Google Scholar

16. Alsalman, Abdulelah, Azzam Alhumaid, Abdulaziz Alnogithan, Ehab K. I. Hamad, and Mahmoud Shaban, "Reconfigurable 28/38 GHz wideband and high isolation MIMO antenna for advanced mmWave applications," Journal of Electrical Engineering, Vol. 75, No. 6, 467-483, 2024.
doi:10.2478/jee-2024-0055 Google Scholar

17. Munir, Mehr E., Moustafa M. Nasralla, and Maged Abdullah Esmail, "Four port tri-circular ring MIMO antenna with wide-band characteristics for future 5G and mmWave applications," Heliyon, Vol. 10, No. 8, e28714, 2024.
doi:10.1016/j.heliyon.2024.e28714 Google Scholar

18. Sethumadhavi, R., Brijesh Mishra, Aditya Kumar Singh, Dinesh Yadav, Supraja Eduru, and T. Y. Satheesha, "Dual and wideband mmWave 28/38 GHz quad port MIMO antenna for 5G and beyond applications," Scientific Reports, Vol. 15, 44195, 2025.
doi:10.1038/s41598-025-27924-8 Google Scholar

19. Tiwari, Rakesh N., Deepti Sharma, Prabhakar Singh, Bandrevu Guru Kullayappa, Pradeep Kumar, Boya Ranga Swamy, Gulimi Pavan Kumar, and S. Rajasekaran, "Triple band lateral 4-port flexible MIMO antenna for millimeter wave applications at 24/28/38 GHz," Results in Engineering, Vol. 26, 104678, 2025.
doi:10.1016/j.rineng.2025.104678 Google Scholar

20. Gayathri, R., K. Kavitha, D. Rajesh Kumar, and P. Sundaravadivel, "Miniaturized dual-band MIMO antenna with high gain and isolation for mm-Wave applications," Scientific Reports, Vol. 16, 7402, 2026.
doi:10.1038/s41598-026-38609-1 Google Scholar

21. Nagendra, R., Syed Sadiq Vali, Nune Divya, R. Surendra, et al. "2 × 2 MIMO rectangular patch antenna array for 5G applications operating at 28/38 GHz," 2025 2nd International Conference on Intelligent Algorithms for Computational Intelligence Systems (IACIS), 1-7, Hassan, India, 2025.
doi:10.1109/IACIS65746.2025.11210944

22. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Low mutual coupling miniaturized dual-band quad-port MIMO antenna array using decoupling structure for 5G smartphones," Discover Applied Sciences, Vol. 6, No. 4, 189, 2024.
doi:10.1007/s42452-024-05765-w Google Scholar

23. Elabd, Rania Hamdy and Ahmed Jamal Abdullah Al-Gburi, "Super-compact 28/38 GHz 4-port MIMO antenna using metamaterial-inspired EBG structure with SAR analysis for 5G cellular devices," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 45, No. 1, 35-65, 2024.
doi:10.1007/s10762-023-00959-6 Google Scholar

24. Elabd, Rania Hamdy, Rania Eid A. Shehata, Ahmed J. A. Al-Gburi, and Marwa E. Mousa, "Compact and high-performance MIMO antenna with metasurface integration for millimeter-wave and next-generation 6G applications," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 46, No. 9, 62, 2025.
doi:10.1007/s10762-025-01079-z Google Scholar

25. Gaber, Shaymaa M., Radwa A. Kareem, and Ahmed A. Ibrahim, "High isolation quad ports MIMO antenna loaded with FSS for 5G communication," Scientific Reports, Vol. 15, No. 1, 20167, 2025.
doi:10.1038/s41598-025-05616-7 Google Scholar

26. Haque, Md. Ashraful, Md. Sharif Ahammed, Soeung Socheatra, Redwan A. Ananta, Md. Jamal Hossain Nirob, Narinderjit Singh Sawaran Singh, Noorlindawaty Md. Jizat, Saeed Alsowail, and Samir Salem Al-Bawri, "Machine learning based compact MIMO antenna array for 38 GHz millimeter wave application with robust isolation and high efficiency performance," Results in Engineering, Vol. 25, 104006, 2025.
doi:10.1016/j.rineng.2025.104006 Google Scholar

27. Haque, Md. Ashraful, Redwan A. Ananta, Md. Sharif Ahammed, Jamal Hossain Nirob, Narinderjit Singh Sawaran Singh, Liton Chandra Paul, Reem Ibrahim Alkanhel, Ahmed A. Abd El-Latif, May Almousa, and Abdelhamied A. Ateya, "High-isolation dual-band MIMO antenna for next-generation 5G wireless networks at 28/38 GHz with machine learning-based gain prediction," Scientific Reports, Vol. 15, No. 1, 20782, 2025.
doi:10.1038/s41598-025-02646-z Google Scholar

28. Kiani, Saad Hassan, B. G. Parveez Shariff, Daniyal Ali Sehrai, Mujeeb Abdullah, Tanweer Ali, Abeer D. Algarni, Hela Elmannai, and Imran Mohd. Ibrahim, "High-performance four-element self-decoupled MIMO antenna system for n260 band applications," Journal of Infrared, Millimeter, and Terahertz Waves, Vol. 46, No. 9, 64, 2025.
doi:10.1007/s10762-025-01081-5 Google Scholar

29. Kiani, Saad Hassan, B. G. Parveez Shariff, Tanweer Ali, Muhammad Abbas Khan, Hela Elmannai, Abeer D. Algarni, Mohd Imran Ibrahim, and Mariana Dalarsson, "Window-shaped mmwave MIMO antenna for 5G devices using characteristics mode analysis," International Journal of Antennas and Propagation, Vol. 2026, No. 1, 1928509, 2026.
doi:10.1155/ijap/1928509 Google Scholar

30. Mistri, Raj Kumar, Ajit Kumar Singh, Santosh Kumar Mahto, Rashmi Sinha, Ahmed Jamal Abdullah Al-Gburi, Mohd Muzafar Ismail, and Khaled Alhassoon, "An eight-element MIMO antenna system supporting dual bands for 5G mobile, FSS, and DBS communication," Progress In Electromagnetics Research B, Vol. 107, 125-137, 2024.
doi:10.2528/pierb24051303 Google Scholar

31. Khan, Muhammad Kabir, Shaobin Liu, and Muhammad Irshad Khan, "A wideband eight-port MIMO antenna with reduced mutual coupling for future 5G mm-Wave applications," Sensors, Vol. 25, No. 2, 484, 2025.
doi:10.3390/s25020484 Google Scholar

32. Kiani, Saad Hassan, Mohd Imran Ibrahim, B. G. Parveez Shariff, Muhammad Abbas Khan, Altaf Ahmed Mugheri, Tanweer Ali, Umair Rafique, Hala Mostafa, and Mariana Dalarsson, "Dual-key slot mmwave antenna array with dual-band performance at 28 GHz and 38 GHz using characteristic mode analysis," Scientific Reports, Vol. 16, No. 1, 3040, 2026.
doi:10.1038/s41598-025-33578-3 Google Scholar

33. Kiani, Saad Hassan, Umair Rafique, Nosherwan Shoaib, Muhammad Inam Abbasi, Hela Elmannai, M. I. Ibrahim, and Mariana Dalarsson, "Low-profile metasurface-backed wideband antenna array for mm-Wave applications," Scientific Reports, Vol. 16, 8619, 2026.
doi:10.1038/s41598-026-37435-9 Google Scholar

34. Rahman, Md. Afzalur, Samir Salem Al-Bawri, Sultan S. Alharbi, Wazie M. Abdulkawi, N. M. Jizat, Mohammad Tariqul Islam, and Abdel-Fattah A. Sheta, "3D highly isolated 6-port tri-band MIMO antenna system with 360 coverage for 5G IoT applications based machine learning verification," Scientific Reports, Vol. 15, No. 1, 204, 2025.
doi:10.1038/s41598-024-84010-1 Google Scholar

35. Jayanthi, K. and A. M. Kalpana, "Design of six element MIMO antenna with enhanced gain for 28/38 GHz mm-Wave 5G wireless application," Computer Systems Science and Engineering, Vol. 46, No. 2, 1689-1705, 2023.
doi:10.32604/csse.2023.034613 Google Scholar

36. Shariff, B. G. Parveez, Tanweer Ali, Praveen Kumar, Sameena Pathan, G. D. Goutham Simha, Pallavi R. Mane, Mohammed Gulam Nabi Alsath, and Alexandros-Apostolos A. Boulogeorgos, "Dual-band compact six-element millimeter wave MIMO antenna: Design, characterization, and its application for V2V communication," IEEE Access, Vol. 12, 97951-97968, 2024.
doi:10.1109/access.2024.3427340 Google Scholar

37. Ahmad, Jawad and Mohammad Hashmi, "Reduced inter-element interference mmWave MIMO antenna and its application in WBAN," IEEE Access, Vol. 13, 70947-70963, 2025.
doi:10.1109/access.2025.3562632 Google Scholar
