Abstract

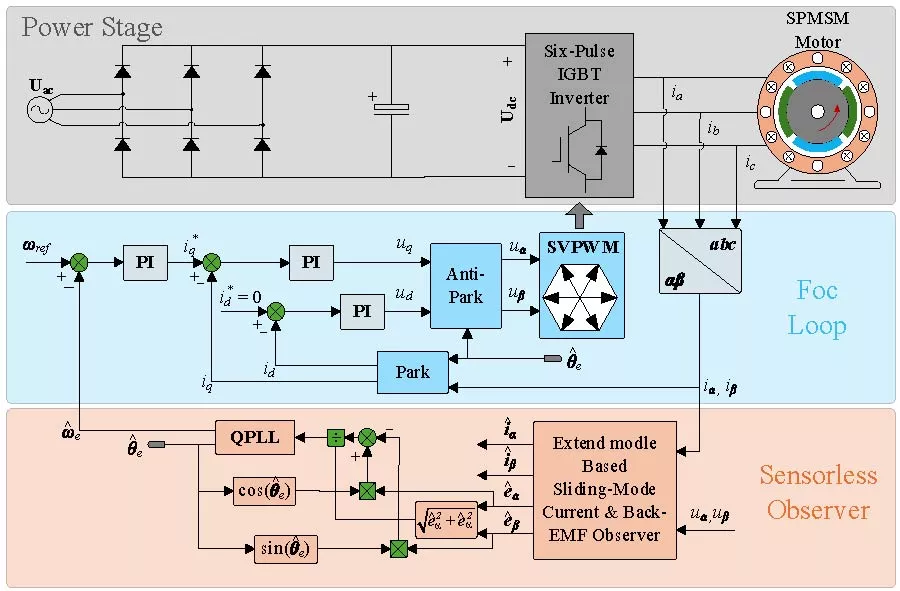

To overcome bandwidth-accuracy trade-offs in sensorless surface-mounted permanent magnet synchronous motor (SPMSM) drives, this study addresses the limitations of traditional observers. Conventional first-order sliding-mode observer (SMO) inherently exhibits high-frequency chattering due to discontinuous switching functions. To smooth the estimated back-EMF, a low-pass filter (LPF) is typically appended as a remedy; however, this filtering induces speed-dependent phase lag during medium- and high-speed operations, whereas its impact at low speeds is negligible. Although conventional higher-order model-based SMO (HOSMO) can better attenuate chattering, a lower cutoff frequency inherently compromises dynamic tracking precision due to increased phase lag. To overcome these challenges, the proposed scheme substitutes filter-dependent laws with a second-order super-twisting algorithm (STA), ensuring continuity of the control signal and zero phase lag. Furthermore, a state-dependent adaptive tuning mechanism based on a continuous nonlinear barrier function was developed. This adaptive law dynamically boosts observer gains to suppress transient perturbations and contracts them at a steady state to minimize chattering. Comprehensive simulations and experimental verifications demonstrated that the proposed gain-adaptive super-twisting higher-order SMO (GAST-HOTSMO) significantly reduced harmonic distortion, restricted estimation errors, and accelerated dynamic recovery compared to conventional methods.

1. Wang, Gaolin, Maria Valla, and Jorge Solsona, "Position sensorless permanent magnet synchronous machine drives --- A review," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5830-5842, 2020.
doi:10.1109/tie.2019.2955409 Google Scholar

2. Chaudhary, Satvik, Naysha Mittal, and Sheetal Singh, "Review of permanent magnet synchronous motor (PMSM) sensorless control techniques," 2026 3rd International Conference on Advancements and Key Challenges in Green Energy and Computing (AKGEC), 1-6, Ghaziabad, India, 2026.
doi:10.1109/AKGEC68790.2026.11485804

3. Zuo, Ying, Chunyan Lai, and K. Lakshmi Varaha Iyer, "A review of sliding mode observer based sensorless control methods for PMSM drive," IEEE Transactions on Power Electronics, Vol. 38, No. 9, 11352-11367, 2023.
doi:10.1109/tpel.2023.3287828 Google Scholar

4. Zhang, Yongkang, Wei Xu, and Jiyao Wang, "A rapid sensorless startup method with instantaneous control mode switching for high-speed vane-motor based on hybrid speed-position-current tracking controller," IEEE Transactions on Power Electronics, Vol. 39, No. 5, 6125-6135, 2024.
doi:10.1109/tpel.2024.3363039 Google Scholar

5. Bi, Guangdong, Dawei Ding, Guoqiang Zhang, Qiwei Wang, Runze Jing, Gaolin Wang, and Dianguo Xu, "Adaptive quasi-proportional-resonant observer-based rotor position estimation for sensorless PMSM drives," IEEE Transactions on Power Electronics, Vol. 37, No. 12, 15221-15233, 2022.
doi:10.1109/tpel.2022.3188498 Google Scholar

6. Volpato Filho, Cesar José, Dianxun Xiao, Rodrigo Padilha Vieira, and Ali Emadi, "Observers for high-speed sensorless PMSM drives: Design methods, tuning challenges and future trends," IEEE Access, Vol. 9, 56397-56415, 2021.
doi:10.1109/access.2021.3072360 Google Scholar

7. Li, Xinyue, Wei Tian, Xiaonan Gao, Qifan Yang, and Ralph Kennel, "A generalized observer-based robust predictive current control strategy for PMSM drive system," IEEE Transactions on Industrial Electronics, Vol. 69, No. 2, 1322-1332, 2022.
doi:10.1109/tie.2021.3062271 Google Scholar

8. Li, Xinyue and Ralph Kennel, "General formulation of Kalman-filter-based online parameter identification methods for VSI-fed PMSM," IEEE Transactions on Industrial Electronics, Vol. 68, No. 4, 2856-2864, 2021.
doi:10.1109/tie.2020.2977568 Google Scholar

9. Liu, Zixuan, Xiaoyan Huang, Qichao Hu, Geng Yang, Yunchong Wang, and Jianxin Shen, "Model-free predictive current control of PMSM using modified extended state observer," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 679-690, 2025.
doi:10.1109/tpel.2024.3476318 Google Scholar

10. Xu, Wei, Abdul Khalique Junejo, Yi Liu, Mohamed G. Hussien, and Jianguo Zhu, "An efficient antidisturbance sliding-mode speed control method for PMSM drive systems," IEEE Transactions on Power Electronics, Vol. 36, No. 6, 6879-6891, 2021.
doi:10.1109/tpel.2020.3039474 Google Scholar

11. Lu, Wenqi, Bo Tang, Kehui Ji, Kaiyuan Lu, Dong Wang, and Zhijun Yu, "A new load adaptive identification method based on an improved sliding mode observer for PMSM position servo system," IEEE Transactions on Power Electronics, Vol. 36, No. 3, 3211-3223, 2021.
doi:10.1109/tpel.2020.3016713 Google Scholar

12. Ye, Shuaichen, "A novel fuzzy flux sliding-mode observer for the sensorless speed and position tracking of PMSMs," Optik, Vol. 171, 319-325, 2018.
doi:10.1016/j.ijleo.2018.06.074 Google Scholar

13. Chen, Zhe, Abd Alrahman Dawara, Xuxuan Zhang, Hang Zhang, Chunqiang Liu, and Guangzhao Luo, "Adaptive sliding mode observer-based sensorless control for SPMSM employing a dual-PLL," IEEE Transactions on Transportation Electrification, Vol. 8, No. 1, 1267-1277, 2022.
doi:10.1109/tte.2021.3112123 Google Scholar

14. Zou, Xinhong, Hongchang Ding, and Jinhong Li, "Sensorless control strategy of permanent magnet synchronous motor based on fuzzy sliding mode controller and fuzzy sliding mode observer," Journal of Electrical Engineering & Technology, Vol. 18, No. 3, 2355-2369, 2023.
doi:10.1007/s42835-022-01352-4 Google Scholar

15. Gong, Chao, Yihua Hu, Jinqiu Gao, Yangang Wang, and Liming Yan, "An improved delay-suppressed sliding-mode observer for sensorless vector-controlled PMSM," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5913-5923, 2020.
doi:10.1109/tie.2019.2952824 Google Scholar

16. Wu, Xiang, Boliang Wu, Shuo Chen, Wen Ding, Zhixun Ma, and Yaofei Han, "An anti-DC offset interference sensorless control method for PMSM based on improved SMO and MDCF-FPS-PLL," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 14, No. 1, 555-568, 2026.
doi:10.1109/jestpe.2025.3593542 Google Scholar

17. Wang, Gaolin, Zhuomin Li, Guoqiang Zhang, Yong Yu, and Dianguo Xu, "Quadrature PLL-based high-order sliding-mode observer for IPMSM sensorless control with online MTPA control strategy," IEEE Transactions on Energy Conversion, Vol. 28, No. 1, 214-224, 2013.
doi:10.1109/tec.2012.2228484 Google Scholar

18. Wang, Can, Jinliang Liu, Yue Hong, and Jianfei Pan, "Design of a fuzzy-based adaptive gain filter for PMSM servo systems with maneuverability," IEEE Transactions on Industrial Informatics, Vol. 19, No. 9, 9394-9403, 2023.
doi:10.1109/tii.2022.3228681 Google Scholar

19. Sarate, Poonam P. and Sadhana V. Jadhav, "A novel non-linear adaptive observer for PMSM drives," 2022 IEEE International Power and Renewable Energy Conference (IPRECON), 1-6, Kollam, India, 2022.
doi:10.1109/IPRECON55716.2022.10059511

20. Ma, Jun, Xianqun Qiu, Huanqing Xu, and Zhendong Yin, "Sensorless control of permanent magnet synchronous motor based on variable gain load torque observer," IEEE Access, Vol. 13, 115226-115235, 2025.
doi:10.1109/access.2025.3584506 Google Scholar

21. Wang, Dongheng, Bingqiang Li, and Yiyun Zhao, "An adaptive SMO approach for low-chattering sensorless control of PMSM," IEEE Transactions on Power Electronics, Vol. 40, No. 10, 15329-15338, 2025.
doi:10.1109/tpel.2025.3535457 Google Scholar

22. Cheng, Zhenxing, Liyi Li, Xiaowang Liu, Xun Bai, and Jiaxi Liu, "Sensorless control based on discrete fractional-order terminal sliding mode observer for high-speed PMSM with LCL filter," IEEE Transactions on Power Electronics, Vol. 40, No. 1, 1654-1668, 2025.
doi:10.1109/tpel.2024.3443401 Google Scholar

23. Xu, Wenjun, Shaocheng Qu, and Chen Zhang, "Fast terminal sliding mode current control with adaptive extended state disturbance observer for PMSM system," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 11, No. 1, 418-431, 2023.
doi:10.1109/jestpe.2022.3185777 Google Scholar

24. Bao, Danyang, Xuewei Pan, Yi Wang, Xinshuo Wang, and Ke Li, "Adaptive synchronous-frequency tracking-mode observer for the sensorless control of a surface PMSM," IEEE Transactions on Industry Applications, Vol. 54, No. 6, 6460-6471, 2018.
doi:10.1109/tia.2018.2851510 Google Scholar

25. Wang, Bo, Yanzhen Shao, Yong Yu, Qinghua Dong, Zhipeng Yun, and Dianguo Xu, "High-order terminal sliding-mode observer for chattering suppression and finite-time convergence in sensorless SPMSM drives," IEEE Transactions on Power Electronics, Vol. 36, No. 10, 11910-11920, 2021.
doi:10.1109/tpel.2021.3068495 Google Scholar
