Abstract

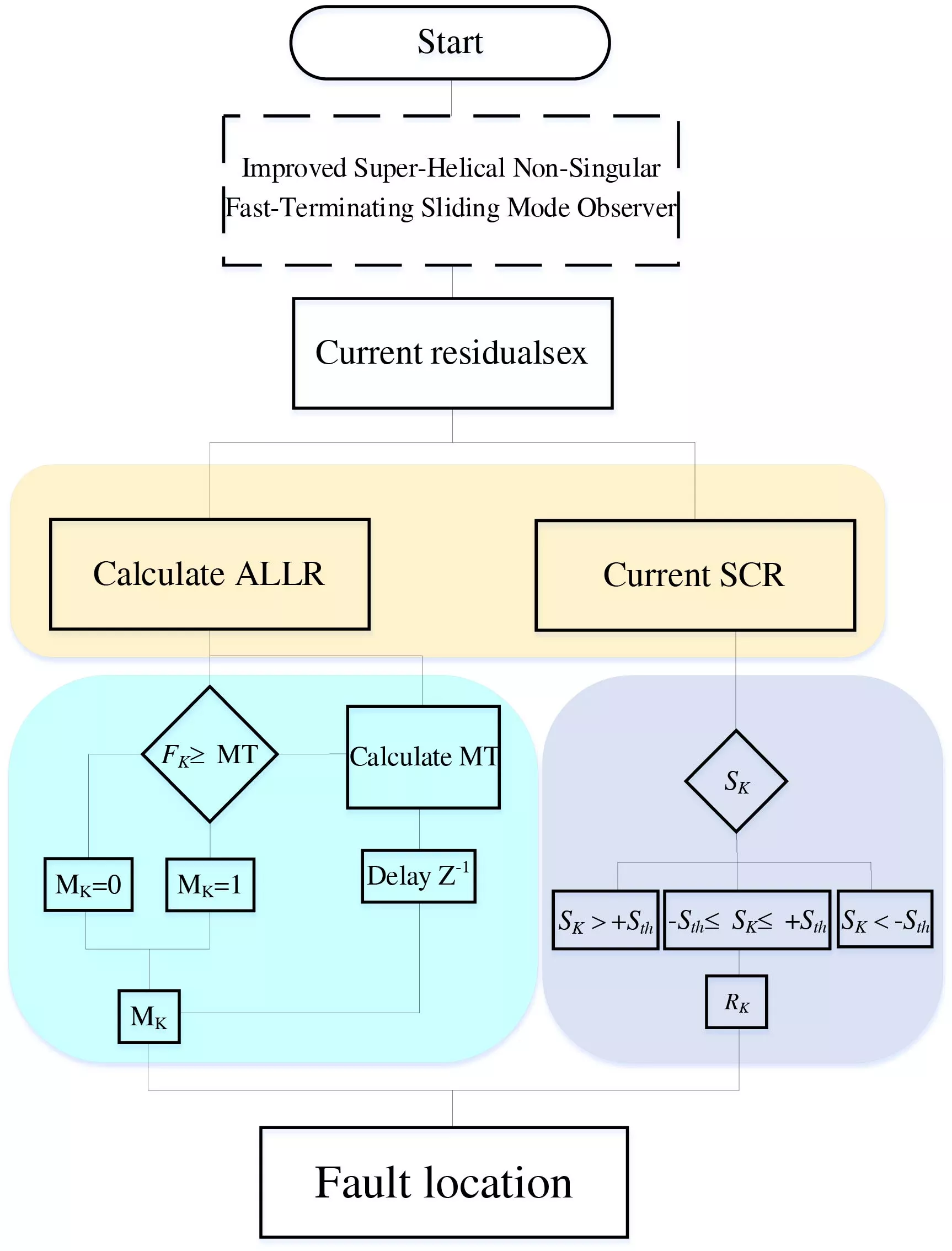

The open-circuit fault diagnosis of switches in quasi-Z-source inverters (qZSI) is challenging. Existing methods struggle to simultaneously achieve high robustness and low computational complexity without additional sensors. In this study, an open-circuit fault diagnosis method based on an improved super-twisting non-singular fast terminal sliding-mode observer (IST-NFTSMO) and hybrid features is proposed. The stator currents were estimated in real time by the IST-NFTSMO, and residuals were generated accordingly. By analyzing differences in the statistical distributions of residuals between healthy and faulty conditions, two features were extracted: average log-likelihood ratio (ALLR) and signed cumulative ratio (SCR). The ALLR is used for rapid fault detection, whereas the SCR is used for accurate localization of faulty switches. The proposed method was implemented entirely based on existing current sensors. No additional voltage sensors were required. Moreover, the diagnostic thresholds are adaptively adjusted according to variations in speed and load. The experimental results demonstrate that both single-switch and dual-switch open-circuit faults can be diagnosed rapidly and accurately. Compared with conventional methods, higher robustness and lower computational complexity were achieved.

1. Hao, Zhuo, Yangyang Ma, Pengyu Wang, Geng Luo, and Yisong Chen, "A review of axial-flux permanent-magnet motors: Topological structures, design, optimization and control techniques," Machines, Vol. 10, No. 12, 1178, 2022.
doi:10.3390/machines10121178 Google Scholar

2. Monadi, Mehdi, Mohammad Nabipour, Fatemeh Akbari-Behbahani, and Edris Pouresmaeil, "Speed control techniques for permanent magnet synchronous motors in electric vehicle applications toward sustainable energy mobility: A review," IEEE Access, Vol. 12, 119615-119632, 2024.
doi:10.1109/access.2024.3450199 Google Scholar

3. Chen, Hao, Nabeel A. O. Demerdash, Ayman M. El-Refaie, Youguang Guo, Wei Hua, and Christopher H. T. Lee, "Investigation of a 3D-magnetic flux PMSM with high torque density for electric vehicles," IEEE Transactions on Energy Conversion, Vol. 37, No. 2, 1442-1454, 2022.
doi:10.1109/tec.2021.3137803 Google Scholar

4. Gyawali, Bikash, Aidha Muhammad Ajmal, Wenjie Liu, and Yongheng Yang, "A review on modulation techniques of Quasi-Z-source inverter for grid-connected photovoltaic systems," e-Prime --- Advances in Electrical Engineering, Electronics and Energy, Vol. 10, 100809, 2024.
doi:10.1016/j.prime.2024.100809 Google Scholar

5. Mande, Daouda, João Pedro F. Trovão, Minh C. Ta, and Thang Van Do, "Dual-source bidirectional quasi-z-source inverter development for off-road electric vehicles," World Electric Vehicle Journal, Vol. 13, No. 9, 174, 2022.
doi:10.3390/wevj13090174 Google Scholar

6. Praveena Krishna, P. S., S. Vishnu, Abinash Dash, Vijay Babu Koreboina, and N. S. Jayalakshmi, "Investigation of bidirectional quasi Z-Source inverter for BLDC drive with modified shoot-through hysteresis current control in low power EV applications," Cogent Engineering, Vol. 10, No. 2, 2283279, 2023.
doi:10.1080/23311916.2023.2283279 Google Scholar

7. Gannamraju, Siva Kumar and Ravikumar Bhimasingu, "Sequential model predictive control of quasi Z-source inverter with fixed frequency operation," International Transactions on Electrical Energy Systems, Vol. 31, No. 11, e13068, 2021.
doi:10.1002/2050-7038.13068 Google Scholar

8. Choi, Ui-Min, June-Seok Lee, Frede Blaabjerg, and Kyo-Beum Lee, "Open-circuit fault diagnosis and fault-tolerant control for a grid-connected NPC inverter," IEEE Transactions on Power Electronics, Vol. 31, No. 10, 7234-7247, 2016.
doi:10.1109/tpel.2015.2510224 Google Scholar

9. Wang, Bo, Xiaobao Feng, and Rongxin Wang, "Open-circuit fault diagnosis for permanent magnet synchronous motor drives based on voltage residual analysis," Energies, Vol. 16, No. 15, 5722, 2023.
doi:10.3390/en16155722 Google Scholar

10. Choupan, Reza, Sajjad Golshannavaz, Daryoush Nazarpour, and Masoud Barmala, "A new structure for multilevel inverters with fault-tolerant capability against open circuit faults," Electric Power Systems Research, Vol. 168, 105-116, 2019.
doi:10.1016/j.epsr.2018.11.013 Google Scholar

11. Mullali Kunnontakath Puthiyapurayil, Muhammed Ramees, Mohamed Nadir Nasirudeen, Yashkumar A. Saywan, Md. Waseem Ahmad, and Hasmat Malik, "A review of open-circuit switch fault diagnostic methods for neutral point clamped inverter," Electronics, Vol. 11, No. 19, 3169, 2022.
doi:10.3390/electronics11193169 Google Scholar

12. Gmati, Badii, Imed Jlassi, Sejir Khojet El Khil, and Antonio J. Marques Cardoso, "Open-switch fault diagnosis in voltage source inverters of PMSM drives using predictive current errors and fuzzy logic approach," IET Power Electronics, Vol. 14, No. 6, 1059-1072, 2021.
doi:10.1049/pel2.12098 Google Scholar

13. Yaghoubi, Mokhtar, Javad Shokrollahi Moghani, Negar Noroozi, and Mohammad Reza Zolghadri, "IGBT open-circuit fault diagnosis in a quasi-Z-source inverter," IEEE Transactions on Industrial Electronics, Vol. 66, No. 4, 2847-2856, 2019.
doi:10.1109/tie.2018.2847709 Google Scholar

14. An, Quntao, Li Sun, Lizhi Sun, and Ke Zhao, "Recent developments of fault diagnosis methods for switclles in three-phase inverters," Transactions of China Electrotechnical Society, Vol. 26, No. 4, 135-144, 2011. Google Scholar

15. Peuget, R., S. Courtine, and J. P. Rognon, "Fault detection and isolation on a PWM inverter by knowledge-based model," IEEE Transactions on Industry Applications, Vol. 34, No. 6, 1318-1326, 1998.
doi:10.1109/28.739017 Google Scholar

16. Song, Baoye, Shiju Nie, Xuewen Li, and Lin Xu, "Open-circuit fault diagnosis of Z-source inverter via deep neural network," 2020 Chinese Automation Congress (CAC), 7599-7603, Shanghai, China, 2020.
doi:10.1109/CAC51589.2020.9327582

17. Mendes, A. M. S. and A. J. Marques Cardoso, "Voltage source inverter fault diagnosis in variable speed AC drives, by the average current Park's vector approach," IEEE International Electric Machines and Drives Conference. IEMDC'99. Proceedings (Cat. No.99EX272), 704-706, Seattle, WA, USA, 1999.
doi:10.1109/IEMDC.1999.769220

18. Abramik, Stanislaw, Wojciech Sleszynski, Janusz Nieznanski, and Hubert Piquet, "A diagnostic method for on-line fault detection and localization in VSI-fed AC drives," 10th European Conference on Power Electronics and Applications, EPE'2003, Toulouse, France, 2003.

19. Rothenhagen, K. and F. W. Fuchs, "Performance of diagnosis methods for IGBT open circuit faults in voltage source active rectifiers," 2004 IEEE 35th Annual Power Electronics Specialists Conference (IEEE Cat. No.04CH37551), Vol. 6, 4348-4354, Aachen, Germany, 2004.
doi:10.1109/PESC.2004.1354769

20. Sleszynski, Wojciech, Janusz Nieznanski, and Artur Cichowski, "Open-transistor fault diagnostics in voltage-source inverters by analyzing the load currents," IEEE Transactions on Industrial Electronics, Vol. 56, No. 11, 4681-4688, 2009.
doi:10.1109/tie.2009.2023640 Google Scholar

21. Li, Xinmin, Shaozhen Li, Wei Chen, Tingna Shi, and Changliang Xia, "A fast diagnosis strategy for inverter open-circuit faults based on the current path of brushless DC motors," IEEE Transactions on Power Electronics, Vol. 38, No. 8, 9311-9316, 2023.
doi:10.1109/tpel.2023.3270030 Google Scholar

22. Han, Sumin, Zhihao Shang, Yu Guo, and Xinjiao Jia, "A fault diagnosis method in three-phase voltage inverters based on the normalized current trajectory centroid," Journal of Electrical Engineering & Technology, Vol. 19, No. 7, 4421-4434, 2024.
doi:10.1007/s42835-024-01879-8 Google Scholar

23. Song, Liming, Minxuan Liao, Rongkun Wang, and Xinhua Guo, "Open-circuit diagnosis method based on dual-mode voltage residual model for T-type three-level inverter," Scientific Reports, Vol. 15, No. 1, 14059, 2025.
doi:10.1038/s41598-025-98747-w Google Scholar

24. Selvakumar, P. and G. Muthukumaran, "A three level NPC inverter fault detection and identification using voltage vector residual evaluation based on current path tracking method," e-Prime --- Advances in Electrical Engineering, Electronics and Energy, Vol. 8, 100541, 2024.
doi:10.1016/j.prime.2024.100541 Google Scholar

25. Zhang, Guozheng, Menghui Li, Xin Gu, and Wei Chen, "Fault diagnosis method for open-circuit faults in NPC three-level inverter based on WKCNN," CES Transactions on Electrical Machines and Systems, Vol. 9, No. 2, 234-245, 2025.
doi:10.30941/cestems.2025.00012 Google Scholar

26. Yu, Yunjun and Shilei Pei, "Open-circuit fault diagnosis of neutral point clamped three-level inverter based on sparse representation," IEEE Access, Vol. 6, 73499-73508, 2018.
doi:10.1109/access.2018.2883219 Google Scholar

27. Han, Sumin, Guoshuai Zhao, Jingli Gao, and Jiaoxin Jia, "Inverter Open Circuit fault diagnosis method based on ISMO for Improved Efficiency," Computers and Electrical Engineering, Vol. 120, 109650, 2024.
doi:10.1016/j.compeleceng.2024.109650 Google Scholar

Dr. Yang Zhang

Dr. Moutao Li

Dr. Shaoziyi Wu

Dr. Jiahao Zhang

Dr. Qianghui Xiao
