Abstract

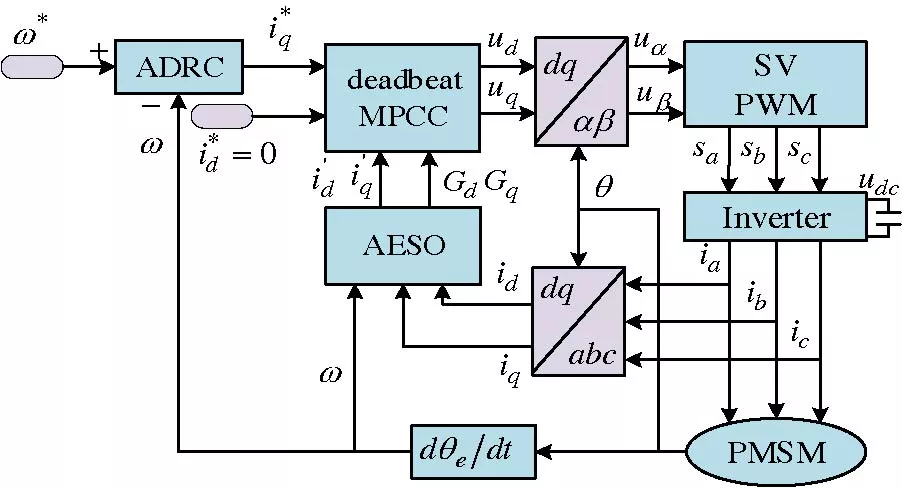

To address the issues of weak disturbance-rejection capability and poor parameter robustness in traditional model predictive control, a deadbeat model predictive current-control strategy with an improved disturbance observer is proposed. First, an active disturbance rejec-tion controller is designed to replace the PI control, achieving both fast response and overshoot-free per-formance during speed tracking. Then, the influence of parameter disturbances on motor control performance in conventional model predictive control is analyzed, and a disturbance observer with adaptively adjustable gain is designed. The parameter mismatch disturbances can be compensated. Therefore, the current ripple can be significantly suppressed，and the robustness of the system parameters can be enhanced. Finally, the performance of the proposed method was demonstrated through simulations and experiments.

1. Kou, Baoquan, Xiaokun Zhao, Haoquan Zhang, and Mengyao Wang, "Review and analysis of electromagnetic structure and magnetic field regulation technology of the permanent magnet synchronous motor," Proceedings of the CSEE, Vol. 41, No. 20, 7126-7141, 2021.
doi:10.13334/j.0258-8013.pcsee.202259 Google Scholar

2. Ke, Dongliang, Fengxiang Wang, and Jiaxiang Li, "Predictive current control of permanent magnet synchronous motor based on an adaptive high-gain observer," Proceedings of the CSEE, Vol. 41, No. 2, 728-738, 2021.
doi:10.13334/j.0258-8013.pcsee.201042 Google Scholar

3. Lu, Qing and Fangzheng Wu, "Sensorless control strategy for permanent magnet synchronous motor based on intermediate function disturbance observer," Journal of Power Electronics, Vol. 26, 620-628, 2026.
doi:10.1007/s43236-025-01265-1 Google Scholar

4. Wang, Yu, Chenggao Zhang, and Wenjuan Hao, "Overview of fault-tolerant technologies of permanent magnet brushless machine and its control system," Proceedings of the CSEE, Vol. 42, No. 1, 351-372, 2022.
doi:10.13334/j.0258-8013.pcsee.211831 Google Scholar

5. Diab, Ahmed A. Zaki and Denis A. Kotin, "Speed and current vector controlled permanent magnet synchronous motor drive based on particle SWARM optimization," 2022 IEEE 23rd International Conference of Young Professionals in Electron Devices and Materials (EDM), 576-583, Altai, Russian Federation, 2022.
doi:10.1109/EDM55285.2022.9855117

6. Chen, Wei, Sike Zeng, Guozheng Zhang, Tingna Shi, and Changliang Xia, "A modified double vectors model predictive torque control of permanent magnet synchronous motor," IEEE Transactions on Power Electronics, Vol. 34, No. 11, 11419-11428, Nov. 2019.
doi:10.1109/tpel.2019.2898901 Google Scholar

7. Ding, Hongchang, Xinhong Zou, and Jinhong Li, "Sensorless control strategy of permanent magnet synchronous motor based on fuzzy sliding mode observer," IEEE Access, Vol. 10, 36743-36752, 2022.
doi:10.1109/access.2022.3164519 Google Scholar

8. Xu, Q., X. Long, Y. Miao, Y. Wang, Y. Tu, and M. Tang, "Double-vector model predictive current control for PMSM drive system with low calculation burden," Electric Machines and Control, Vol. 29, No. 5, 19-30, 2025.
doi:10.15938/j.emc.2025.05.003 Google Scholar

9. Guo, Yuhao, Fuxi Jiang, Siqi Wang, Shanmei Cheng, and Zuoqi Hu, "Variable control period model predictive current control with current hysteresis for permanent magnet synchronous motor drives," Actuators, Vol. 14, No. 11, 517, 2025.
doi:10.3390/act14110517 Google Scholar

10. Zhang, Xiaoguang, Ziwei Wang, and Hailong Bai, "Sliding-mode-based deadbeat predictive current control for PMSM drives," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 11, No. 1, 962-969, 2023.
doi:10.1109/jestpe.2022.3195702 Google Scholar

11. Dai, Jialiang, Li Liu, Jungho Ahn, Ju Lee, and Hyunwoo Kim, "Extended state observer-based deadbeat predictive current control for IPMSM enhancing full parameter robustness," IEEE Transactions on Industry Applications, Vol. 61, No. 6, 9347-9358, 2025.
doi:10.1109/tia.2025.3576751 Google Scholar

12. Zhang, Guowang, Xuliang Yao, Xiaonan Gao, and Zhaokai Li, "Model-free deadbeat direct speed control with adaptive bandwidth factor in surface-mounted permanent magnet synchronous motor," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 14, No. 2, 2527-2540, 2026.
doi:10.1109/jestpe.2025.3645476 Google Scholar

13. Li, Ming, Jiwen Zhao, Yuepeng Hu, and Zhen Wang, "Active disturbance rejection position servo control of PMSLM based on reduced-order extended state observer," Chinese Journal of Electrical Engineering, Vol. 6, No. 2, 30-41, 2020.
doi:10.23919/cjee.2020.000009 Google Scholar

14. Wei, Y., H. Xie, D. Ke, and F. Wang, "Model-free predictive current sliding mode control strategy on PMSM drives based on universal model with PIDD2 causality," Proceedings of the CSEE, Vol. 45, No. 14, 5669-5679, 2025.
doi:10.13334/j.0258-8013.pcsee.240059 Google Scholar

15. Xu, Yanping, Zhongqiao Yan, Yanping Zhang, and Ruochen Song, "Model predictive current control of permanent magnet synchronous motor based on sliding mode observer with enhanced current and speed tracking ability under disturbance," IEEE Transactions on Energy Conversion, Vol. 38, No. 2, 948-958, 2023.
doi:10.1109/tec.2022.3214612 Google Scholar

16. Gong, Chao, Li Ding, Yunwei Li, and Jiahui Li, "Improved sensorless FCS-MPCC with current pre-estimation-based delay compensation integrated for PMSMs over high-speed range," IEEE Transactions on Industry Applications, Vol. 59, No. 6, 6756-6765, 2023.
doi:10.1109/tia.2023.3298307 Google Scholar

17. Wang, Shuang, Yayuan Hu, Jianfei Zhao, and Yuanyuan Zhang, "Parameter robustness improvement of predictive current control for permanent-magnet synchronous motors," IEEE Journal of Emerging and Selected Topics in Power Electronics, Vol. 10, No. 2, 1619-1626, 2022.
doi:10.1109/jestpe.2021.3088476 Google Scholar

18. Gao, Jinqiu, Chao Gong, Wenzhen Li, and Jinglin Liu, "Novel compensation strategy for calculation delay of finite control set model predictive current control in PMSM," IEEE Transactions on Industrial Electronics, Vol. 67, No. 7, 5816-5819, 2020.
doi:10.1109/tie.2019.2934060 Google Scholar

19. Yang, Rui, Mingyi Wang, Liyi Li, Gaolin Wang, and Chengbao Zhong, "Robust predictive current control of PMLSM with extended state modeling based Kalman filter: For time-varying disturbance rejection," IEEE Transactions on Power Electronics, Vol. 35, No. 2, 2208-2221, 2020.
doi:10.1109/tpel.2019.2923631 Google Scholar

20. Naas, Badreddine, Lazhari Nezli, Mohamed Elbar, and Ievgen Zaitsev, "Speed estimation of a double-star permanent magnet synchronous motor using an optimized extended Kalman filter," International Transactions on Electrical Energy Systems, Vol. 2025, No. 1, 8466428, 2025.
doi:10.1155/etep/8466428 Google Scholar

21. Kong, Xiaoguang and Quan Yuan, "Disturbance-rejection control of permanent magnet synchronous motors using robust adaptive extended Kalman filter," IEICE Electronics Express, Vol. 22, No. 18, 20250397, 2025.
doi:10.1587/elex.22.20250397 Google Scholar

22. Zhou, Ying, Shuo Zhang, Chengning Zhang, Xueping Li, Xuerong Li, and Xin Yuan, "Current prediction error based parameter identification method for SPMSM with deadbeat predictive current control," IEEE Transactions on Energy Conversion, Vol. 36, No. 3, 1700-1710, 2021.
doi:10.1109/tec.2021.3051212 Google Scholar

23. Sun, Xiaodong, Sunyang Zhang, Zebin Yang, Gang Lei, and Teng Li, "Improved DPCC and parameter identification for permanent magnet synchronous motors with current error compensation," IEEE Transactions on Industrial Electronics, Vol. 72, No. 10, 9911-9921, 2025.
doi:10.1109/tie.2025.3553157 Google Scholar

24. Xie, Chuanxun, Shuo Zhang, Xueping Li, Ying Zhou, and Yuelin Dong, "Parameter identification for SPMSM with deadbeat predictive current control using online PSO," IEEE Transactions on Transportation Electrification, Vol. 10, No. 2, 4055-4064, 2024.
doi:10.1109/tte.2023.3309993 Google Scholar

25. Zhong, Shuyu, Liang Zheng, and Guoqing Xiang, "Parameter identification method for permanent magnet synchronous motors based on model reference adaptive system," Journal of Innovation and Development, Vol. 12, No. 1, 59-64, 2025.
doi:10.54097/4w0keh92 Google Scholar

26. Xu, A., Y. Yu, and R. Liu, "Deadbeat control of permanent magnet-assisted synchronous reluctance motor based on LESO," Electric Machines and Control, Vol. 29, No. 8, 116-128, 2025.
doi:10.15938/j.emc.2025.08.011 Google Scholar

27. Tian, M., B. Wang, Y. Yu, and D. Xu, "Speed fluctuations suppression strategy for PMSM based on resonance-improved single-degree-of-freedom active disturbance rejection controller," Proceedings of the CSEE, Vol. 44, No. 15, 6209-6219, 2024.
doi:10.13334/j.0258-8013.pcsee.230949 Google Scholar

28. Li, Liyi, Genji Pei, Jiaxi Liu, Pengcheng Du, Le Pei, and Chengbao Zhong, "2-DOF robust H_∞ control for permanent magnet synchronous motor with disturbance observer," IEEE Transactions on Power Electronics, Vol. 36, No. 3, 3462-3472, 2021.
doi:10.1109/tpel.2020.3015874 Google Scholar

29. Zhan, Boyu, Lanyu Zhang, Yachao Liu, and Jian Gao, "Model predictive and compensated ADRC for permanent magnet synchronous linear motors," ISA Transactions, Vol. 136, 605-621, 2023.
doi:10.1016/j.isatra.2022.11.023 Google Scholar

30. Yuan, Fengfeng and Hejin Xiong, "Research on vector control of permanent magnet synchronous motor based on active disturbance rejection," 2023 9th International Conference on Electrical Engineering, Control and Robotics (EECR), 202-206, Wuhan, China, 2023.
doi:10.1109/EECR56827.2023.10149914

31. Wang, Bo, Minghe Tian, Yong Yu, Qinghua Dong, and Dianguo Xu, "Enhanced ADRC with quasi-resonant control for PMSM speed regulation considering aperiodic and periodic disturbances," IEEE Transactions on Transportation Electrification, Vol. 8, No. 3, 3568-3577, 2022.
doi:10.1109/tte.2021.3138922 Google Scholar

Dr. Qing Lu

Mr. Linfeng Lv

Dr. Wan Chen

Dr. Tao Zhang
