Abstract

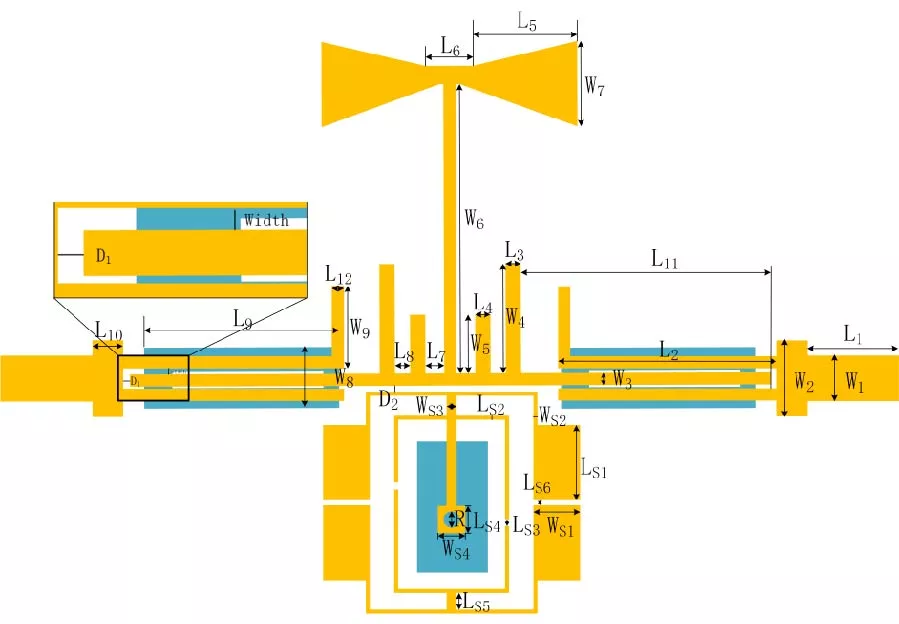

To suppress multiple narrowband interferences in ultra-wideband (UWB) communication systems while maintaining a compact size and wide passband response, a quad-notch ultra-wideband filter based on a bowtie T-shaped resonator is proposed and investigated. The proposed filter employs an improved stepped-impedance resonator (SIR) with multi-branch loading and an annular defected ground structure (DGS) to enhance bandwidth extension, passband flatness, and frequency selectivity. A novel quasi-closed-loop C-shaped resonator with an additional coupling path is introduced to generate an extra controllable resonant mode, providing enhanced flexibility for independent notch-band tuning. Combined with an asymmetric open-circuited branch, four independently adjustable notch bands are achieved within the UWB passband. The resonance characteristics of the proposed multimode structure are analyzed using even-odd mode theory, providing an effective approach for mode-frequency control. Experimental results demonstrate that the fabricated filter achieves a wide passband from 2.71 to 11.5 GHz with a fractional bandwidth of 124%, along with four sharp rejection bands centered at 5.91, 6.75, 7.29, and 8.08 GHz. The maximum attenuation reaches 34.55 dB, while the filter maintains a compact size of 23 mm × 29.74 mm with excellent passband flatness and out-of-band suppression. The proposed quad-notch UWB filter provides an effective solution for interference-resistant wireless communication systems.

1. Zhu, Lei, Sheng Sun, and W. Menzel, "Ultra-wideband (UWB) bandpass filters using multiple-mode resonator," IEEE Microwave and Wireless Components Letters, Vol. 15, No. 11, 796-798, 2005.
doi:10.1109/lmwc.2005.859011 Google Scholar

2. Fakharian, Mohammad M., Pejman Rezaei, Ali A. Orouji, and Meysam Soltanpur, "A wideband and reconfigurable filtering slot antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 15, 1610-1613, 2016.
doi:10.1109/lawp.2016.2518859 Google Scholar

3. Fakharian, Mohammad M., "Compact multimode bandpass plasmonic filter based on a dual-spiral resonator coupled to metal-insulator-metal waveguides for refractive index sensing application," Applied Optics, Vol. 65, No. 16, 5695-5702, 2026.
doi:10.1364/ao.599950 Google Scholar

4. Chu, Qing-Xin, Xiao-Hu Wu, and Xu-Kun Tian, "Novel UWB bandpass filter using stub-loaded multiple-mode resonator," IEEE Microwave and Wireless Components Letters, Vol. 21, No. 8, 403-405, 2011.
doi:10.1109/lmwc.2011.2160526 Google Scholar

5. Ahn, D., J.-S. Park, C.-S. Kim, J. Kim, Y. Qian, and T. Itoh, "A design of the low-pass filter using the novel microstrip defected ground structure," IEEE Transactions on Microwave Theory and Techniques, Vol. 49, No. 1, 86-93, 2001.
doi:10.1109/22.899965 Google Scholar

6. Gao, Mingming, Ya He, Jingchang Nan, Zhenzhi Yang, and Congying Wang, "A miniaturized ultra-wideband filter with high rejection and selectivity based on dual-notch bands," PLoS ONE, Vol. 19, No. 8, e0306730, 2024.
doi:10.1371/journal.pone.0306730 Google Scholar

7. Rai, Jayant Kumar, Dilip Kumar Choudhary, Pinku Ranjan, and Rakesh Chowdhury, "A compact ultrawide bandpass filter along Notch characteristics with rectangular resonator through a machine learning approach," International Journal of Microwave and Wireless Technologies, Vol. 16, No. 8, 1414-1422, 2024.
doi:10.1017/s1759078725000029 Google Scholar

8. Makimoto, Mitsuo and Sadahiko Yamashita, Microwave Resonators and Filters for Wireless Communication: Theory, Design and Application, Springer Science & Business Media, 2013.

9. Shaman, Hussein and Jia-Sheng Hong, "Ultra-wideband (UWB) bandpass filter with embedded band notch structures," IEEE Microwave and Wireless Components Letters, Vol. 17, No. 3, 193-195, 2007.
doi:10.1109/lmwc.2006.890467 Google Scholar

10. Liu, Fengjing and Mao Qun, "A new compact UWB bandpass filter with quad notched characteristics," Progress In Electromagnetics Research Letters, Vol. 88, 83-88, 2020.
doi:10.2528/pierl19090505 Google Scholar

11. Taibi, Abdelkader, Mohamed Trabelsi, and Abdelhalim A. Saadi, "Efficient design approach of triple notched UWB filter," AEU --- International Journal of Electronics and Communications, Vol. 131, 153619, 2021.
doi:10.1016/j.aeue.2021.153619 Google Scholar

12. Wang, Ling, Shuhui Yang, Qingxin Guo, Bin Li, and Li Zhang, "Super compact and ultra-wideband bandpass filter with three band notches using triple-mode stepped impedance resonator and defected ground structure," Journal of Electromagnetic Waves and Applications, Vol. 38, No. 10, 1158-1175, 2024.
doi:10.1080/09205071.2024.2360552 Google Scholar

13. Mohamed, A., K. Djamel, F. Khelil, and F. Fouad, "A bandpass filter with triple-narrow notch bands based on metamaterials SRR configurations for UWB applications," International Journal of Microwave & Optical Technology, Vol. 19, No. 3, 244, 2024. Google Scholar

14. Borhani, Seyyed Jamal, Mohammad Amin Honarvar, and Bal S. Virdee, "Quad notched-band UWB BPF based on quintuple-mode resonator," International Journal of Microwave and Wireless Technologies, Vol. 9, No. 7, 1433-1439, 2017.
doi:10.1017/s1759078716001112 Google Scholar

15. Sung, Y. J., "UWB bandpass filter with quad notched bands," Microwave and Optical Technology Letters, Vol. 56, No. 10, 2286-2289, 2014.
doi:10.1002/mop.28573 Google Scholar
