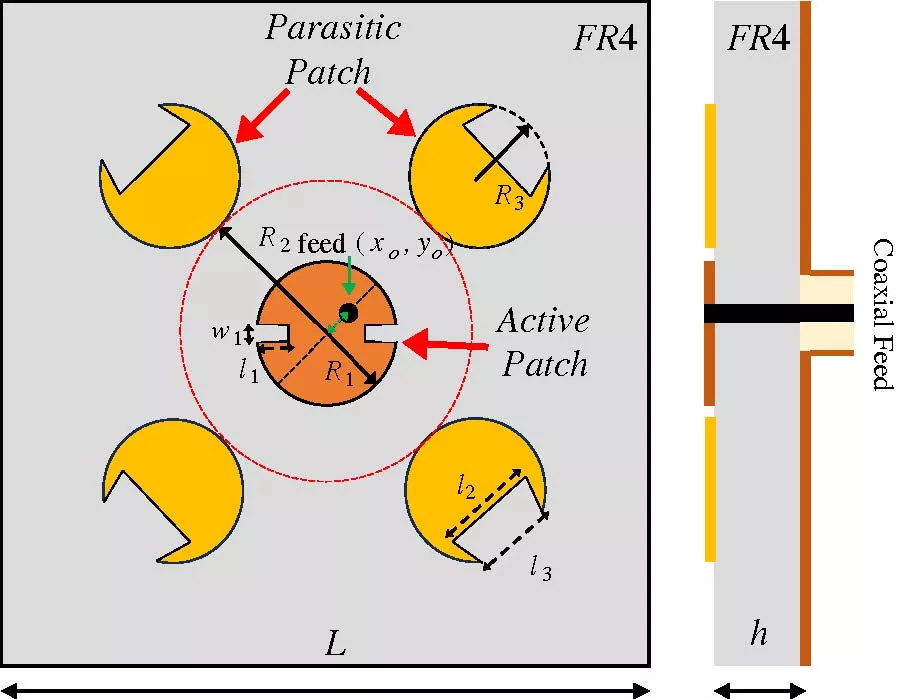

Existing wideband circularly polarized (CP) antennas generally face trade-offs among wide impedance bandwidth, broad axial ratio (AXR) bandwidth, gain, and compactness in single-layer implementation. Furthermore, a number of reported designs are multi-layer or metasurface-based or require complex feeding networks, making them more complex to manufacture, resulting in increased fabrication costs. In this paper, we develop a wideband circularly polarized (CP) antenna design using an active central patch with four parasitic patches on an FR4 substrate. The CP condition is obtained by exciting two orthogonal modes of equal magnitude and $90^\circ$ phase difference, which are attained by perturbing the active patch and placing a diagonal coaxial feed on it. We enhance the broadside gain and bandwidth by loading parasitic patches around the active patch via electromagnetic coupling. This type of coupling improves aperture efficiency, impedance matching, and axial ratio bandwidth (ARBW). Characteristic Mode Analysis (CMA) is used to determine and optimize the dominant orthogonal modes responsible for circular polarization and radiation enhancement. The fabricated prototype shows a measured -10 dB impedance bandwidth (IBW) of 18.12% (5.42-6.50 GHz), an ARBW of 17.87% (5.35-6.40 GHz), and a broadside gain of 8.5 dBi. The measured and simulated results show excellent agreement, confirming the functionality of the designed antenna. The antenna's compact size, wide bandwidth, and high broadside gain make it a potential solution for broadband wireless communication, satellite-based systems, and C-band antenna applications.
