Abstract

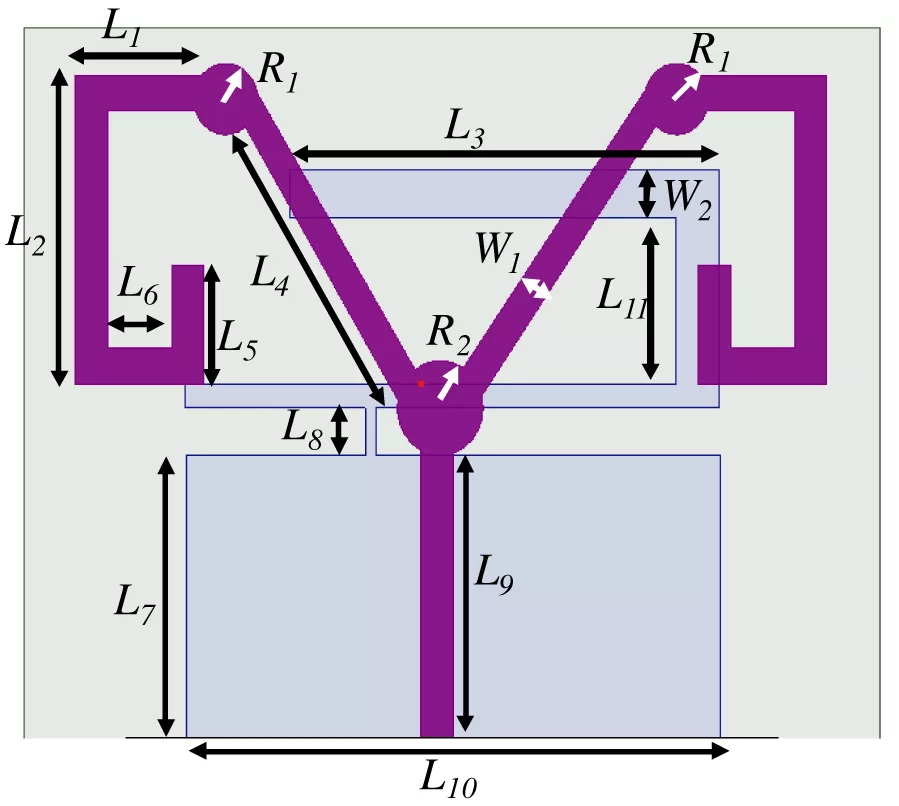

This paper describes the design and analysis of a compact folded monopole antenna based on a Y-shaped meandered configuration, to operate within the 5 GHz to 6.5 GHz frequency range. TThe antenna has a compact size of 40 × 30 mm², and is fabricated on a low-cost FR4 epoxy substrate, making it suitable for easy integration into wireless systems. The main radiating configuration consists of a central vertical feedline connected symmetrically to meandered arms, forming a Y-shaped layout that enables a compact size without affecting radiation efficiency. The antenna is fed through a microstrip line, with the input signal equally distributed to both arms, each functioning as a quarter-wavelength monopole. The antenna demonstrates omnidirectional radiation patterns in both the E and H-planes and achieves a gain of 3\,dB. To ensure human safety, we also performed a specific absorption rate (SAR) analysis using a human baby phantom model. The maximum SAR is 0.128\,W/Kg at both frequencies, well below the acceptable 1.6\,W/kg limit set by the ICNIRP guidelines. The fabricated prototype was tested, and the measured results closely match simulations, validating the antenna's suitability for modern compact wireless applications.
