Abstract

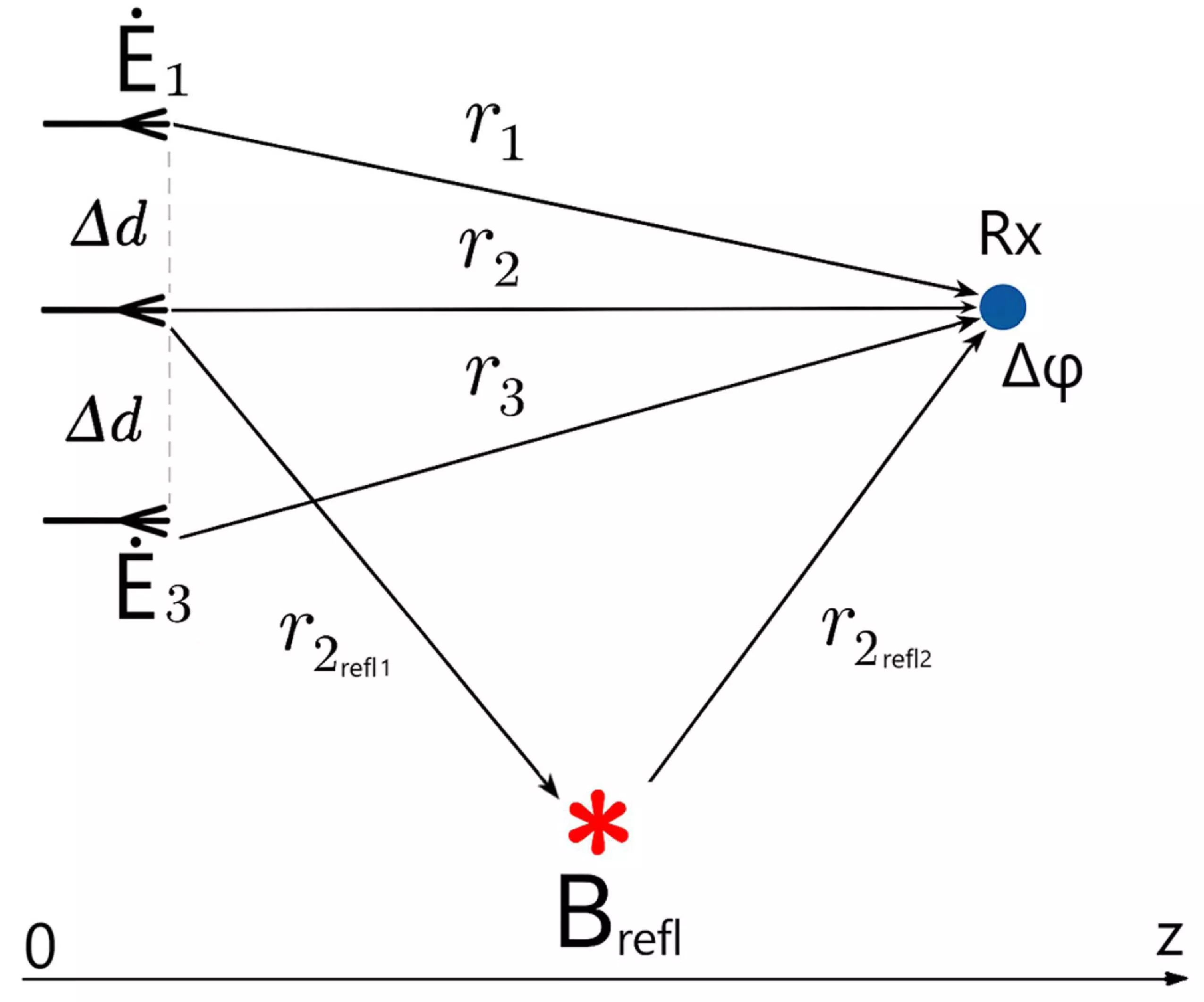

A low-complexity first-order model was developed and verified to account for a single reflected propagation path in the complex transmission-coefficient matrix used for electromagnetic-field focusing by an antenna array. Electrodynamic and mathematical modeling was performed for a system comprising a transmitter, a receiving point, and an ideal specular reflector represented as a scattering point. The reflected-path contribution was incorporated directly into the transmission coefficients used to calculate the complex excitations of antenna-array radiators. The approach was evaluated using a three-element antenna array by comparing field focusing without a reflector, with an uncompensated reflector, and with reflector-aware excitation parameters. Changes in reflector position altered phase difference between direct and reflected waves, resulting in constructive or destructive interference at the receiving point. Taking the reflected path into account modified the calculated amplitudes and initial phases of the array excitations and partially compensated for reflector-induced field distortion. In the considered case, the normalized field amplitude after compensation differed by approximately 3% from the no-reflector case and increased by about 49% relative to the uncompensated case. The mathematical and electrodynamic results were in qualitative agreement. These findings demonstrate that including a reflected path in a transmission-coefficient matrix can improve near-field focusing accuracy in the presence of a reflector.

1. Natkaniec, Marek and Natalia Bieryt, "An analysis of the mixed IEEE 802.11 ax wireless networks in the 5 GHz band," Sensors, Vol. 23, No. 10, 4964, 2023.
doi:10.3390/s23104964 Google Scholar

2. Saha, Rony Kumer, "Coexistence of cellular and IEEE 802.11 technologies in unlicensed spectrum bands --- A survey," IEEE Open Journal of the Communications Society, Vol. 2, 1996-2028, 2021.
doi:10.1109/ojcoms.2021.3106502 Google Scholar

3. Cui, Mingyao, Zidong Wu, Yu Lu, Xiuhong Wei, and Linglong Dai, "Near-field MIMO communications for 6G: Fundamentals, challenges, potentials, and future directions," IEEE Communications Magazine, Vol. 61, No. 1, 40-46, 2023.
doi:10.1109/mcom.004.2200136 Google Scholar

4. Zhang, Haiyang, Nir Shlezinger, Francesco Guidi, Davide Dardari, Mohammadreza F. Imani, and Yonina C. Eldar, "Beam focusing for near-field multiuser MIMO communications," IEEE Transactions on Wireless Communications, Vol. 21, No. 9, 7476-7490, 2022.
doi:10.1109/twc.2022.3158894 Google Scholar

5. Choi, Hyuckjin, Jaeky Oh, Jaehoon Chung, George C. Alexandropoulos, and Junil Choi, "WiThRay: A versatile ray-tracing simulator for smart wireless environments," IEEE Access, Vol. 11, 56822-56845, 2023.
doi:10.1109/access.2023.3283610 Google Scholar

6. Lerosey, G., J. de Rosny, A. Tourin, A. Derode, G. Montaldo, and M. Fink, "Time reversal of electromagnetic waves," Physical Review Letters, Vol. 92, No. 19, 193904, 2004.
doi:10.1103/physrevlett.92.193904 Google Scholar

7. Nguyen, Hung Tuan, J. B. Andersen, G. F. Pedersen, P. Kyritsi, and P. C. F. Eggers, "Time reversal in wireless communications: A measurement-based investigation," IEEE Transactions on Wireless Communications, Vol. 5, No. 8, 2242-2252, 2006.
doi:10.1109/twc.2006.1687740 Google Scholar

8. Basar, E., "Reconfigurable intelligent surfaces for doppler effect and multipath fading mitigation," Frontiers in Communications and Networks, Vol. 2, 672857, 2021.
doi:10.3389/frcmn.2021.672857 Google Scholar

9. Iuzvik, Denis and Maksim Stepanov, "Focusing of the electromagnetic field in several given areas of space," Progress In Electromagnetics Research M, Vol. 113, 11-22, 2022.
doi:10.2528/pierm22070704 Google Scholar

10. Iuzvik, Denis and Maksim Stepanov, "Ensuring the maximum amplitude of the electric field strength in given coordinates using a linear antenna array focused on a finite distance," Journal of Electromagnetic Waves and Applications, Vol. 38, No. 4, 411-427, 2024.
doi:10.1080/09205071.2024.2315063 Google Scholar

11. Stimson, G. W., Introduction to Airborne Radar, SciTech Publishing, 1998.

12. Säily, J. and A. Räisänen, Studies on Specular and Non-Specular Reflectivities of Radar Absorbing Materials (RAM) at Submillimetre Wavelengths, Helsinki University of Technology, Helsinki, Finland, 2003.

13. Chau, Jorge Luis, Juan Miguel Urco, Juha Pekka Vierinen, Ryan Andrew Volz, Matthias Clahsen, Nico Pfeffer, and Jörg Trautner, "Novel specular meteor radar systems using coherent MIMO techniques to study the mesosphere and lower thermosphere," Atmospheric Measurement Techniques, Vol. 12, No. 4, 2113-2127, 2019.
doi:10.5194/amt-12-2113-2019 Google Scholar

14. Barrick, D. E., W. D. Stuart, and C. K. Krichbaum, Radar Cross Section Handbook, Plenum Press, New York, NY, USA, 1970.

15. Skolnik, M. I., Introduction to Radar Systems, McGraw-Hill, New York, NY, USA, 1980.

16. Pozar, D. M., Microwave Engineering, 4th Ed., John Wiley & Sons, Hoboken, NJ, USA, 2012.

17. Sokolov, Vadim, Denis Iuzvik, and Maksim Stepanov, "Experimental evaluation of the possibility of positioning the maximum amplitude of the electric field strength at the required point in space," International Journal of Sensors, Wireless Communications and Control, Vol. 16, No. 2, 83-93, 2026.
doi:10.2174/0122103279358379241225210812 Google Scholar

Dr. Denis Iuzvik

Professor Maksim Stepanov
