2026-08-19
An Asymmetric Dual-Band Doherty Power Amplifier Based on Dual-π-Shaped Phase Compensation Lines
By
Mingming Gao,

    Dr. Mingming Gao

    School of Electronics and Information Engineering

    Liaoning Technical University

    China

    Homepage

Bo Li,

    Dr. Bo Li

    School of Electronics and Information Engineering

    Liaoning Technical University

    China

    Homepage

Hao Meng,

    Dr. Hao Meng

    School of Electronic and Information Engineering

    Liaoning Technical University

    China

    Homepage

Jiawei Wang

    Dr. Jiawei Wang

    School of Electronics and Information Engineering

    Liaoning Technical University

    China

    Homepage

Progress In Electromagnetics Research C, Vol. 172, 392-404, 2026
doi:10.2528/PIERC26063007 | Google Scholar

Abstract

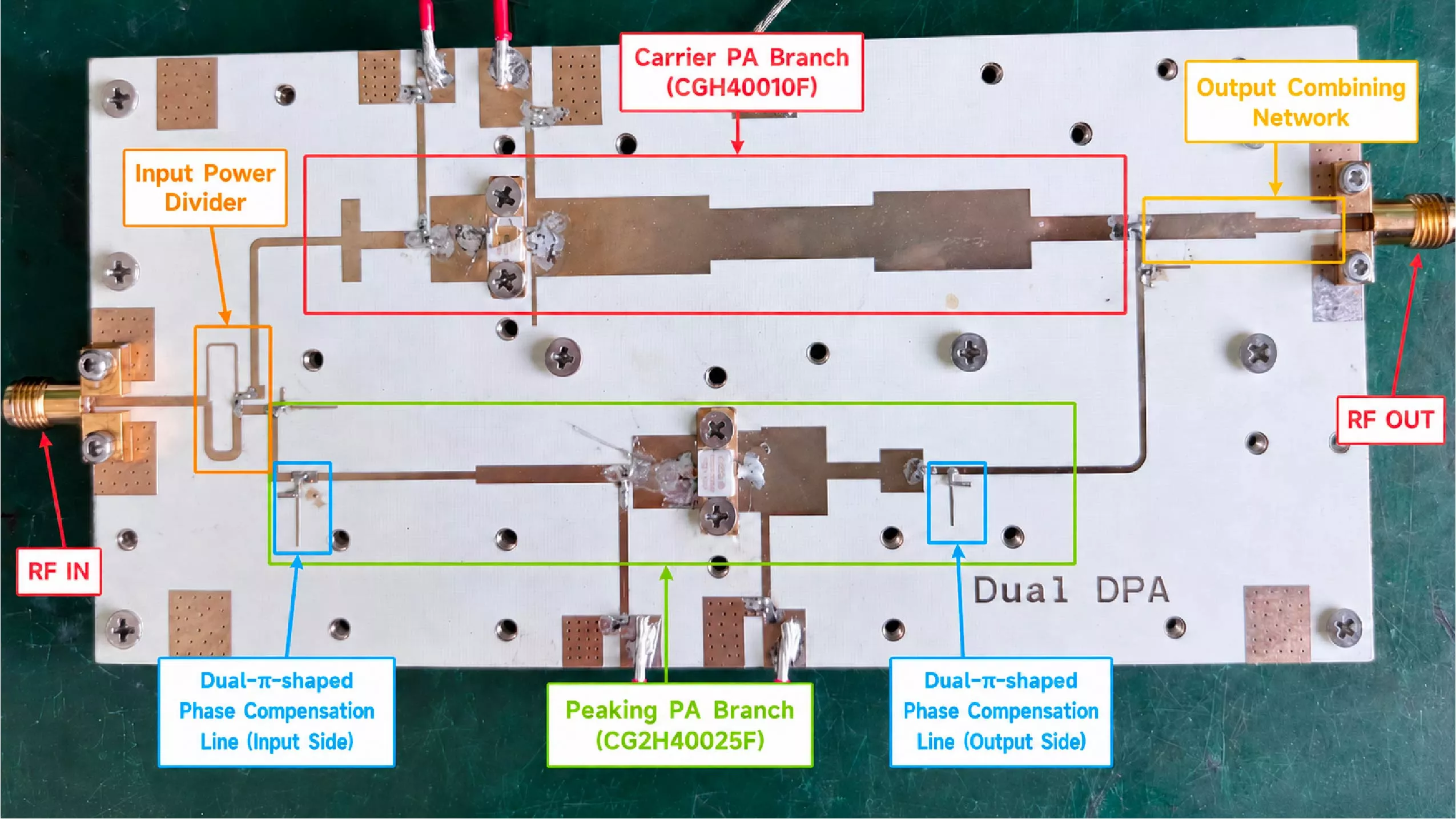

This paper presents an asymmetric dual-band Doherty power amplifier employing a dual-π-shaped phase-compensation network. To realize effective load modulation at two operating frequencies, dual-band phase compensation lines are introduced at both the input and output of the peaking amplifier. Each compensation line is implemented with a dual-π-shaped dual-band structure, which provides the required phase shift and impedance transformation at the two target frequencies, thereby satisfying the phase relationship required for dual-band Doherty load modulation. Meanwhile, transistors with different power levels are used in the carrier and peaking amplifier branches to form an asymmetric Doherty configuration, improving power-combining capability and efficiency in the output power back-off region. Simulation and measurement results show that the designed power amplifier achieves an output power of 47 dBm, a gain higher than 10 dB, and drain efficiencies of 70% and 65% at 2.6 GHz and 3.5 GHz, respectively. At 9-dB output power back-off, the drain efficiencies reach 60% and 54% at the two frequencies, respectively. These results verify that the proposed dual-π-shaped phase compensation method can effectively realize dual-band load modulation in an asymmetric Doherty power amplifier. Compared with conventional dual-band Doherty configurations, the proposed architecture offers improved dual-band load modulation characteristics and is promising for future multiband wireless communication systems.
Download Full Article (71) View Full Article volume
Citation
Mingming Gao, Bo Li, Hao Meng, and Jiawei Wang, "An Asymmetric Dual-Band Doherty Power Amplifier Based on Dual-π-Shaped Phase Compensation Lines," Progress In Electromagnetics Research C, Vol. 172, 392-404, 2026.
doi:10.2528/PIERC26063007
References

1. Liu, Wenjin, Hao Wang, and Jingchang Nan, "Design of reconfigurable dual-band radio frequency power amplifier based on PIN switch," Chinese Journal of Radio Science, Vol. 37, No. 1, 168-174, 2022.
doi:10.12265/j.cjors.2020273        Google Scholar

2. Su, Zhilin, Cuiping Yu, and Bihua Tang, "A concurrent dual-band Doherty power amplifier with performance enhancement using a novel impendence invert network," 2019 IEEE MTT-S International Wireless Symposium (IWS), 1-3, Guangzhou, China, 2019.
doi:10.1109/IEEE-IWS.2019.8803996

3. Darraji, Ramzi, Fadhel M. Ghannouchi, and Oualid Hammi, "A dual-input digitally driven Doherty amplifier architecture for performance enhancement of Doherty transmitters," IEEE Transactions on Microwave Theory and Techniques, Vol. 59, No. 5, 1284-1293, 2011.
doi:10.1109/tmtt.2011.2106137        Google Scholar

4. Andersson, Christer M., David Gustafsson, Jessica Chani Cahuana, Richard Hellberg, and Christian Fager, "A 1-3-GHz digitally controlled dual-RF input power-amplifier design based on a Doherty-outphasing continuum analysis," IEEE Transactions on Microwave Theory and Techniques, Vol. 61, No. 10, 3743-3752, 2013.
doi:10.1109/tmtt.2013.2280562        Google Scholar

5. Chen, Wenhua, Seyed Aidin Bassam, Xiang Li, Yucheng Liu, Karun Rawat, Mohamed Helaoui, Fadhel M. Ghannouchi, and Zhenghe Feng, "Design and linearization of concurrent dual-band Doherty power amplifier with frequency-dependent power ranges," IEEE Transactions on Microwave Theory and Techniques, Vol. 59, No. 10, 2537-2546, 2011.
doi:10.1109/tmtt.2011.2164089        Google Scholar

6. Gustafsson, David, Christer M. Andersson, and Christian Fager, "A modified Doherty power amplifier with extended bandwidth and reconfigurable efficiency," IEEE Transactions on Microwave Theory and Techniques, Vol. 61, No. 1, 533-542, 2013.
doi:10.1109/tmtt.2012.2227783        Google Scholar

7. Li, Xiang, Wenhua Chen, Zhijun Zhang, Zhenghe Feng, Xinyi Tang, and Koen Mouthaan, "A concurrent dual-band Doherty power amplifier," 2010 Asia-Pacific Microwave Conference, 654-657, Yokohama, Japan, 2010.

8. Yang, Fei, Hongxi Yu, Jun Li, Chao Guo, Sen Yan, Xiaoming Chen, Anxue Zhang, and Zhonghe Jin, "A class-F based power amplifier with optimized efficiency in triple-band," Electronics, Vol. 11, No. 3, 310, 2022.
doi:10.3390/electronics11030310        Google Scholar

9. Saad, Paul, Paolo Colantonio, Luca Piazzon, Franco Giannini, Kristoffer Andersson, and Christian Fager, "Design of a concurrent dual-band 1.8-2.4-GHz GaN-HEMT Doherty power amplifier," IEEE Transactions on Microwave Theory and Techniques, Vol. 60, No. 6, 1840-1849, 2012.
doi:10.1109/tmtt.2012.2189120        Google Scholar

10. Pang, Jingzhou, Songbai He, Zhijiang Dai, Chaoyi Huang, Jun Peng, and Fei You, "Novel design of highly-efficient concurrent dual-band GaN Doherty power amplifier using direct-matching impedance transformers," 2016 IEEE MTT-S International Microwave Symposium (IMS), 1-4, San Francisco, CA, USA, 2016.
doi:10.1109/MWSYM.2016.7540190

11. Meng, Fan, Xiao-Wei Zhu, Jing Xia, and Chao Yu, "A postmatching concurrent dual‐band Doherty power amplifier with enhanced bandwidth," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 28, No. 8, e21514, 2018.
doi:10.1002/mmce.21514        Google Scholar

12. Yang, Zhenxing, Mingyu Li, Yao Yao, Zhijiang Dai, Tian Li, and Yi Jin, "Design of concurrent dual-band continuous class-J mode Doherty power amplifier with precise impedance terminations," IEEE Microwave and Wireless Components Letters, Vol. 29, No. 5, 348-350, 2019.
doi:10.1109/lmwc.2019.2909024        Google Scholar

13. Borjlu, Shaban Rezaei and Massoud Dousti, "A novel dual-band concurrent asymmetric Doherty power amplifier for wireless communications," Journal of Circuits, Systems and Computers, Vol. 28, No. 14, 1950235, 2019.
doi:10.1142/s0218126619502359        Google Scholar

14. Liu, Hao-Yu, Chenxi Zhai, and Kwok-Keung Michael Cheng, "Novel dual-band equal-cell Doherty amplifier design with extended power back-off range," IEEE Transactions on Microwave Theory and Techniques, Vol. 68, No. 3, 1012-1021, 2020.
doi:10.1109/tmtt.2019.2952352        Google Scholar

15. Luo, Yonglun, Danlei Xuan, Zhicheng Wang, Wenning Gao, Wanghong Yang, and Shiwei Yuan, "A concurrent 2.6/3.5 GHz dual-band Doherty power amplifier with matching network based on composite right/left-handed unit cell," IEICE Electronics Express, Vol. 19, No. 3, 20210470, 2021.
doi:10.1587/elex.18.20210470        Google Scholar

16. Xia, Jing, Zhonghui Xie, Wa Kong, Ruijia Liu, Ziming Zhao, and Xiao-Wei Zhu, "A 9 dB back-off dual-band asymmetric Doherty power amplifier using dual peaking amplifiers for reactance compensation," Microwave and Optical Technology Letters, Vol. 64, No. 7, 1145-1153, 2022.
doi:10.1002/mop.33248        Google Scholar

17. Chen, Hang, Jin-Xu Xu, Wenhua Chen, and Xiu Yin Zhang, "High-efficiency dual-band filtering Doherty power amplifier based on multi-function circuit," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 5, 2697-2709, 2022.
doi:10.1109/tmtt.2022.3154756        Google Scholar

18. Saad, Paul, Yonghai Jin, Christian Fager, and Rui Hou, "Dual-band dual-output Doherty power amplifier for unsynchronized time-division duplexing," IEEE Transactions on Microwave Theory and Techniques, Vol. 71, No. 8, 3617-3628, 2023.
doi:10.1109/tmtt.2023.3240526        Google Scholar

19. Abdulkhaleq, Ahmed M., Maan A. Yahya, Neil McEwan, Ashwain Rayit, Raed A. Abd-Alhameed, Naser Ojaroudi Parchin, Yasir I. A. Al-Yasir, and James Noras, "Recent developments of dual-band Doherty power amplifiers for upcoming mobile communications systems," Electronics, Vol. 8, No. 6, 638, 2019.
doi:10.3390/electronics8060638        Google Scholar

20. Li, Guojin, Wenyuan Xu, Jingchang Nan, and Mingming Gao, "Design of efficient concurrent dual-frequency Doherty power amplifier based on step impedance low-pass filter," Electronics, Vol. 12, No. 19, 4092, 2023.
doi:10.3390/electronics12194092        Google Scholar

21. Gao, Ruibin, Jingzhou Pang, Tianfu Cai, Ce Shen, Weimin Shi, Zhijiang Dai, Mingyu Li, and Anding Zhu, "Dual-band three-way Doherty power amplifier employing dual-mode gate bias and load compensation network," IEEE Transactions on Microwave Theory and Techniques, Vol. 70, No. 4, 2328-2340, 2022.
doi:10.1109/tmtt.2022.3149379        Google Scholar

22. Wang, Jingsong, Zhijiang Dai, Kang Zhong, Ge Bai, Cheng Bi, Mingyu Li, Weimin Shi, and Jingzhou Pang, "Design of a dual-band Doherty power amplifier using single-loop network," IEEE Transactions on Microwave Theory and Techniques, Vol. 72, No. 10, 5818-5829, 2024.
doi:10.1109/tmtt.2024.3386665        Google Scholar

23. Jiang, Shuren, Guohua Liu, Minghui You, and Yuezhi Wu, "A novel dual‐band forward/inverse Doherty power amplifier," International Journal of Circuit Theory and Applications, Vol. 52, No. 12, 6073-6082, 2024.
doi:10.1002/cta.4095        Google Scholar

24. Rawat, Karun and Fadhel M. Ghannouchi, "Design methodology for dual-band Doherty power amplifier with performance enhancement using dual-band offset lines," IEEE Transactions on Industrial Electronics, Vol. 59, No. 12, 4831-4842, 2012.
doi:10.1109/tie.2011.2176695        Google Scholar
