2026-09-06
A Compact Fibonacci Fractal MIMO Antenna with Slotted Decoupling Structure for 5G and WLAN Applications
By
Sachin S. Khade,

    Dr. Sachin S. Khade

    Yashwantarao Chavan College of Engineering

    India

    Homepage

Nikhil Mangrulkar,

    Dr. Nikhil Mangrulkar

    Computer Science and Engineering

    Symbiosis Institute of Technology Nagpur Campus, Symbiosis International (Deemed University)

    India

    Homepage

Praful N. Yerkewar,

    Dr. Praful N. Yerkewar

    Priyadarshini Bhagwati College of Engineering

    India

    Homepage

Tirupati M. Goskula,

    Dr. Tirupati M. Goskula

    Anjuman College of Engineering & Technology

    India

    Homepage

Chitra S. Khade,

    Dr. Chitra S. Khade

    GHRIET

    India

    Homepage

Prajwal Rewatkar

    Dr. Prajwal Rewatkar

    Yeshwantrao Chavan College of Engineering

    India

    Homepage

Progress In Electromagnetics Research C, Vol. 173, 167-179, 2026
doi:10.2528/PIERC26070101 | Google Scholar

Abstract

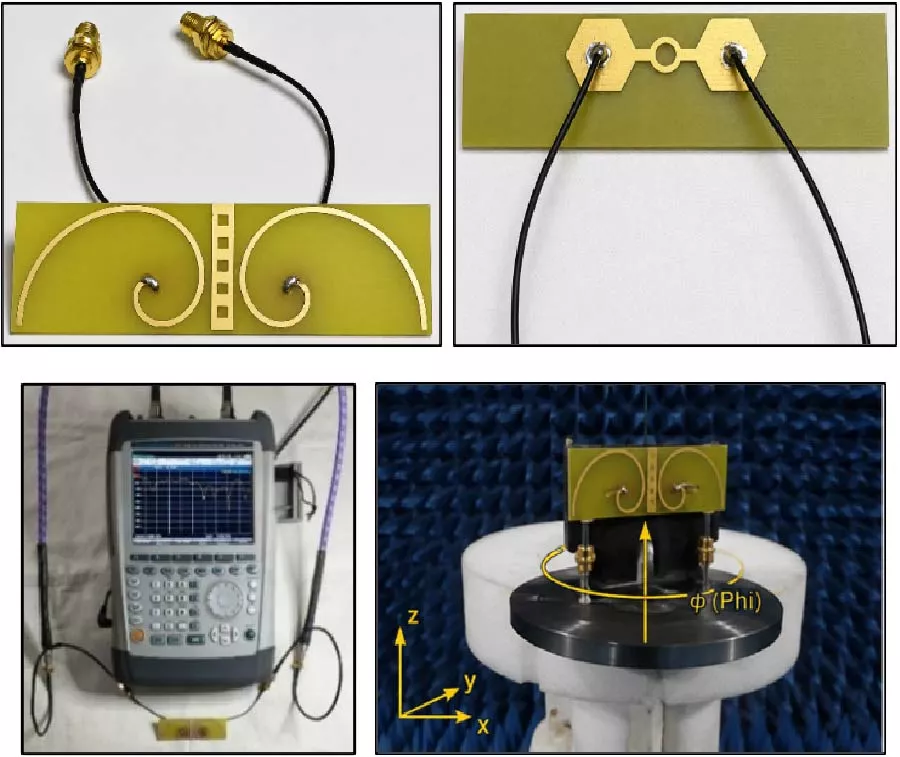

A miniaturized, multiband, Fibonacci-inspired MIMO antenna is proposed for modern wireless communication technologies, such as sub-6 GHz 5G, WiMAX, WLAN, and Wi-Fi. The proposed antenna incorporates a Fibonacci spiral as the radiating element along with an enhanced defected ground structure (DGS). This configuration provides improved impedance matching, low mutual coupling, and strong diversity characteristics. The antenna employs a slot-loaded decoupling strip and an optimized ground plane to suppress surface currents and enhance isolation between elements. In its final two-element configuration, the antenna exhibits three distinct resonant frequencies at 1.1 GHz, 4.22 GHz, and 5.65 GHz. Both simulated and measured results demonstrate excellent impedance matching, achieving a minimum return loss of -27.22 dB at 4.22 GHz and an isolation level better than -20 dB throughout the operating frequency range. Moreover, the envelope correlation coefficient (ECC) remains below 0.05, while the diversity gain exceeds 9.95 dB. The antenna also achieves a radiation efficiency ranging from 75% to 85%. Surface current analysis further demonstrates that the combination of the Fibonacci-inspired geometry and DGS effectively produces multiband operation while minimizing mutual coupling.
Download Full Article (16) View Full Article volume
Citation
Sachin S. Khade, Nikhil Mangrulkar, Praful N. Yerkewar, Tirupati M. Goskula, Chitra S. Khade, and Prajwal Rewatkar, "A Compact Fibonacci Fractal MIMO Antenna with Slotted Decoupling Structure for 5G and WLAN Applications," Progress In Electromagnetics Research C, Vol. 173, 167-179, 2026.
doi:10.2528/PIERC26070101
References

1. Jat, Nairaj, Arun Kumar, Esraa Mousa Ali, Manisha Gupta, Dalia H. Elkamchouchi, and Aziz Nanthaamornphong, "Enhanced isolation unique fractal diminutive MIMO antenna with identical elliptical notch and cross stub for wireless uses," Scientific Reports, Vol. 15, No. 1, 36600, 2025.
doi:10.1038/s41598-025-22587-x        Google Scholar

2. Sindhuja, N. M. Mary, R. Sreelakshmy, Om Prakash Kumar, and Muddineni Raveendra, "Design of a Hilbert curve fractal MIMO slot antenna with enhanced bandwidth and stable radiation patterns for Wi-Fi 7 and Wi-Fi 8 applications using genetic algorithm," International Journal of Antennas and Propagation, Vol. 2026, No. 1, 8112380, 2026.
doi:10.1155/ijap/8112380        Google Scholar

3. Jahanbakhsh Basherlou, Haleh, Naser Ojaroudi Parchin, and Chan Hwang See, "A compact fractal-based super-wideband mmWave MIMO antenna for 5G NR and 6G services," Electronics, Vol. 15, No. 12, 2564, 2026.
doi:10.3390/electronics15122564        Google Scholar

4. Kamil, Noora Rafid, Ahmed Ghanim Waddy, and Aseel Hameed Al-Nakkash, "A design of fractal Hilbert MIMO antenna for 5G mobile," Journal of Techniques, Vol. 4, No. 1, 29-38, Mar. 2022.
doi:10.51173/jt.v4i1.440        Google Scholar

5. Prasad, Gudi Guru and Gopal Senthil Kumar, "Design of multiband miniaturized MIMO antenna with defected ground for future mobile communications," Indian Journal of Engineering and Materials Sciences (IJEMS), Vol. 31, No. 6, 864-887, 2024.
doi:10.56042/ijems.v31i6.8771        Google Scholar

6. Khade, S. S., V. G. Girhepunje, S. S. Kurumbanshi, D. B. Bhoyar, J. D. Kene, A. R. Bhagat Patil, S. K. Mohod, and S. Prayagi, "Advanced miniaturised MIMO architecture: High-isolation four-element antenna system for next-generation wireless connectivity," African Journal of Applied Research, Vol. 11, No. 6, 36-50, Nov. 2025.
doi:10.26437/5bxc5915        Google Scholar

7. Khade, Sachin S., Nikhil Mangrulkar, Chitra S. Khade, Sapana Dhanvijay, and Prasanna L. Zade, "A dual-band four-element MIMO antenna with triangular slots and hexagonal rings for GSM, Wi-Fi, LTE, 5G and IoT applications," Progress In Electromagnetics Research C, Vol. 162, 70-80, 2025.
doi:10.2528/pierc25090701        Google Scholar

8. Sidhu, A. K. and J. S. Sivia, "Design of wideband fractal MIMO antenna using Minkowski and Koch hybrid curves on half octagonal radiating patch with high isolation and gain for 5G applications," Advanced Electromagnetics, Vol. 12, No. 1, 58-69, Mar. 2023.
doi:10.7716/aem.v12i1.1982        Google Scholar

9. Punna, Bharghava, Mohd Sofiyan, N. Siddartha Reddy, and B. Nagarani, "Fractal-based UWB-MIMO antenna with reconfigurable band-notching characteristics," Telecommunications and Radio Engineering, Vol. 83, No. 8, 47-55, 2024.
doi:10.1615/telecomradeng.2024048221        Google Scholar

10. Khade, Sachin S., Dinesh B. Bhoyar, Ketki Kotpalliwar, Chitra V. Bawankar, and Manish S. Kimmatkar, "Four element EC slot MIMO antenna for WLAN, Wi-Fi and 5G applications," Progress In Electromagnetics Research C, Vol. 139, 147-158, 2024.
doi:10.2528/PIERC23082201        Google Scholar

11. Udeze, Ngozi Peggy, Stella Ifeoma Orakwue, and Matthew I. Ehikhamenle, "Design of a tri-band Minkowski fractal MIMO antenna for FR2 5G applications," Journal of Engineering Research and Reports, Vol. 26, No. 9, 190-205, Sep. 2024.
doi:10.9734/jerr/2024/v26i91272        Google Scholar

12. Rizvi, Syed Naheel Raza, Md. Abu Sufian, Niamat Hussain, Yangbae Chun, Seong-Gyoon Park, Sunggoo Kim, and Nam Kim, "Isolation enhancement of a capacitively-fed MIMO antenna using a quasi-fractal parasitic element and defected ground structure," Heliyon, Vol. 10, No. 20, e39228, Oct. 2024.
doi:10.1016/j.heliyon.2024.e39228        Google Scholar

13. Addepalli, Tathababu, Maragani Satish Kumar, Chandrasekhar Rao Jetti, Naveen Kumar Gollamudi, Bandi Kiran Kumar, and Jayshri Kulkarni, "Fractal loaded, novel, and compact two-and eight-element high diversity MIMO antenna for 5G sub-6 GHz (N77/N78 and N79) and WLAN applications, verified with TCM analysis," Electronics, Vol. 12, No. 4, 952, 2023.
doi:10.3390/electronics12040952        Google Scholar

14. Bisht, Nitasha, Praveen Kumar Malik, Sudipta Das, Tanvir Islam, Sivaji Asha, and Moath Alathbah, "Design of a modified MIMO antenna based on tweaked spherical fractal geometry for 5G new radio (NR) band N258 (24.25-27.25 GHz) applications," Fractal and Fractional, Vol. 7, No. 10, 718, 2023.
doi:10.3390/fractalfract7100718        Google Scholar

15. Sree, Gorre Naga Jyothi and Suman Nelaturi, "Design and experimental verification of fractal based MIMO antenna for lower sub 6-GHz 5G applications," AEU --- International Journal of Electronics and Communications, Vol. 137, 153797, 2021.
doi:10.1016/j.aeue.2021.153797        Google Scholar

16. Gocen, Cem, "A compact DGS-assisted Koch-fractal U-slot MIMO antenna for sub-6 GHz 5G and WLAN applications," Telecom, Vol. 7, No. 4, 105, 2026.
doi:10.3390/telecom7040105        Google Scholar

17. Abed, Amer T., "Novel sunflower MIMO fractal antenna with low mutual coupling and dual wide operating bands," International Journal of Microwave and Wireless Technologies, Vol. 12, No. 4, 323-331, 2020.
doi:10.1017/s1759078719001375        Google Scholar

18. Islam, Tanvir, Fahd Alsaleem, Fahad N. Alsunaydih, and Khaled Alhassoon, "Mutual coupling reduction in compact MIMO antenna operating on 28 GHz by using novel decoupling structure," Micromachines, Vol. 14, No. 11, 2065, 2023.
doi:10.3390/mi14112065        Google Scholar

19. Singhal, Sarthak, "Four element ultra-wideband fractal multiple-input multiple-output antenna," Microwave and Optical Technology Letters, Vol. 61, No. 12, 2811-2818, 2019.
doi:10.1002/mop.31980        Google Scholar

20. Nejdi, I. H., S. Bri, M. Marzouk, S. Ahmad, Y. Rhazi, M. Ait Lafkih, Y. A. Sheikh, A. Ghaffar, and M. Hussein, "UWB circular fractal antenna with high gain for telecommunication applications," Sensors, Vol. 23, No. 8, 4172, 2023.
doi:10.3390/s23084172        Google Scholar

21. Qin, Yue, Ronglin Li, and Yuehui Cui, "Embeddable structure for reducing mutual coupling in massive MIMO antennas," IEEE Access, Vol. 8, 195102-195112, 2020.
doi:10.1109/access.2020.3033717        Google Scholar

22. Abed, Amer Tawfeeq and Aqeel Mahmood Jawad, "Compact size MIMO fractal slot antenna for 3G, LTE (4G), WLAN, WiMAX, ISM and 5G communications," IEEE Access, Vol. 7, 125542-125551, 2019.
doi:10.1109/access.2019.2938802        Google Scholar

23. Huang, He, Xiaoping Li, and Yanming Liu, "A low-profile, dual-polarized patch antenna for 5G MIMO application," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 2, 1275-1279, Feb. 2019.
doi:10.1109/tap.2018.2880098        Google Scholar

24. Sharawi, Mohammad S., "Printed multi-band MIMO antenna systems and their performance metrics [wireless corner]," IEEE Antennas and Propagation Magazine, Vol. 55, No. 5, 218-232, Oct. 2013.
doi:10.1109/map.2013.6735522        Google Scholar

25. Kumar, Ashish, Gurmeet Singh, Muhannad Kaml Abdulhameed, Sarah Rafil Hashim, and Ahmed Jamal Abdullah Al-Gburi, "Development of fractal 5G MIMO antenna for sub 6 GHz wireless automotive applications," Progress In Electromagnetics Research M, Vol. 130, 121-128, 2024.
doi:10.2528/pierm24102403        Google Scholar
