Abstract

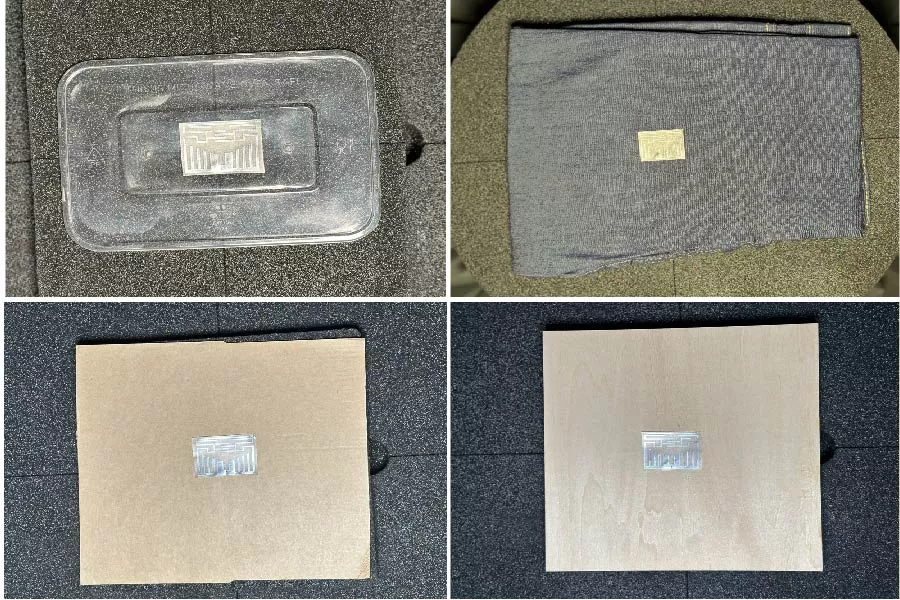

A compact, flexible, ultra-high-frequency (UHF) radio-frequency identification (RFID) tag antenna is proposed for the long-range identification of non-metallic logistics objects with robust horizontal readability. The antenna consists of an open-frame meandered radiator, an upper transverse coupling path, a central interdigital coupling section, and a lower comb-shaped multi-branch section. Together, these coupled sections extend the effective current path, improve antenna-chip power transfer, and establish a distributed current response over the antenna. The fabricated tag measures 40 mm × 29.5 mm × 0.05 mm. Under an effective isotropic radiated power of 3.28 W, the maximum measured read range is 16.6 m at 919 MHz in free space, with a 0°-360° xoy-plane read range of 15.2-16.6 m. Attachment tolerance is evaluated on PP plastic, folded denim, cardboard, and wood, yielding maximum read ranges of 16.7, 13.2, 11.4, and 11.2 m, respectively. Across all five cases, the horizontal stability coefficient C_s = R_min/R_max is at least 0.895. The proposed coupled multi-section topology provides a distributed-current strategy for simultaneously improving angular readability and attachment robustness in flexible UHF RFID tags.

1. Ngai, E. W. T., Karen K. L. Moon, Frederick J. Riggins, and Candace Y. Yi, "RFID research: An academic literature review (1995–2005) and future research directions," International Journal of Production Economics, Vol. 112, No. 2, 510-520, 2008.
doi:10.1016/j.ijpe.2007.05.004 Google Scholar

2. Sarac, Aysegul, Nabil Absi, and Stéphane Dauzère-Pérès, "A literature review on the impact of RFID technologies on supply chain management," International Journal of Production Economics, Vol. 128, No. 1, 77-95, 2010.
doi:10.1016/j.ijpe.2010.07.039 Google Scholar

3. Tan, Weng Chun and Manjit Singh Sidhu, "Review of RFID and IoT integration in supply chain management," Operations Research Perspectives, Vol. 9, 100229, 2022.
doi:10.1016/j.orp.2022.100229 Google Scholar

4. Unhelkar, Bhuvan, Sudhanshu Joshi, Manu Sharma, Shiv Prakash, Ashwin Krishna Mani, and Mukesh Prasad, "Enhancing supply chain performance using RFID technology and decision support systems in the industry 4.0 --- A systematic literature review," International Journal of Information Management Data Insights, Vol. 2, No. 2, 100084, 2022.
doi:10.1016/j.jjimei.2022.100084 Google Scholar

5. Chen, S. L., K. H. Lin, and R. Mittra, "Miniature and near-3D omnidirectional radiation pattern RFID tag antenna design," Electronics Letters, Vol. 45, No. 18, 923-924, 2009.
doi:10.1049/el.2009.1873 Google Scholar

6. Ryu, Hong-Kyun, Gichul Jung, Dea-Keun Ju, Sungkyun Lim, and Jong-Myung Woo, "An electrically small spherical UHF RFID tag antenna with quasi-isotropic patterns for wireless sensor networks," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 60-62, 2010.
doi:10.1109/lawp.2010.2043046 Google Scholar

7. Liu, Qi, Yufeng Yu, and Sailing He, "Capacitively loaded, inductively coupled fed loop antenna with an omnidirectional radiation pattern for UHF RFID tags," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 1161-1164, 2013.
doi:10.1109/lawp.2013.2281070 Google Scholar

8. Liang, Liang and Sean V. Hum, "A low-profile antenna with quasi-isotropic pattern for UHF RFID applications," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 210-213, 2013.
doi:10.1109/lawp.2013.2245393 Google Scholar

9. Garg, Manoj, Ashwani Sharma, Ignacio J. Garcia Zuazola, and Arjit Gupta, "Compact UHF RFID balun-like integrated tag antenna for long range detection of water bottles," IET Microwaves, Antennas & Propagation, Vol. 17, No. 12, 909-919, 2023.
doi:10.1049/mia2.12299 Google Scholar

10. Kumar, Manoj, Ashwani Sharma, and Ignacio J. Garcia Zuazola, "All-in-one UHF RFID tag antenna for retail garments using nonuniform meandered lines," Progress In Electromagnetics Research Letters, Vol. 94, 133-139, 2020.
doi:10.2528/pierl20072102 Google Scholar

11. Sarr, Pape Waly, Aminata Diop, Arnaud Vena, and Ibra Dioum, "Experimental validation of the UHF RFID dipole tag antenna applied in the supply chain," Progress In Electromagnetics Research C, Vol. 163, 252-262, 2026.
doi:10.2528/pierc25082204 Google Scholar

12. Cai, Luoxin, Zibin Shi, Yanwei Qiu, and Jiade Yuan, "A compact UHF RFID tag antenna with tunable double interdigitated structures," Progress In Electromagnetics Research C, Vol. 149, 95-103, 2024.
doi:10.2528/pierc24091703 Google Scholar

13. Wilczyński, Konrad, Anna Wróblewska, Agata Daniszewska, Jerzy Krupka, Michał Mrozowski, and Mariusz Zdrojek, "Modulation of dielectric properties in low-loss polypropylene-based composites at GHz frequencies: Theory and experiment," Scientific Reports, Vol. 12, No. 1, 13104, 2022.
doi:10.1038/s41598-022-17173-4 Google Scholar

14. Jalil, Mohd Ezwan Bin, Mohamad Kamal Abd Rahim, Noor Asmawati Binti Samsuri, Noor Asniza Murad, Huda Abdul Majid, Kamilia Kamardin, and Muhamad Azfar Abdullah, "Fractal koch multiband textile antenna performance with bending, wet conditions and on the human body," Progress In Electromagnetics Research, Vol. 140, 633-652, 2013.
doi:10.2528/pier13041212 Google Scholar

15. Saghlatoon, Hossein, Lauri Sydänheimo, Leena Ukkonen, and Manos Tentzeris, "Optimization of inkjet printing of patch antennas on low-cost fibrous substrates," IEEE Antennas and Wireless Propagation Letters, Vol. 13, 915-918, 2014.
doi:10.1109/lawp.2014.2322572 Google Scholar

16. Linge, Pangsui Usifu, Anvesh Pandey, Tony Gerges, Jean-Marc Duchamp, Philippe Benech, Jacques Verdier, Philippe Lombard, Fabien Mieyeville, Michel Cabrera, Pierre Tsafack, and Bruno Allard, "Evaluation of recycled cardboard paper as an eco-friendly substrate for rectenna and ambient radio frequency energy harvesting application," Electronics, Vol. 13, No. 13, 2499, 2024.
doi:10.3390/electronics13132499 Google Scholar

17. Kol, Hamiyet Şahin, "Thermal and dielectric properties of pine wood in the transverse direction," BioResources, Vol. 4, No. 4, 1663-1669, 2009.
doi:10.15376/biores.4.4.1663-1669 Google Scholar

18. Rao, K. V. S., P. V. Nikitin, and S. F. Lam, "Antenna design for UHF RFID tags: A review and a practical application," IEEE Transactions on Antennas and Propagation, Vol. 53, No. 12, 3870-3876, 2005.
doi:10.1109/tap.2005.859919 Google Scholar

19. Tan, Jiun-Ian, Yong-Hong Lee, Eng-Hock Lim, Fwee-Leong Bong, and Boon-Kuan Chung, "A low-profile top-loaded monopole antenna for on-metal RFID tag design," IEEE Journal of Radio Frequency Identification, Vol. 8, 448-457, 2024.
doi:10.1109/jrfid.2024.3393994 Google Scholar

20. Lai, Wangfu, Jiade Yuan, and Zhizhang Chen, "A compact omnidirectional anti-metal tag antenna for UHF RFID systems," IEEE Antennas and Wireless Propagation Letters, Vol. 25, No. 2, 786-790, Feb. 2026.
doi:10.1109/lawp.2025.3639712 Google Scholar

21. Sharif, Abubakar, Jun Ouyang, Yi Yan, Ali Raza, Muhammad Ali Imran, and Qammer H. Abbasi, "Low-cost inkjet-printed RFID tag antenna design for remote healthcare applications," IEEE Journal of Electromagnetics, RF and Microwaves in Medicine and Biology, Vol. 3, No. 4, 261-268, 2019.
doi:10.1109/jerm.2019.2924823 Google Scholar
