2026-10-15
Advanced Breast Tissue Tomography via Anatomical Prior-Informed Electrical Impedance Reconstruction
By
Annapoorani Ganesan,

    Dr. Annapoorani Ganesan

    SRM Institute of Science and Technology, Ramapuram Campus

    India

    Homepage

Rajamanickam Vani,

    Prof. Rajamanickam Vani

    SRM Institute of Science and Technology

    India

    Homepage

Kandasamy Lalitha

    Dr. Kandasamy Lalitha

    SRM Institute of Science and Technology

    India

    Homepage

Progress In Electromagnetics Research C, Vol. 173, 459-470, 2026
DOI:10.2528/PIERC26070907 | Google Scholar

Abstract

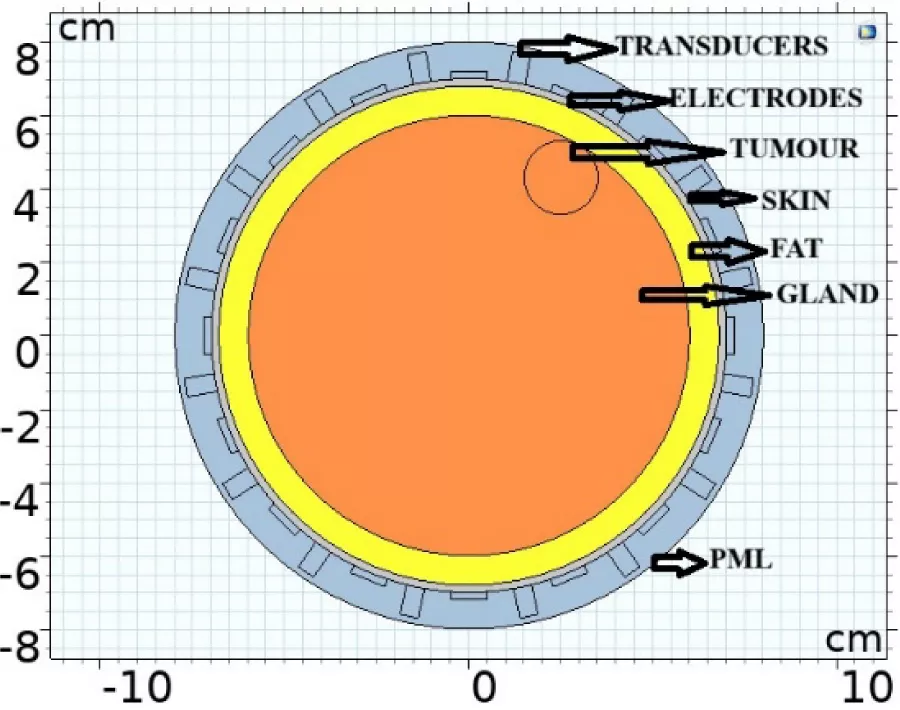

Breast cancer is the most prevalent cause of mortality among women. Early diagnosis is critical because it can enhance survival rates and facilitate effective treatment. In classical breast cancer detection, mammography is the gold standard method. Because each traditional modality has limitations, researchers have studied alternative approaches for over a decade. Electrical impedance tomography is a portable, low-cost, noninvasive technique for screening, tracking, and remote monitoring. This study presents a novel image reconstruction framework that utilizes high-resolution anatomical information obtained from ultrasound tomography (UST) to enhance the spatial resolution and diagnostic accuracy of Electrical Impedance Tomography (EIT) for breast tissue evaluation. First, a high-fidelity forward model for both EIT and US was created, and the corresponding potential distribution and acoustic wave propagation were observed. Second, independent inverse solvers were created, using the Total Variation Primal-Dual Interior Point Method (TV-PDIPM) for EIT and the Attenuation-Weighted Bilinear Interpolation for UST, which revealed their limitations. A physics-informed reconstruction method is proposed, in which a grayscale segmented ultrasound image serves as a spatially variant anatomical prior. This prior technique is used to assign weights to the Total Variation (TV) regularization term in the EIT inverse problem. The integrated US-EIT system achieved an overall accuracy of 98.38%, sensitivity of 92.05{\%}, and Dice coefficient of 0.93. The Relative Image Error (RIE) was reduced to 0.078, with a Localization Error of approximately 0.4 mm. These findings substantiate that physics-informed anatomical guidance significantly alleviates the ill-posedness of the EIT inverse problem. This study establishes a solid computational basis for an economical, non-ionizing, and highly precise multimodal imaging system intended for clinical use in breast cancer screening. The method demonstrated a robust correlation with ground-truth data and a low reconstruction error, achieving a Dice coefficient greater than 0.91.
Download Full Article (20) View Full Article volume
Citation
Annapoorani Ganesan, Rajamanickam Vani, and Kandasamy Lalitha, "Advanced Breast Tissue Tomography via Anatomical Prior-Informed Electrical Impedance Reconstruction," Progress In Electromagnetics Research C, Vol. 173, 459-470, 2026.
DOI:10.2528/PIERC26070907
References

1. Bray, Freddie, Mathieu Laversanne, Hyuna Sung, Jacques Ferlay, Rebecca L. Siegel, Isabelle Soerjomataram, and Ahmedin Jemal, "Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries," CA: A Cancer Journal for Clinicians, Vol. 74, No. 3, 229-263, April 2024.
doi:10.3322/caac.21834        Google Scholar

2. American Cancer Society, , Breast Cancer Facts & Figures 2023-2024, Atlanta: American Cancer Society, Inc., 2023.

3. Khan, Z., M. Saleem, M. Bhutta, N. Ullah, U. Fatima, and M. Yousuf, "Diagnostic accuracy of ultrasonography in the diagnosis of breast carcinoma in mammographically dense breasts: Histopathology as the gold standard," Journal of the Society of Obstetricians and Gynaecologists of Pakistan, Vol. 13, No. 4, 2023.        Google Scholar

4. Gordon, Paula B., "The impact of dense breasts on the stage of breast cancer at diagnosis: A review and options for supplemental screening," Current Oncology, Vol. 29, No. 5, 3595-3636, May 2022.
doi:10.3390/curroncol29050291        Google Scholar

5. Sharma, Sonali, Cheryl White, Shushiela Appavoo, and Charlotte J. Yong-Hing, "Optimizing patient-centered care in breast imaging: Strategies for improving patient experience," Academic Radiology, Vol. 31, No. 10, 3889-3897, October 2024.
doi:10.1016/j.acra.2024.04.047        Google Scholar

6. Mansouri, Sofiene, Yousef Alharbi, Fatma Haddad, Souhir Chabcoub, Anwar Alshrouf, and Amr A. Abd-Elghany, "Electrical Impedance tomography–recent applications and developments," Journal of Electrical Bioimpedance, Vol. 12, No. 1, 50-62, January 2021.
doi:10.2478/joeb-2021-0007        Google Scholar

7. Setyawan, Galih, Prima Asmara Sejati, Kiagus Aufa Ibrahim, and Masahiro Takei, "Breast cancer recognition by electrical impedance tomography implemented with Gaussian relaxation-time distribution (EIT-GRTD)," Journal of Electrical Bioimpedance, Vol. 15, No. 1, 99-106, January 2024.
doi:10.2478/joeb-2024-0011        Google Scholar

8. Rezanejad Gatabi, Zahra, Samira Bahrami, Sayantan Das, and Mehri Mirhoseini, "Application of electrical impedance tomography in diagnosis of cancer," Advanced Biomedical Research, Vol. 14, No. 1, November 2025.
doi:10.4103/abr.abr_24_24        Google Scholar

9. Liang, Guanghui, Shangjie Ren, and Feng Dong, "Ultrasound guided electrical impedance tomography for 2D free-interface reconstruction," Measurement Science and Technology, Vol. 28, No. 7, 074003, June 2017.
doi:10.1088/1361-6501/aa6e23        Google Scholar

10. Yu, Hao, Haoyu Liu, Zhe Liu, Zeyu Wang, and Jiabin Jia, "High-resolution conductivity reconstruction by electrical impedance tomography using structure-aware hybrid-fusion learning," Computer Methods and Programs in Biomedicine, Vol. 243, 107861, January 2024.
doi:10.1016/j.cmpb.2023.107861        Google Scholar

11. Soleimani, Manuchehr, "Electrical impedance tomography imaging using a priori ultrasound data," Biomedical Engineering Online, Vol. 5, No. 1, February 2006.
doi:10.1186/1475-925x-5-8        Google Scholar

12. Mullen, Lisa A., William C. Walton, Michael P. Williams, Keith S. Peyton, and David W. Porter, "Breast cancer detection with upstream data fusion, machine learning, and automated registration: initial results," Journal of Medical Imaging, Vol. 10, No. S2, 1-20, June 2023.
doi:10.1117/1.jmi.10.s2.s22409        Google Scholar

13. Li, Feng, Yushan Liu, Zhimin Qiao, and Yongwei Li, "Convolutional attention network for electrical/ultrasound dual-modal fusion 2-D image reconstruction," IEEE Transactions on Instrumentation and Measurement, Vol. 73, 1-13, 2024.
doi:10.1109/tim.2024.3366281        Google Scholar

14. Murphy, Ethan K., Aditya Mahara, Xiaotian Wu, and Ryan J. Halter, "Phantom experiments using soft-prior regularization EIT for breast cancer imaging," Physiological Measurement, Vol. 38, No. 6, 1262-1277, May 2017.
doi:10.1088/1361-6579/aa691b        Google Scholar

15. Krol, Andrzej, Si Li, Lixin Shen, and Yuesheng Xu, "Preconditioned alternating projection algorithms for maximum a posteriori ECT reconstruction," Inverse Problems, Vol. 28, No. 11, 115005, October 2012.
doi:10.1088/0266-5611/28/11/115005        Google Scholar

16. Loli Piccolomini, Elena, Davide Evangelista, and Elena Morotti, "Deep guess acceleration for explainable image reconstruction in sparse-view CT," Computerized Medical Imaging and Graphics, Vol. 123, 102530, July 2025.
doi:10.1016/j.compmedimag.2025.102530        Google Scholar

17. Han, Jiaqi, Shangjie Ren, Feng Dong, and Shu Zhao, "Electrical impedance and ultrasound dual-mode tomography for human abdomen," 2020 IEEE International Instrumentation and Measurement Technology Conference (I2MTC), 1-6, May 2020.
doi:10.1109/i2mtc43012.2020.9129129

18. Yator, Irene, Ethan Murphy, Hilda Gutierrez, Soleil Samaan, Sarah Verga, Courtney McIlduff, Seward Rutkove, and Ryan Halter, "Ultrasound-enhanced electrical impedance tomography as a new tool to assess primary muscle disease (p4-13.002)," Neurology, Vol. 98, No. 18_supplement, May 2022.
doi:10.1212/wnl.98.18_supplement.1876        Google Scholar

19. Golnabi, Amir H., Paul M. Meaney, Shireen D. Geimer, and Keith D. Paulsen, "3-D microwave tomography using the soft prior regularization technique: Evaluation in anatomically realistic MRI-derived numerical breast phantoms," IEEE Transactions on Biomedical Engineering, Vol. 66, No. 9, 2566-2575, September 2019.
doi:10.1109/tbme.2019.2892303        Google Scholar

20. Davidson, J. L., P. Wright, S. T. Ahsan, R. L. Robinson, C. J. D. Pomfrett, and H. McCann, "fEITER --- A new EIT instrument for functional brain imaging," Journal of Physics: Conference Series, Vol. 224, 012025, April 2010.
doi:10.1088/1742-6596/224/1/012025        Google Scholar

21. Duric, Neb, et al. "Using whole breast ultrasound tomography to improve breast cancer risk assessment: A novel risk factor based on the quantitative tissue property of sound speed," Journal of Clinical Medicine, Vol. 9, No. 2, 367, January 2020.
doi:10.3390/jcm9020367        Google Scholar

22. Liu, Mingrui, James. W. Wiskin, Gregory J. Czarnota, and Michael L. Oelze, "Angular spatial compounding of diffraction corrected images improves ultrasound attenuation measurements," The Journal of the Acoustical Society of America, Vol. 157, No. 3, 1638-1649, March 2025.
doi:10.1121/10.0036124        Google Scholar

23. Ganesan, Annapoorani, Vani Rajamanickam, and Vaishali Durgamahant, "Performance analysis of electrical impedance and acoustic tomography for early breast cancer detection," Progress In Electromagnetics Research C, Vol. 157, 95-100, 2025.
doi:10.2528/pierc25042701        Google Scholar

24. Ganesan, Annapoorani and Vaishali Durgamahanthi, "Non-Invasive breast cancer detection using electrical impedance tomography: Design, analysis and comparison of reconstruction algorithms," Traitement du Signal, Vol. 40, No. 6, 2809-2817, December 2023.
doi:10.18280/ts.400641        Google Scholar

Download Full Article (20) View Full Article volume
