Compact Dual-Band Multiport Antenna Array with Integrated Beam-Switching and Polarization Diversity for Next-Generation WLAN Access Points

Ridha Omrani,

Dr. Ridha Omrani

Department of Computer Science and Engineering

University of Quebec in Outaouais

Canada

Homepage

Halim Boutayeb

Prof. Halim Boutayeb

Université du Québec en Outaouais

Canada

Homepage

Progress In Electromagnetics Research C, Vol. 173, 198-206, 2026

doi:10.2528/PIERC26071002 | Google Scholar

Abstract

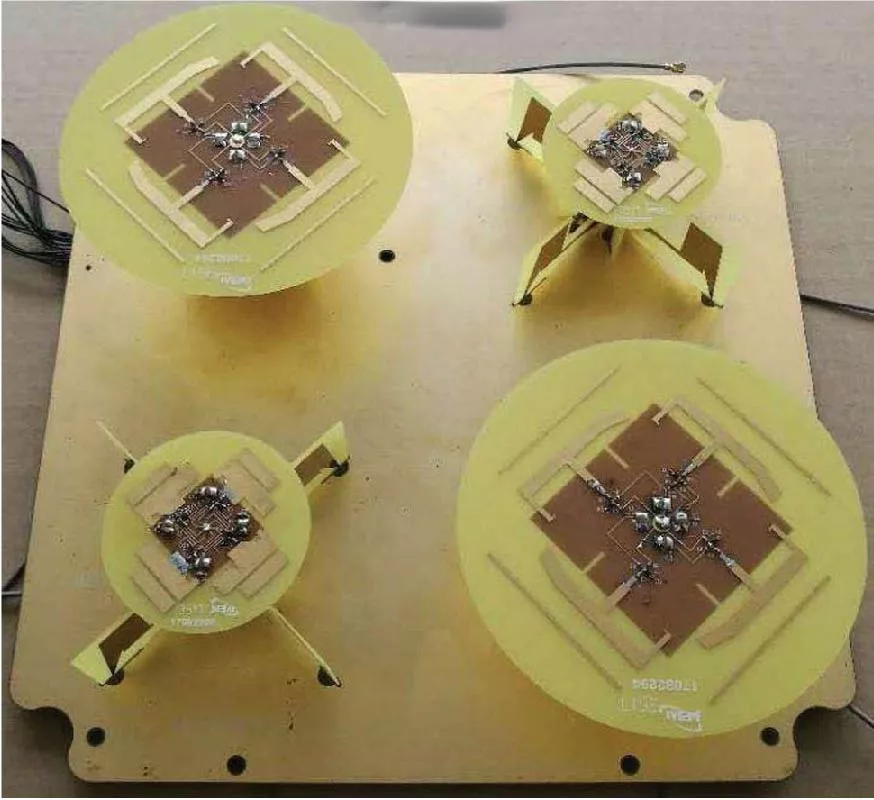

This paper presents the design, numerical modeling, and experimental validation of a compact, collocated multi-port reconfigurable antenna array optimized for high-density WLAN access points. The proposed structure supports robust dual-band operation covering the 2.4-2.5 GHz and 5.2-5.8 GHz frequency ranges, exhibiting a measured reflection coefficient well below -10 dB across both bands. Polarization diversity is successfully achieved through orthogonally oriented, horizontally and vertically polarized radiation elements, ensuring an isolation higher than 17 dB between adjacent ports. Furthermore, an integrated electronic switching network based on PIN diodes enables flexible radiation pattern control, allowing seamless switching between a 360° omnidirectional coverage mode and multiple directive beam states. The omnidirectional configuration provides a stable baseline for wide-area connectivity, while the directive modes focus electromagnetic energy into specific spatial sectors, boosting the peak total gain from 5.16 dBi to 7.14 dBi. This dynamic beam-steering capability significantly mitigates multi-path fading and optimizes Multiple-Input Multiple-Output (MIMO) system performance in complex indoor environments. The entire array architecture occupies a compact physical footprint of only 200 mm × 200 mm, with excellent agreement between simulated and measured results, confirming its suitability for next-generation WLAN infrastructure.

Download Full Article (82) View Full Article volume

Citation

Copy Export

Ridha Omrani, and Halim Boutayeb, "Compact Dual-Band Multiport Antenna Array with Integrated Beam-Switching and Polarization Diversity for Next-Generation WLAN Access Points," Progress In Electromagnetics Research C, Vol. 173, 198-206, 2026.
doi:10.2528/PIERC26071002

References

1. Luyen, Tong Van, Nguyen Van Cuong, and Phan Dang Hung, "Convex optimization-based linear and planar array pattern nulling," Progress In Electromagnetics Research M, Vol. 128, 21-30, 2024.
doi:10.2528/pierm24042403 Google Scholar

2. Kausar, Shafaq, Ahmed Kausar, Hani Mehrpouyan, Muhammad Usman Hadi, and Salahuddin Tariq, "Comparative analysis of smart beam-steering antennas for mm-Wave communication systems & 5G," Progress In Electromagnetics Research B, Vol. 98, 147-164, 2023.
doi:10.2528/pierb22112301 Google Scholar

3. Boutayeb, Halim, "Electrically reconfigurable radial waveguides and their potential applications in communications and radars systems," Progress In Electromagnetics Research C, Vol. 75, 147-153, 2017.
doi:10.2528/pierc17040601 Google Scholar

4. Albreem, Mahmoud A. M., "5G wireless communication systems: Vision and challenges," 2015 International Conference on Computer, Communications, and Control Technology (I4CT), 493-497, Kuching, Malaysia, Apr. 2015.
doi:10.1109/I4CT.2015.7219627

5. Gohil, Asvin, Hardik Modi, and Shobhit K. Patel, "5G technology of mobile communication: A survey," 2013 International Conference on Intelligent Systems and Signal Processing (ISSP), 288-292, Vallabh Vidyanagar, India, Mar. 2013.
doi:10.1109/ISSP.2013.6526920

6. Boutayeb, H., P. Watson, Teyan Chen, Tao Wu, and Jingjing Huang, "Beam switching collocated antennas for WLAN systems," 12th European Conference on Antennas and Propagation (EuCAP 2018), 1-5, London, UK, Apr. 2018.
doi:10.1049/cp.2018.0894

7. Boutayeb, Halim, Wen Tong, and Fayez Hyjazie, "28 GHz dual polarized beam steering antenna with substrate integrated frequency selective structure," 2019 13th European Conference on Antennas and Propagation (EuCAP), 1-5, Krakow, Poland, Mar. 2019.

8. Ahmad, Sohail, Muhammad Tariq, Mian Ahmad Jan, and Houbing Song, "Reconfigurable intelligent surfaces assisted 6G communications for Internet of Everything," IEEE Internet of Things Journal, Vol. 11, No. 18, 29287-29294, 2024.
doi:10.1109/jiot.2023.3339531 Google Scholar

9. Ouyang, Wei and Xun Gong, "A 20-element cavity-backed slot electronically steerable parasitic array radiator (ESPAR) with 2-D beamsteering and minimized beam squint," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 8, 1420-1424, Aug. 2020.
doi:10.1109/lawp.2020.3004595 Google Scholar

10. Movahedinia, Reza, Mohammad Reza Chaharmir, Abdel R. Sebak, Mohammad Ranjbar Nikkhah, and Ahmed A. Kishk, "Realization of large dielectric resonator antenna ESPAR," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 7, 3744-3749, Jul. 2017.
doi:10.1109/tap.2017.2705024 Google Scholar

11. Avser, Bilgehan, Richard F. Frazita, and Gabriel M. Rebeiz, "Interwoven feeding networks with aperture sinc-distribution for limited-scan phased arrays and reduced number of phase shifters," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 5, 2401-2413, 2018.
doi:10.1109/tap.2018.2816603 Google Scholar
