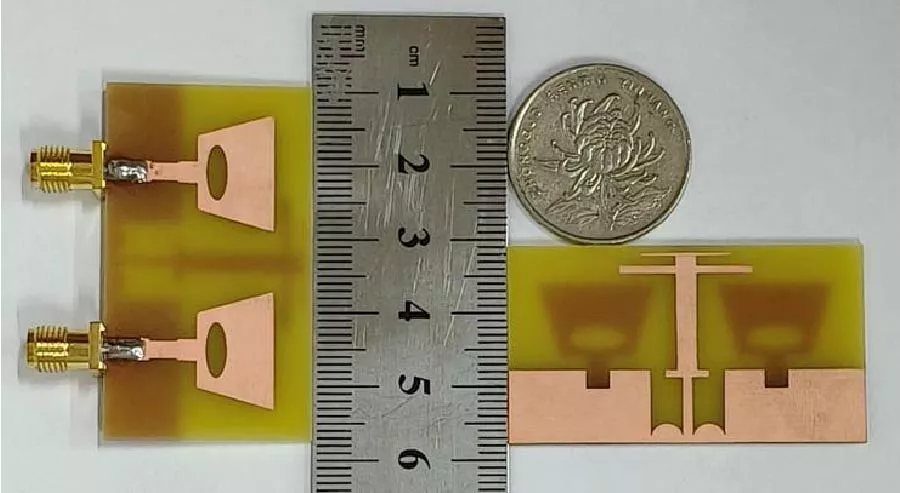

This paper presents a compact, funnel-shaped, MIMO antenna for ultra-wideband (UWB) applications. The antenna element consists of a top funnel-shaped patch and a bottom rectangular ground plane. By using an elliptical slot on the patch and a slit at the center of the ground plane, impedance matching is effectively improved, and bandwidth is significantly expanded. Meanwhile, by etching a slot at the center of the ground plane and introducing semicircular and T-shaped parasitic stubs, the mutual coupling between the antenna elements is successfully suppressed. The overall dimension of the antenna is 48 × 27 × 1.6 mm³. The simulated and measured results exhibit excellent agreement, demonstrating that the antenna achieves a continuous impedance bandwidth covering 3.16-16.48 GHz, which corresponds to a fractional bandwidth of 135.64%. Across the entire operating band, the port isolation exceeds 20 dB; the radiation efficiency ranges from 73.4% to 92.6%; the envelope correlation coefficient (ECC) is below 0.0025; and the diversity gain (DG) is better than 9.9982 dB. Combining ultra-wide bandwidth, high isolation, and extremely low channel correlation, the proposed antenna provides a reliable solution for high-performance UWB-MIMO communication systems.
