2026-09-11
A Compact Multilayer Quad-Band Bandpass Filter with Coupled SIRs for Multi-Standard Wireless Systems
By
Hassan Saad Abdullah,

    Mr. Hassan Saad Abdullah

    Department of Electrical Engineering

    University of Technology - Iraq

    Iraq

    Homepage

Raaed Thaaban Hammed

    Dr. Raaed Thaaban Hammed

    Department of Electrical Engineering

    University of Technology - Iraq

    Iraq

    Homepage

Progress In Electromagnetics Research C, Vol. 173, 207-214, 2026
doi:10.2528/PIERC26071407 | Google Scholar

Abstract

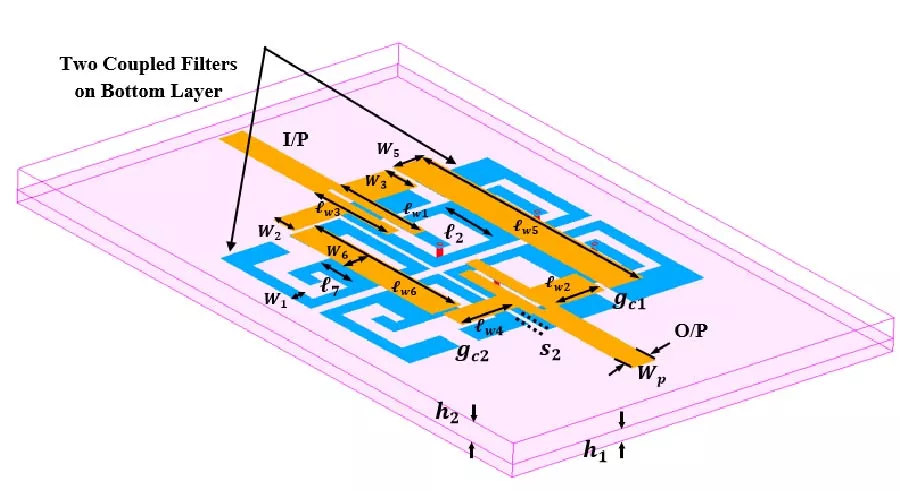

In this paper, we propose a compact quad-band bandpass filter by using short-ended stepped-impedance resonators (SE-SIRs) and open-ended stepped-impedance resonators (OE-SIRs) in a hybrid structure. The proposed design uses the odd- and even-mode resonances of the two types of resonators to produce four independent passbands in a compact multilayer structure. The first and second passbands are set by SE-SIR resonators at 1.56 and 2.5\,GHz, respectively. The third and fourth passbands are centered at 3.5 and 5.2\,GHz, respectively, due to the OE-SIR resonators. To achieve the quad-band response in a compact size, a multilayer arrangement with electromagnetic broadside coupling between the feeding structure and resonators has been adopted. Finally, the filter is designed, simulated, fabricated, and measured using a Rogers-Ceramic RO4360 substrate with a permittivity of εr = 6.15 and thicknesses of (h1 = 0.3, h2 = 0.508) mm. Simulated insertion losses were 0.29, 0.26, 0.43, and 0.66 dB, and return losses were 28.65, 15.05, 14.04, and 17.3 dB in each of the four operating bands, respectively. Filter responses from simulation and measurement are contrasted and discussed. The produced filter is very small, covering a circuit area of about 129 mm2, without feeding ports.
Download Full Article (62) View Full Article volume
Citation
Hassan Saad Abdullah, and Raaed Thaaban Hammed, "A Compact Multilayer Quad-Band Bandpass Filter with Coupled SIRs for Multi-Standard Wireless Systems," Progress In Electromagnetics Research C, Vol. 173, 207-214, 2026.
doi:10.2528/PIERC26071407
References

1. Tahaİmeci, Ş., Bilal Tütüncü, Faruk Bešlija, and Lamija Herceg, "Microstrip filters based on open stubs and SIR for high frequency and ultra-wideband applications," Journal of Engineering Research, Vol. 10, No. 3, 212-223, Sep. 2022.
doi:10.36909/jer.10711        Google Scholar

2. Xu, Kai-Da, Yong-Hong Zhang, Daotong Li, Yong Fan, Joshua Le-Wei Li, William Joines, and Qing Huo Liu, "Novel design of a compact triple-band bandpass filter using short stub-loaded SIRs and embedded SIRs structure," Progress In Electromagnetics Research, Vol. 142, 309-320, 2013.
doi:10.2528/pier13080507        Google Scholar

3. Hu, Changhai, Xiang-Zheng Xiong, Yan-Liang Wu, and Cheng Liao, "Design dual-mode bandpass filters based on symmetrical T-shaped stub-loaded stepped-impedance resonators with high frequencies selectivity," Progress In Electromagnetics Research B, Vol. 55, 325-345, 2013.
doi:10.2528/pierb13082501        Google Scholar

4. Zhang, Qiao, Chang Chen, Weidong Chen, Jun Ding, and Hualiang Zhang, "Novel cross-coupled dual-band bandpass filters with compact size based on dual-mode isosceles right-angled triangular resonators," IEEE Transactions on Microwave Theory and Techniques, Vol. 69, No. 6, 3037-3047, Jun. 2021.
doi:10.1109/tmtt.2021.3072586        Google Scholar

5. Yahya, Salah I., Abbas Rezaei, and Yazen A. Khaleel, "Design and analysis of a wide stopband microstrip dual-band bandpass filter," ARO-The Scientific Journal of Koya University, Vol. 9, No. 2, 83-90, 2021.
doi:10.14500/aro.10908        Google Scholar

6. Basit, Abdul, Muhammad Irfan Khattak, Mauth Al-Hasan, Jamel Nebhen, and Atif Jan, "Design and analysis of a compact GSM/GPS dual-band bandpass filter using a T-shaped resonator," Journal of Electromagnetic Engineering and Science, Vol. 22, No. 2, 138-145, 2022.
doi:10.26866/jees.2022.2.r.70        Google Scholar

7. Hammed, Raaed T. and Saad M. Abbas, "Small dual narrowband BPF with ultra-rejection band using grounded stepped-impedance resonator," IETE Journal of Research, Vol. 69, No. 5, 2811-2816, 2023.
doi:10.1080/03772063.2021.1906337        Google Scholar

8. Liu, Jiawei and Dimitra Psychogiou, "Dual-band bandpass filters using 3D printed dual-mode nested spherical resonators," IEEE Access, Vol. 12, 64439-64445, 2024.
doi:10.1109/access.2024.3396998        Google Scholar

9. Li, Yijun, Jinxuan Ni, Siyu Li, Qian Han, Jie Tian, Na Li, and Tianye Ma, "Miniaturized dual-band bandpass filter with closely spaced passbands and wide stopband," Frontiers in Physics, Vol. 13, 1637651, 2025.
doi:10.3389/fphy.2025.1637651        Google Scholar

10. Mu, Ruonan, Yongle Wu, Leidan Pan, Wei Zhao, and Weimin Wang, "A miniaturized low-loss switchable single- and dual-band bandpass filter," International Journal of RF and Microwave Computer‐Aided Engineering, Vol. 2023, 9025980, 2023.
doi:10.1155/2023/9025980        Google Scholar

11. Karimi, Gholamreza, Yeganeh Pourasad, Ali Lalbakhsh, Hesam Siahkamari, and Bahare Mohamadzade, "Design of a compact ultra-narrow band dual band filter for WiMAX application," AEU --- International Journal of Electronics and Communications, Vol. 110, 152827, 2019.
doi:10.1016/j.aeue.2019.152827        Google Scholar

12. Shen, Guangxu, Wenjie Feng, Wenquan Che, Yongrong Shi, and Yiming Shen, "Millimeter-wave dual-band bandpass filter with large bandwidth ratio using GaAs-based integrated passive device technology," IEEE Electron Device Letters, Vol. 42, No. 4, 493-496, 2021.
doi:10.1109/led.2021.3062862        Google Scholar

13. Kumar, Kanaparthi V. Phani, Vamsi Krishna Velidi, Ayman A. Althuwayb, and T. Rama Rao, "Microstrip dual-band bandpass filter with wide bandwidth using paper substrate," IEEE Microwave and Wireless Components Letters, Vol. 31, No. 7, 833-836, 2021.
doi:10.1109/lmwc.2021.3077879        Google Scholar

14. Najafi, Masoud and Ali Reza Hazeri, "Microstrip dual-narrowband bandpass filter with independent passbands," Wireless Personal Communications, Vol. 119, No. 4, 3503-3516, 2021.
doi:10.1007/s11277-021-08417-z        Google Scholar

15. Wei, Feng, Chi Yuan Zhang, Cao Zeng, and Xiao Wei Shi, "A reconfigurable balanced dual-band bandpass filter with constant absolute bandwidth and high selectivity," IEEE Transactions on Microwave Theory and Techniques, Vol. 69, No. 9, 4029-4040, 2021.
doi:10.1109/tmtt.2021.3093907        Google Scholar

16. Wu, Liangbo, Yongle Wu, Xiaohe Cheng, Rixiong Huang, and Weimin Wang, "Design of dual-mode dual-band filter based on multilayer groove gap waveguide," AEU --- International Journal of Electronics and Communications, Vol. 173, 154975, 2024.
doi:10.1016/j.aeue.2023.154975        Google Scholar

17. Hammed, Raaed T. and Dhuha G. Hammood, "Miniaturized dual-band bandpass filter using multilayered dual-mode resonator," Diyala Journal of Engineering Sciences, Vol. 11, No. 1, 2018.
doi:10.24237/djes.2018.11102        Google Scholar

18. Hammed, Raaed T., "Miniaturized dual-band bandpass filter using E-shape microstrip structure," AEU --- International Journal of Electronics and Communications, Vol. 69, No. 11, 1667-1671, 2015.
doi:10.1016/j.aeue.2015.08.003        Google Scholar

19. Yang, Li, Mohamed Malki, and Roberto Gómez-García, "Multilayer dual-band bandpass filter using microstrip-to-slotline transitions and transversal signal-interference microstrip lines," 2024 IEEE Radio and Wireless Symposium (RWS), 79-82, San Antonio, TX, USA, 2024.
doi:10.1109/RWS56914.2024.10438619

20. Makimoto, M. and S. Yamashita, Microwave Resonators and Filters for Wireless Communication: Theory, Design and Application, Springer Science & Business Media, 2001.

21. C. Palo Alto "Advanced Design System (ADS), Keysight Technologies, USA," 2016.
