Design of Fork-Shaped Antenna for IoT Applications
By
Progress In Electromagnetics Research C, Vol. 173, 376-388, 2026
Abstract

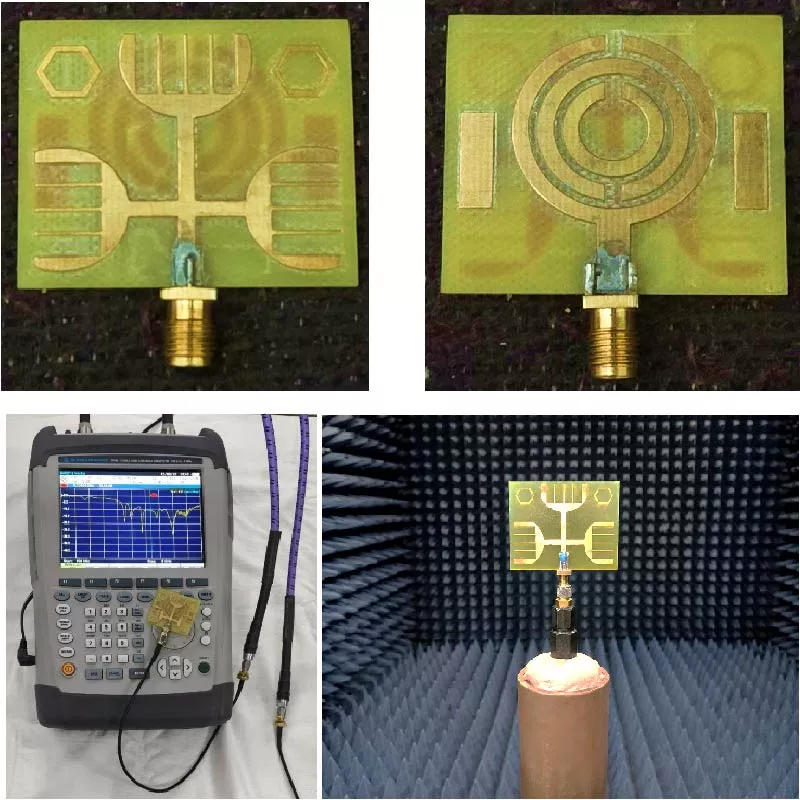

This research develops an innovative, compact, and efficient antenna for IoT devices that guarantees reliable wireless communication across various frequency bands. We propose a new three-element, fork-shaped multiband antenna design for multiband operation and higher isolation between the radiating elements. Split-Ring Resonators (SRRs) are implemented to enhance the antenna's electromagnetic performance and isolation between the radiating elements. The antenna design is realized using an FR-4 substrate with dimensions of 40×35×1.6 mm3. Simulation results show the presence of five resonance frequencies: 3.17 (3.13-3.20), 3.74 (3.62-4.2), 4.90 (4.4-5.91), 5.39, and 6.84 (6.11-7.23), 7.91 (7.76-8.06) GHz with reflection coefficients -10.78, -20.21, -18.04, -16.49, and -26.27 dB, respectively. Using resonating elements enhances electromagnetic field confinement and provides isolation between the radiating elements. The fabricated prototype shows good agreement between simulated and measured results. The maximum gain of the proposed antenna is 3.79 dB, and the radiation efficiency ranges from 66% to 94%. These findings confirm that the proposed antenna, owing to its compact dimensions, multiband characteristics, and favorable electromagnetic performance, is a promising candidate for IoT-based wireless communication applications.
Citation
Bharti Masram, Sachin S. Khade, Parth Fate, Deepanshu Pise, Parchiti Gaikwad, Prabhakar Domaji Dorge, Samruddhi Bute, Nita Nimbarte, and Mohit Vaidya, "Design of Fork-Shaped Antenna for IoT Applications," Progress In Electromagnetics Research C, Vol. 173, 376-388, 2026.
doi:10.2528/PIERC26071901
References

1. Abdelkarim, Mahdi, Majdi Bahrouni, and Ali Gharsallah, "A compact triple band antenna based on multiple split-ring resonators for wireless applications," Electronics, Vol. 14, No. 11, 2271, June 2025.
doi:10.3390/electronics14112271        Google Scholar

2. Dalsania, Piyush and Jagdish M. Rathod, "Performance enhanced star fractal antenna with fractal DGS and metasurface integration," Progress In Electromagnetics Research C, Vol. 161, 1–11, 2025.
doi:10.2528/PIERC25082001        Google Scholar

3. Natarajan, Porchelvi and Titus Sigamani, "Design implementation analysis of multi-band antenna for terrestrial applications," Heliyon, Vol. 10, No. 18, e37519, September 2024.
doi:10.1016/j.heliyon.2024.e37519        Google Scholar

4. Gupta, Anupma, Meet Kumari, Manish Sharma, Mohammed H. Alsharif, Peerapong Uthansakul, Monthippa Uthansakul, and Shonak Bansal, "8-port mimo antenna at 27 GHz for n261 band and exploring for body centric communication," Plos One, Vol. 19, No. 6, e0305524, June 2024.
doi:10.1371/journal.pone.0305524        Google Scholar

5. Malathy, E. M., I. R. Praveen Joe, and P. Ajitha, "Miniaturized dual-band metamaterial-loaded antenna for heterogeneous vehicular communication networks," Iete Journal of Research, Vol. 69, No. 5, 2436–2445, March 2021.
doi:10.1080/03772063.2021.1892539        Google Scholar

6. Hakanoglu, B. G., B. Koc, O. Sen, H. Yalduz, and M. Turkmen, "Stub loaded patch antenna and a novel method for miniaturization at sub 6 GHz 5G and Wi-Fi frequencies," Advances in Electrical and Computer Engineering, Vol. 21, No. 2, 23–32, 2021.
doi:10.4316/aece.2021.02003        Google Scholar

7. Deka, Pranjit and Asok De, "Design of fractal antenna for multiband operation in communication and healthcare," 2021 2nd Global Conference For Advancement in Technology (GCAT), 1–4, Bangalore, India, October 2021.
doi:10.1109/gcat52182.2021.9587541

8. Zade, Prasanna L. and Sachin S. Khade, "Miniaturized novel multi resonance monopole planar antenna with slots, slits, split ring resonator," Progress In Electromagnetics Research C, Vol. 145, 75–82, 2024.
doi:10.2528/PIERC24051102        Google Scholar

9. Mazen, Karima, Ahmed Emran, Ahmed S. Shalaby, and Ahmed Yahya, "Design of multi-band microstrip patch antennas for mid-band 5G wireless communication," International Journal of Advanced Computer Science and Applications (IJACSA), Vol. 12, No. 5, 459-469, 2021.
doi:10.14569/ijacsa.2021.0120557        Google Scholar

10. Gupta, Anupma, Vipan Kumar, Shonak Bansal, Mohammed H. Alsharif, Abu Jahid, and Ho-Shin Cho, "A miniaturized tri-band implantable antenna for ISM/WMTS/lower UWB/Wi-Fi frequencies," Sensors, Vol. 23, No. 15, 6989, August 2023.
doi:10.3390/s23156989        Google Scholar

11. Abdul Aziz, Muhammad Afiq, Norhudah Seman, and Tien Han Chua, "Microstrip antenna design with partial ground at frequencies above 20 GHz for 5G telecommunication systems," Indonesian Journal of Electrical Engineering and Computer Science, Vol. 15, No. 3, 1466, September 2019.
doi:10.11591/ijeecs.v15.i3.pp1466-1473        Google Scholar

12. Khade, Sachin S., Dinesh B. Bhoyar, Ketki Kotpalliwar, Chitra V. Bawankar, and Manish S. Kimmatkar, "Four element EC slot MIMO antenna for WLAN, Wi-Fi and 5G applications," Progress In Electromagnetics Research C, Vol. 139, 147-158, 2024.
doi:10.2528/PIERC23082201        Google Scholar

13. Kulkarni, Jayshri, Chow-Yen-Desmond Sim, Rajendra Talware, Vivek Deshpande, Abhijit Chitre, and Jaume Anguera, "Design and analysis of dual band tapered-fed monopole antenna for 5G and satellite applications," 2021 IEEE 18th India Council International Conference (INDICON), 1–6, Guwahati, India, December 2021.
doi:10.1109/indicon52576.2021.9691580

14. Venugopal, Vanilakshmi, Rohith K. Raj, Aswin Shiju, Janardhanan Linesh, and Thomaskutty Mathew, "Minkowski island fractal monopole antenna with CPW-feed for wide-band wireless systems," Progress In Electromagnetics Research C, Vol. 159, 10-16, 2025.
doi:10.2528/PIERC25071504        Google Scholar

15. Ullah, Sadiq, Shaheen Ahmad, Burhan A. Khan, Farooq A. Tahir, and James A. Flint, "An hp-shape hexa-band antenna for multi-standard wireless communication systems," Wireless Networks, Vol. 25, No. 3, 1361-1369, 2019.
doi:10.1007/s11276-018-1760-x        Google Scholar

16. Tripathi, Shivesh, N. P. Pathak, and M. Parida, "Dual-band dual-beam microstrip patch antenna for intelligent transportation systems application," 2018 5th IEEE Uttar Pradesh Section International Conference on Electrical, Electronics and Computer Engineering (UPCON), 1–5, Gorakhpur, India, November 2018.
doi:10.1109/upcon.2018.8596861

17. Li, Jian-Feng, Chun-Xu Mao, Duo-Long Wu, Liang-Hua Ye, and Gary Zhang, "A dual-beam wideband filtering patch antenna with absorptive band-edge radiation nulls," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 12, 8926–8931, December 2021.
doi:10.1109/tap.2021.3097359        Google Scholar

18. Kannadhasan, S. and A. C. Shagar, "Design and analysis of U-shaped micro strip patch antenna," 2017 Third International Conference on Advances in Electrical, Electronics, Information, Communication and Bio-informatics (AEEICB), 367–370, Chennai, India, February 2017.
doi:10.1109/aeeicb.2017.7972333

19. Gupta, Manisha and Vinita Mathur, "Koch boundary on the square patch microstrip antenna for ultra wideband applications," Alexandria Engineering Journal, Vol. 57, No. 3, 2113–2122, September 2018.
doi:10.1016/j.aej.2017.06.005        Google Scholar

20. Sarkar, D., K. Saurav, and K. V. Srivastava, "Multi‐band microstrip‐fed slot antenna loaded with split‐ring resonator," Electronics Letters, Vol. 50, No. 21, 1498–1500, October 2014.
doi:10.1049/el.2014.2625        Google Scholar

21. Raval, Falguni, Sweety Purohit, and Y. P. Kosta, "Dual-band wearable antenna using split ring resonator," Waves in Random and Complex Media, Vol. 26, No. 2, 235–242, January 2016.
doi:10.1080/17455030.2015.1137374        Google Scholar

22. Taheri, Mohammad Mehdi Samadi, Abdolali Abdipour, and Gert Frolund Pedersen, "Compact penta band printed slot antenna for GSM, Bluetooth, WiMAX, 4G LTE, and WLAN applications," 2017 11th European Conference on Antennas and Propagation (EUCAP), 2152–2154, Paris, France, March 2017.
doi:10.23919/eucap.2017.7928813

23. Xu, Bo, Jakob Helander, Andreas Ericsson, Zhinong Ying, Sailing He, and Mats Gustafsson, "Investigation of planar near-field measurement of millimeter-wave antenna for 5G application," 2016 International Symposium on Antennas and Propagation (ISAP), 600-601, Okinawa, Japan, 2016.

24. Liu, HanJiang, RongLin Li, Yan Pan, XuLin Quan, Li Yang, and Liang Zheng, "A multi-broadband planar antenna for GSM/UMTS/LTE and WLAN/WiMAX handsets," IEEE Transactions on Antennas and Propagation, Vol. 62, No. 5, 2856–2860, May 2014.
doi:10.1109/tap.2014.2308525        Google Scholar

25. Nandini, Gandham, Boddupally Vaishnavi, Sulakshana Chilukuri, and Y. Pandurangaiah, "Compact MIMO antennas with CSRR for UWB applications," 2022 13th International Conference on Computing Communication and Networking Technologies (ICCCNT), 1–5, Kharagpur, India, October 2022.
doi:10.1109/icccnt54827.2022.9984313

26. Chaparla, Rishitej, Shaik Imamvali, Sreenivasulu Tupakula, Krishna Prakash, Shonak Bansal, Mohd Muzafar Ismail, and Ahmed Jamal Abdullah Al-Gburi, "Spoof surface plasmon polaritons-based feeder for a dielectric rod antenna at microwave frequencies," Progress In Electromagnetics Research M, Vol. 129, 23–32, 2024.
doi:10.2528/PIERM24080403        Google Scholar
