Abstract

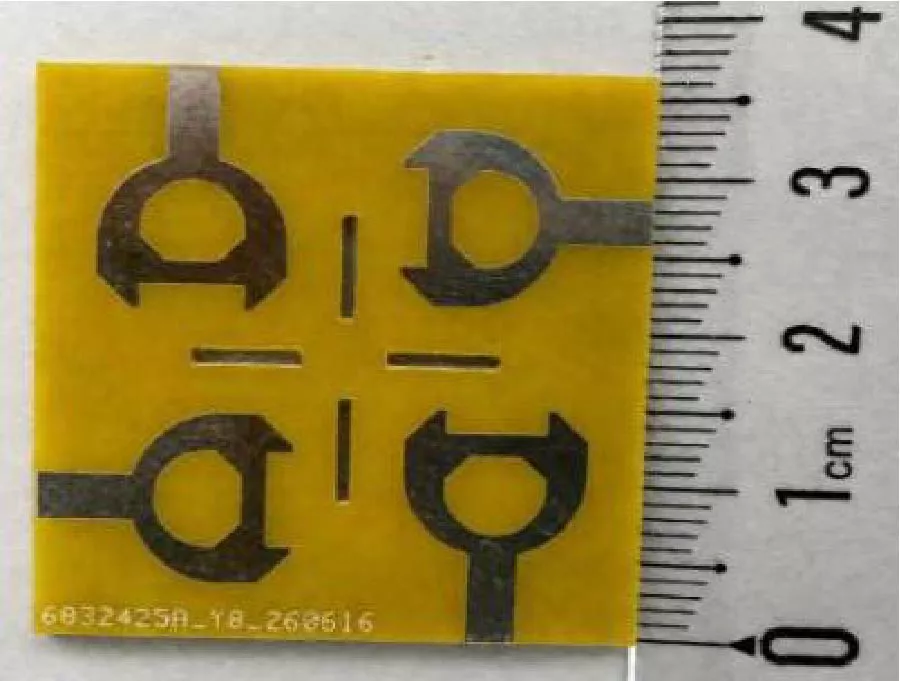

To address the problem of increased electromagnetic mutual coupling caused by multi-antenna integration in compact wireless communication terminals, this study presents a compact four-element, high-isolation, ultra-wideband (UWB), multiple-input multiple-output (MIMO) antenna operating in the 6.5-14 GHz frequency band. The proposed antenna is compact measuring 36 mm×36 mm×1.6 mm. The radiating elements adopt an orthogonally symmetric configuration, with chamfered corners and slot-loading techniques used to enhance impedance matching and broaden impedance bandwidth. To effectively reduce mutual coupling between adjacent elements, a composite decoupling structure is developed, which integrates a non-through isolation slot, embedded metallic patches, and a cross-shaped defected ground structure (cross-DGS). The proposed structure effectively enhances in-band isolation by altering coupling current paths and redistributing surface currents on the ground plane. The results demonstrate that, in the 6.5-14 GHz operating band, the antenna achieves S₁₁ < -10 dB, the adjacent-port isolation (S₂₁) exceeding 20 dB, an envelope correlation coefficient (ECC) below 0.0035, and a diversity gain (DG) close to 10 dB. The proposed antenna combines a compact size, wide operating bandwidth, enhanced isolation, and good diversity performance, providing a potential candidate for compact UWB-MIMO terminals requiring low mutual coupling.
