2026-09-21
A Concentric Multi-Ring Circular Monopole Antenna Designed by Characteristic Mode Analysis for Continuous Sub-6 GHz 5G Coverage
By
Immanuel Prabaharan Soundararajan,

    Mr. Immanuel Prabaharan Soundararajan

    Department of Electrical and Electronics Engineering

    Academy of Maritime Education and Training (AMET), Deemed to be University

    India

    Homepage

Muthurajan Subramoniam,

    Dr. Muthurajan Subramoniam

    Department of Electrical and Electronics Engineering

    Academy of Maritime Education and Training (AMET), Deemed to be University

    India

    Homepage

Arul Kulandaivel,

    Dr. Arul Kulandaivel

    Department of Marine Engineering

    Academy of Maritime Education and Training (AMET), Deemed to be University

    India

    Homepage

Lakshmi Dhandapani,

    Dr. Lakshmi Dhandapani

    Department of Electrical and Electronics Engineering

    Academy of Maritime Education and Training (AMET) Deemed to be University

    India

    Homepage

Rajeshkumar Dhandapani

    Dr. Rajeshkumar Dhandapani

    Vel Tech Rangarajan Dr. Sagunthala R&D Institute of Science and Technology

    India

    Homepage

Progress In Electromagnetics Research C, Vol. 173, 321-330, 2026
doi:10.2528/PIERC26080901 | Google Scholar

Abstract

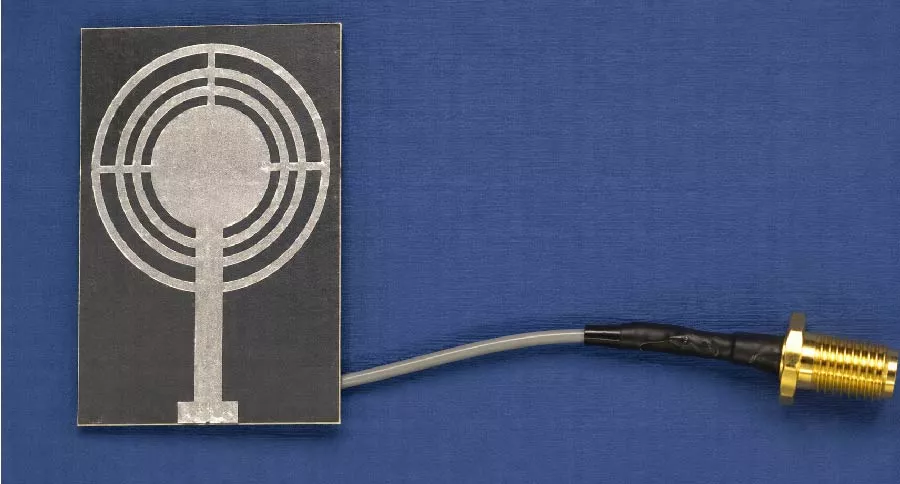

This paper presents a single-port concentric multi-ring circular monopole in which each ring is a separate characteristic-mode resonator, and cross spokes force the ring currents in phase so that the individual ring resonances merge into one continuous impedance band. This ring-per-mode partitioning distinguishes the design from single-mode monopoles, and characteristic mode analysis (CMA) is used to place and order the modes rather than explain a finished geometry. The radiator occupies 0.27λ0 × 0.39λ0 on a 33 × 23 × 0.8 mm3 RT/Duroid 5880 substrate (εr = 2.2, tan δ = 0.0009), a low-permittivity laminate that resists miniaturisation. A central disc of radius 5.5 mm and three concentric rings of mean radii 6.27, 7.79, and 10.14 mm are excited by a 50 Ω microstrip line whose 2.465 mm width follows directly from Hammerstad synthesis, and a triangular tapered partial ground of height 10.66 mm - one quarter-wavelength at band centre completes the match. Closed-form ring resonances of 3.72, 4.84 and 6.02 GHz agree with the modal spectrum and with the measured lower resonance at 3.65 GHz to within 1.9%. The measured impedance band spans 3.50-6.15 GHz, a fractional bandwidth of 54.9% centered at 4.83 GHz, and covers the 5G NR n77, n78 and n79 bands together with the 5.5 GHz WLAN band in one continuous match. A physically partitioned equivalent circuit, one series-RLC branch per ring with every branch resonance fixed to its closed-form value, reproduces the full-wave reflection response with a 0.72 dB RMS error. The design gives a compact, single-layer, single-feed route to full sub-6 GHz coverage with an analysis chain that ties every dimension to a resonant mechanism.
Download Full Article (21) View Full Article volume
Citation
Immanuel Prabaharan Soundararajan, Muthurajan Subramoniam, Arul Kulandaivel, Lakshmi Dhandapani, and Rajeshkumar Dhandapani, "A Concentric Multi-Ring Circular Monopole Antenna Designed by Characteristic Mode Analysis for Continuous Sub-6 GHz 5G Coverage," Progress In Electromagnetics Research C, Vol. 173, 321-330, 2026.
doi:10.2528/PIERC26080901
References

1. Harrington, R. and J. Mautz, "Theory of characteristic modes for conducting bodies," IEEE Transactions on Antennas and Propagation, Vol. 19, No. 5, 622-628, September 1971.
doi:10.1109/tap.1971.1139999        Google Scholar

2. Garbacz, R. and R. Turpin, "A generalized expansion for radiated and scattered fields," IEEE Transactions on Antennas and Propagation, Vol. 19, No. 3, 348-358, May 1971.
doi:10.1109/tap.1971.1139935        Google Scholar

3. Adams, Jacob J. and Jennifer T. Bernhard, "Broadband equivalent circuit models for antenna impedances and fields using characteristic modes," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 8, 3985-3994, August 2013.
doi:10.1109/tap.2013.2261852        Google Scholar

4. Iriqat, Sanaa, Sibel Yenikaya, and Mustafa Secmen, "Design and characterization of a circular ring monopole antenna and its MIMO configuration for sub-6 GHz, sub-7 GHz and mm-Wave 5G applications," Physica Scripta, Vol. 99, No. 12, 125533, 2024.
doi:10.1088/1402-4896/ad8e97        Google Scholar

5. Han, Min and Wenbin Dou, "Compact clock-shaped broadband circularly polarized antenna based on characteristic mode analysis," IEEE Access, Vol. 7, 159952-159959, 2019.
doi:10.1109/access.2019.2951371        Google Scholar

6. Tran, Huy Hung, Nghia Nguyen-Trong, and Amin M. Abbosh, "Simple design procedure of a broadband circularly polarized slot monopole antenna assisted by characteristic mode analysis," IEEE Access, Vol. 6, 78386-78393, 2018.
doi:10.1109/access.2018.2885015        Google Scholar

7. Heo, Hyuk, Myeong-Jun Kang, Seoungyong Park, Jisu Lee, Longyue Qu, and Kyung-Young Jung, "Design of a UWB circularly-polarized planar monopole antenna using characteristic mode analysis," Scientific Reports, Vol. 14, No. 1, 26236, 2024.
doi:10.1038/s41598-024-78131-w        Google Scholar

8. Khan, Rabia, Waleed Tariq Sethi, Waqar Ahmad Malik, Latif Jan, Muhammad M. Tahseen, Ali M. Almuhlafi, and Mohamed Himdi, "Enhancing gain and isolation of a quad-element MIMO antenna array design for 5G sub-6 GHz applications assisted with characteristic mode analysis," Scientific Reports, Vol. 14, No. 1, 11111, 2024.
doi:10.1038/s41598-024-61789-7        Google Scholar

9. Fazal, Dilaawaiz, Qasim Umar Khan, and Ic-Pyo Hong, "Multiband antenna design with enhanced radiations using characteristic mode analysis," Scientific Reports, Vol. 13, No. 1, 17829, 2023.
doi:10.1038/s41598-023-44923-9        Google Scholar

10. Ullah, Ubaid, Slawomir Koziel, and Anna Pietrenko-Dabrowsks, "Characteristics mode analysis and excitation of orthogonal modes on a single substrate for wideband IoT applications in the millimeter wave band," Scientific Reports, Vol. 15, No. 1, 8810, 2025.
doi:10.1038/s41598-025-93578-1        Google Scholar

11. Chakraborty, Swarup, Muhammad Asad Rahman, Md. Azad Hossain, Eisuke Nishiyama, and Ichihiko Toyoda, "A novel dual-band elliptical ring slot MIMO antenna with orthogonal circular polarization for 5G applications," Heliyon, Vol. 10, No. 13, e33176, 2024.
doi:10.1016/j.heliyon.2024.e33176        Google Scholar

12. Chand, Naguboina Gopi and K. Anusudha, "Compact two-port dual- and triple-band MIMO antennas with orthogonally placed microstrip monopole elements for 5G N77/78/79 sub-6-GHz applications," International Journal of Communication Systems, Vol. 38, No. 13, e70183, 2025.
doi:10.1002/dac.70183        Google Scholar

13. Kanisha, R. K., C. Rimmya, and M. Ganesh Madhan, "Compact quad-port dual-polarized wideband MIMO antenna with rotational-symmetry decoupling element for n77/n78 band diversity," International Journal of Communication Systems, Vol. 39, No. 4, e70430, 2026.
doi:10.1002/dac.70430        Google Scholar

14. Dhananjeyan, R., S. Ramesh, D. Rajesh Kumar, and Om Prakash Kumar, "Compact octagonal MIMO antenna system for broadband applications with enhanced isolation and wideband performance," Scientific Reports, Vol. 15, No. 1, 18921, 2025.
doi:10.1038/s41598-025-03494-7        Google Scholar

15. Jiang, Jun-Yi and Hsin-Lung Su, "A wideband eight-element MIMO antenna array in 5G NR n77/78/79 and WLAN-5 GHz bands for 5G smartphone applications," International Journal of Antennas and Propagation, Vol. 2022, No. 1, 8456936, 2022.
doi:10.1155/2022/8456936        Google Scholar

16. Moradikordalivand, A., T. A. Rahman, S. Ebrahimi, and S. Hakimi, "An equivalent circuit model for broadband modified rectangular microstrip-fed monopole antenna," Wireless Personal Communications, Vol. 77, No. 2, 1363-1375, 2014.
doi:10.1007/s11277-013-1585-y        Google Scholar

17. Liang, J., C. C. Chiau, X. Chen, and C. G. Parini, "Printed circular ring monopole antennas," Microwave and Optical Technology Letters, Vol. 45, No. 5, 372-375, June 2005.
doi:10.1002/mop.20827        Google Scholar

18. Sandeep, Duvvada Ram, Abdulkarem H. M. Almawgani, Syed Salma, Kona Sanjay Kumar, Adam R. H. Alhawari, Palepu Vijaya Santhi, and Boddapati T. P. Madhav, "Smart antenna with conductive fabric for internet of things applications: A fusion of comfort and connectivity," The European Physical Journal Plus, Vol. 141, No. 3, 246, March 2026.
doi:10.1140/epjp/s13360-026-07288-2        Google Scholar

19. Bait-Suwailam, Mohammed M., Omar F. Siddiqui, and Omar M. Ramahi, "Mutual coupling reduction between microstrip patch antennas using slotted-complementary split-ring resonators," IEEE Antennas and Wireless Propagation Letters, Vol. 9, 876-878, 2010.
doi:10.1109/lawp.2010.2074175        Google Scholar

20. Alhaqbani, Hatim S., Mohammed M. Bait-Suwailam, Maged A. Aldhaeebi, and Thamer S. Almoneef, "Wideband diversity MIMO antenna design with hexagonal slots for 5G smart mobile terminals," Progress In Electromagnetics Research C, Vol. 120, 105-117, 2022.
doi:10.2528/pierc22031604        Google Scholar

21. Ghawbar, Fayad, Jumadi A. Sukur, Huda A. Majid, Mohammed M. Bait-Suwailam, Hassan Al-Lawati, Abdulrahman A. G. Amer, Faiz A. Saparudin, and Aimi S. A. Ghafar, "Highly self-isolated 12-MIMO antenna elements for 5G mobile applications," Electronics, Vol. 14, No. 7, 1424, 2025.
doi:10.3390/electronics14071424        Google Scholar
