Abstract

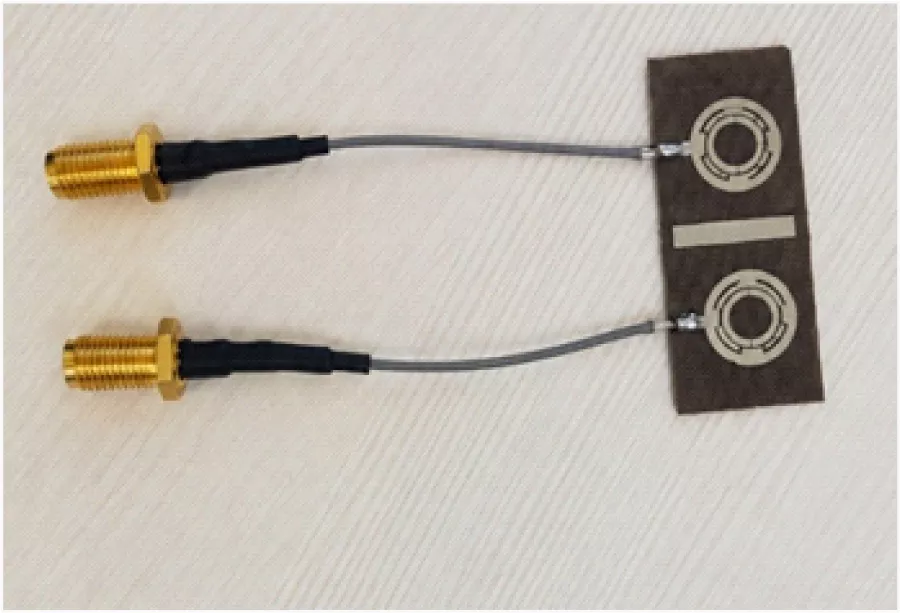

A two-port multiple-input multiple-output (MIMO) antenna that pairs a slotted annular-ring radiator with a single front-side parasitic strip is reported for X- and Ku-band service. Three features distinguish the design. A set of eight arc slots elongates the ring-current path by 9.1% and drags the lower band edge down to 8.00 GHz on a board only 0.40λ₀ tall, so the aperture keeps a narrow strip outline suited to edge mounting. The front-side strip works as a three-quarter-wave trap on the shared substrate and lifts worst-case in-band isolation by 8.4 dB with no defected ground and no via. Every element of the accompanying circuit model maps to a named piece of metal, which lets the model track S₂₁ as well as S₁₁, whearea most published models fit the reflection coefficient alone. The radiator occupies 40 × 15 × 0.8 mm³ on Rogers RT/Duroid 5880 (ε_r = 2.2, tanδ = 0.0009). Measurement gives a -10 dB band of 8.00-13.96 GHz, a fractional bandwidth of 54.3%, isolation better than 21.1 dB across the band with a 33.4 dB peak, gain of 4.0-6.5 dBi and radiation efficiency of 77-84%. Diversity metrics stay within useful limits: envelope correlation coefficient below 0.0038, diversity gain above 9.981 dB, mean effective gain between -3.05 and -3.52 dB, channel capacity loss under 0.331 b/s/Hz and ergodic capacity of 13.01-13.28 b/s/Hz. Characteristic mode analysis at 8.85 and 11 GHz identifies modes carried by the ring. A quarter-wave counterpoise argument predicts the lower edge to within 1.11% of measurement, and two independent routes to the ring resonance differ by only 4.14%. The circuit model reproduces the full-wave response with 0.352 dB RMS error on S₁₁ and 0.611 dB on S₂₁, matching the upper band edge to 0.07%.

1. Singh, Sweta, Brijesh Mishra, Karunesh Shrivastva, Aditya Kumar Singh, and Rajeev Singh, "Multiband and wideband MIMO antenna for X and Ku band applications," Optical and Wireless Technologies: Proceedings of OWT 2020, 557-566, Springer, Singapore, 2021.
doi:10.1007/978-981-16-2818-4_59

2. Kumar, Praveen, Charishma Kanna, G. D. Goutham Simha, and K. Suhas, "A compact X and Ku band quad port MIMO antenna with path loss Model for urban macro and micro environments," Results in Engineering, Vol. 24, 103618, 2024.
doi:10.1016/j.rineng.2024.103618 Google Scholar

3. Mistri, Raj Kumar, Santosh Kumar Mahto, Subhajit Paul, Prabina Pattanayak, and Gajendra Kant Mishra, "Compact dual port MIMO antenna for X, Ku, K, Ka, and V band applications," International Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 38, No. 1, 70018, 2025.
doi:10.1002/jnm.70018 Google Scholar

4. Yadav, Ashok, Pramod Singh, Vikram Bali, Akhilesh Kumar, Prabina Pattanayak, and Ramesh Kumar Verma, "Design and performance analysis of compact quad-band two-port sickle-shaped MIMO antenna for wireless applications," International Journal of Numerical Modelling: Electronic Networks, Devices and Fields, Vol. 37, No. 5, 3293, September 2024.
doi:10.1002/jnm.3293 Google Scholar

5. Saleem, Summaiyya, Vinita Mirdha, Arti Meena, and Jitendra Kumar Verma, "Design and development of rogers RT/duroid 5880 substrate-based MIMO antenna for band-rejected ultrawideband applications," Proceedings of the 1st International Conference on Materials and Thermophysical Properties, 223-233, Springer, Singapore, 2025.
doi:10.1007/978-981-96-6795-6_26

6. Tiwari, Poonam, Jayant Kumar Rai, Ajay Kumar Dwivedi, Vishant Gahlaut, Pinku Ranjan, Rakesh Chowdhury, and Ashish Pandey, "A high isolated, high gain millimeter wave quad-port MIMO antenna array for wideband 5G new radio application," Scientific Reports, Vol. 15, 34484, 2025.
doi:10.1038/s41598-025-18805-1 Google Scholar

7. Xi, Shuqi, Jing Cai, Lingrong Shen, Qiangjuan Li, and Gui Liu, "Dual-band MIMO antenna with enhanced isolation for 5G NR application," Micromachines, Vol. 14, No. 1, 95, December 2022.
doi:10.3390/mi14010095 Google Scholar

8. Sivia, Jagtar Singh, Sumeet Singh Bhatia, Amandeep Kaur Sarao, and Sukhwinder Singh Mann, "A mechanical bearing shaped, two-port MIMO antenna with defected ground and T-stub for multi-standard wireless applications," Wireless Personal Communications, Vol. 146, 3769-3788, 2026.
doi:10.1007/s11277-026-12058-5 Google Scholar

9. Sim, Chow-Yen-Desmond, Vigneswaran Dhasarathan, Thien Khanh Tran, Jayshri Kulkarni, Brian A. Garner, and Yang Li, "Mutual coupling reduction in dual-band MIMO antenna using parasitic dollar-shaped structure for modern wireless communication," IEEE Access, Vol. 11, 5617-5628, 2023.
doi:10.1109/access.2023.3235761 Google Scholar

10. Qin, Yifeng, Long Zhang, Chun-Xu Mao, and Hongyi Zhu, "A compact wideband antenna with suppressed mutual coupling for 5G MIMO applications," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 4, 938-942, April 2023.
doi:10.1109/lawp.2022.3229020 Google Scholar

11. Fang, Yulin, Min Tang, and Yue Ping Zhang, "A decoupling structure for mutual coupling suppression in stacked microstrip patch antenna array," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 6, 1110-1114, June 2022.
doi:10.1109/lawp.2022.3158420 Google Scholar

12. Fang, Yixiang, Yongtao Jia, Jia-Qi Zhu, Ying Liu, and Jiadai An, "Self-decoupling, shared-aperture, eight-antenna MIMO array with MIMO-SAR reduction," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 2, 1905-1910, February 2024.
doi:10.1109/tap.2023.3339223 Google Scholar

13. Kulkarni, Jayshri, Chow-Yen-Desmond Sim, Brian Garner, and Yang Li, "A dual-CP quad-port MIMO antenna with reduced mutual coupling for X-band application," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 9, 2085-2089, September 2023.
doi:10.1109/lawp.2023.3275530 Google Scholar

14. Das Ayinala, Kabir and Prasanna Kumar Sahu, "Isolation enhanced compact dual-band quad-element MIMO antenna with simple parasitic decoupling elements," AEU: Archiv fur Elektronik und Ubertragungstechnik: Electronic and Communication, No. 142, 142, 2021.
doi:10.1016/j.aeue.2021.154013 Google Scholar

15. Prasad, K. V. and Venkata Siva Prasad Makkapati, "Investigation of slotted ground and M-shaped DGS in enhancing MIMO antenna isolation," Wireless Personal Communications, Vol. 136, No. 4, 2027-2045, June 2024.
doi:10.1007/s11277-024-11016-3 Google Scholar

16. Thackston, Kyle A., Jori Platt, and Daniel F. Sievenpiper, "A MIMO antenna synthesis algorithm using characteristic modes," The Journal of Engineering, Vol. 2022, No. 1, 86-93, October 2021.
doi:10.1049/tje2.12098 Google Scholar

17. Lowell, Stephanie and Rishad A. Irani, "Quality of regular waves experimentally generated by plunger-type wavemakers with mean flow," Results in Engineering, Vol. 26, 105424, 2025.
doi:10.1016/j.rineng.2025.105424 Google Scholar

18. Khan, Rabia, Waleed Tariq Sethi, Waqar Ahmad Malik, Latif Jan, Muhammad M. Tahseen, Ali M. Almuhlafi, and Mohamed Himdi, "Enhancing gain and isolation of a quad-element MIMO antenna array design for 5G sub-6 GHz applications assisted with characteristic mode analysis," Scientific Reports, Vol. 14, No. 1, 11111, May 2024.
doi:10.1038/s41598-024-61789-7 Google Scholar

19. Heo, Hyuk, Myeong-Jun Kang, Seoungyong Park, Jisu Lee, Longyue Qu, and Kyung-Young Jung, "Design of a UWB circularly-polarized planar monopole antenna using characteristic mode analysis," Scientific Reports, Vol. 14, 26236, 2024.
doi:10.1038/s41598-024-78131-w Google Scholar

20. Ullah, Ubaid, Slawomir Koziel, and Anna Pietrenko-Dabrowsks, "Characteristics mode analysis and excitation of orthogonal modes on a single substrate for wideband IoT applications in the millimeter wave band," Scientific Reports, Vol. 15, 8810, 2025.
doi:10.1038/s41598-025-93578-1 Google Scholar

21. Meher, Priya Ranjan and Sanjeev Kumar Mishra, "Design and development of mathematical equivalent circuit model of broadband circularly polarized semi-annular ring shaped monopole antenna," Progress In Electromagnetics Research C, Vol. 129, 73-87, 2023.
doi:10.2528/pierc22120909 Google Scholar

22. Let, G. Shine, G. Josemin Bala, C. Benin Pratap, Doondi Kumar Janapala, and Talluri Kezia, "Concentric semi-circular ring loaded multi-band antenna for wireless applications," Analog Integrated Circuits and Signal Processing, Vol. 114, 113-124, 2023.
doi:10.1007/s10470-022-02123-x Google Scholar

23. Abhishek, Amit and P. Suraj, "Circular ring structure with tapered feed monopole antenna for ISM-III/5G (24 GHz) applications," National Academy Science Letters, Vol. 47, No. 6, 671-676, April 2024.
doi:10.1007/s40009-024-01403-6 Google Scholar

24. Harrington, R. and J. Mautz, "Theory of characteristic modes for conducting bodies," IEEE Transactions on Antennas and Propagation, Vol. 19, No. 5, 622-628, September 1971.
doi:10.1109/tap.1971.1139999 Google Scholar
