Abstract

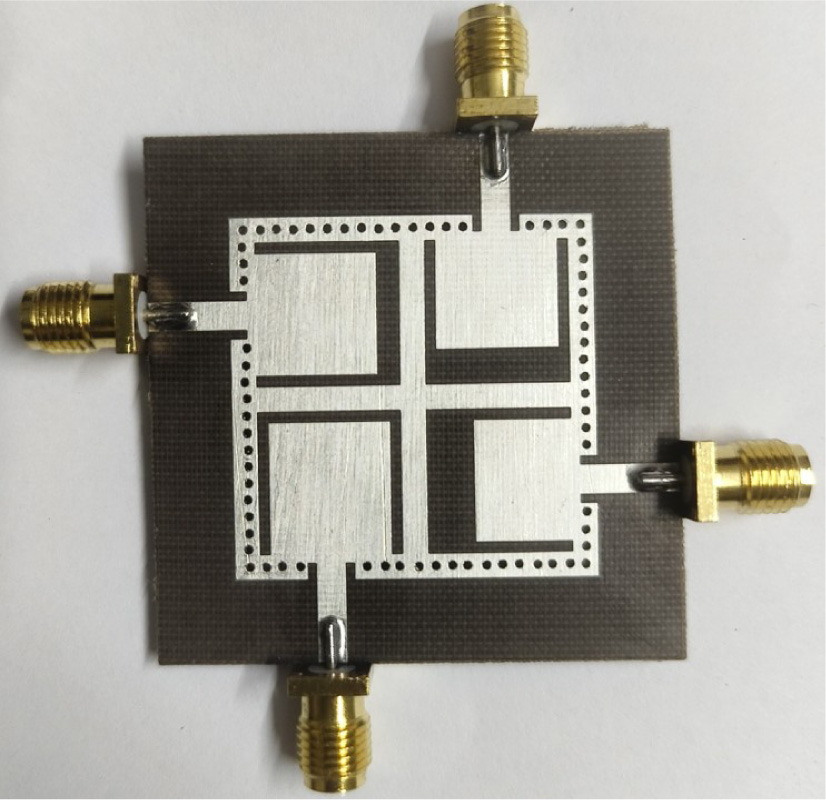

In this paper, a substrate integrated waveguide based self-quadplexing antenna with modified U-shaped slots is presented. The quadplexing antenna resonates at four distinct frequencies 4.02 GHz, 4.37 GHz, 4.78 GHz and 5.26 GHz by adjusting the length of U-shaped slots. The antenna shows a minimum port isolation of >34 dB between any two ports. The self-quadplexing antenna gives the frequency tunability and shows an unidirectional radiation pattern at the corresponding operating frequencies. The simulated (measured) gains of the antenna are 5.18 dBi (5.24 dBi), 5.51 dBi (5.57 dBi), 5.03 dBi (5.14 dBi), and 5.12 dBi (5.19 dBi). The proposed antenna is independent of frequency tunability by the excitation of four ports with an antenna size of 0.12 λ₀², where λ₀ is the free space wavelength at the lowest resonant frequency. These features make the proposed antenna suitable for WLAN, ISM, INSAT C, Wi-Fi applications.

1. Maruti, Ayyadevara Murali and Bhavan S. Naga Kishore, "Dual-band SIW slot array filtering antenna for X and Ku band applications," Progress In Electromagnetics Research Letters, Vol. 103, 109-117, 2022.
doi:10.2528/pierl22020306

2. Subani, Shaik Mahaboob, S. Nagakishore Bhavanam, Vasujadevi Midasala, and M. Gopi Krishna, "HMSIW-based MIMO antenna with enhanced isolation for advanced V2X communication," 2025 10th International Conference on Signal Processing and Communication (ICSC), 114-118, Noida, India, Feb. 2025.
doi:10.1109/icsc64553.2025.10967725

3. Bozzi, M., A. Georgiadis, and K. Wu, "Review of substrate-integrated waveguide circuits and antennas," IET Microwaves, Antennas & Propagation, Vol. 5, No. 8, 909-920, 2011.
doi:10.1049/iet-map.2010.0463

4. Deslandes, D. and Ke Wu, "Single-substrate integration technique of planar circuits and waveguide filters," IEEE Transactions on Microwave Theory and Techniques, Vol. 51, No. 2, 593-596, 2003.
doi:10.1109/tmtt.2002.807820

5. Deslandes, D. and Ke Wu, "Accurate modeling, wave mechanisms, and design considerations of a substrate integrated waveguide," IEEE Transactions on Microwave Theory and Techniques, Vol. 54, No. 6, 2516-2526, 2006.
doi:10.1109/tmtt.2006.875807

6. Iqbal, Amjad, Ismail Ben Mabrouk, Muath Al-Hasan, Mourad Nedil, and Tayeb A. Denidni, "Wideband substrate integrated waveguide antenna for full-duplex systems," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 1, 212-216, 2022.
doi:10.1109/lawp.2021.3125610

7. JayaPrakash, V. and D. S. Chandu, "Self-isolated quadruplexing SIW antenna with extremely low frequency ratio for C-band applications," Microwave and Optical Technology Letters, Vol. 66, No. 2, 2024.
doi:10.1002/mop.34064

8. Althuwayb, Ayman A., "Design of highly compact self‐diplexing Y‐shaped slot antenna employing quarter‐mode substrate integrated waveguide," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 31, No. 10, e22827, 2021.
doi:10.1002/mmce.22827

9. Pradhan, Nrusingha Charan, Karthikeyan Sholampettai Subramanian, Rusan Kumar Barik, and Qingsha S. Cheng, "A shielded-QMSIW-based self-diplexing antenna for closely spaced bands and high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2382-2386, 2021.
doi:10.1109/lawp.2021.3112610

10. Iqbal, Amjad, Muath Al-Hasan, Ismail Ben Mabrouk, and Mourad Nedil, "Ultracompact quarter-mode substrate integrated waveguide self-diplexing antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 7, 1269-1273, 2021.
doi:10.1109/lawp.2021.3077451

11. Dash, Sounik Kiran Kumar, Qingsha S. Cheng, Rusan Kumar Barik, Nrusingha Charan Pradhan, and Karthikeyan Sholampettai Subramanian, "A compact substrate integrated self-diplexing antenna for WiFi and ISM band applications," 2020 50th European Microwave Conference (EuMC), 232-235, Utrecht, Netherlands, 2021.
doi:10.23919/eumc48046.2021.9337976

12. Barik, R. K., Q. S. Cheng, S. K. K. Dash, N. C. Pradhan, and S. S. Karthikeyan, "Compact high-isolation self-diplexing antenna based on SIW for C-band applications," Journal of Electromagnetic Waves and Applications, Vol. 34, No. 7, 960-974, 2020.
doi:10.1080/09205071.2020.1763859

13. Iqbal, Amjad, Jun Jiat Tiang, Ching Kwang Lee, and Nazih Khaddaj Mallat, "SIW cavity backed self-diplexing tunable antenna," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 8, 5021-5025, 2021.
doi:10.1109/tap.2021.3060024

14. Iqbal, Amjad, Marwa Ammar Selmi, Lway Faisal Abdulrazak, Omar A. Saraereh, Nazih Khaddaj Mallat, and Amor Smida, "A compact substrate integrated waveguide cavity-backed self-triplexing antenna," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 11, 2362-2366, 2020.
doi:10.1109/tcsii.2020.2966527

15. Priya, Shruti and Santanu Dwari, "A compact self-triplexing antenna using HMSIW cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 19, No. 5, 861-865, 2020.
doi:10.1109/lawp.2020.2982533

16. Nigam, Padmini, Rahul Agarwal, Arjuna Muduli, Sandeep Sharma, and Amrindra Pal, "Substrate integrated waveguide based cavity‐backed self‐triplexing slot antenna for X‐Ku band applications," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 4, e22172, 2020.
doi:10.1002/mmce.22172

17. Kumar, Arvind, Divya Chaturvedi, and Singaravelu Raghavan, "Low‐profile substrate integrated waveguide (SIW) cavity‐backed self‐triplexed slot antenna," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 29, No. 3, e21606, 2019.
doi:10.1002/mmce.21606

18. JayaPrakash, V. and D. S. Chandu, "Self-triplexing HMSIW antenna with enhanced isolation and extremely low frequency ratio," AEU --- International Journal of Electronics and Communications, Vol. 170, 154829, 2023.
doi:10.1016/j.aeue.2023.154829

19. Barik, Rusan Kumar and Slawomir Koziel, "Highly miniaturized self-quadruplexing antenna based on substrate-integrated rectangular cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 3, 482-486, 2023.
doi:10.1109/lawp.2022.3216305

20. Naseri, Hassan, Peyman PourMohammadi, Amjad Iqbal, Ahmed A. Kishk, and Tayeb A. Denidni, "SIW-based self-quadruplexing antenna for microwave and mm-wave frequencies," IEEE Antennas and Wireless Propagation Letters, Vol. 21, No. 7, 1482-1486, 2022.
doi:10.1109/lawp.2022.3172007

21. Kumar, Arvind, "Design of self-quadruplexing antenna using substrate-integrated waveguide technique," Microwave and Optical Technology Letters, Vol. 61, No. 12, 2687-2689, 2019.
doi:10.1002/mop.31952

22. Singh, Abhay Kumar and Paras, "Compact self-quadruplexing antenna based on SIW cavity-backed with enhanced isolation," Progress In Electromagnetics Research C, Vol. 110, 243-252, 2021.
doi:10.2528/pierc21020106

23. Priya, Shruti, Santanu Dwari, Kundan Kumar, and Mrinal Kanti Mandal, "Compact self-quadruplexing SIW cavity-backed slot antenna," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 10, 6656-6660, 2019.
doi:10.1109/tap.2019.2925124

24. Nigam, Padmini and Venkatesh Shenoy, "Self-quadplexing slot antenna for S-and C-band applications," Telecommunications and Radio Engineering, Vol. 82, No. 2, 17-30, 2023.
doi:10.1615/telecomradeng.2022037135

25. Dash, Sounik Kiran Kumar, Qingsha S. Cheng, and Rusan Kumar Barik, "A compact substrate integrated waveguide backed self‐quadruplexing antenna for C‐band communication," International Journal of RF and Microwave Computer-Aided Engineering, Vol. 30, No. 10, e22366, 2020.
doi:10.1002/mmce.22366

26. Kumar, Kundan, Shruti Priya, Santanu Dwari, and Mrinal Kanti Mandal, "Self-quadruplexing circularly polarized SIW cavity-backed slot antennas," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 8, 6419-6423, 2020.
doi:10.1109/tap.2020.2970101

27. Katta, Anil Kumar and Praveen Babu Choppala, "A compact four port high-isolation SIW-backed self-quadruplexing antenna with a swastik shaped slot for C band applications," Progress In Electromagnetics Research C, Vol. 143, 57-66, 2024.
doi:10.2528/pierc24022702

28. Kumar, Arvind and Singaravelu Raghavan, "Planar cavity-backed self-diplexing antenna using two-layered structure," Progress In Electromagnetics Research Letters, Vol. 76, 91-96, 2018.
doi:10.2528/pierl18031605

29. Chaturvedi, Divya and Singaravelu Raghavan, "Compact QMSIW based antennas for WLAN/WBAN applications," Progress In Electromagnetics Research C, Vol. 82, 145-153, 2018.
doi:10.2528/pierc18012003

30. Jin, Cheng, Rui Li, Arokiaswami Alphones, and Xiaoyue Bao, "Quarter-mode substrate integrated waveguide and its application to antennas design," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 6, 2921-2928, 2013.
doi:10.1109/tap.2013.2250238

Dr. Shaik Mahaboob Subani

Dr. Satya Nagakishore Bhavanam

Dr. Vasujadevi Midasala

Dr. Mallarapu Gopi Krishna
