Abstract

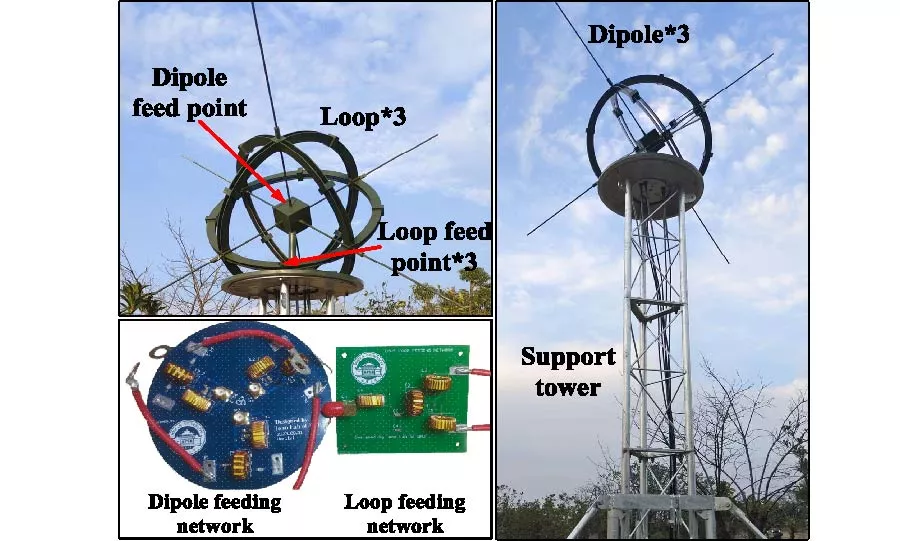

This letter presents a compact electromagnetic vector antenna (EMVA) operating across the 3–30 MHz high-frequency (HF) band and capable of simultaneously sensing all six Cartesian components of the electromagnetic field. The design integrates three orthogonal dipoles and three orthogonal loops co-located at a common phase center (CPC), enabling full vector-field reconstruction for polarization analysis and direction finding. A transformer-assisted broadband passive matching network ensures impedance compatibility across the HF band, with measured insertion loss and inter-port isolation appropriate for electrically small HF elements. Field experiments using an ionospheric sounding configuration validate the antenna's effectiveness, achieving RMS direction-of-arrival errors of 10.02° (azimuth) and 8.42° (elevation) for O-mode signals, and 14.77°/26.09° for X-mode signals, respectively. These results demonstrate the suitability of the proposed CPC EMVA for compact, polarization-diverse sensing in mobile and space-constrained HF platforms.

1. Nehorai, A. and E. Paldi, "Vector-sensor array processing for electromagnetic source localization," IEEE Transactions on Signal Processing, Vol. 42, No. 2, 376-398, Feb. 1994.
doi:10.1109/78.275610 Google Scholar

2. Piao, Dazhi and Yajin Wang, "Tripolarized MIMO antenna using a compact single-layer microstrip patch," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 3, 1937-1940, Mar. 2019.
doi:10.1109/tap.2018.2889147 Google Scholar

3. Giuli, D., "Polarization diversity in radars," Proceedings of the IEEE, Vol. 74, No. 2, 245-269, Feb. 1986.
doi:10.1109/proc.1986.13457 Google Scholar

4. Andrews, Michael R., Partha P. Mitra, and Robert DeCarvalho, "Tripling the capacity of wireless communications using electromagnetic polarization," Nature, Vol. 409, No. 6818, 316-318, 2001.
doi:10.1038/35053015 Google Scholar

5. Stutzman, Warren L., Polarization in Electromagnetic Systems, Artech House, 2018.

6. Chacko, Bybi P., Gijo Augustin, and Tayeb A. Denidni, "Uniplanar slot antenna for ultrawideband polarization-diversity applications," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 88-91, 2013.
doi:10.1109/lawp.2013.2242841 Google Scholar

7. Randazzo, A., M. A. Abou-Khousa, M. Pastorino, and R. Zoughi, "Direction of arrival estimation based on support vector regression: Experimental validation and comparison with MUSIC," IEEE Antennas and Wireless Propagation Letters, Vol. 6, 379-382, 2007.
doi:10.1109/lawp.2007.903491 Google Scholar

8. Lu, Bo, Biyang Wen, Yingwei Tian, and Ruokun Wang, "Analysis and calibration of crossed-loop antenna for vessel DOA estimation in HF radar," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 1, 42-45, Jan. 2018.
doi:10.1109/lawp.2017.2772835 Google Scholar

9. Yuan, Xin, "Spatially spread dipole/loop quads/quints: For direction finding and polarization estimation," IEEE Antennas and Wireless Propagation Letters, Vol. 12, 1081-1084, 2013.
doi:10.1109/lawp.2013.2280584 Google Scholar

10. Sarkis, R. and C. Craeye, "Fast full-wave analysis of wideband circular antenna arrays devoted to accurate direction-finding and polarimetry," 2012 International Conference on Electromagnetics in Advanced Applications, 784-787, Cape Town, South Africa, 2012.
doi:10.1109/iceaa.2012.6328736

11. Tang, Wenqi, Wenzhong Qu, Ling You, Tianyun Li, Jirong Xin, and Songqiao Yang, "Estimation and separation of ionospheric narrow-band unknown O and X waves," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 892-901, Jan. 2023.
doi:10.1109/tap.2022.3215855 Google Scholar

12. Knapp, Mary, Ryan Volz, Frank D. Lind, Frank C. Robey, Alan Fenn, Kerry Johnson, Mark Silver, Alex Morris, and Sarah Klein, "HF vector sensor for radio astronomy: Ground testing results," AIAA SPACE 2016, 5498, 2016.

13. Harris, T. J., M. A. Cervera, L. H. Pederick, and A. D. Quinn, "Separation of O/X polarization modes on oblique ionospheric soundings," Radio Science, Vol. 52, No. 12, 1522-1533, 2017.
doi:10.1002/2017RS006280 Google Scholar

14. Yuan, Xin, Kainam Thomas Wong, and Keshav Agrawal, "Polarization estimation with a dipole-dipole pair, a dipole-loop pair, or a loop-loop pair of various orientations," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 5, 2442-2452, May 2012.
doi:10.1109/tap.2012.2189740 Google Scholar

15. Wong, K. T., "Direction finding/polarization estimation-dipole and/or loop triad (s)," IEEE Transactions on Aerospace and Electronic Systems, Vol. 37, No. 2, 679-684, Apr. 2001.
doi:10.1109/7.937478 Google Scholar

16. Meloling, John H., John W. Rockway, Michael P. Daly, Aldo R. Monges, Jeffery C. Allen, W. Rick Nielsen, P. Michael McGinnis, Ronald B. Thompson, and Nazia A. Mozaffar, "A vector-sensing antenna system: A high-frequency, vector-sensing array based on the two-port loop antenna element," IEEE Antennas and Propagation Magazine, Vol. 58, No. 6, 57-63, Dec. 2016.
doi:10.1109/map.2016.2609813 Google Scholar

17. Martinsen, W., "Giselle: A mutually orthogonal triple twin-loop ground-symmetrical broadband receiving antenna for the HF band," Tech. Rep., Defence Science and Technology Organisation, Department of Defence, Australian Government, 2009.

18. Wang, Xianpeng, Yuehao Guo, Fangqing Wen, Jin He, and Trieu-Kien Truong, "EMVS-MIMO radar with sparse Rx geometry: Tensor modeling and 2-D direction finding," IEEE Transactions on Aerospace and Electronic Systems, Vol. 59, No. 6, 8062-8075, Dec. 2023.
doi:10.1109/taes.2023.3297570 Google Scholar

19. Wen, Fangqing, Zhe Zhang, Hang Sun, Guan Gui, Hikmet Sari, and Fumiyuki Adachi, "2D-DOA estimation auxiliary localization of anonymous UAV using EMVS-MIMO radar," IEEE Internet of Things Journal, Vol. 11, No. 9, 16255-16266, May 2024.
doi:10.1109/jiot.2024.3351136 Google Scholar

20. Tong, Kuan, Yulong Liu, Yinsheng Ma, and Dongchao Li, "Design of high isolation electromagnetic vector antenna," 2024 14th International Symposium on Antennas, Propagation and EM Theory (ISAPE), 1-4, Hefei, China, 23-26 October 2024.
doi:10.1109/ISAPE62431.2024.10840857

21. Chen, Hua, Jiaxiong Fang, Weilong Wang, Wei Liu, Ye Tian, Qing Wang, and Gang Wang, "Near-field target localization for EMVS-MIMO radar with arbitrary configuration," IEEE Transactions on Aerospace and Electronic Systems, Vol. 60, No. 4, 5406-5417, Aug. 2024.
doi:10.1109/taes.2024.3392172 Google Scholar

22. Kononov, Ekaterina, Mary Knapp, Alexander Morris, Frank Lind, Frank Robey, and Kerri Cahoy, "Sensitivity of an electromagnetic vector sensor," 2024 IEEE Aerospace Conference, 1-8, Big Sky, MT, USA, 2024.
doi:10.1109/AERO58975.2024.10521241

23. Farina, D. J., "Superresolution compact array radiolocation technology (SuperCART) project," Flam and Russell Tech. Rep., Vol. 185, 1990. Google Scholar

24. Sarabandi, Kamal and Menglou Rao, "Bandwidth and SNR of small receiving antennas: To match or not to match," IEEE Transactions on Antennas and Propagation, Vol. 71, No. 1, 99-104, Jan. 2023.
doi:10.1109/tap.2022.3215229 Google Scholar
