Abstract

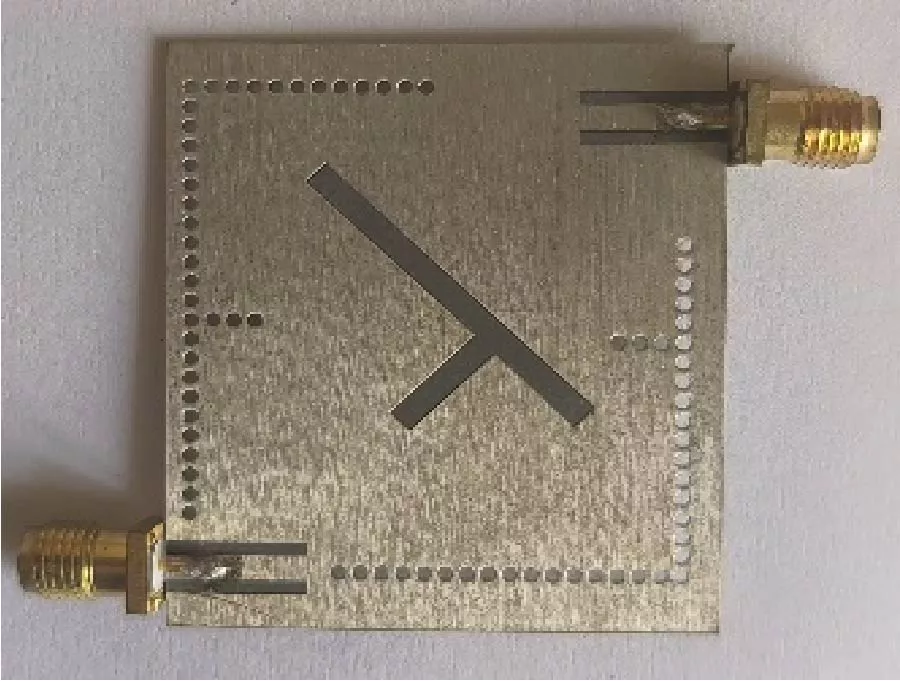

This paper presents a self-diplexing, multi-mode substrate-integrated waveguide (SIW) antenna based on a cavity-backed SIW configuration. The antenna employs a λ-shaped radiating slot that provides inherent filtering characteristics. The proposed architecture achieved independent dual-band control through two diagonally oriented slots arranged at 45°, forming a λ-shaped aperture. These slots, integrated within an SIW cavity and excited by two separate 50-Ω microstrip feeds, enable dual resonances at 10.76 GHz and 12.39 GHz, corresponding to the TE₂₁₀ and TE₂₂₀ modes for X-band and Ku-band operation, respectively. Experimental validation confirmed reflection coefficients below -10 dB in both bands, with measured bandwidths of 3.0% (10.61-10.93 GHz) and 3.2% (12.19-12.59 GHz). The proposed filtenna achieves gains of 6.12 dBi and 6.15 dBi and exhibits high port isolation exceeding 28 dB between channels, along with an overall simulated radiation efficiency of 91.16%. In addition, a single-layer structure offers two-band operation, broadside linear polarization, and intrinsic filtering functionality, making it a compact and efficient solution for X/Ku-band applications.

1. Xiang, Bing Jie, Shao Yong Zheng, Hang Wong, Yong Mei Pan, Kai Xu Wang, and Ming Hua Xia, "A flexible dual-band antenna with large frequency ratio and different radiation properties over the two bands," IEEE Transactions on Antennas and Propagation, Vol. 66, No. 2, 657-667, 2018.
doi:10.1109/tap.2017.2786321 Google Scholar

2. Iqbal, Amjad, Muath Al-Hasan, Ismail Ben Mabrouk, and Mourad Nedil, "Ultracompact quarter-mode substrate integrated waveguide self-diplexing antenna," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 7, 1269-1273, 2021.
doi:10.1109/lawp.2021.3077451 Google Scholar

3. Asaithambi, Ravindiran and Rajkishor Kumar, "Design and implementation of novel H-shaped self-diplexing SIW rectangular cavity-backed antenna with harmonic suppression for terrestrial communications," International Journal of Antennas and Propagation, Vol. 2024, No. 1, 6618202, 2024.
doi:10.1155/2024/6618202 Google Scholar

4. Mao, Chun-Xu, Zhi Hao Jiang, Douglas H. Werner, Steven Shichang Gao, and Wei Hong, "Compact self-diplexing dual-band dual-sense circularly polarized array antenna with closely spaced operating frequencies," IEEE Transactions on Antennas and Propagation, Vol. 67, No. 7, 4617-4625, 2019.
doi:10.1109/tap.2019.2911274 Google Scholar

5. Yang, Xin, Xian Qi Lin, Bao Wang, and Yihong Su, "A dual-wideband structure-shared antenna with self-diplexing property for high-power microwave application," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 7, 4201-4205, 2021.
doi:10.1109/tap.2020.3045779 Google Scholar

6. Pandey, Amit Kr., Nikesh Kumar Sahu, Ravi Kumar Gangwar, and Raghvendra Kumar Chaudhary, "SIW-cavity-backed wideband circularly polarized antenna using modified split-ring slot as a radiator for mm-wave IoT applications," IEEE Internet of Things Journal, Vol. 11, No. 7, 11793-11799, 2024.
doi:10.1109/jiot.2023.3332169 Google Scholar

7. Barik, Rusan Kumar and Slawomir Koziel, "Microfluidically frequency-reconfigurable compact self-quadruplexing tunable antenna with high isolation based on substrate integrated waveguide," Scientific Reports, Vol. 14, No. 1, 920, 2024.
doi:10.1038/s41598-024-51645-z Google Scholar

8. Kumar, Amit, Munish Kumar, and Amit Kumar Singh, "On the behavior of self-triplexing SIW cavity backed antenna with non-linear replicated hybrid slot for C and X-band applications," IEEE Access, Vol. 10, 22952-22959, 2022.
doi:10.1109/access.2022.3154064 Google Scholar

9. Kumar, Arvind and S. Imaculate Rosaline, "Hybrid half-mode SIW cavity-backed diplex antenna for on-body transceiver applications," Applied Physics A, Vol. 127, No. 11, 834, 2021.
doi:10.1007/s00339-021-04978-9 Google Scholar

10. Boukarkar, Abdelheq, Xian Qi Lin, Yuan Jiang, and Yi Qiang Yu, "A tunable dual-fed self-diplexing patch antenna," IEEE Transactions on Antennas and Propagation, Vol. 65, No. 6, 2874-2879, 2017.
doi:10.1109/tap.2017.2689035 Google Scholar

11. Barik, Rusan Kumar, Slawomir Koziel, Qingsha S. Cheng, and Stanislaw Szczepanski, "Highly miniaturized self-diplexed U-shaped slot antenna based on shielded QMSIW," IEEE Access, Vol. 9, 158926-158935, 2021.
doi:10.1109/access.2021.3131174 Google Scholar

12. Hu, Kun-Zhi, Ming-Chun Tang, Yang Wang, Dajiang Li, and Mei Li, "Compact, vertically integrated duplex filtenna with common feeding and radiating SIW cavities," IEEE Transactions on Antennas and Propagation, Vol. 69, No. 1, 502-507, 2021.
doi:10.1109/tap.2020.2999381 Google Scholar

13. Kumar, Kundan, Shruti Priya, Santanu Dwari, and Mrinal Kanti Mandal, "Self-quadruplexing circularly polarized SIW cavity-backed slot antennas," IEEE Transactions on Antennas and Propagation, Vol. 68, No. 8, 6419-6423, 2020.
doi:10.1109/tap.2020.2970101 Google Scholar

14. Lee, Yun-Jui, Jenn-Hwan Tarng, and Shyh-Jong Chung, "A filtering diplexing antenna for dual-band operation with similar radiation patterns and low cross-polarization levels," IEEE Antennas and Wireless Propagation Letters, Vol. 16, 58-61, 2017.
doi:10.1109/lawp.2016.2554603 Google Scholar

15. Iqbal, Amjad, Marwa Ammar Selmi, Lway Faisal Abdulrazak, Omar A. Saraereh, Nazih Khaddaj Mallat, and Amor Smida, "A compact substrate integrated waveguide cavity-backed self-triplexing antenna," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 67, No. 11, 2362-2366, 2020.
doi:10.1109/tcsii.2020.2966527 Google Scholar

16. Agrawal, Meha and Trivesh Kumar, "A semicircular substrate integrated waveguide-based self-diplexing slot antenna with polarization flexibility," IEEE Antennas and Wireless Propagation Letters, Vol. 22, No. 7, 1518-1521, 2023.
doi:10.1109/lawp.2023.3249350 Google Scholar

17. Lu, Yu-Chun and Yi-Cheng Lin, "A mode-based design method for dual-band and self-diplexing antennas using double T-stubs loaded aperture," IEEE Transactions on Antennas and Propagation, Vol. 60, No. 12, 5596-5603, 2012.
doi:10.1109/tap.2012.2211852 Google Scholar

18. Pourmohammadi, Peyman, Hassan Naseri, Noureddine Melouki, Fahad Ahmed, Amjad Iqbal, Guy A. E. Vandenbosch, and Tayeb A. Denidni, "Substrate integrated waveguide-based full-duplex antenna with improved out-of-band suppression," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 4, 1430-1434, 2023.
doi:10.1109/tcsii.2022.3224418 Google Scholar

19. Pradhan, Nrusingha Charan, Mettu Goutham Reddy, Karthikeyan Sholampettai Subramanian, Rusan Kumar Barik, Slawomir Koziel, and Qingsha S. Cheng, "Microfluidic SIW-based tunable self-diplexing antenna for sub-6 GHz band applications," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 70, No. 4, 1435-1439, 2023.
doi:10.1109/tcsii.2022.3224234 Google Scholar

20. Dhwaj, Kirti, Haozhan Tian, and Tatsuo Itoh, "Low-profile dual-band filtering antenna using common planar cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 17, No. 6, 1081-1084, 2018.
doi:10.1109/lawp.2018.2832631 Google Scholar

21. Xu, Hao, Haiwen Liu, Taotao Huang, and Tzu-Yu Liu, "3-D-printed dual-band circularly polarized filtering antenna with self-diplexing property for millimeter-wave applications," IEEE Transactions on Antennas and Propagation, Vol. 72, No. 4, 3807-3812, 2024.
doi:10.1109/tap.2024.3370300 Google Scholar

22. Khan, Arani Ali and Mrinal Kanti Mandal, "Compact self-diplexing antenna using dual-mode SIW square cavity," IEEE Antennas and Wireless Propagation Letters, Vol. 18, No. 2, 343-347, 2019.
doi:10.1109/lawp.2018.2890790 Google Scholar

23. Bozzi, M., A. Georgiadis, and K. Wu, "Review of substrate-integrated waveguide circuits and antennas," IET Microwaves, Antennas & Propagation, Vol. 5, No. 8, 909-920, 2011.
doi:10.1049/iet-map.2010.0463 Google Scholar

24. Xu, Feng and Ke Wu, "Guided-wave and leakage characteristics of substrate integrated waveguide," IEEE Transactions on Microwave Theory and Techniques, Vol. 53, No. 1, 66-73, 2005.
doi:10.1109/tmtt.2004.839303 Google Scholar

25. Pradhan, Nrusingha Charan, Karthikeyan Sholampettai Subramanian, Rusan Kumar Barik, and Qingsha S. Cheng, "A shielded-QMSIW-based self-diplexing antenna for closely spaced bands and high isolation," IEEE Antennas and Wireless Propagation Letters, Vol. 20, No. 12, 2382-2386, 2021.
doi:10.1109/lawp.2021.3112610 Google Scholar

26. Jin, Cheng, Rui Li, Arokiaswami Alphones, and Xiaoyue Bao, "Quarter-mode substrate integrated waveguide and its application to antennas design," IEEE Transactions on Antennas and Propagation, Vol. 61, No. 6, 2921-2928, 2013.
doi:10.1109/tap.2013.2250238 Google Scholar

Mr. Ravindiran Asaithambi

Dr. Maruthamuthu Paramasivam Prabakaran

Dr. Govindasamy Rajesh
