2026-04-04
Dual-Band Textile C-Shape Complementary Split-Ring Metamaterial MIMO Antenna for Remote Health Monitoring
By
Progress In Electromagnetics Research C, Vol. 168, 89-103, 2026
Abstract

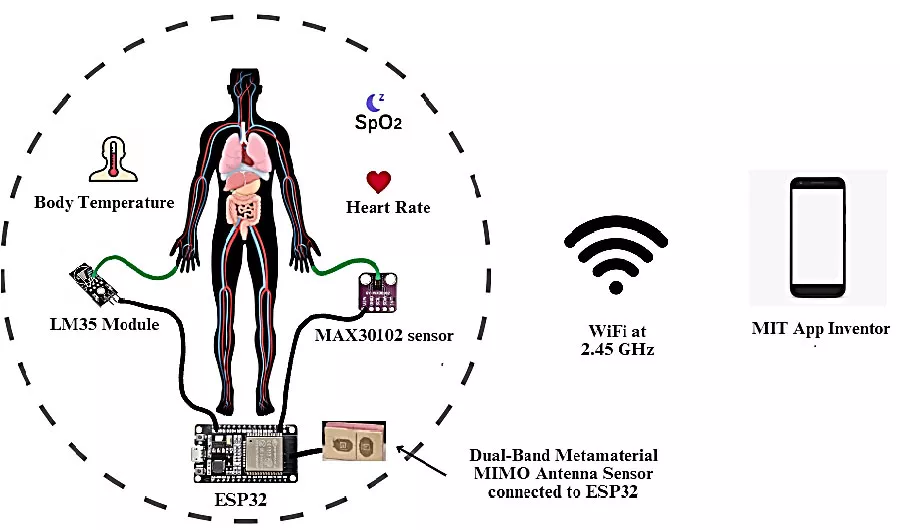

Background: Remote Health Monitoring Systems (RHMSs) rely on wearable antennas to enable reliable wireless transmission of physiological data. However, existing wearable Multiple-Input Multiple-Output (MIMO) antennas often suffer from low gain and limited isolation, particularly under flexible and on-body conditions. Methods: This study proposes a dual-band textile C-shaped Complementary Split-Ring (CSR) metamaterial-based MIMO antenna operating at 2.45 GHz and 3.5 GHz. A metasurface layer composed of a 3 × 5 CSR array is integrated beneath the radiating elements to enhance isolation and realized gain. The antenna is evaluated under flat and bending conditions, and on-body performance is validated through Specific Absorption Rate (SAR) and Received Signal Strength Indicator (RSSI) measurements. Results: The proposed antenna achieves measured Mutual Coupling (MC) lower than -30 dB and realized gains of 3.01 dBi and 6.43 dBi at 2.45 GHz and 3.5 GHz, respectively. SAR values remain well below international safety limits, and RSSI measurements confirm improved communication performance over distances up to 10 m. Conclusion: The proposed dual-band textile metamaterial MIMO antenna provides a safe, flexible, and high-performance solution for wearable RHMS applications.
Citation
Hamza Ahmad Mashagba, Hasliza A. Rahim, Nurul Anis Emillia Nazri, Mohd Najib Mohd Yasin, Nur Hidayah Ramli, Sarun Narongkul, Liyana Zahid, Azlan B. Abd Aziz, and Samir Salem Al-Bawri, "Dual-Band Textile C-Shape Complementary Split-Ring Metamaterial MIMO Antenna for Remote Health Monitoring," Progress In Electromagnetics Research C, Vol. 168, 89-103, 2026.
doi:10.2528/PIERC25120304
References

1. Musa, Umar, Amor Smida, Muhammad S. Yahya, Mohamed I. Waly, Jun Jiat Tiang, Nazih Khaddaj Mallat, Surajo Muhammad, and Abubakar Salisu, "Machine learning-optimized dual-band wearable antenna for real-time remote patient monitoring in biomedical IoT systems," Scientific Reports, Vol. 15, No. 1, 30943, 2025.
doi:10.1038/s41598-025-15984-9        Google Scholar

2. Lv, Xiaohong, Shalli Rani, Shanmuganathan Manimurugan, Adam Slowik, and Yanhong Feng, "Quantum-inspired sensitive data measurement and secure transmission in 5G-enabled healthcare systems," Tsinghua Science and Technology, Vol. 30, No. 1, 456-478, 2025.
doi:10.26599/tst.2024.9010122        Google Scholar

3. Salleh, Shakhirul Mat, Mohd Fadzil Ain, Zulkifli Ahmad, Intan Sorfina Zainal Abidin, Lee Yeng Seng, and Mohamed Nasrun Osman, "Stretchable and bendable polydimethylsiloxane-silver composite antenna on PDMS/air gap substrate for 5G wearable applications," IEEE Access, Vol. 11, 133623-133639, 2023.
doi:10.1109/access.2023.3331590        Google Scholar

4. Li, Ming-Yang, Yong-Ling Ban, Zi-Qiang Xu, Jinhong Guo, and Zhe-Feng Yu, "Tri-polarized 12-antenna MIMO array for future 5G smartphone applications," IEEE Access, Vol. 6, 6160-6170, 2018.
doi:10.1109/access.2017.2781705        Google Scholar

5. Ahmad, Jawad and Mohammad Hashmi, "Reduced inter-element interference mmWave MIMO antenna and its application in WBAN," IEEE Access, Vol. 13, 70947-70963, 2025.
doi:10.1109/access.2025.3562632        Google Scholar

6. Mashagba, Hamza A., Hasliza A. Rahim, Ismahayati Adam, Mohd Haizal Jamaluddin, Mohd Najib Mohd Yasin, Muzammil Jusoh, Thennarasan Sabapathy, Mohamedfareq Abdulmalek, Azremi Abdullah Al-Hadi, Arif Mawardi Ismail, and Ping Jack Soh, "A hybrid mutual coupling reduction technique in a dual-band MIMO textile antenna for WBAN and 5G applications," IEEE Access, Vol. 9, 150768-150780, 2021.
doi:10.1109/access.2021.3125049        Google Scholar

7. Wang, Jiali, Chengzhu Du, Jun Chu, and Ruomeng Li, "A wearable CPW-fed quad-band-notched two-port MIMO antenna for IoT applications," Progress In Electromagnetics Research C, Vol. 164, 243-252, 2026.
doi:10.2528/pierc25111004        Google Scholar

8. Gali, Rama Lakshmi and Madhavi Tatineni, "Optimized NCP MIMO antenna with dual diamond slots for enhanced isolation in 5G applications," Progress In Electromagnetics Research C, Vol. 165, 25-34, 2026.
doi:10.2528/pierc25120101        Google Scholar

9. Kumkhet, Boonyarit, Paitoon Rakluea, Norakamon Wongsin, Pubet Sangmahamad, Wanwisa Thaiwirot, Chatree Mahatthanajatuphat, and Nonchanutt Chudpooti, "SAR reduction using dual band EBG method based on MIMO wearable antenna for WBAN applications," AEU --- International Journal of Electronics and Communications, Vol. 160, 154525, 2023.
doi:10.1016/j.aeue.2022.154525        Google Scholar

10. Hasan, Md. Mhedi, Mohammad Tariqul Islam, Md. Samsuzzaman, Mohd Hafiz Baharuddin, Mohamed S. Soliman, Ahmed Alzamil, Iman I. M. Abu Sulayman, and Md. Shabiul Islam, "Gain and isolation enhancement of a wideband MIMO antenna using metasurface for 5G sub-6 GHz communication systems," Scientific Reports, Vol. 12, No. 1, 9433, 2022.
doi:10.1038/s41598-022-13522-5        Google Scholar

11. Govindan, Thennarasi, Sandeep Kumar Palaniswamy, Malathi Kanagasabai, Sachin Kumar, Mohamed Marey, and Hala Mostafa, "Design and analysis of a flexible smart apparel MIMO antenna for bio-healthcare applications," Micromachines, Vol. 13, No. 11, 1919, 2022.
doi:10.3390/mi13111919        Google Scholar

12. Shamsuri Agus, Amira Nur Suraya, Thennarasan Sabapathy, Muzammil Jusoh, Mahmoud A. Abdelghany, Kabir Hossain, Surentiran Padmanathan, Samir Salem Al-Bawri, and Ping Jack Soh, "Combined RIS and EBG surfaces inspired meta-wearable textile MIMO antenna using viscose-wool felt," Polymers, Vol. 14, No. 10, 1989, 2022.
doi:10.3390/polym14101989        Google Scholar

13. Wu, Rigeng, Jian Dong, and Meng Wang, "Wearable polarization conversion metasurface MIMO antenna for biomedical applications in 5 GHz WBAN," Biosensors, Vol. 13, No. 1, 73, 2023.
doi:10.3390/bios13010073        Google Scholar

14. Althuwayb, Ayman A., Mohammad Alibakhshikenari, Bal S. Virdee, Nasr Rashid, Khaled Kaaniche, Ahmed Ben Atitallah, Ammar Armghan, Osama I. Elhamrawy, Chan Hwang See, and Francisco Falcone, "Metasurface-inspired flexible wearable MIMO antenna array for wireless body area network applications and biomedical telemetry devices," IEEE Access, Vol. 11, 1039-1056, 2023.
doi:10.1109/access.2022.3233388        Google Scholar

15. Mood, Yugender and Ramasamy Pandeeswari, "Complementary folded line metamaterial loaded MIMO antenna for S-band applications," Progress In Electromagnetics Research C, Vol. 150, 145-155, 2024.
doi:10.2528/pierc24060604        Google Scholar

16. Song, Zhi, Shucheng Zhao, Siqi Li, Jiayi Chen, and Yanbing Xue, "High-isolation compact MIMO antenna with distributed metamaterial loading," Progress In Electromagnetics Research M, Vol. 128, 51-59, 2024.
doi:10.2528/pierm24060507        Google Scholar

17. Jaouad, Safia, Chaymae Chahboun, Mohamoed Ali Ennasar, Otman El Mrabet, Jesus Ramon Perez Lopez, Mohsine Khalladi, and Mariem Aznabet, "Metasurface-driven improvement in MIMO antenna performance by addressing mutual coupling," Progress In Electromagnetics Research C, Vol. 163, 73-80, 2026.
doi:10.2528/pierc25071401        Google Scholar

18. Hussain, Altaf, Jian Dong, Yadgar I. Abdulkarim, Rigeng Wu, Fahmi F. Muhammadsharif, Ronghua Shi, and M. M. R. Howlader, "A double negative (DNG) metamaterial based on parallel double-E square split resonators for multi-band applications: Simulation and experiment," Results in Physics, Vol. 46, 106302, 2023.
doi:10.1016/j.rinp.2023.106302        Google Scholar

19. Yang, Shuhui, Longfei Liang, Zengrui Li, and Wensong Wang, "Ultrawideband MIMO circularly polarized cube antenna with characteristic mode analysis for wireless communication and sensing," IEEE Internet of Things Journal, Vol. 11, No. 7, 12192-12202, 2024.
doi:10.1109/jiot.2023.3331878        Google Scholar

20. Jemaludin, Nazrin Haziq, Ahmed Jamal Abdullah Al-Gburi, Rania Hamdy Elabd, Tale Saeidi, Muhammad Firdaus Akbar, Imran Mohd Ibrahim, and Zahriladha Zakaria, "A comprehensive review on MIMO antennas for 5G smartphones: Mutual coupling techniques, comparative studies, SAR analysis, and future directions," Results in Engineering, Vol. 23, 102712, 2024.
doi:10.1016/j.rineng.2024.102712        Google Scholar

21. Ali, Waqas, Nizam-Uddin, Muhammad Zahid, and Sultan Shoaib, "Performance analysis and design optimization of wearable RFID sensor-antenna system for healthcare applications," IEEE Access, Vol. 13, 145540-145555, 2025.
doi:10.1109/access.2025.3596519        Google Scholar
