Abstract

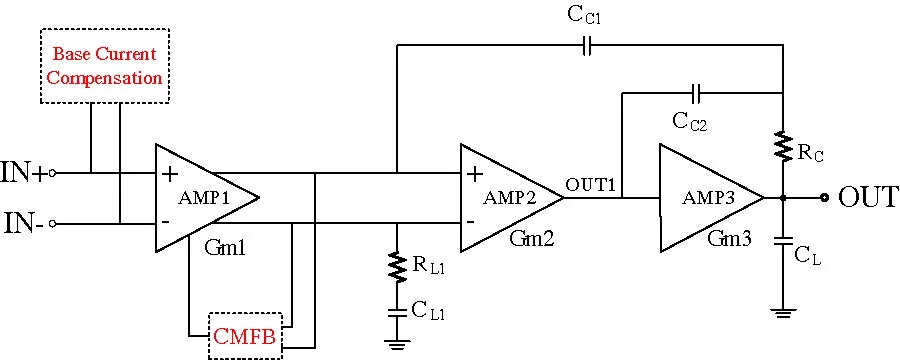

In the design of a precision operational amplifier (OPA), cancellation of the input bias current is a challenging issue, which is primarily limited by the current mirror mismatch and the low β value of the PNP transistors. This article proposes a new base current compensation design, which enables zero input-bias-current theoretically. The input stage of the circuit is an active load differential pair with a new common-mode feedback (CMFB) circuit based on the current reuse technique, which can provide a stable common-mode voltage for the amplifier without additional power consumption and area occupation. The proposed OPA is designed in a bipolar process with a core area of 2.85 mm × 1.5 mm. Simulation results show that this OPA achieves a 134 dB open-loop-gain, 50 pA input-bias-current @25˚C, and a low supply current of 0.9 mA, which suggests a concise architecture of the OPA for low offset, low noise, low input bias current, and high gain.

1. Ivanov, Vadim and Munaf Shaik, "5.1 A 10 MHz-bandwidth 4 µs-large-signal-settling 6.5 nV/√ Hz-noise 2 µV-offset chopper operational amplifier," 2016 IEEE International Solid-State Circuits Conference (ISSCC), 88-89, San Francisco, CA, USA, 2016.
doi:10.1109/ISSCC.2016.7417920

2. Pakhomov, I. V., D. V. Medvedev, A. V. Bugakova, and V. P. Dimitrov, "The new architectures of the class AB differential stages for the high-speed CMOS-BiJFET of the operational and differential difference amplifiers of the sensor analog interfaces," 2017 International Siberian Conference on Control and Communications (SIBCON), 1-6, Astana, Kazakhstan, 2017.
doi:10.1109/SIBCON.2017.7998505

3. Scandurra, G., G. Cannatà, G. Giusi, and C. Ciofi, "A differential-input, differential-output preamplifier topology for the design of ultra-low noise voltage amplifiers," 2017 International Conference on Noise and Fluctuations (ICNF), 1-4, Vilnius, Lithuania, 2017.
doi:10.1109/ICNF.2017.7985947

4. Kim, Hyungseup, Yongsu Kwon, Donggeun You, Hyun-Woong Choi, Seong Hyun Kim, Hyunwoo Heo, Choul-Young Kim, Hi-Deok Lee, and Hyoungho Ko, "Low-noise chopper amplifier using lateral PNP input stage with automatic base current cancellation," IEEE Transactions on Circuits and Systems II: Express Briefs, Vol. 68, No. 7, 2297-2301, Jul. 2021.
doi:10.1109/TCSII.2021.3063358 Google Scholar

5. Gray, Paul R., Paul J. Hurst, Stephen H. Lewis, and Robert G. Meyer, Analysis and Design of Analog Integrated Circuits, John Wiley & Sons, 2009.

6. Sansen, Willy M., Analog Design Essentials, Springer Science & Business Media, 2006.

7. Razavi, Behzad, Design of Analog CMOS Integrated Circuits, McGraw-Hill, 2001.

8. Jia, Chenqiang, Wenchang Li, Wei Ruan, Tianyi Zhang, and Jian Liu, "An ICMR-enhanced three-opamp instrumentation amplifier," Microelectronics Journal, Vol. 151, 106342, 2024.
doi:10.1016/j.mejo.2024.106342 Google Scholar

9. Thoutam, S., J. Ramirez-Angulo, A. Lopez-Martin, and R. G. Carvajal, "Power efficient fully differential low-voltage two stage class AB/AB op-amp architectures," 2004 IEEE International Symposium on Circuits and Systems (IEEE Cat. No.04CH37512), I-733, Vancouver, BC, Canada, 2004.
doi:10.1109/ISCAS.2004.1328299

10. Leung, Ka Nang and P. K. T. Mok, "Analysis of multistage amplifier-frequency compensation," IEEE Transactions on Circuits and Systems I: Fundamental Theory and Applications, Vol. 48, No. 9, 1041-1056, Sep. 2001.
doi:10.1109/81.948432 Google Scholar

11. Li, Hongpin, Fashun Yang, and Kui Ma, "Design of a low offset operational amplifier based on bias current compensation," Microelectronics & Computer, Vol. 41, No. 5, 140-146, 2024.
doi:10.19304/J.ISSN1000-7180.2023.0314 Google Scholar

12. Wang, Cheng-He, Liang Guo, and Yuan-Jie Zhou, "A low noise precision operational amplifier," 2020 IEEE 15th International Conference on Solid-State & Integrated Circuit Technology (ICSICT), 1-3, Kunming, China, 2020.
doi:10.1109/ICSICT49897.2020.9278366

13. He, Guikun, "Research on ultra-low offset integrated operational amplifier," Guizhou University, Guiyang, Guizhou, China, 2023.
doi:10.27047/d.cnki.ggudu.2023.001627

Dr. Ting Hong

Dr. Wenchang Li

Dr. Jian Liu

Dr. Tianyi Zhang
